Junction box EX-it-R

Usage

  • For ELSR-N/-H/-LS/-SH/-SHH
  • EX
    EX

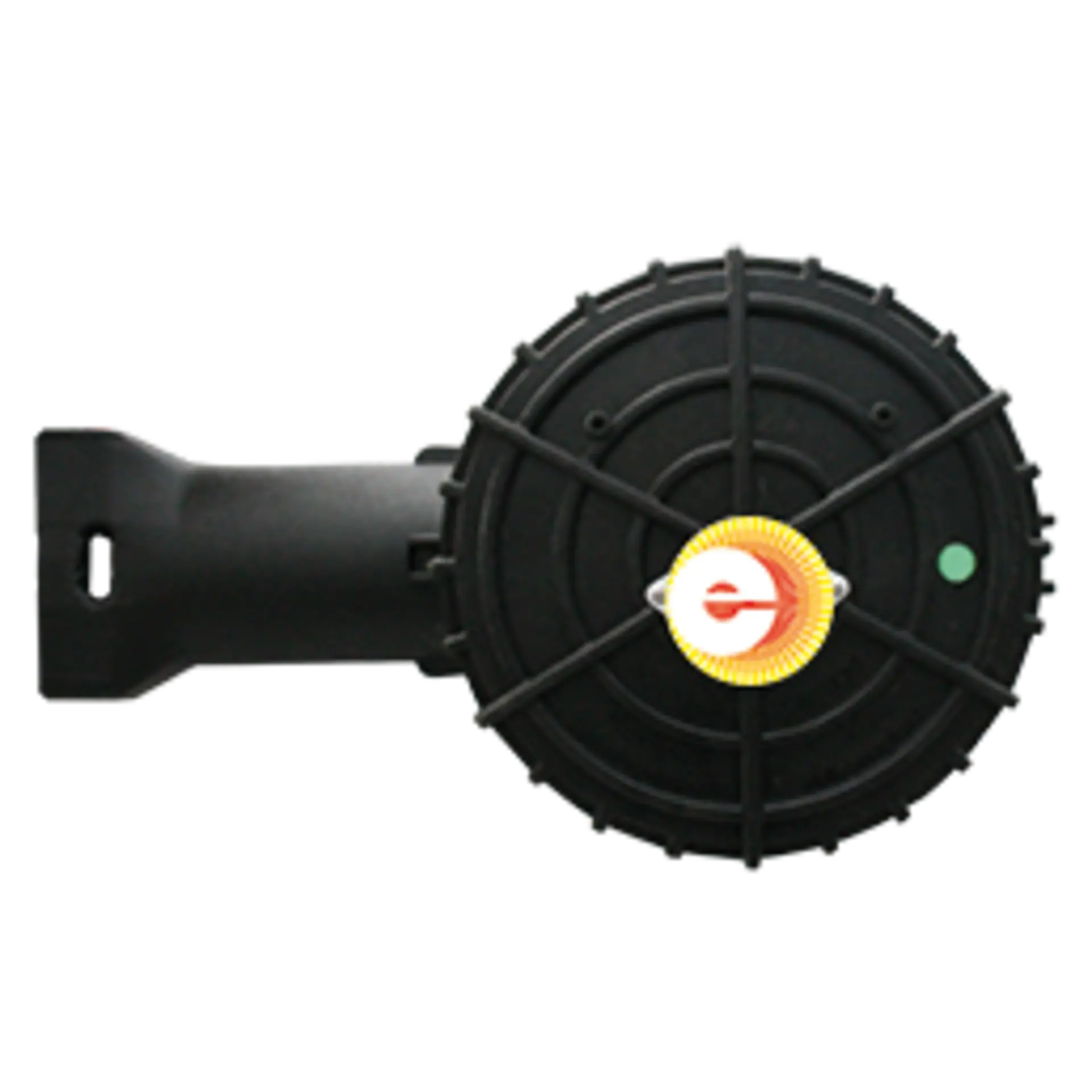

The Ex-it-R junction box with mounting bracket (Ex-it) is intended for use in explosive environments in accordance with Ex guidelines 94/9/EC (ATEX 95) and offers several advantages. Thanks to the shape of the box, the inserted cable does not need to bend sharply and thus reduces the risk of cable damage. Thanks to the mounting bracket provided, no angle irons are needed. This is particularly advantageous for heating cables on pipes as the cable can be inserted directly via the mounting bracket. In addition, no fixing screws are needed for heating pipes and sensors. A safety lock with accompanying tools prevents the cover from moving. Additional mounting options make it possible to attach rating plates for easy identification of heating circuits in complex systems.

Specifications

Specification Data
Connection terminal heating cable/sensor Max 6 mm²/1,5 mm²
Colour Black
Working temperature (mounting bracket) -20-200 °C
Insulation, max 120 mm
Enclosure class IP65
Classification (Ex) II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db
Classification (EX) mounting bracket II 2G Ex e II II 2 D Ex tD A21 IP65
Material Plastic
Installation Pipe mounting
Dimensions 150*125*90
Ambient temperature -40 - 50 ºC
Outer diameter of the pipe, min 20 mm
Impact resistance 7 Joule
