Junction box ELAK-R
Usage
- For ELSR-N/-LS/-H/ -SH/ -SHH
- For ELKM-AG-L/N
Thanks to the shape of the box, the inserted cable does not need to bend sharply and thus reduces the risk of cable damage. A safety lock with accompanying tools prevents the cover from moving. Additional mounting options make it possible to attach rating plates for easy identification of heating circuits in complex systems. Suitable for wall mounting.

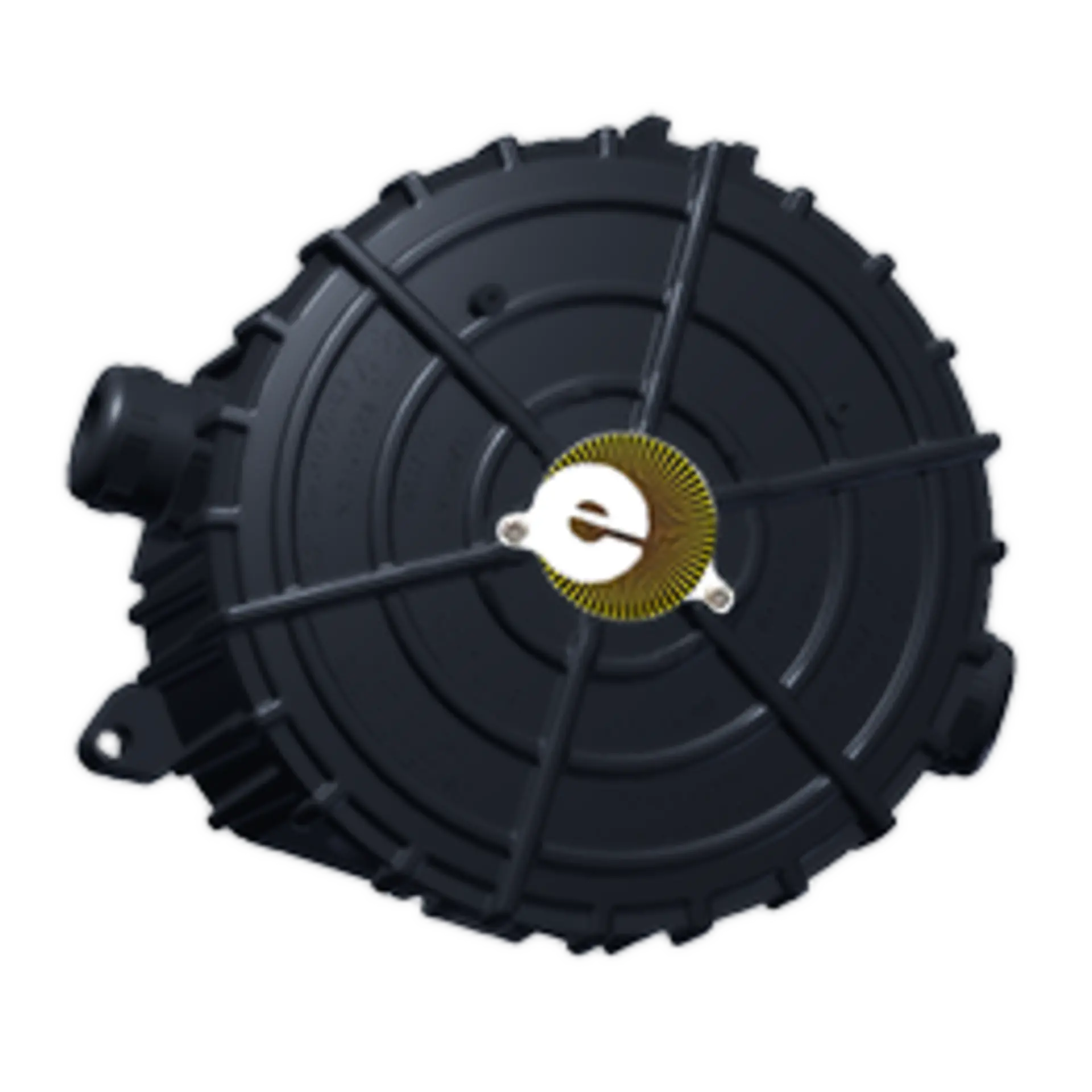

Junction box ELAK-R
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 550 V |
| Connection terminal heating cable/sensor | Max. 6 mm² / max. 1.5 mm² |
| Colour | Black |
| Enclosure class | IP65 |
| Material | Plastic |
| Installation | Wall mounting |
| Dimensions | 150*125 mm |
| Ambient temperature | -45 - 50 ºC |
| Impact resistance | 7 Joule |
