Thermoflex

Series-resistive 2-conductor with screen on self-adhesive mat

Usage

  • Laid in levelling compound
  • Underfloor heating for both wet rooms and dry areas
  • Underfloor heating for tiled, natural stone and linoleum floors
  • Flera effekter
    Several effects
  • Nät
    Mesh
  • Efficient placement with self-adhesive mat
  • Thin cable design that provides low installation height
  • Heating cable with halogen-free outer casing

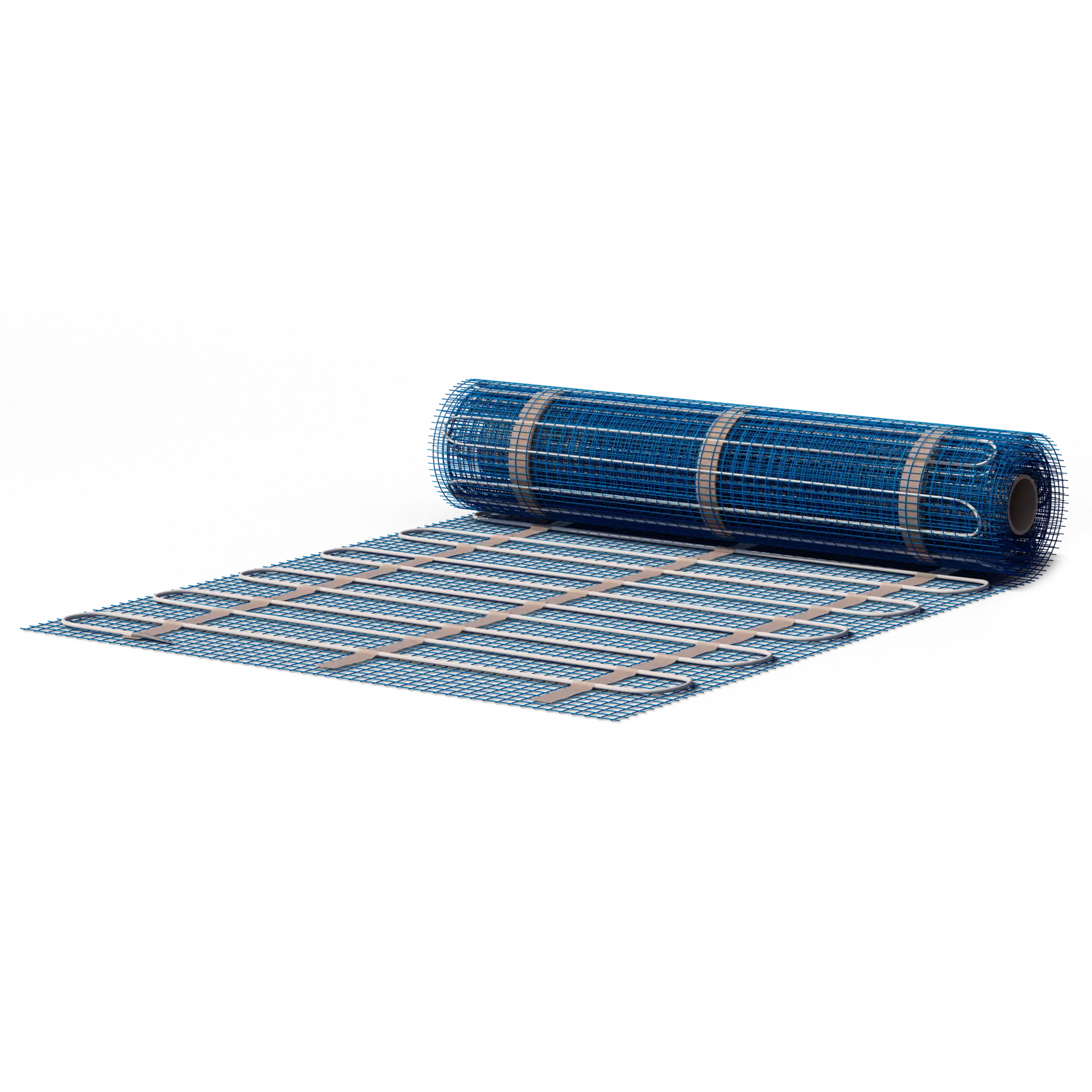

The underfloor heating mat can be used for open, regular areas of floor tile or natural stone. The mat is easily installed in one step and can be cut and angled. The heating cable is mounted on a self-adhesive, alkali-resistant fibreglass mesh with fixed c/c spacing.

Installation

Positioning the sensor conduit

The sensor conduit and tube are positioned side by side in a recess in the wall.

The joint between the heating cable and the connection cable must be cast in and must not be routed inside a wall or conduit, nor bent. The nearest bend must be at least 10 cm from the joint.

Rolling out the mat

Roll out the mat to the opposite wall. Cut the mesh without damaging the cable and roll back. When cutting the mesh, the cables must be no closer than 5 cm to each other.

Installing Thermoflex

The mat must not be placed under fixed fixtures such as toilets. Cut and free one loop of the mesh and pass by. Cut away one additional loop and route the cable. This is to allow the Thermoflex mat to be rolled out in the correct direction.

Please note that these simplified instructions are intended as guidance for you as an installer and should not be regarded as an instruction manual. Read the manual when installing this product.

Thermoflex

Article list

Article number Width (m) Length (m) Area (m²) Output (W) Output (W/m²) Resistance (Ω nominal) Connection cable (mm²)
8961000 0,5 2,6 1,3 80 60 661,3 1,0
8961001 0,5 4,2 2,1 125 60 423 1,0
8961002 0,5 5,6 2,8 170 60 311 1,0
8961003 0,5 7,2 3,6 215 60 246 1,0
8961004 0,5 8,8 4,4 265 60 199 1,0
8961005 0,5 10,8 5,4 325 60 162 1,0
8961006 0,5 13,2 6,6 395 60 134 1,0
8961007 0,5 15,4 7,7 460 60 - H05Z1Z1-F 3x1,0mm²
8961008 0,5 18,4 9,2 550 60 - H05Z1Z1-F 3x1,0mm²
8960579 0,5 2,5 1,25 150 120 352,7 1,0
8960580 0,5 3,4 1,7 200 120 264,5 1,0
8960582 0,5 4,2 2,1 250 120 211,6 1,0
8960584 0,5 5,4 2,7 340 120 155,6 1,0
8960585 0,5 6,8 3,4 410 120 129 1,0
8960586 0,5 7,8 3,9 480 120 110,2 1,0
8960588 0,5 8,8 4,4 530 120 99,8 1,0
8960590 0,5 10,8 5,4 640 120 82,7 1,0
8960592 0,5 13,2 6,6 780 120 67,8 1,0
8960594 0,5 15,8 7,9 940 120 56,3 1,0
8960595 0,5 19,2 9,6 1170 120 45,2 1,0
8960596 0,5 23 11,5 1380 120 38,3 1,0
8960598 0,5 28 14 1700 120 31,1 1,0
8961200 0,5 2 1 165 160 325 1,0
8961201 0,5 2,8 1,4 220 160 238 1,0
8961202 0,5 3,4 1,7 275 160 194 1,0
8961203 0,5 4,4 2,2 365 160 146 1,0
8961204 0,5 5,4 2,7 430 160 123 1,0
8961205 0,5 6,4 3,2 510 160 104 1,0
8961206 0,5 7,2 3,6 580 160 91 1,0
8961207 0,5 8,8 4,4 690 160 77 1,0
8961208 0,5 10,8 5,4 870 160 61 1,0
8961209 0,5 13 6,5 1030 160 52 1,0
8961210 0,5 15,8 7,9 1270 160 42 1,0
8961211 0,5 18,6 9,3 1480 160 36 1,0
8961212 0,5 23 11,5 1840 160 29 1,0
8961213 0,5 27,8 13,9 2230 160 24 1,0

Specifications

Specification Data
Connection voltage 230 V
Connection cable H05-Z1Z1F
Length Connection cable 2,5 m
Number of conductors 3 pcs
Diameter 4 mm
Output 60 W/m², 120 W/m², 160 W/m²
Contains SVHC substances according to REACH No
Installation temperature, min. 18 ºC
Insulation material intermediate XLPE
Insulation material inner ETFE
Insulation material outer PE/EVA
Cable type Series-resistive 1-conductor with screen
Enclosure class IP67
Mat Alkali-resistant fibreglass mesh
Protective conductor Aluminium foil
UV resistance No

Warranty

















12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.

Our warranty terms
