Thermoflex Kit 500

Underfloor heating kit with self-adhesive heating cable mat and thermostat

Usage

Laid in levelling compound
Underfloor heating for both wet rooms and dry areas
Underfloor heating for tiled, natural stone and linoleum floors

Several effects
EB-Therm 500
Mesh

Everything required for installation is included
Efficient placement with self-adhesive mat
WiFi READY: The thermostat can be connected to WiFi

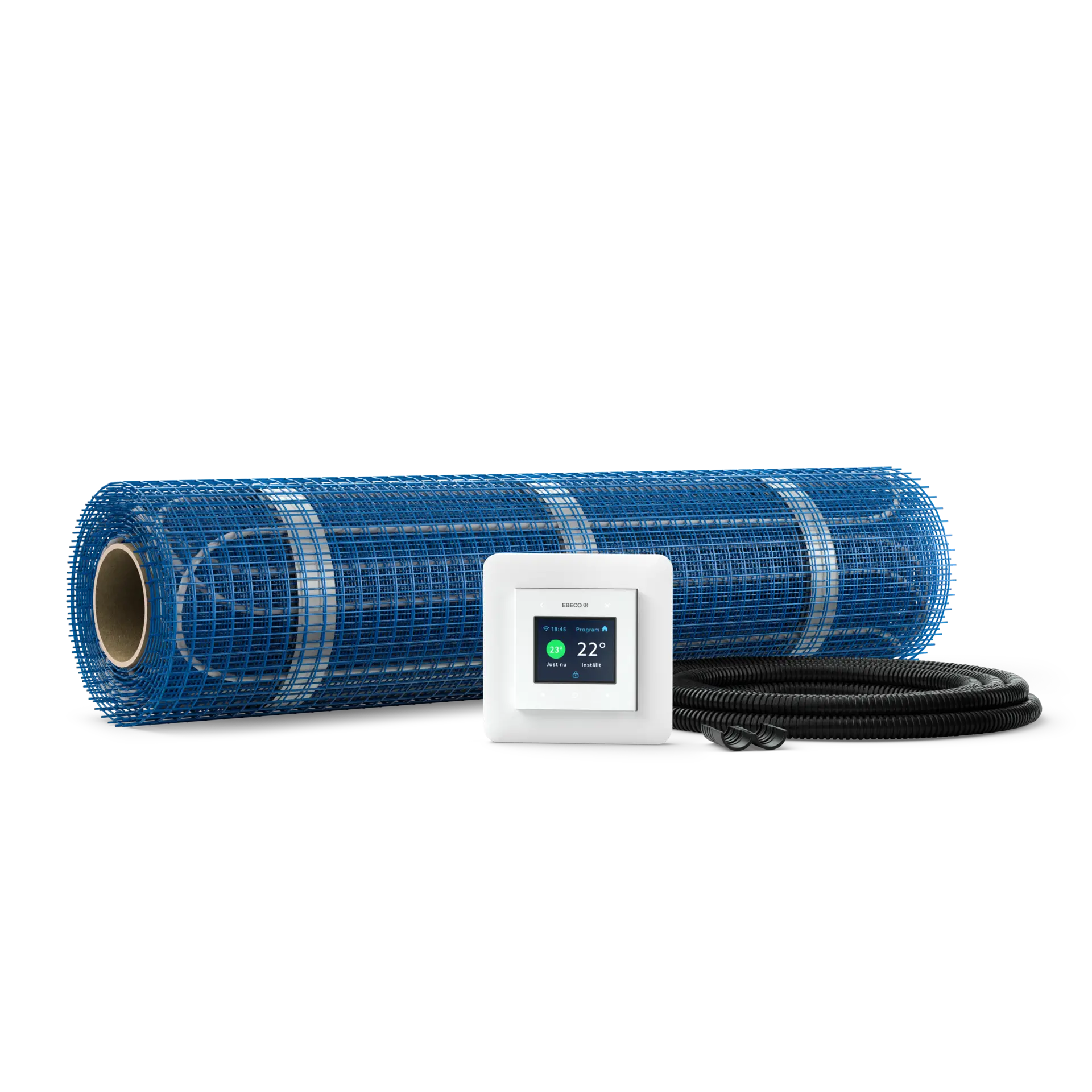

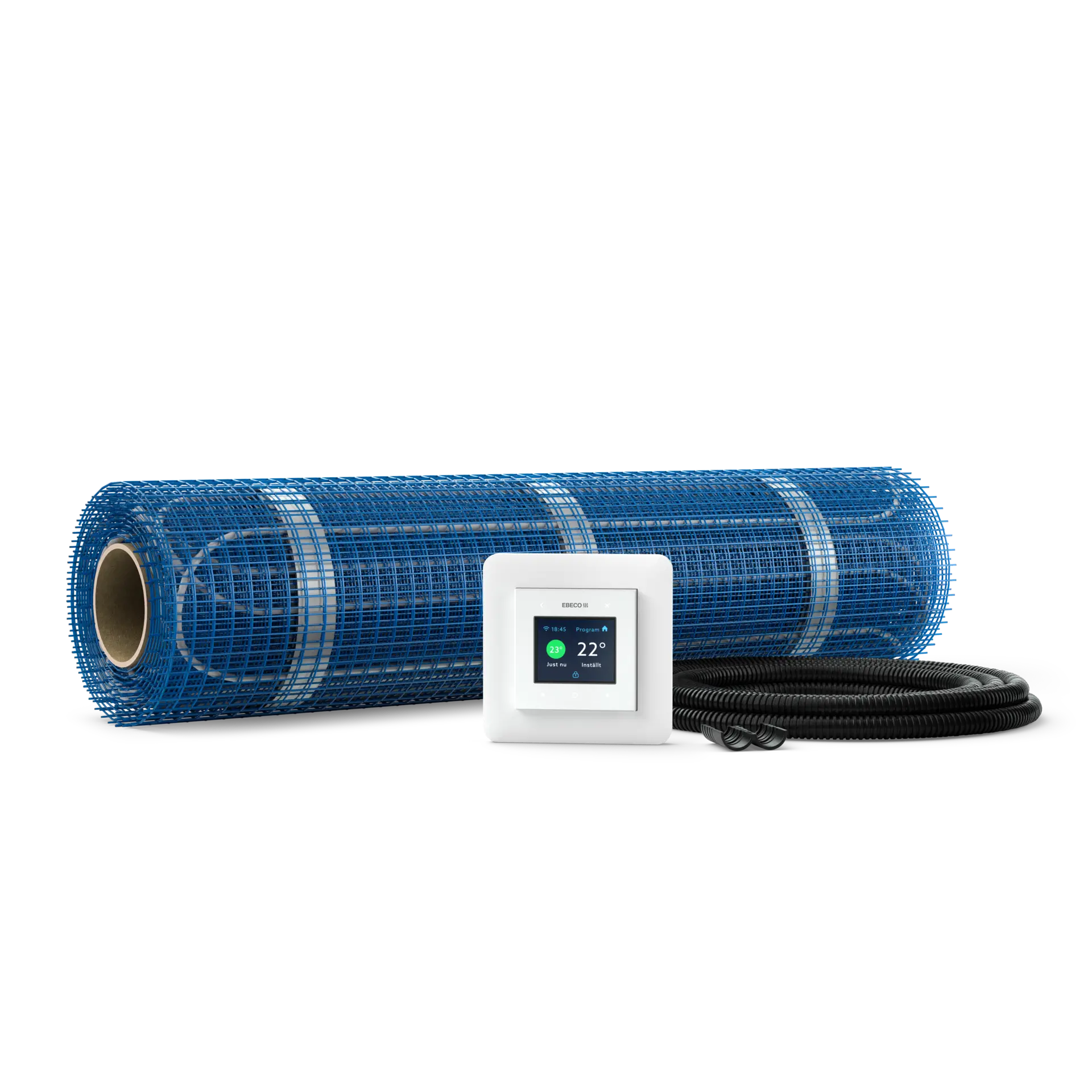

Complete kit for underfloor heating for tiled, natural stone and linoleum floors. The heating cable is mounted on a self-adhesive, alkali-resistant fibreglass mesh with fixed c/c spacing. Easy, one-step installation and can be cut and angled. The kit contains the EB-Therm 500 thermostat with several energy saving programs as well as sensor hose and warning sign.

The thermostat is "WiFi READY", or prepared for WiFi. With the accessory, EB-Connect WiFi, the underfloor heating system can be controlled via the Ebeco Connect app, Tibber, Google Home or the open API.

Installation

Positioning the sensor conduit

The sensor conduit and tube are positioned side by side in a recess in the wall.

The joint between the heating cable and the connection cable must be cast in and must not be routed inside a wall or conduit, nor bent. The nearest bend must be at least 10 cm from the joint.

Rolling out the mat

Roll out the mat to the opposite wall. Cut the mesh without damaging the cable and roll back. When cutting the mesh, the cables must be no closer than 5 cm to each other.

Installing Thermoflex

The mat must not be placed under fixed fixtures such as toilets. Cut and free one loop of the mesh and pass by. Cut away one additional loop and route the cable. This is to allow the Thermoflex mat to be rolled out in the correct direction.

Please note that these simplified instructions are intended as guidance for you as an installer and should not be regarded as an instruction manual. Read the manual when installing this product.

Thermoflex Kit 500

Specifications

Specification	Data
Connection voltage	230 V
Connection cable	H05-Z1Z1F
Length Connection cable	2,5 m
Number of conductors	3 pcs
Diameter	4 mm
Output	120, 160 W/m²
Contains SVHC substances according to REACH	No
Installation temperature, min.	18 ºC
Insulation material intermediate	XLPE
Insulation material inner	ETFE
Insulation material outer	XLPE
Cable type	Series-resistive 1-conductor with screen
Enclosure class	Thermostat: IP21, Cable: IP67
Mat	Alkali-resistant fibreglass mesh
Protective conductor	Aluminium foil
Thermostat	EB-Therm 500
UV resistance	No

The package includes the following:

EB-Therm 500

Sensor hose

Thermoflex

Documents

Warranty

12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.

Our warranty terms
