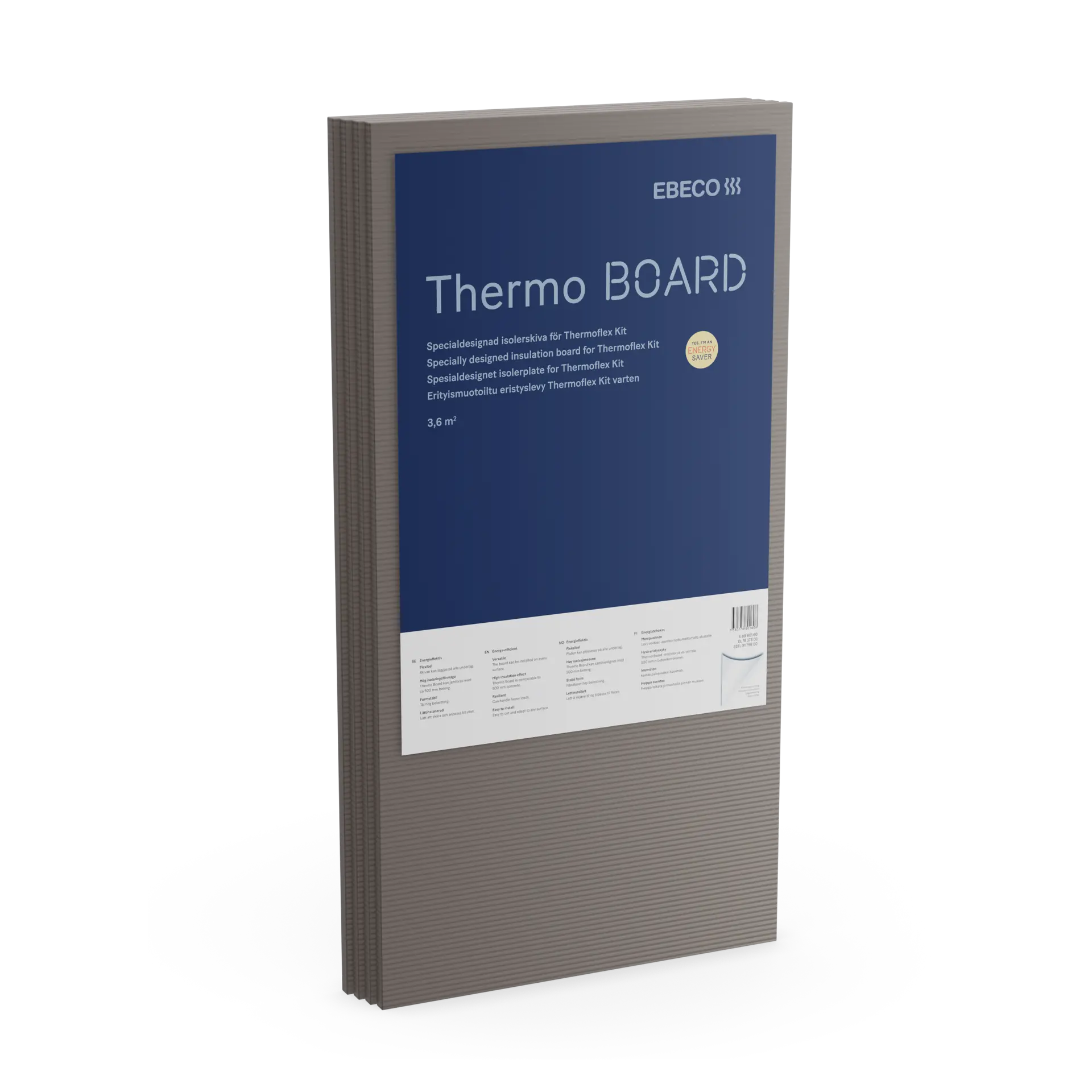

Thermo Board
Insulation board
Usage
- For underfloor heating under tiled flooring
- Can also be used for concrete surfaces
-
(R) 0.29 m²K/W -
(λ) 0.034 W/mK -
10 mm
-
Energy saving by up to 34 %
-
Energy-efficient installation
-
Fibreglass-reinforced surface layer
Thermo Board is an energy-efficient insulation board for underfloor heating, primarily intended for use with Thermoflex Kit or in wet rooms with wooden floors. The board is made of extruded polystyrene with a fibreglass-reinforced surface layer and has a high insulation capacity. Thermo Board is flexible and can be laid on all sub-floorings. It is easy to cut and adapt to the space and is not affected by moisture or water.
Specifications
| Specification | Data |
|---|---|
| Autoignition temperature | > +380 ºC |
| Contains SVHC substances according to REACH | No |
| Continuous temperature, max. | 75 ºC |
| Compressive strength (EN 13164) | 300 kPa |
| Solubility | High resistance to acids and bases. Soluble in organic solvent |
| Material | Extruded polystyrene, fiberglass, cement-based plaster |
| Melting point | 100 ºC |
| Thermal conductivity, λ | 0.034 W/mK |
