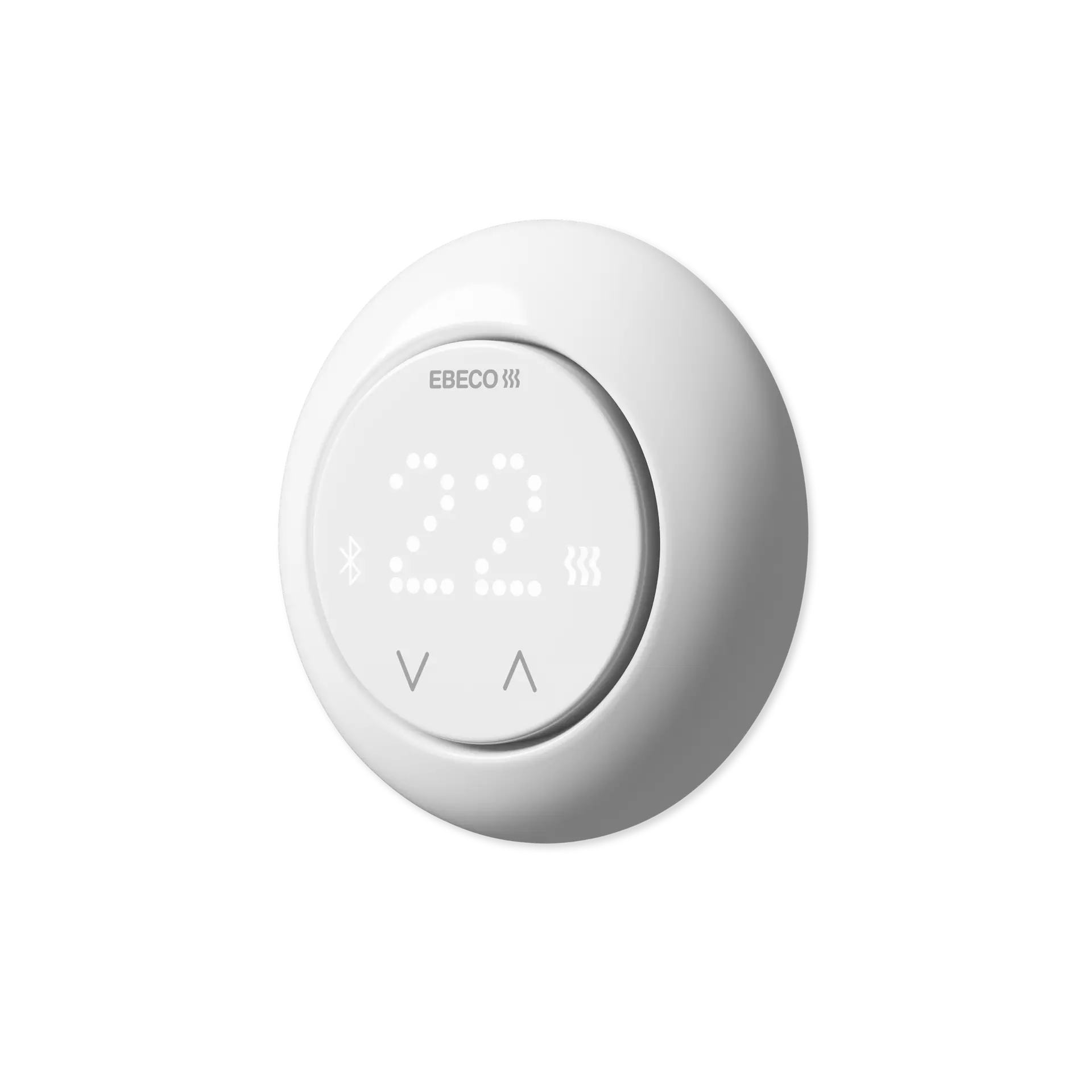

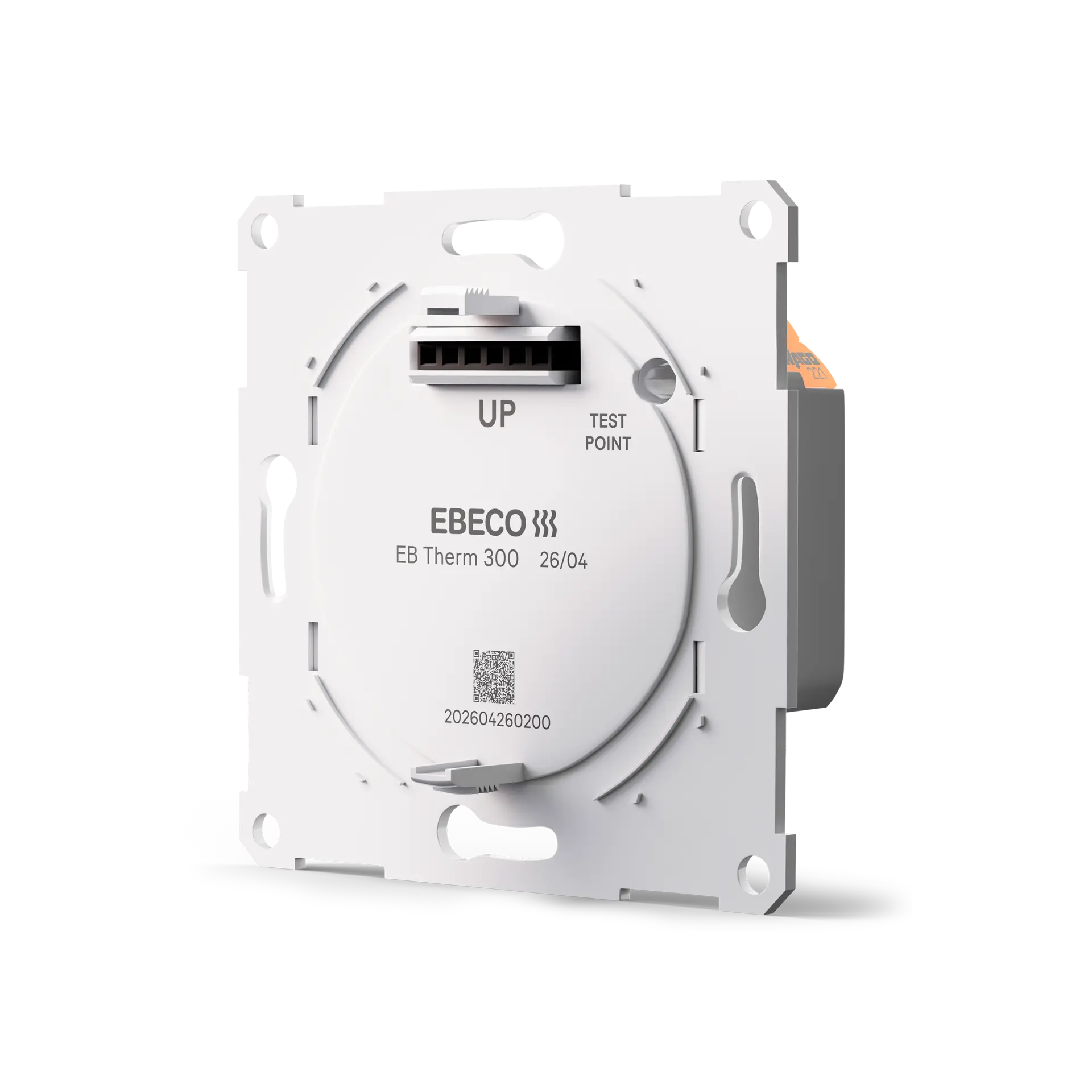

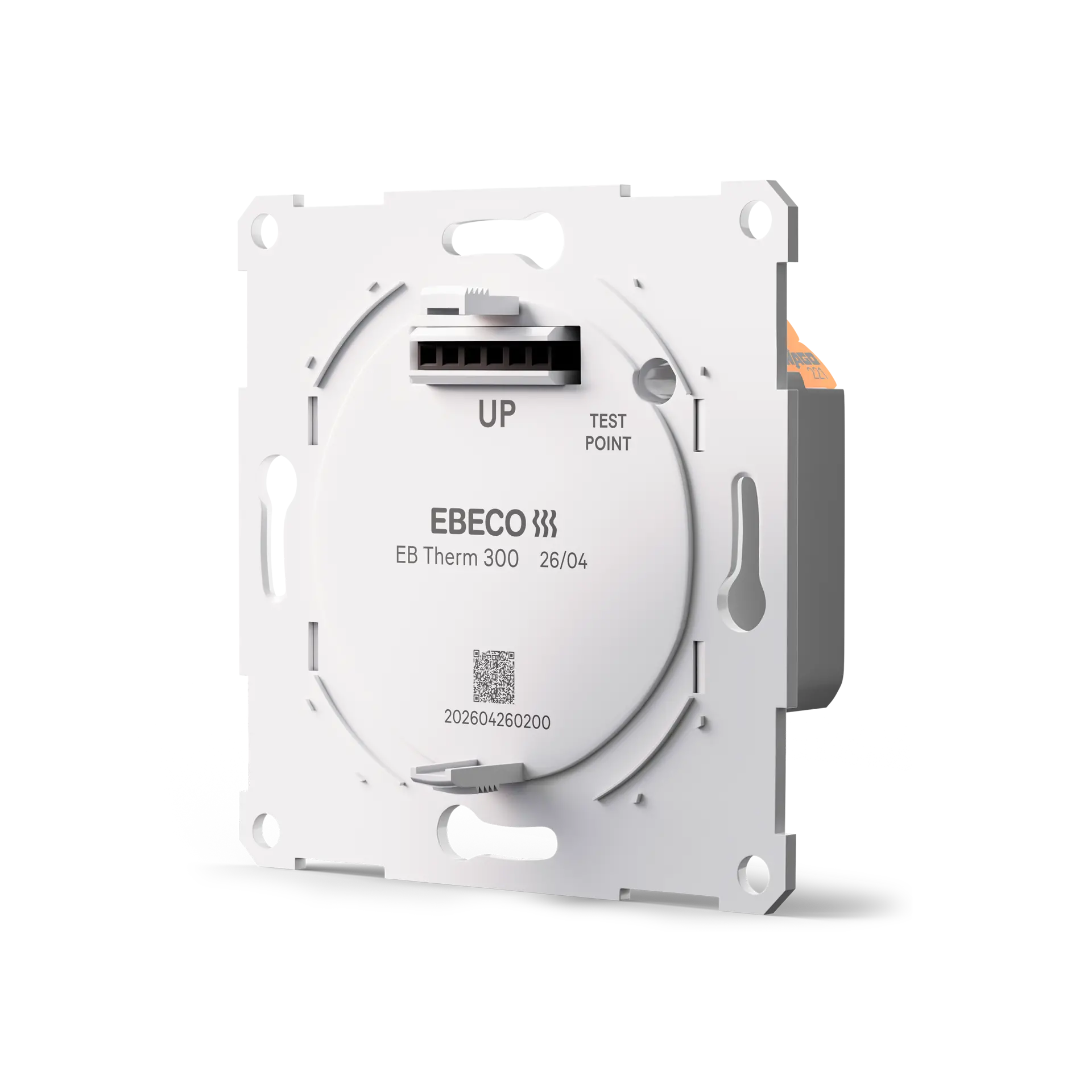

EB-Therm 300
Floor heating thermostat with floor and room sensors
Usage
- Home environment
-
Touch -
LED display -
Energy program
-

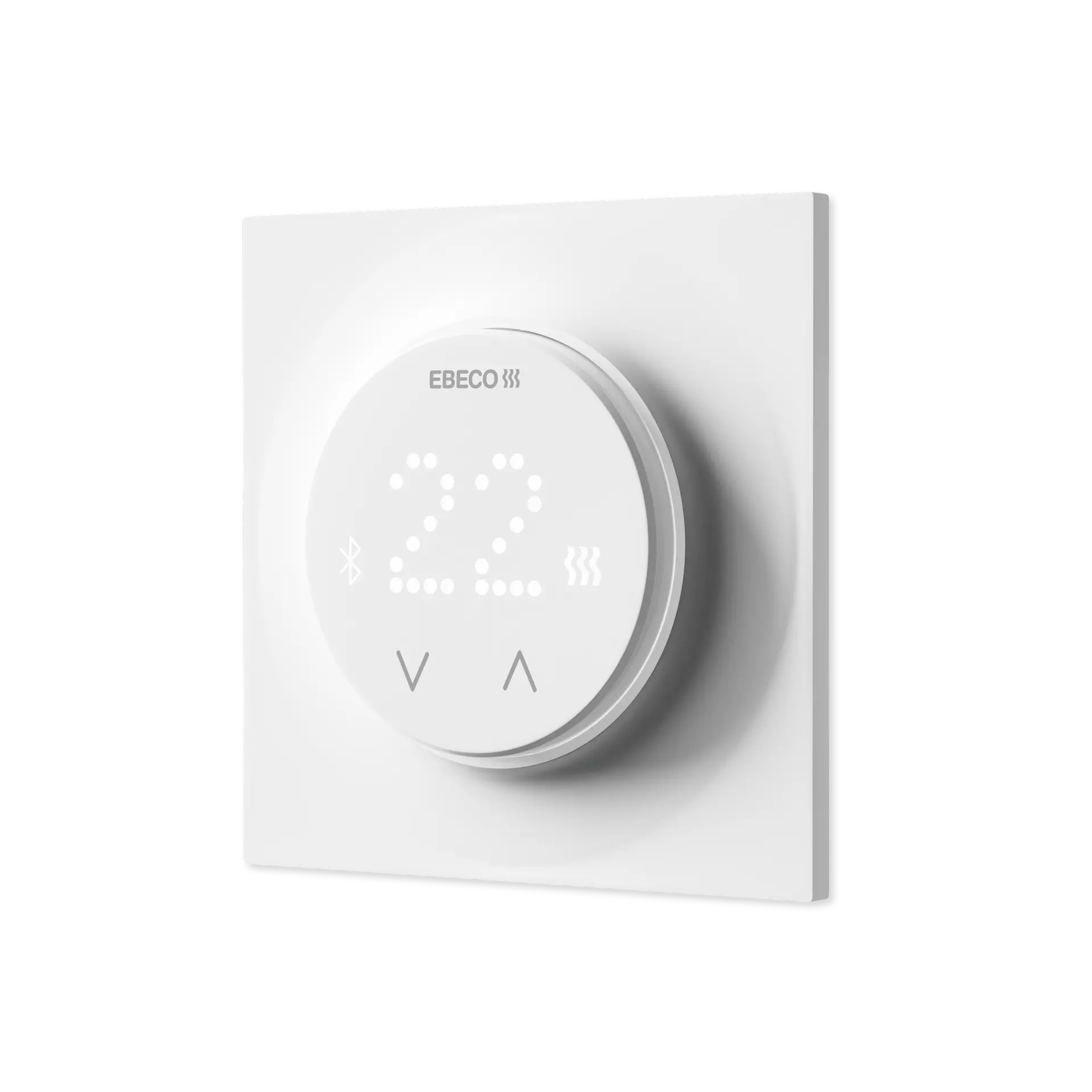

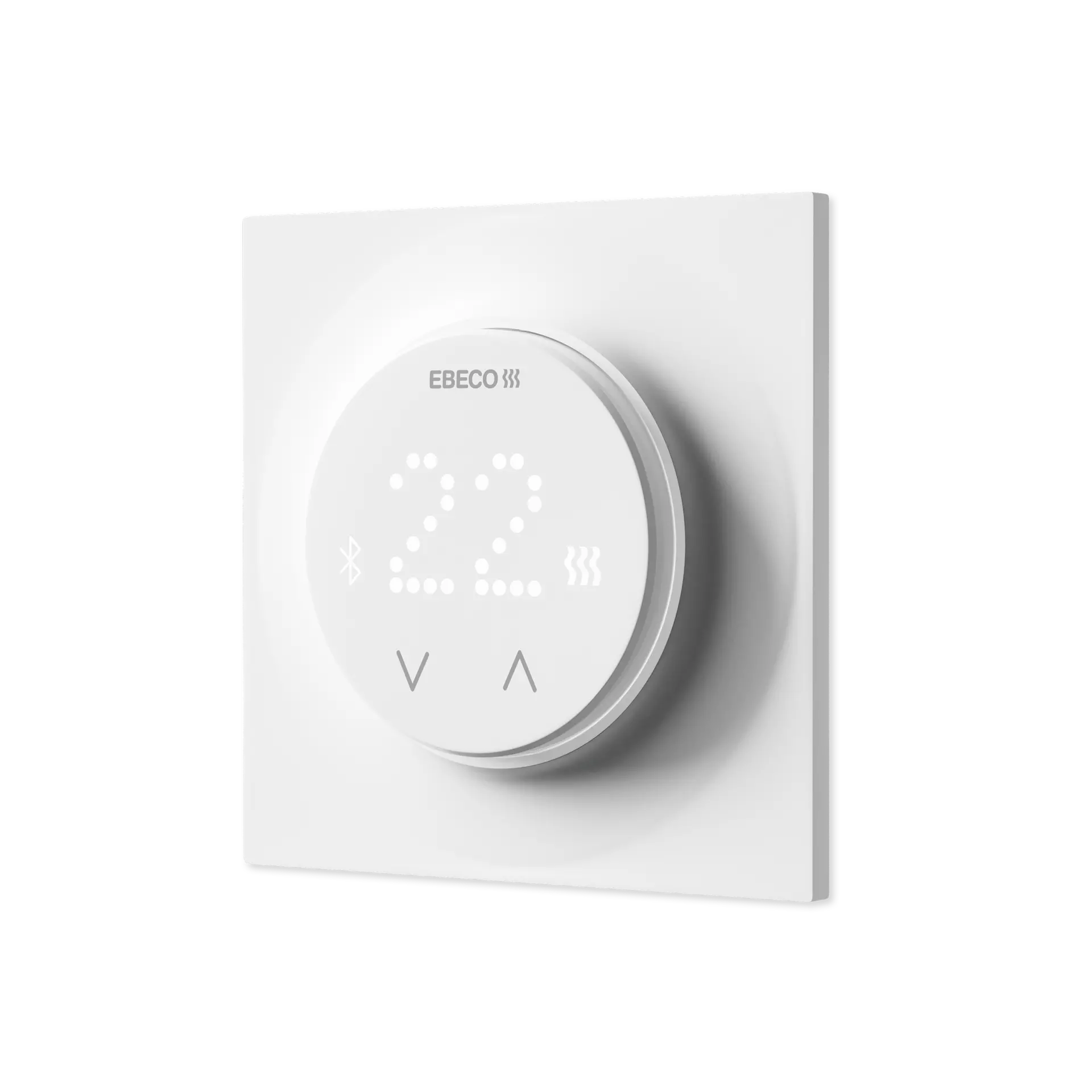

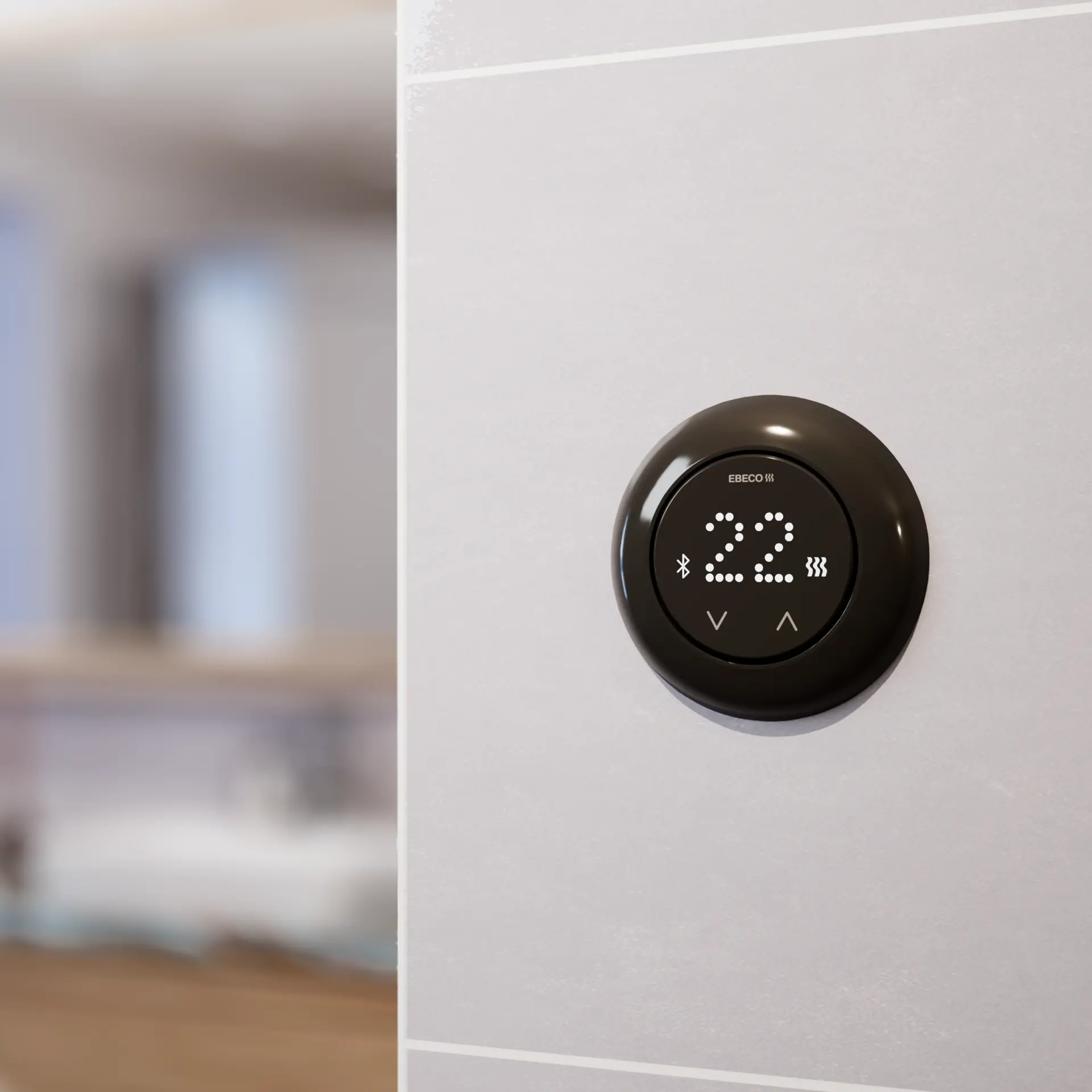

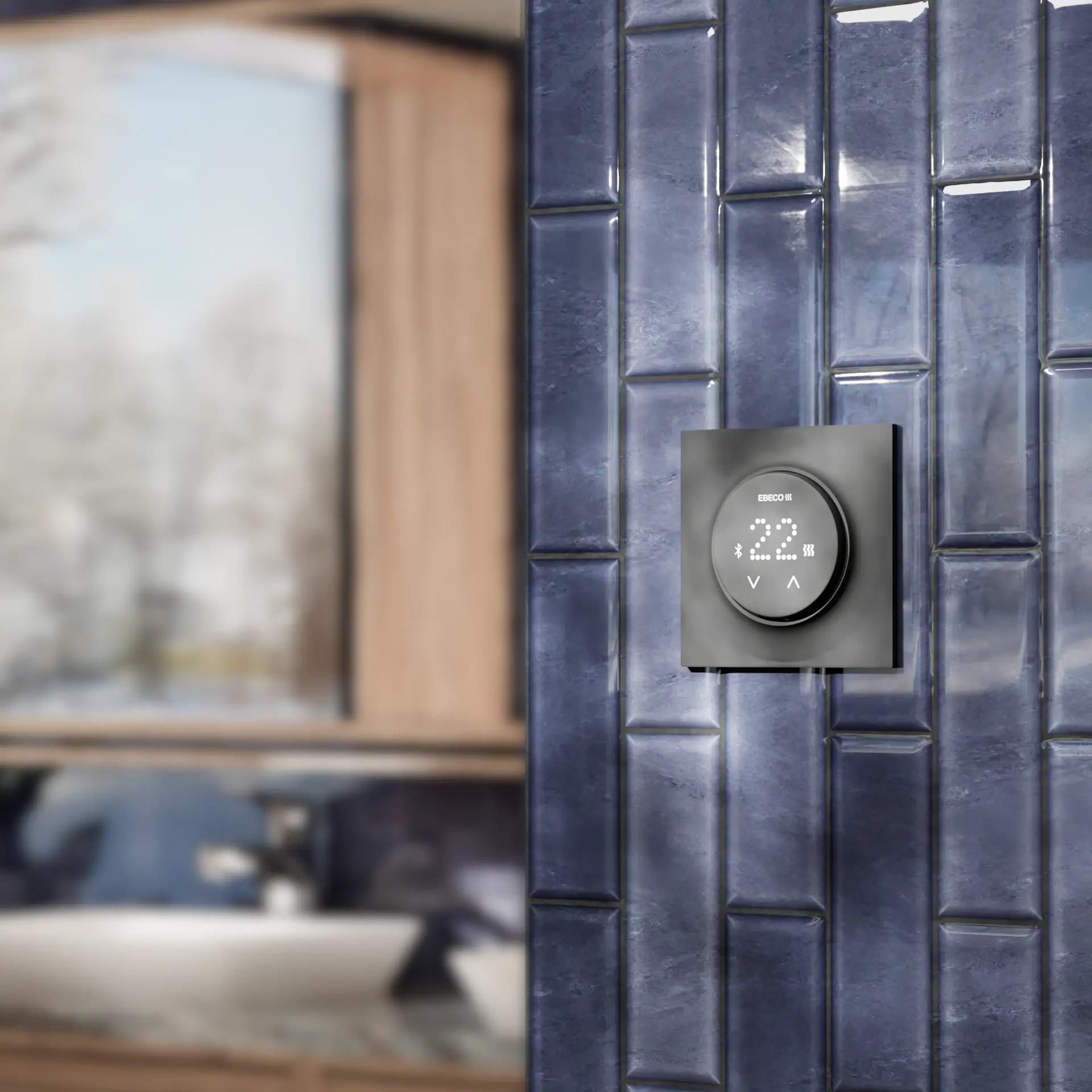

Adaptable frame system & interchangeable cover plate
-
Local app control via Bluetooth®
-

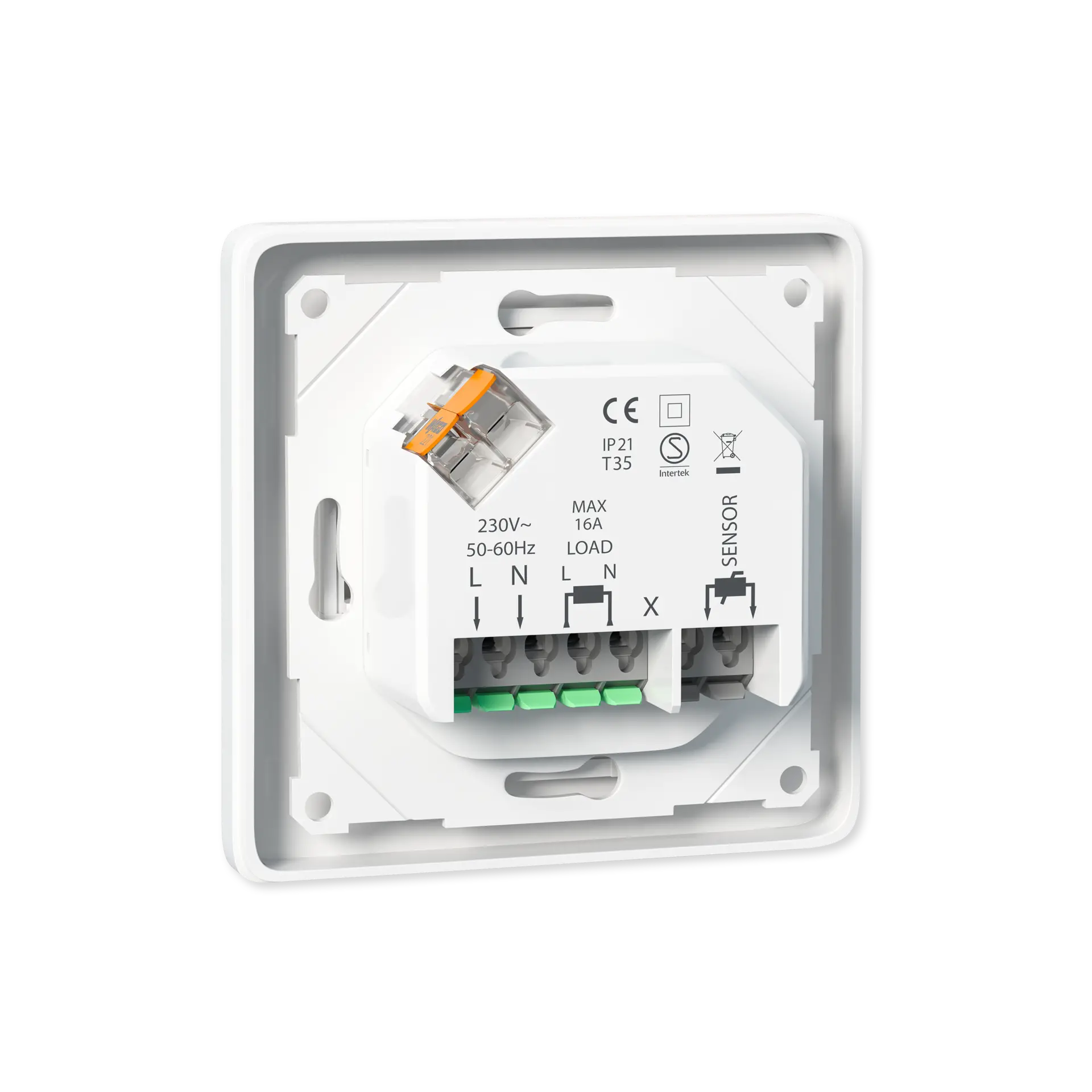

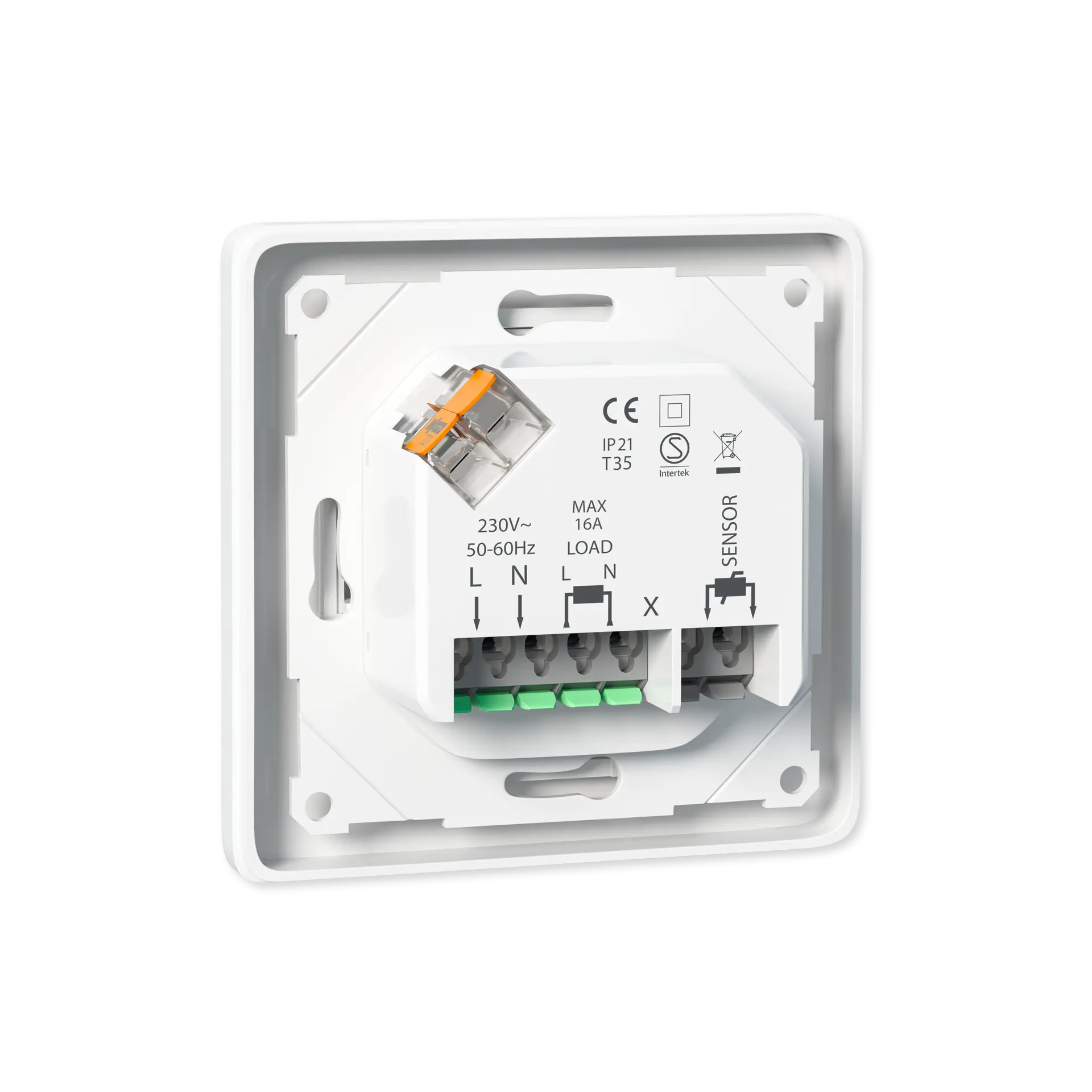

Quick connections

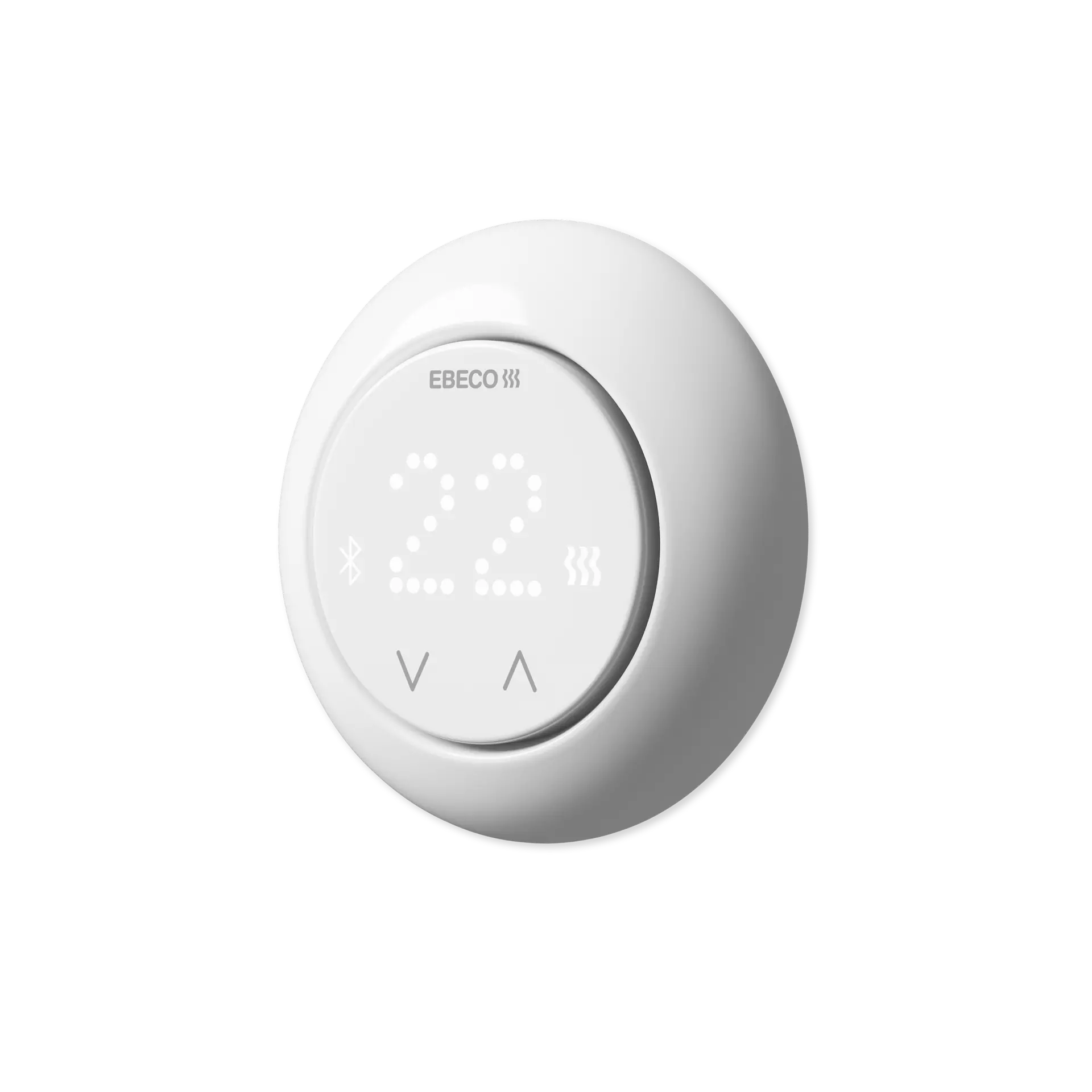

The thermostat features a sleek LED display with two touch buttons and a start-up guide that simplifies use for both the installer and the end user.
Commissioning and control of the desired temperature can be carried out without an app, directly via the thermostat’s display. To access the thermostat’s weekly programme as well as additional functions and settings, the thermostat can be connected via Bluetooth® and controlled locally using the Ebeco Connect app. The thermostat also provides the option of a local API.

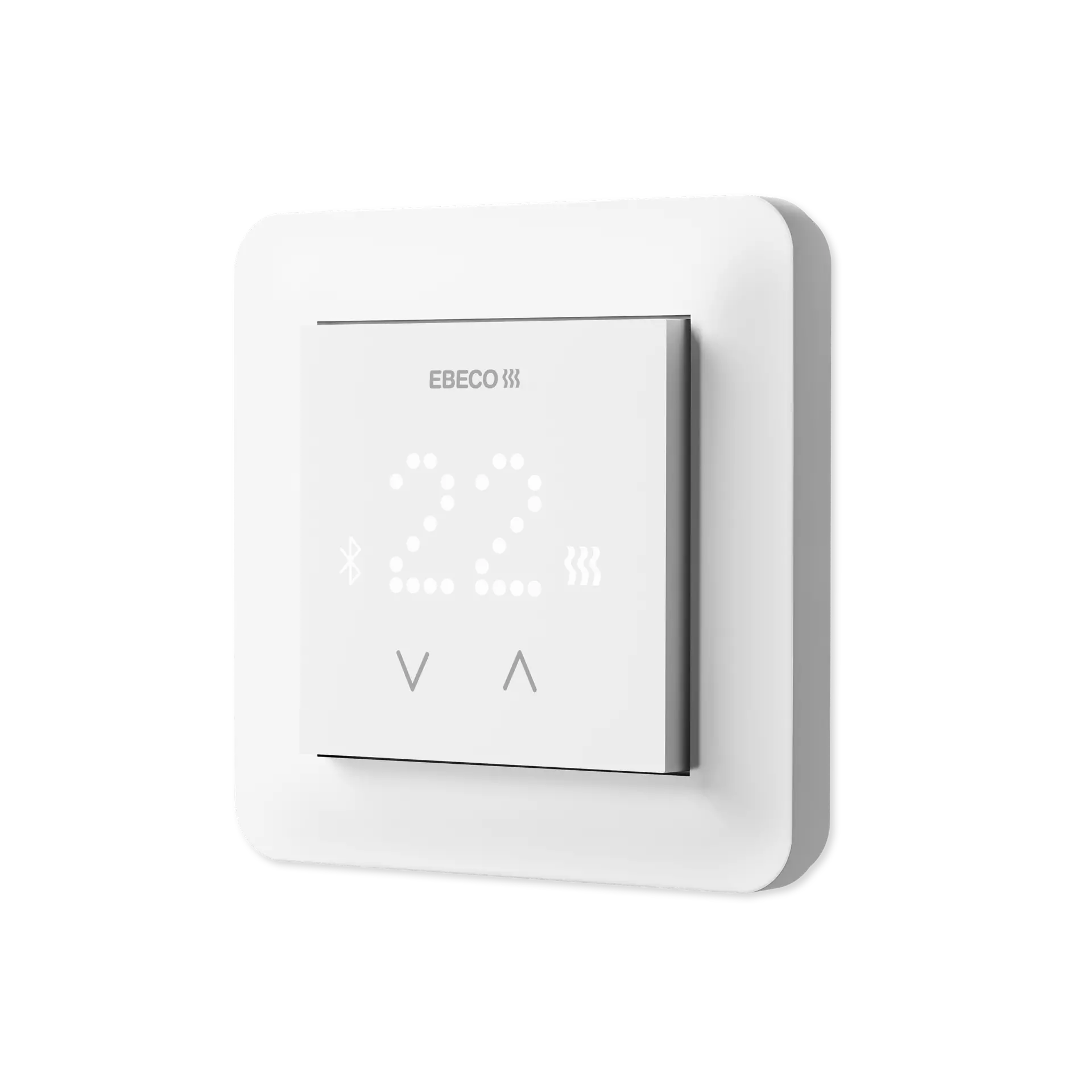

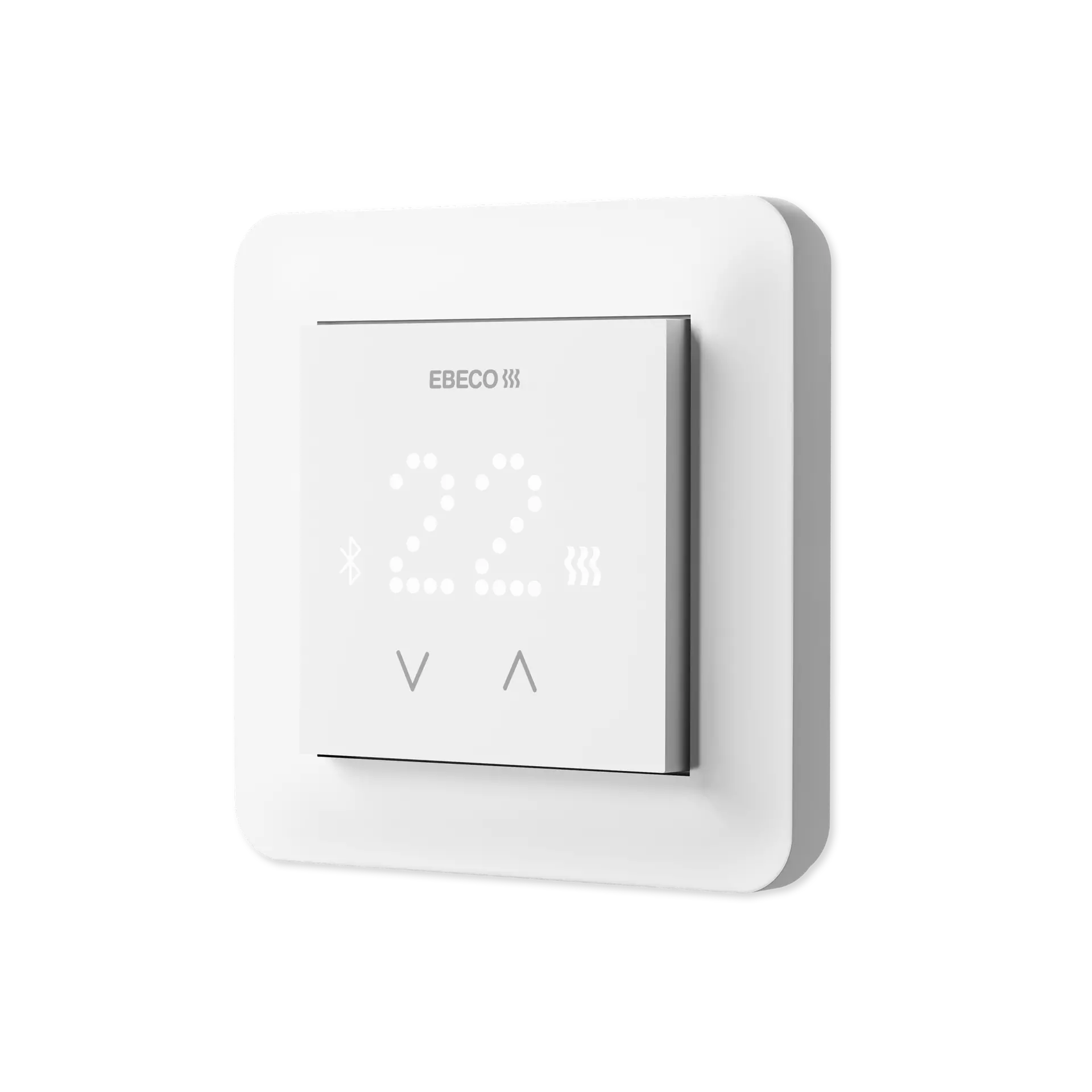

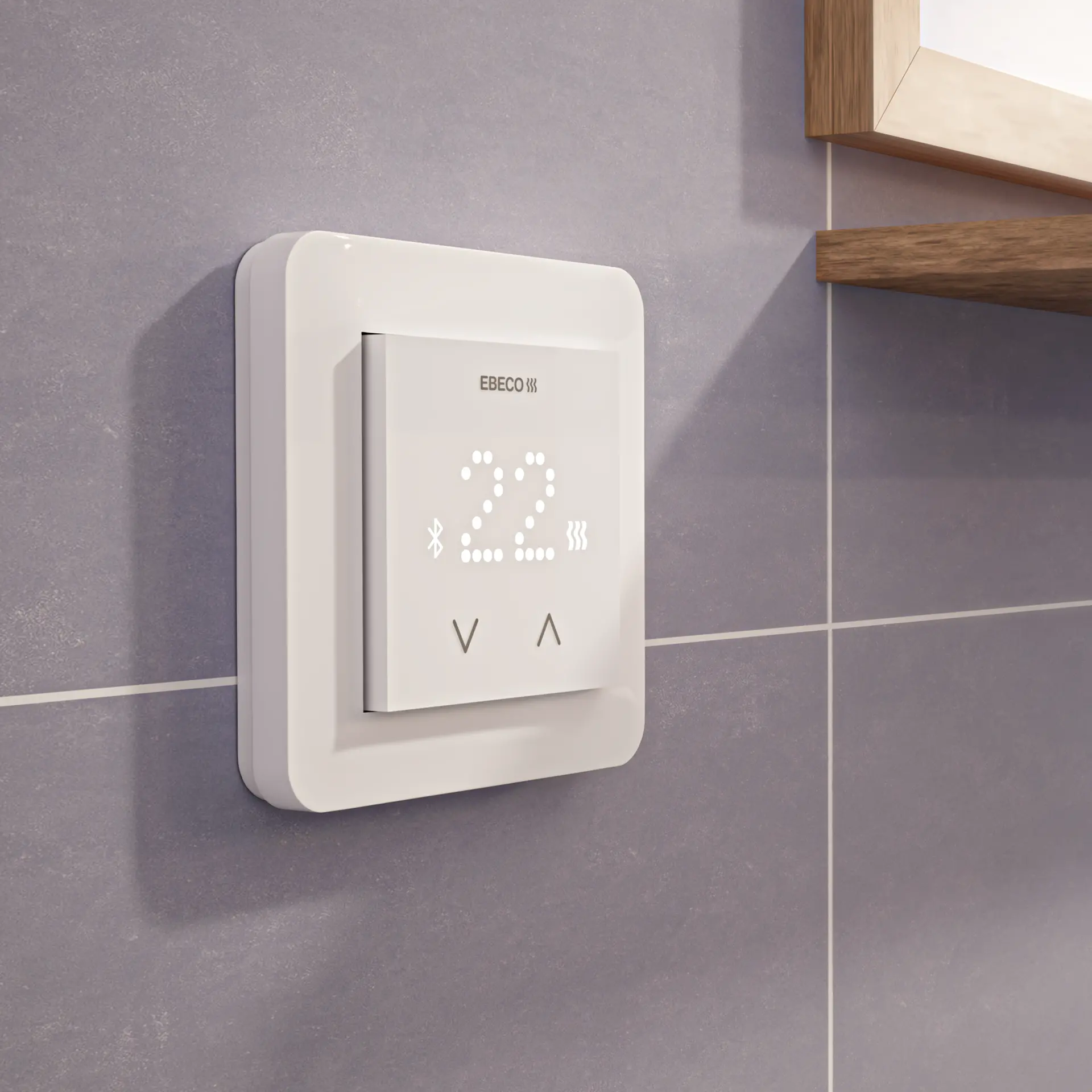

EB-Therm 300 supports eight different sensor types and is compatible with the most commonly used frame systems. A white frame and cover plate (RAL 9003) are included. For other frame systems and colours, an additional cover plate is required, e.g. Elko One and Plus, Schneider Renova and SG Armaturen.
Commissioning and control of the desired temperature can be carried out without an app, directly via the thermostat’s display. To access the thermostat’s weekly programme as well as additional functions and settings, the thermostat can be connected via Bluetooth® and controlled locally using the Ebeco Connect app. The thermostat also provides the option of a local API.
EB-Therm 300 supports eight different sensor types and is compatible with the most commonly used frame systems. A white frame and cover plate (RAL 9003) are included. For other frame systems and colours, an additional cover plate is required, e.g. Elko One and Plus, Schneider Renova and SG Armaturen.
Please note that these are simplified instructions intended to clarify specific steps of the installation and should not be considered a complete installation manual. Always refer to the manual included in the packaging.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 VAC ±10 %, 50-60 Hz |
| Adapted for frame systems | Schneider Exxact, ELKO RS |
| Colour | White (RAL 9003) |
| App control possible | Yes |
| Load | Cos φ = 1 - Resistive |
| Circuit-breaking capacity | 3680 W/ 16A / 230 VAC |
| Extension sensor cable, max. | 50 m, 2 * 1,5 mm² |
| Sensor cable | 3 m, NTC 10 kΩ |
| Underfloor temperature range | 5 ºC - 35 ºC |
| Power reserve | 2 h |
| Contains SVHC substances according to REACH | No |
| Enclosure class | IP21 |
| Control accuracy | ± 0.3ºC |
| Installation | Wall mounting |
| Protection class | Class II – Double insulation |
| Temperature range | 5 °C - 35 °C |
The product is included in:
Documents
Warranty
Ebeco AB provides a 5-year product guarantee in the event of material defects.
