Cable Kit 300

Underfloor heating kit with heating cable and thermostat

Användning

Laid in levelling compound
Underfloor heating for both wet rooms and dry areas
Underfloor heating for tiled, natural stone and linoleum floors

EB-Therm 300
Cable
80-160 W/m²

Everything required for installation is included
Thermostat with energy saving program
Thin cable design that provides low installation height

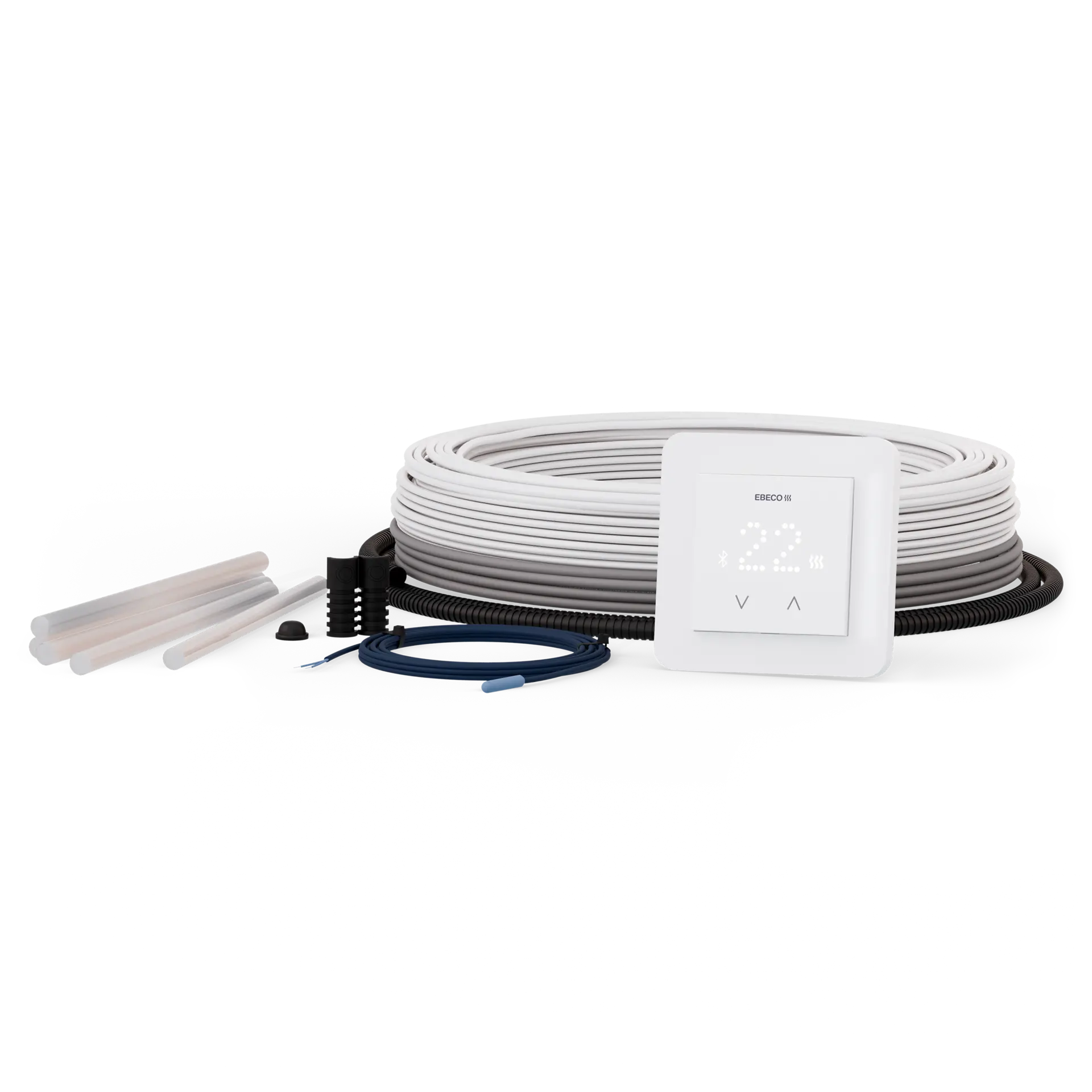

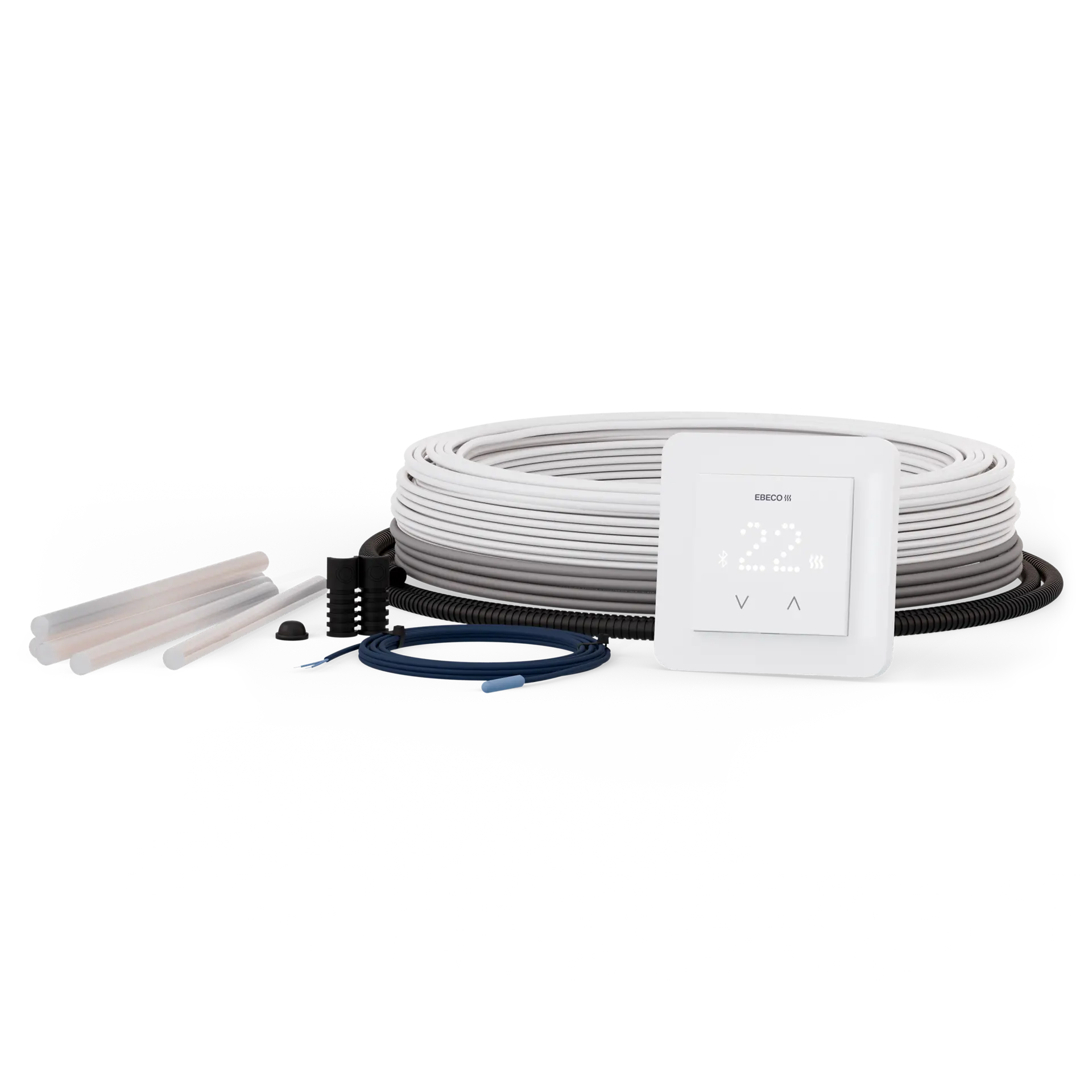

Complete kit for underfloor heating for tiled, natural stone and linoleum floors. It contains the EB‑Therm 300 thermostat with an energy-saving weekly programme, as well as glue sticks, sensor hose, warning sign and reel bracket.

The thermostat features Bluetooth® and can be controlled locally via the Ebeco Connect app. Its broad compatibility with several frame systems and colours makes the EB‑Therm 300 a flexible solution.

Installation

Simplified installation with Garantera

By using the Garantera app, you receive a 25-year warranty on the underfloor heating system and a smoother installation process. Scan the products using the EAN scanner, record your measurement values before and after installation, and send the warranty certificate directly to the customer when the installation is complete.

Install directly from the package

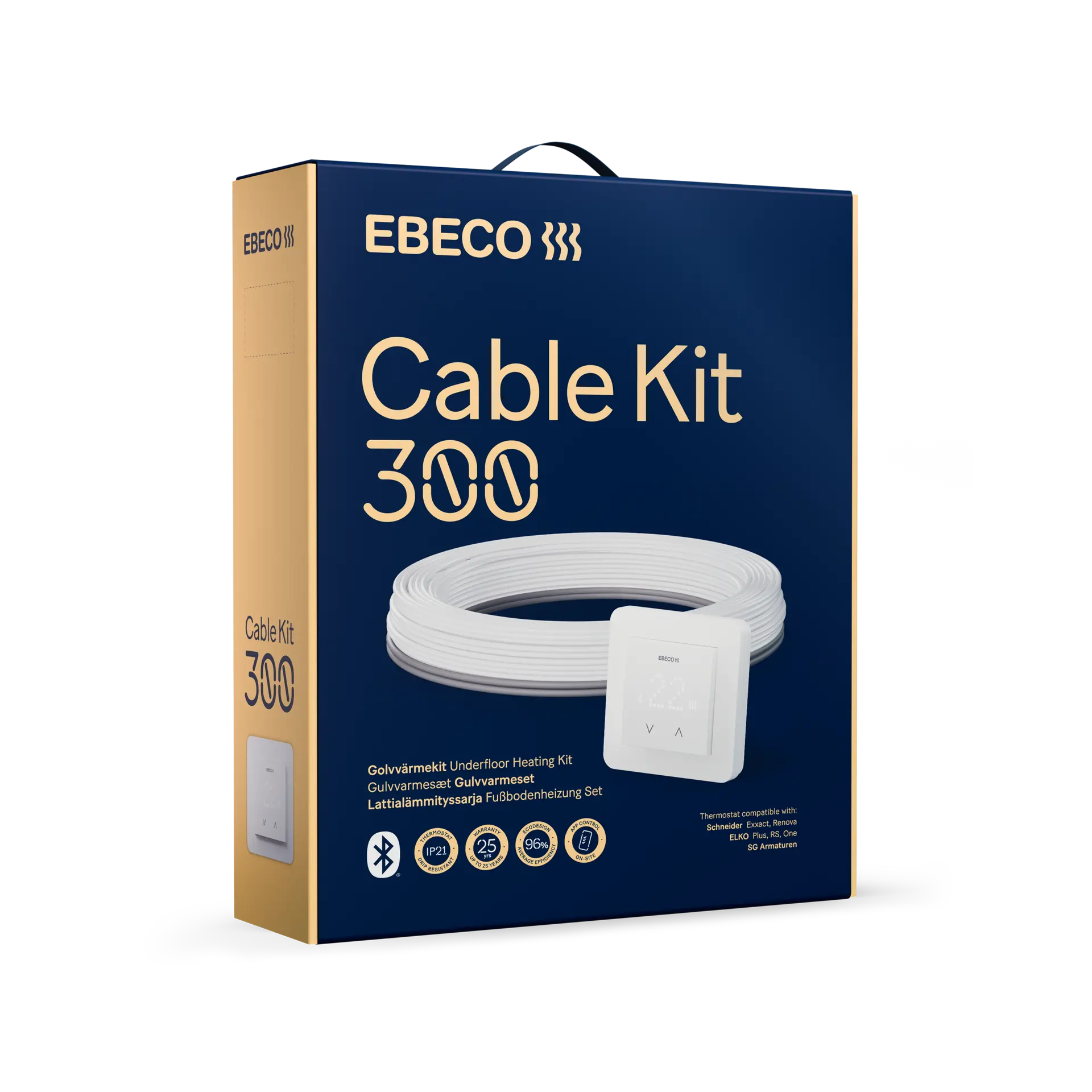

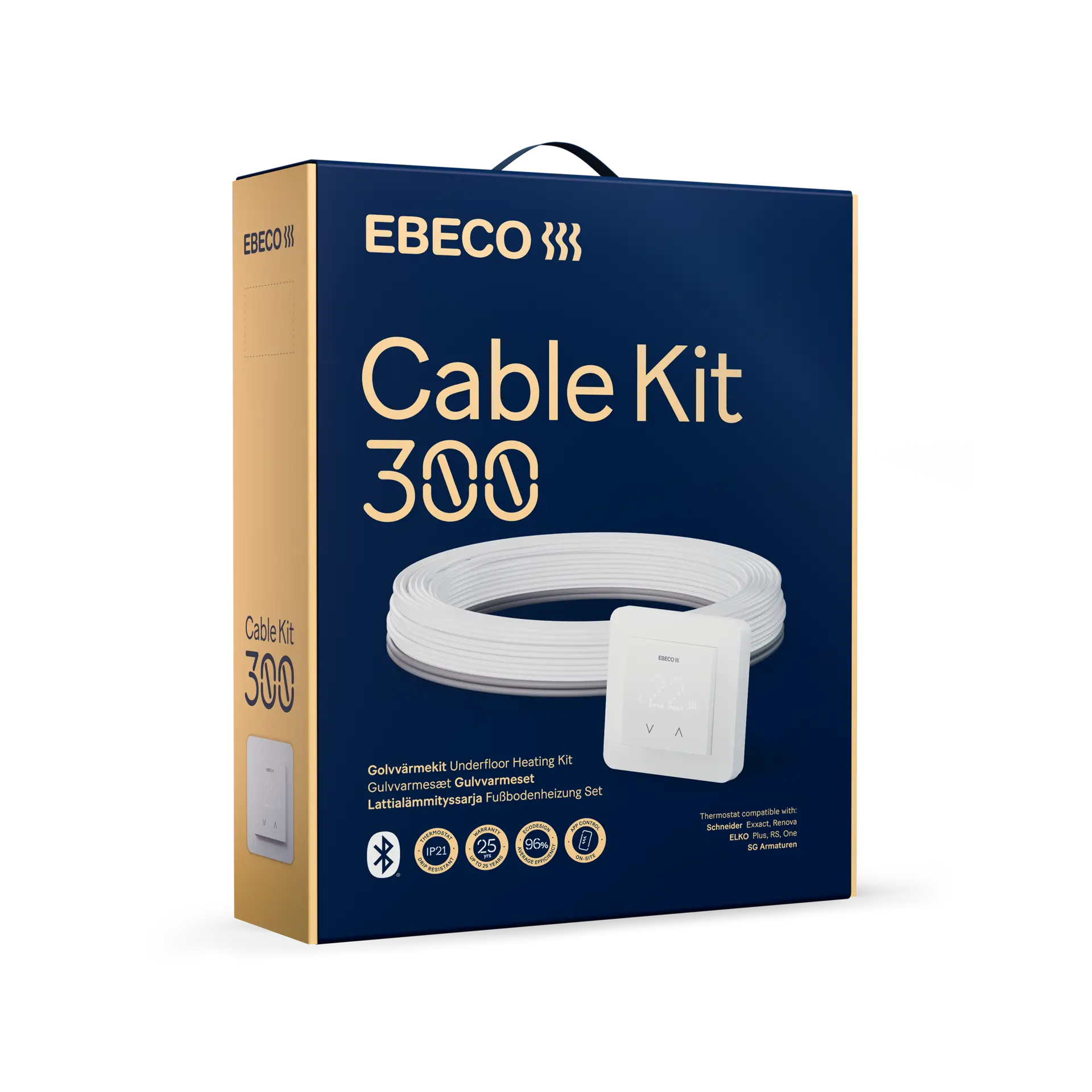

Cable Kit 300 is supplied in an improved package with an integrated reel holder that simplifies installation. Pull the cable out through the perforated opening at the bottom of the packaging. This reduces the risk of the cable tangling or getting stuck during installation.

Placement of sensor hose

The sensor cable must be positioned so that it is equidistant on both sides of the installed heating cable. The joint between the heating cable and the cold lead must be embedded in the floor. Ensure that both the heating cable and the cold lead are straight for at least 10 cm on each side of the joint.

Cable installation

Plan the installation in advance to ensure even spacing and full coverage of the intended area. Also make sure that the joint and the cable end are not placed in shower areas or near floor drains. Maintain a minimum distance of 60 cm between the cable end and wet zone 1, and at least 20 cm between the floor drain and the heating cable.

Installation using Cable Clip

The heating cable can be secured using Ebeco Cable Clips, adhesive, or fixing tape intended for heating cables. Secure the cable with a maximum distance of 20 cm between fixing points and ensure that each fixing point is properly anchored so that the cable does not float up when levelling compound is applied.

Installation using adhesive

Installation using tape

Please note that these simplified instructions are intended to guide you as an installer and should not be considered an instruction manual. Always refer to the manual when installing this product.

Cable Kit 300

Specifications

Specification	Data
Anslutningsspänning	230 V
Anslutningskabel	H05-Z1Z1F
Längd anslutningskabel	2,5 m
Antal ledare	3 st
Böjningsradie, min.	25 mm
Diameter	4 mm
Effekt	11 W/m
Innehåller SVHC ämnen enligt REACH	No
Installationstemperatur, min.	-5 ºC
Isoleringsmaterial mellan	XLPE
Isoleringsmaterial inre	ETFE
Isoleringsmaterial yttre	EVA, PE
Kabeltyp	Series-resistive 2-conductor with screen
Kapslingsklass	Thermostat: IP21, Cable: IP67
Max Omgivningstemperatur	90 °C
Mekanisk klassificering	M2
Skyddsledare	Twisted
Termostat	EB-Therm 300
UV-beständighet	No

The package includes the following:

Hot glue sticks

Sensor hose

Cableflex

EB-Therm 300

Documents

Warranty

12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.

Our warranty terms

Installation

Cable Kit uses the Cableflex 11 heating cable, which should generally be screeded in. Together with Cable Clip 4, the heating cable clip for reinforcement mesh, you save time, money and above all your knees.

Flooring materials

The Cableflex cable can be installed under most commonly used flooring materials such as tiled and natural stone floors, wooden and laminate flooring and linoleum.

Check whether the material is suitable for use in combination with underfloor heating with the floor supplier.

Subflooring when screeding

Cableflex 11 is laid on floor constructions of concrete, plaster or chipboard and must then be screeded with a suitable levelling compound.

On uninsulated concrete floors against the ground, additional insulation is always recommended. It is also recommended that the heating is not switched off completely during the summer to counteract rising moisture.

See manual for further instructions.

Installed output

The room's power output needs are governed by how well insulated it is, its air turnover and the outdoor temperature, but in addition to these parameters, the criteria below must also be taken into account.

Maximum installed power output for different surfaces:
