Cable Kit 200

Underfloor heating kit with heating cable and thermostat

Usage

Laid in levelling compound
Underfloor heating for both wet rooms and dry areas
Underfloor heating for tiled, natural stone and linoleum floors

Cable
EB-Therm 205
80-160 W/m²

Everything required for installation is included
Thermostat with energy saving program
Thin cable design that provides low installation height

Complete kit for underfloor heating for tiled, natural stone and linoleum floors. It contains the EB-Therm 205 thermostat with two energy saving programs as well as hot glue sticks, sensor hose, warning sign and reel bracket.

Installation

Simplified installation with Garantera

By using the Garantera app, you receive a 25-year warranty on the underfloor heating system and a smoother installation process. Scan the products using the EAN scanner, record your measurement values before and after installation, and send the warranty certificate directly to the customer when the installation is complete.

Placement of sensor hose

The sensor cable must be positioned so that it is equidistant on both sides of the installed heating cable. The joint between the heating cable and the cold lead must be embedded in the floor. Ensure that both the heating cable and the cold lead are straight for at least 10 cm on each side of the joint.

Cable installation

Plan the installation in advance to ensure even spacing and full coverage of the intended area. Also make sure that the joint and the cable end are not placed in shower areas or near floor drains. Maintain a minimum distance of 60 cm between the cable end and wet zone 1, and at least 20 cm between the floor drain and the heating cable.

Installation using Cable Clip

The heating cable can be secured using Ebeco Cable Clips, adhesive, or fixing tape intended for heating cables. Secure the cable with a maximum distance of 20 cm between fixing points and ensure that each fixing point is properly anchored so that the cable does not float up when levelling compound is applied.

Installation using adhesive

Installation using tape

Please note that these simplified instructions are intended to guide you as an installer and should not be considered an instruction manual. Always refer to the manual when installing this product.

Cable Kit 200

Specifications

Specification	Data
Connection voltage	230 V
Connection cable	H05-Z1Z1F
Length Connection cable	2,5 m
Number of conductors	3 pcs
Bending radius, min.	25 mm
Diameter	4 mm
Output	11 W/m
Contains SVHC substances according to REACH	No
Installation temperature, min.	-5 ºC
Insulation material intermediate	XLPE
Insulation material inner	ETFE
Insulation material outer	EVA, PE

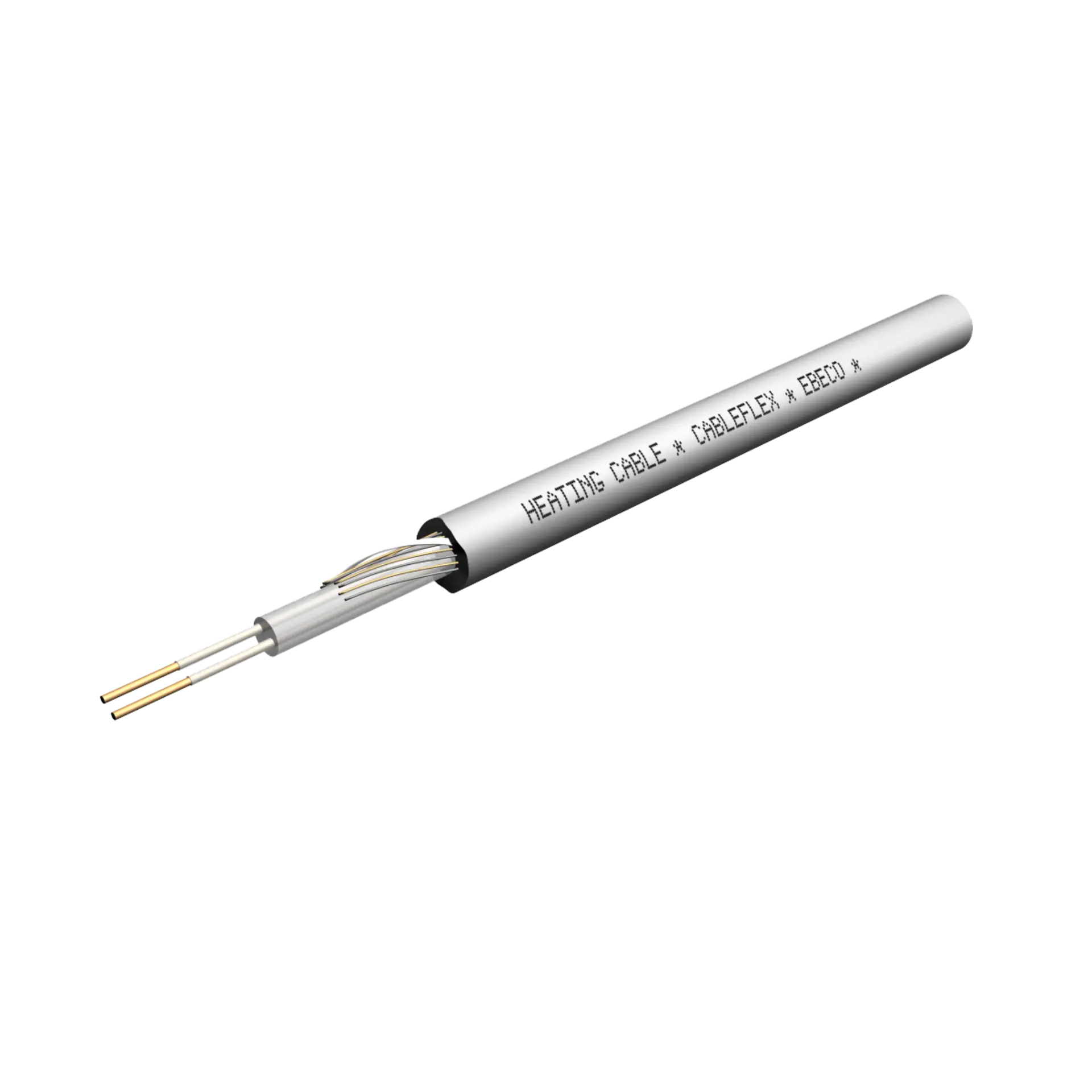

Cable type	Series-resistive 2-conductor with screen
Enclosure class	Thermostat: IP21, Cable: IP67
Max Ambient temperature	90 °C
Mechanical classification	M2
Protective conductor	Twisted
Thermostat	EB-Therm 205
UV resistance	No

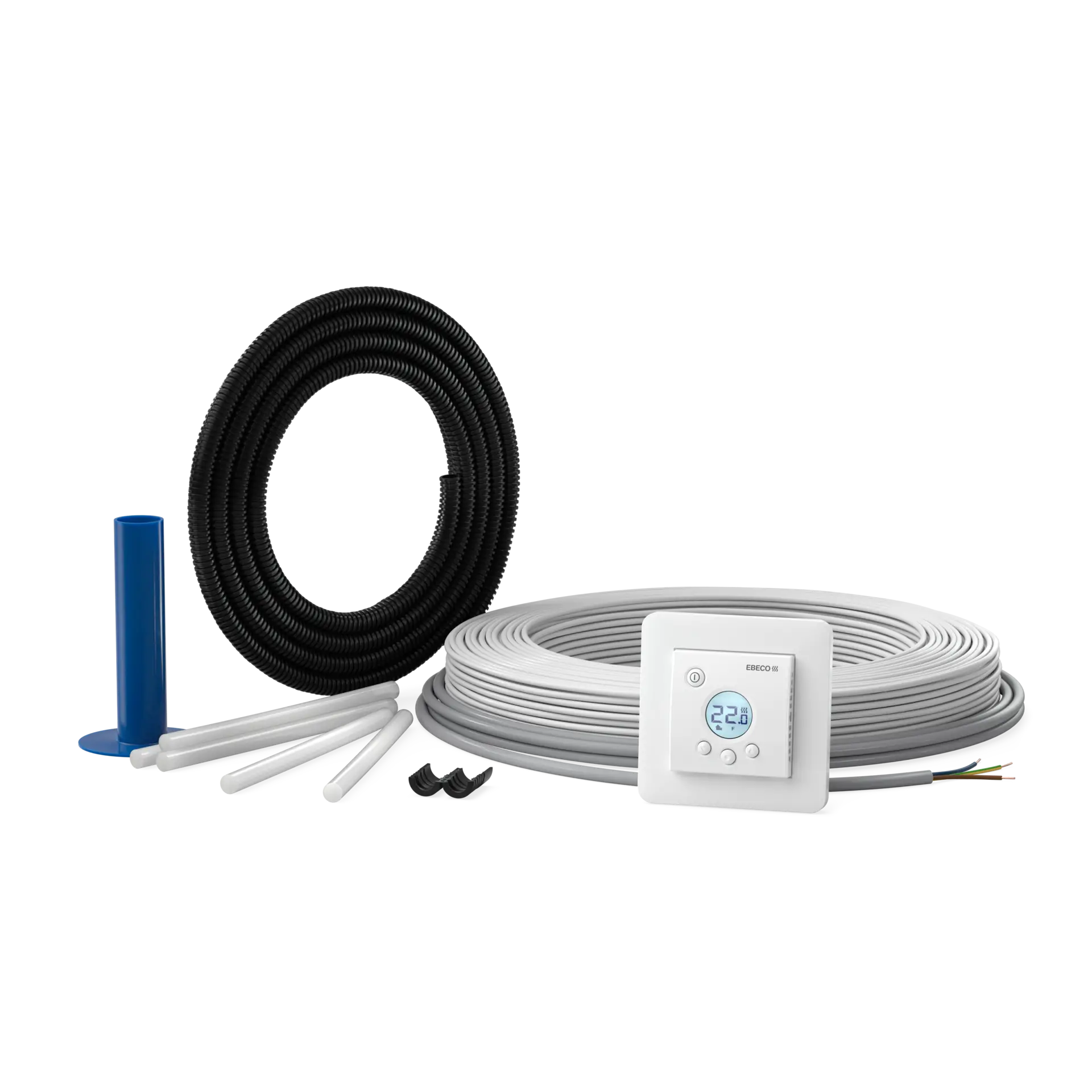

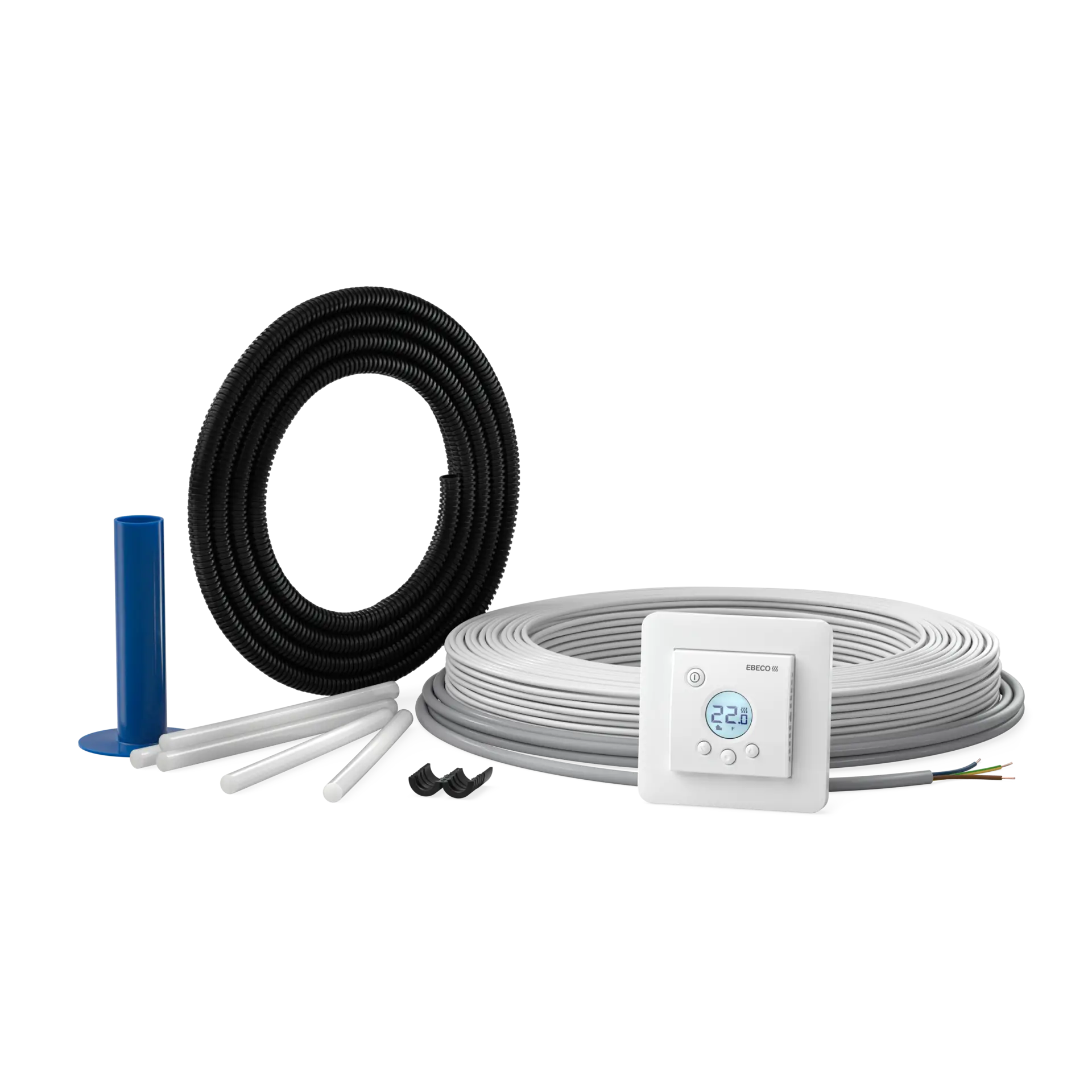

The package includes the following:

Hot glue sticks

Sensor hose

EB-Therm 205

Cableflex

Documents

Warranty

12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.

Our warranty terms
