EB-Therm 205
Floor heating thermostat with floor and room sensors
Användning
- Home environment
-
Buttons -
Energy program -
Display
-
Energy efficient

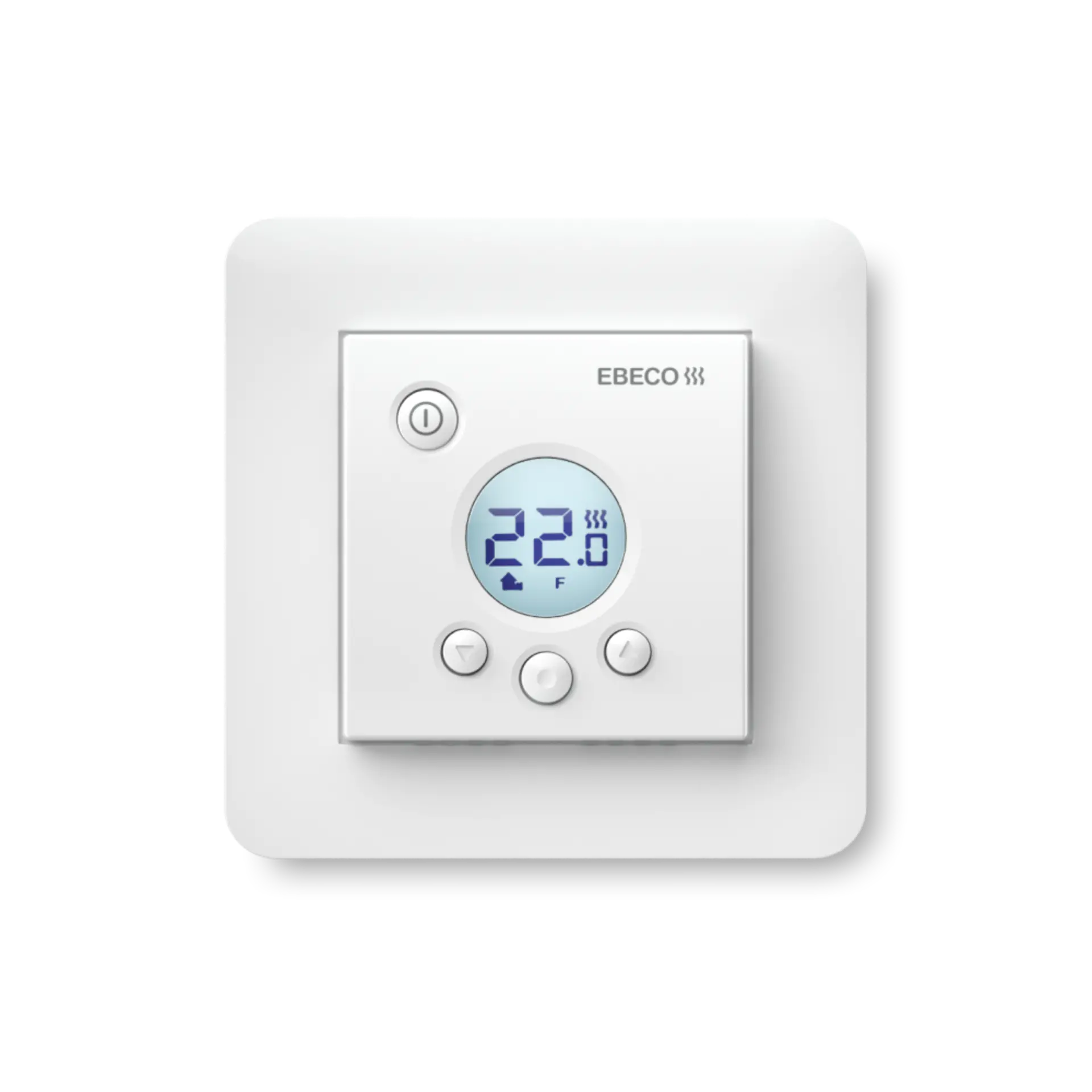

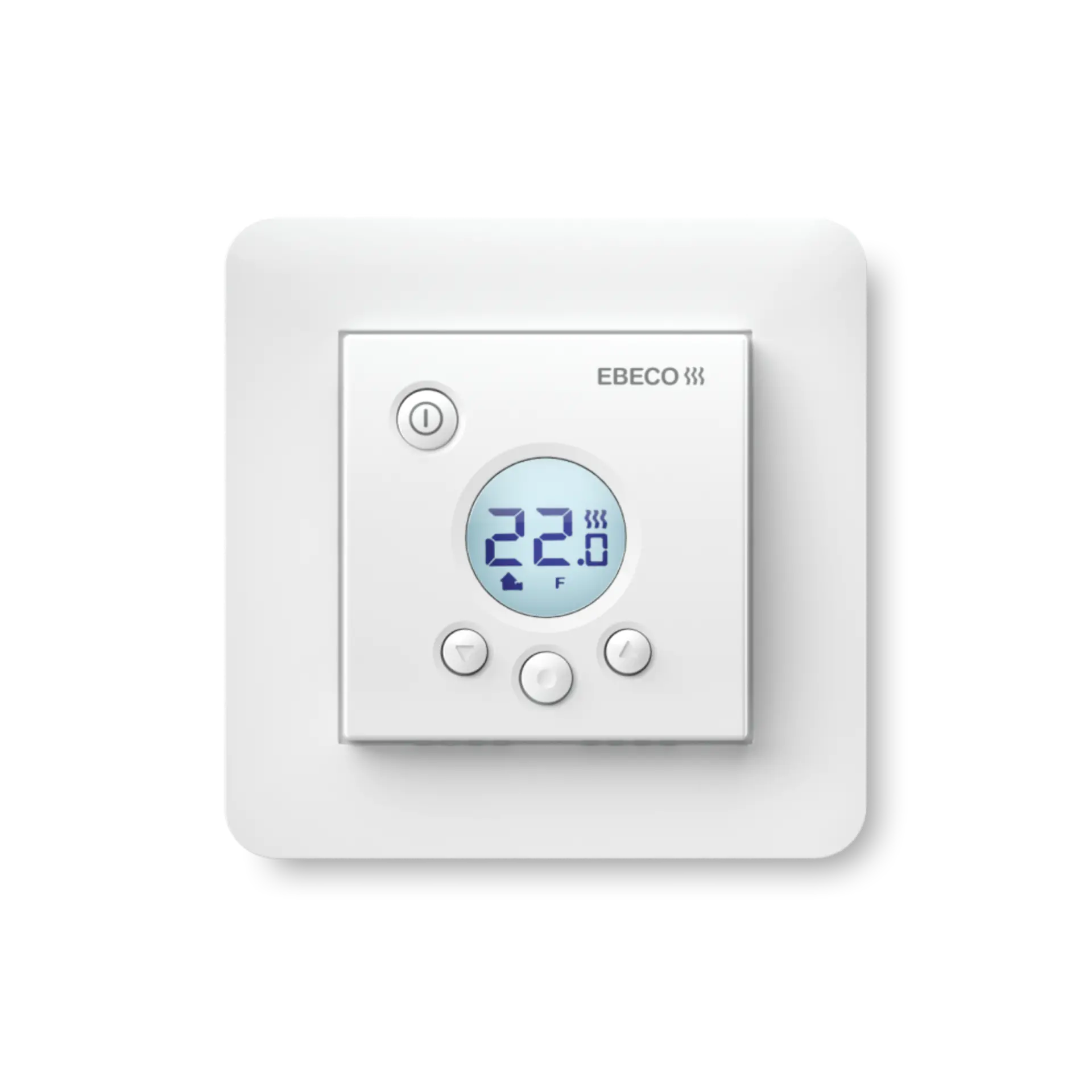

EB-Therm 205 is an underfloor heating thermostat with backlit LCD display and energy saving program, where times and temperatures are adjusted individually. The thermostat is microprocessor controlled, which means that the temperature fluctuations are minimised and it provides even heating. EB-Therm 205 can be used as a floor thermostat, room thermostat or as a combined room thermostat with overheating protection in the floor.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 VAC ±10 %, 50 Hz |
| Anpassad för ramsystem | Schneider Exxact, ELKO Plus/RS |
| Färg | White (RAAL 9003 & 9010) |
| Appstyrning möjlig | No |
| Last | Cos φ = 1 - Resistive |
| Brytförmåga | 3680 W/ 16A / 230 VAC |
| Effektförbrukning | < 0,5 W |
| Förlängning givarkabel, max. | 50 m, 2 * 1,5 mm² |
| Golvtemperaturområde | 5 ºC - 45 ºC |
| Backup-tid | 36 h |
| Innehåller SVHC ämnen enligt REACH | No |
| Kapslingsklass | IP21 |
| Reglernoggrannhet | ± 0.3ºC |
| Lufttemperaturområde | 5 ºC - 45 ºC |
| Skyddsklass | Class II |
| Temperaturbegränsare | 15 ºC - 45 ºC |
The product is included in:
Warranty
Ebeco AB provides a 5-year product guarantee in the event of material defects.
