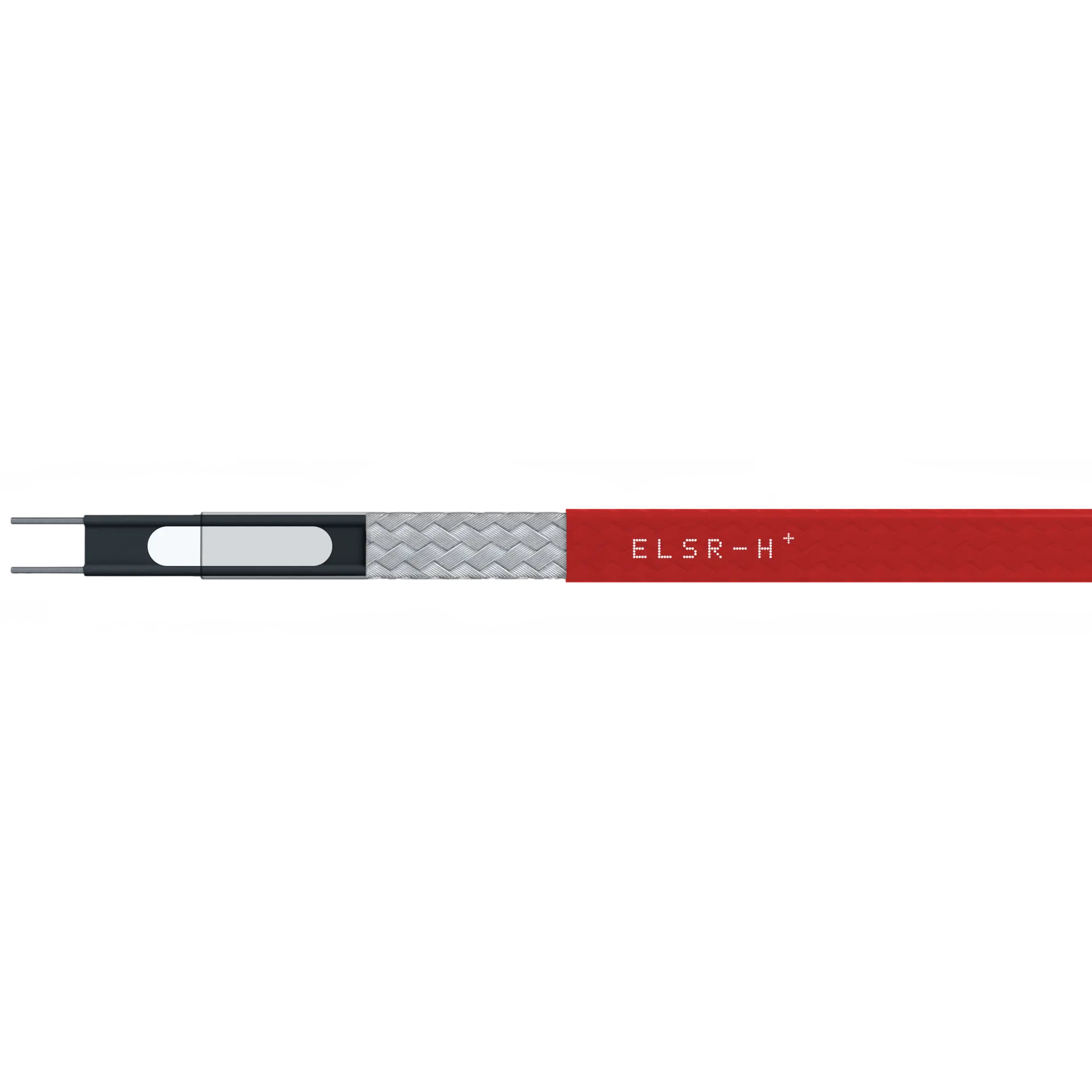

ELSR-H+
Self-regulating heating cable
Usage
- Wide range of uses
- Power range 15-75 W/m
- Frost protection and heating products
-
165 °C -
210 °C -
EX
-
High chemical resistance
-
High temperature resistance
-
Can be cut and crossed for perfect adaptation
The self-regulating heating cable ELSR-H+ for high temperatures has a wide range of industrial applications. In addition to high temperatures, the cable is also suitable and approved for use in hazardous areas. This heating cable also withstands reactive chemicals, oil, and fuel. Thanks to its high chemical resistance, the cable also has a long service life.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Number of conductors | 2 pcs |
| Bending radius, min. | 25 mm |
| Exposure temperature (power off), max. | 210 ºC |
| Exposure temperature (power on), max. | Up to 165 ºC |
| -BOT | Protective conductor: Braided, Outer casing: Fluoropolymer |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -60 ºC |
| Insulation material outer | PFA |
| Cable type | Self-regulating 2-conductor with screen |
| Classification (Ex) | Ex 60079-30-1 IIC Gb, Ex 60079-30-1 IIIC Db |
| Conductor area | 1,23 mm² |
Installation
*¹ Heating circuit lengths on the following conditions
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
