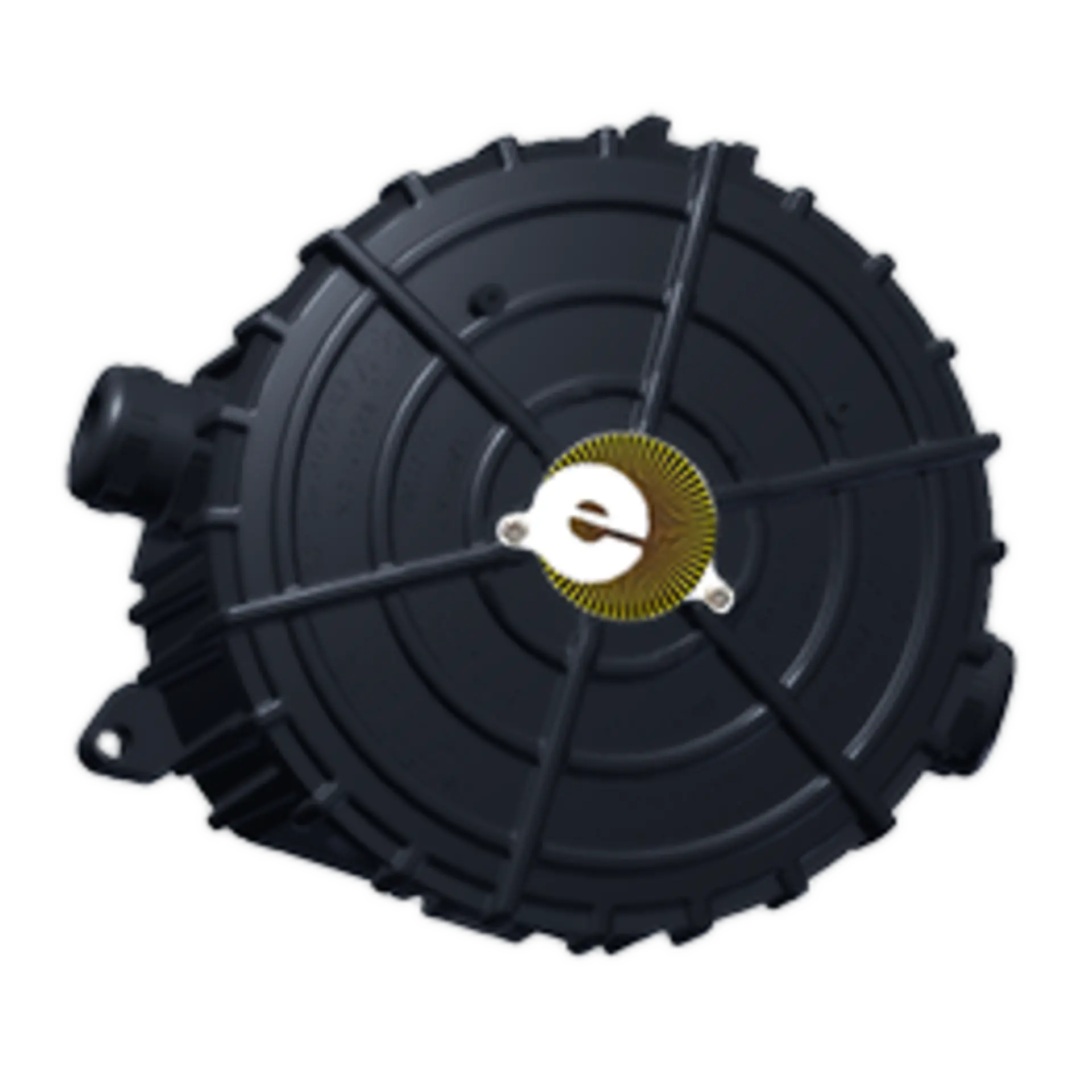

Junction box ELAK-Ex-R
Användning
- For ELSR-N/-LS/-H/ -SH/ -SHH
-
EX
The innovative ELAK-Ex-R junction box is suitable for use in potentially explosive atmospheres in accordance with Ex guidelines 94/9/EC (ATEX 95). Thanks to its exceptional shape, it offers several benefits. Thanks to the shape of the box, the inserted cable does not need to bend sharply and thus reduces the risk of cable damage. A safety lock with accompanying tools prevents the cover from moving. Additional mounting options make it possible to attach rating plates for easy identification of heating circuits in complex systems. Suitable for wall mounting.
Junction box ELAK-Ex-R
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 550 V |
| Anslutningsklämma värmekabel/givare | Max. 6 mm² / max. 1.5 mm² |
| Färg | Black |
| Innehåller SVHC ämnen enligt REACH | No |
| Kapslingsklass | IP65 |
| Klassificering (Ex) | II 2G Ex eb IIC T6 Gb II 2D Ex tb IIIC TX Db |
| Material | Plastic |
| Montage | Wall mounting |
| Mått | 120*120*90 |
| Omgivningstemperatur | -40 - 50 ºC |
| Slagfasthet | 7 Joule |
