Junction box EX-it-R
Användning
- For ELSR-N/-H/-LS/-SH/-SHH
-
EX

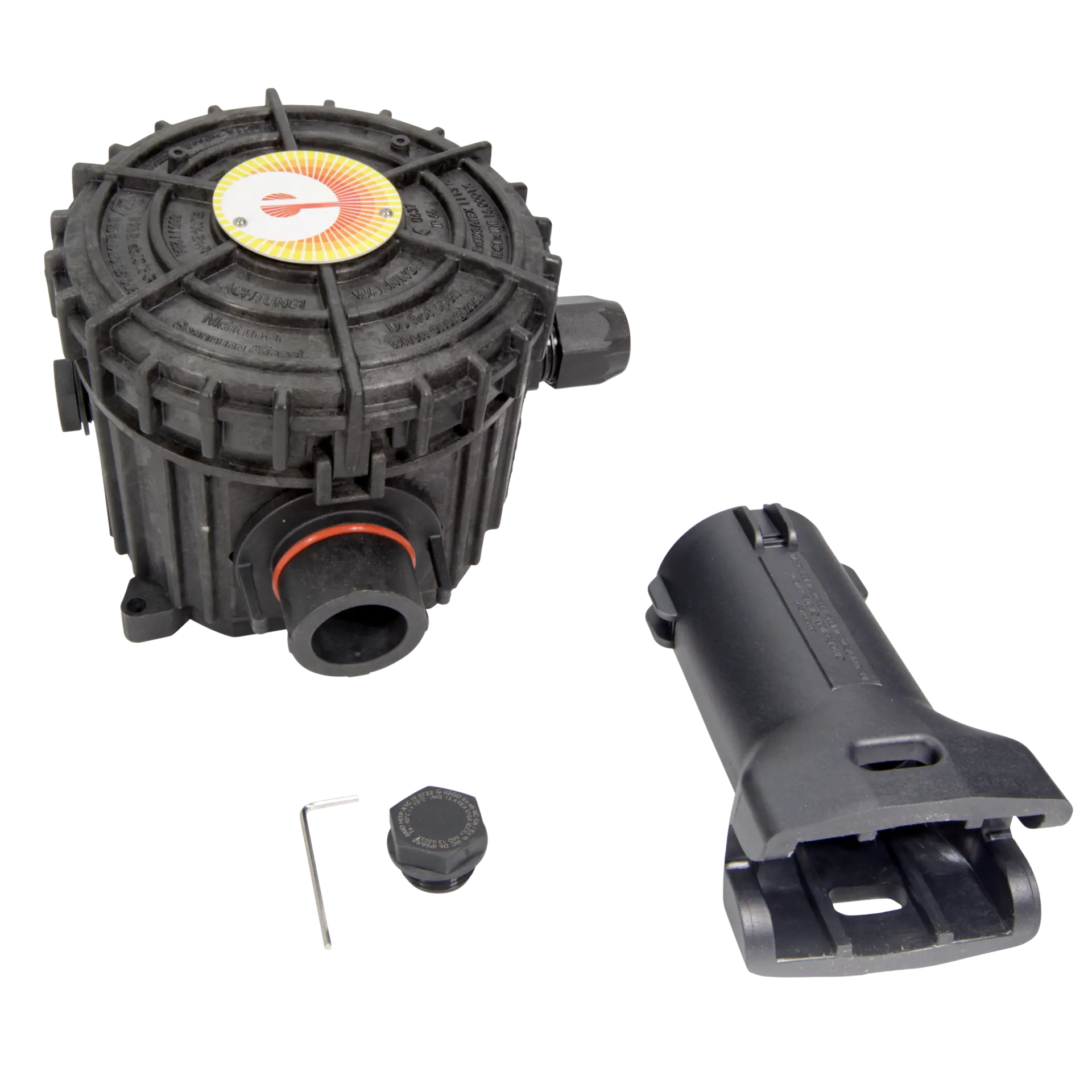

The Ex-it-R junction box with mounting bracket (Ex-it) is intended for use in explosive environments in accordance with Ex guidelines 94/9/EC (ATEX 95) and offers several advantages. Thanks to the shape of the box, the inserted cable does not need to bend sharply and thus reduces the risk of cable damage. Thanks to the mounting bracket provided, no angle irons are needed. This is particularly advantageous for heating cables on pipes as the cable can be inserted directly via the mounting bracket. In addition, no fixing screws are needed for heating pipes and sensors. A safety lock with accompanying tools prevents the cover from moving. Additional mounting options make it possible to attach rating plates for easy identification of heating circuits in complex systems.
Specifications
| Specification | Data |
|---|---|
| Anslutningsklämma värmekabel/givare | Max 6 mm²/1,5 mm² |
| Färg | Black |
| Arbetstemperatur (monteringsfäste) | -20-200 °C |
| Innehåller SVHC ämnen enligt REACH | No |
| Isolering, max | 120 mm |
| Kapslingsklass | IP65 |
| Klassificering (Ex) | II 2G Ex eb IIC Gb II 2D Ex tb IIIC Db |
| Klassificering (EX) monteringsfäste | II 2G Ex e II II 2 D Ex tD A21 IP65 |
| Material | Plastic |
| Montage | Pipe mounting |
| Mått | 150*125*90 |
| Omgivningstemperatur | -40 - 50 ºC |
| Rörets ytterdiameter, min | 20 mm |
| Slagfasthet | 7 Joule |
