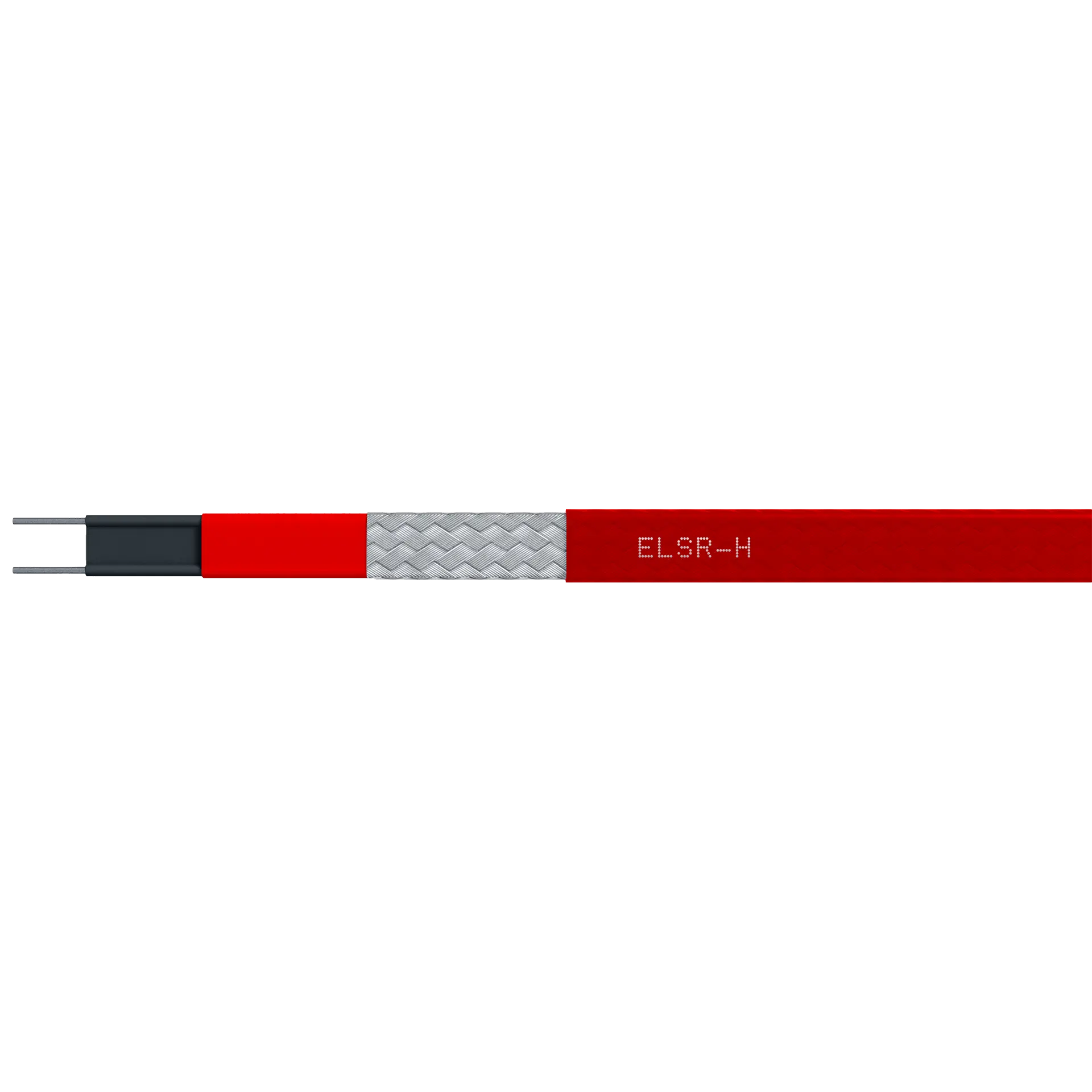

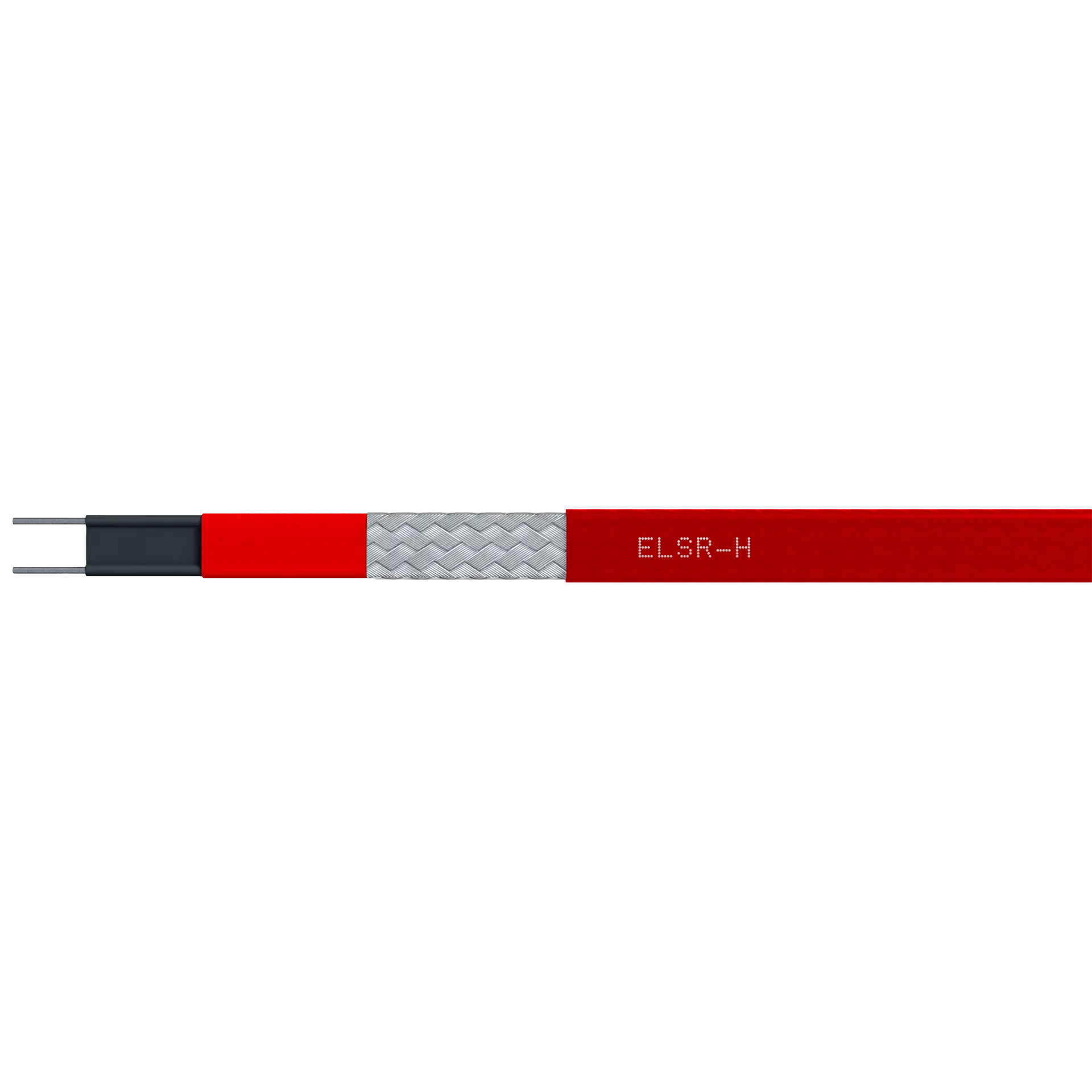

ELSR-H
Self-regulating heating cable
Användning
- Wide range of uses
- Power range 10-75 W/m
- Frost protection and heating products
-
120 °C -
210 °C -
EX
-
High chemical resistance
-
High temperature resistance
-
Can be cut and crossed for perfect adaptation
The self-regulating heating cable ELSR-H for high temperatures (up to 210°C ) has a large number of industrial applications. In addition to high temperatures, the cable is also suitable and approved for use in hazardous areas. The BOT version of this heating cable is also resistant to reactive chemicals, oil and fuel. Thanks to the high chemical resistance, the cable also has a long service life.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Antal ledare | 2 st |
| Böjningsradie, min. | 25 mm |
| Exponeringstemperatur (power off), max. | 210 ºC |
| Exponeringstemperatur (power on), max. | Upp till 120 ºC |
| -BOT | Protective conductor: Braided, Outer casing: Fluoropolymer |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -60 ºC |
| Isoleringsmaterial yttre | PFA |
| Kabeltyp | Self-regulating 2-conductor with screen |
| Klassificering (Ex) | II 2G Ex 60079-30-1 IIC GbII 2D Ex 60079-30-1 IIIC Db |
| Ledararea | 1,23 mm² |
Installation
*¹ Heating circuit lengths on the following conditions
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
