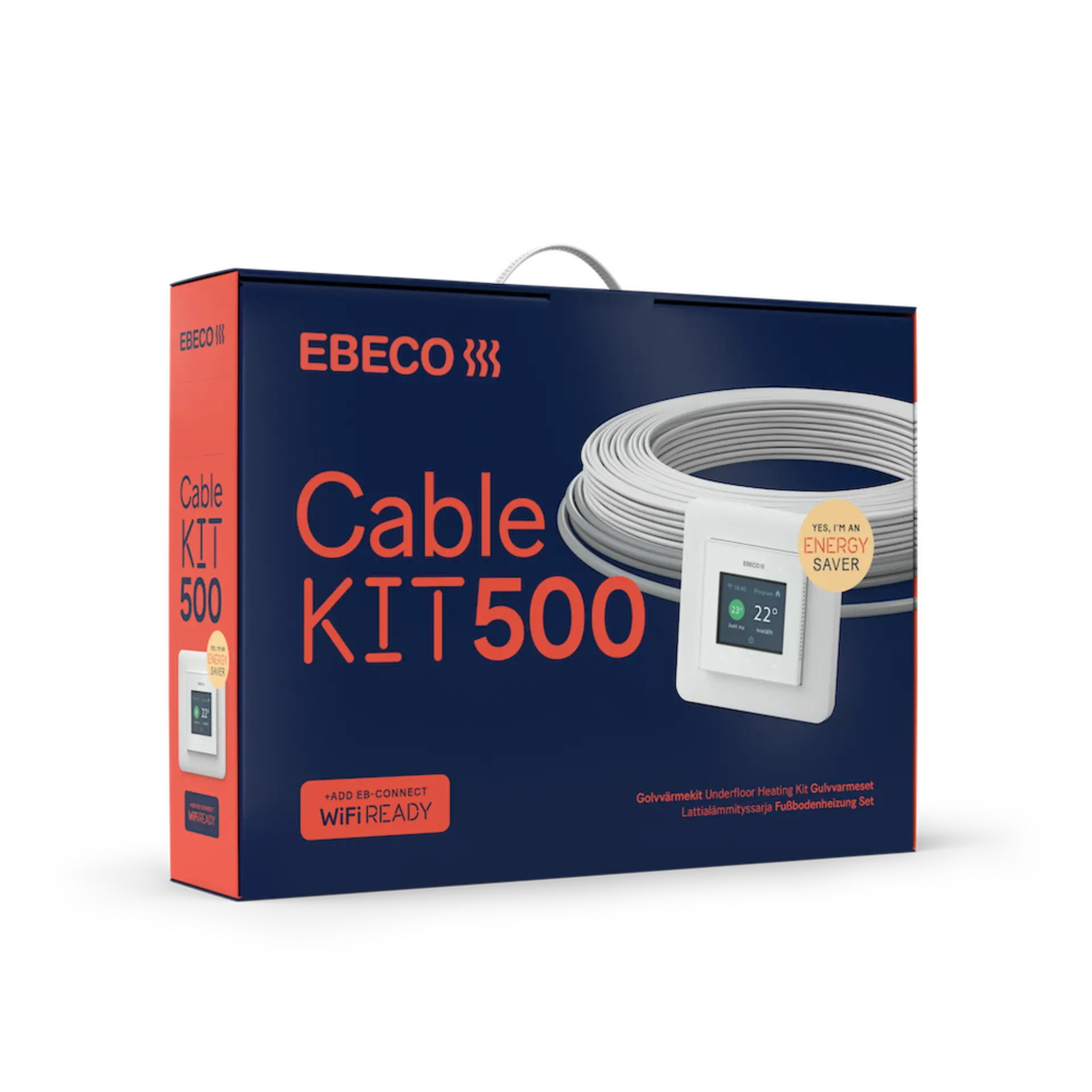

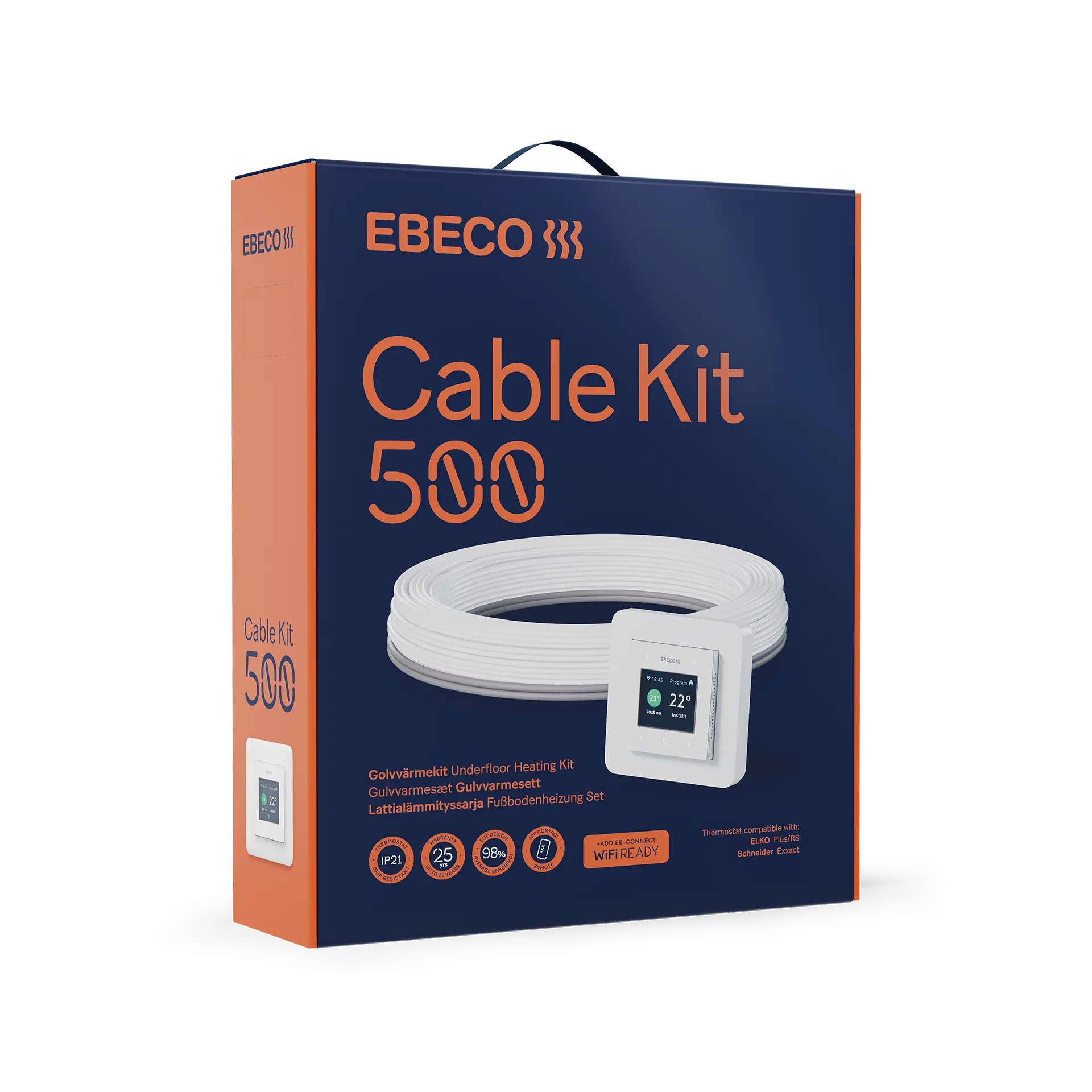

Cable Kit 500
Underfloor heating kit with heating cable and thermostat
Användning
- Laid in levelling compound
- Underfloor heating for both wet rooms and dry areas
- Underfloor heating for tiled, natural stone and linoleum floors
-
EB-Therm 500 -
Cable -
80-160 W/m²
-
Everything required for installation is included
-
Thin cable design that provides low installation height
-
WiFi READY: The thermostat can be connected to WiFi
The thermostat is "WiFi READY", or prepared for WiFi. With the accessory, EB-Connect WiFi, the underfloor heating system can be controlled via the Ebeco Connect app, Tibber, Google Home or the open API.
Cable Kit 500
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Anslutningskabel | H05-Z1Z1F |
| Längd anslutningskabel | 2,5 m |
| Antal ledare | 3 st |
| Böjningsradie, min. | 25 mm |
| Effekt | 11 W/m |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -5 ºC |
| Isoleringsmaterial mellan | XLPE |
| Isoleringsmaterial inre | ETFE |
| Isoleringsmaterial yttre | EVA, PE |
| Kabeltyp | Series-resistive 2-conductor with screen |
| Kapslingsklass | Thermostat: IP21, Cable: IP67 |
| Max Omgivningstemperatur | 90 °C |
| Mekanisk klassificering | M2 |
| Skyddsledare | Twisted |
| Termostat | EB-Therm 500 |
| UV-beständighet | No |

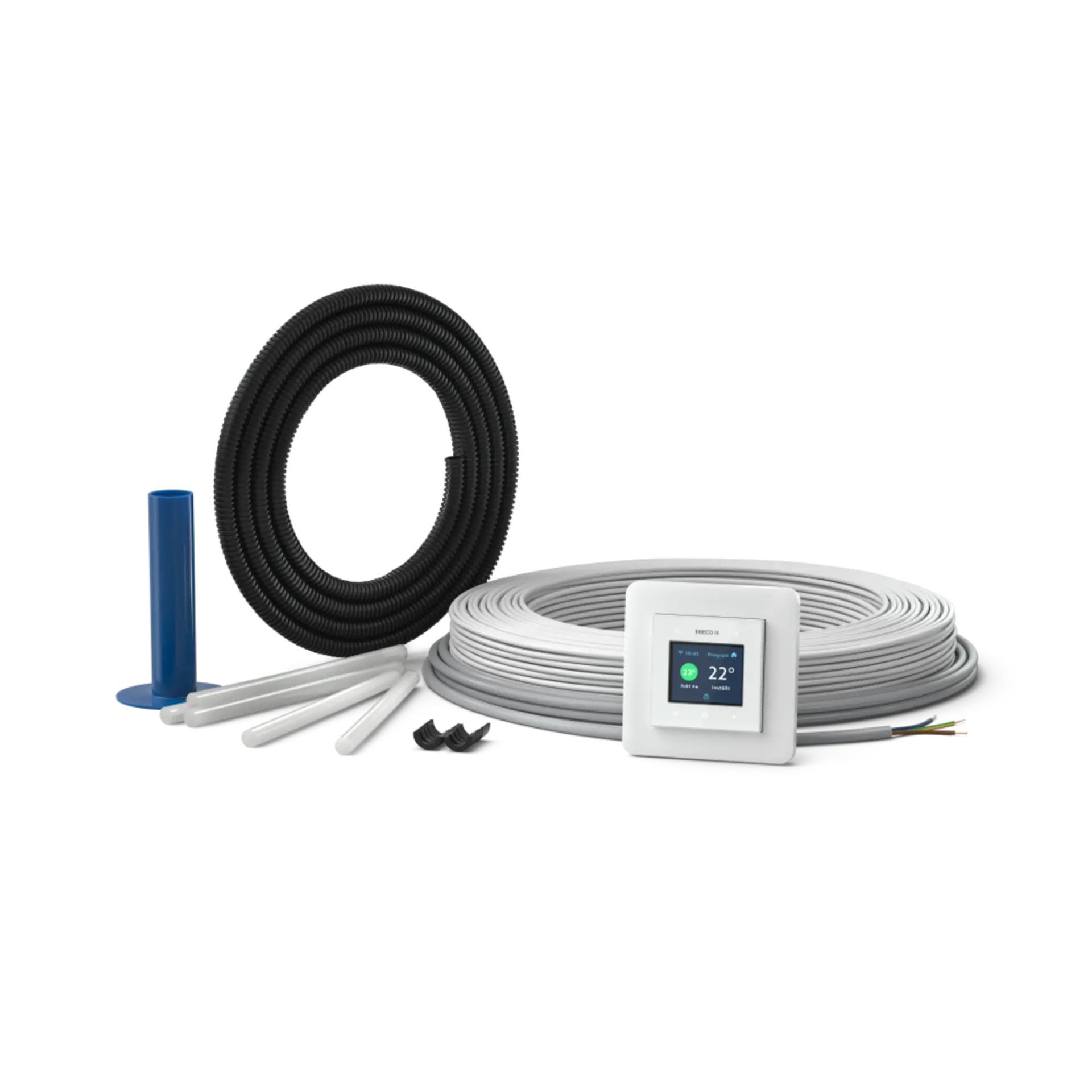

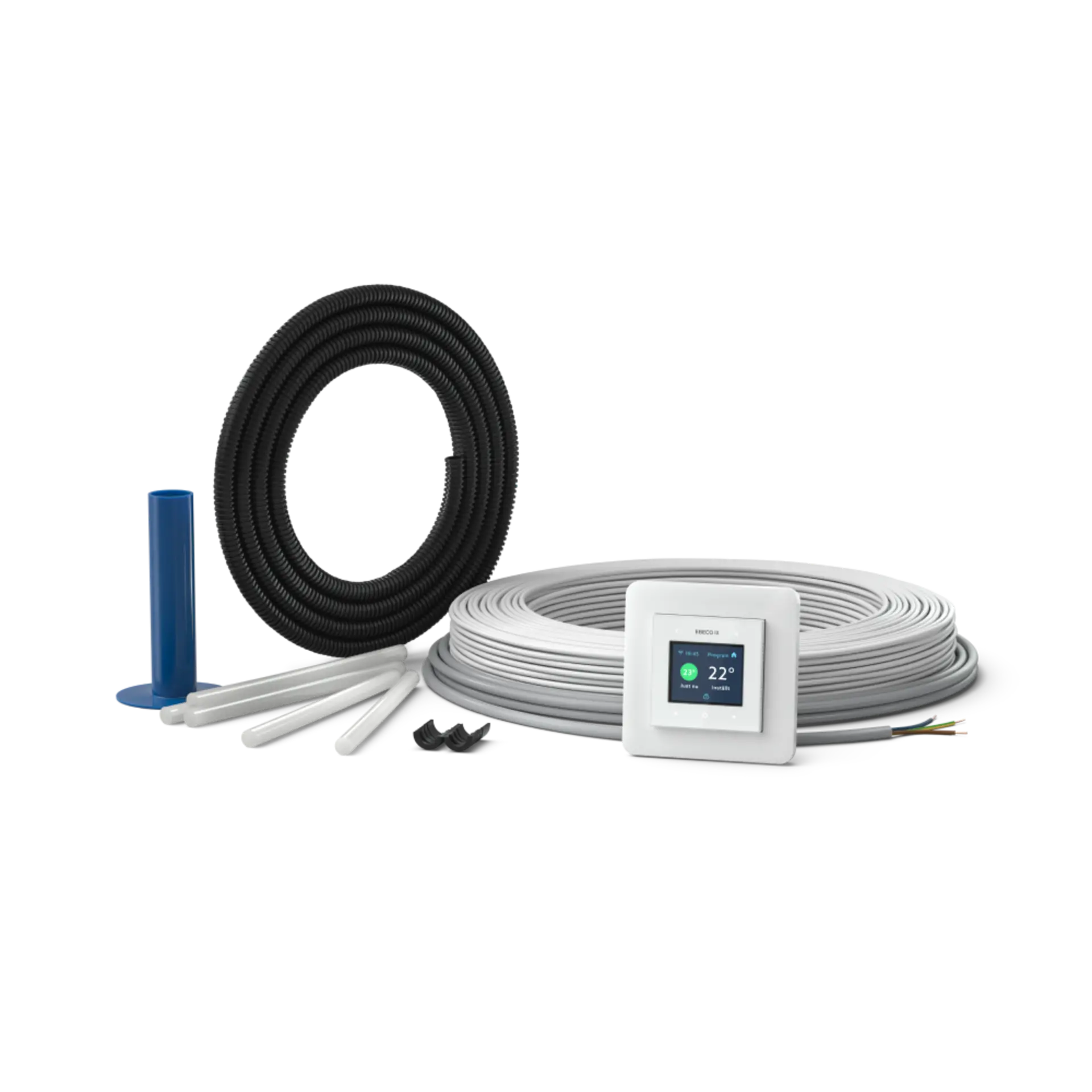

The package includes the following:
Documents
Warranty
12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.
Installation

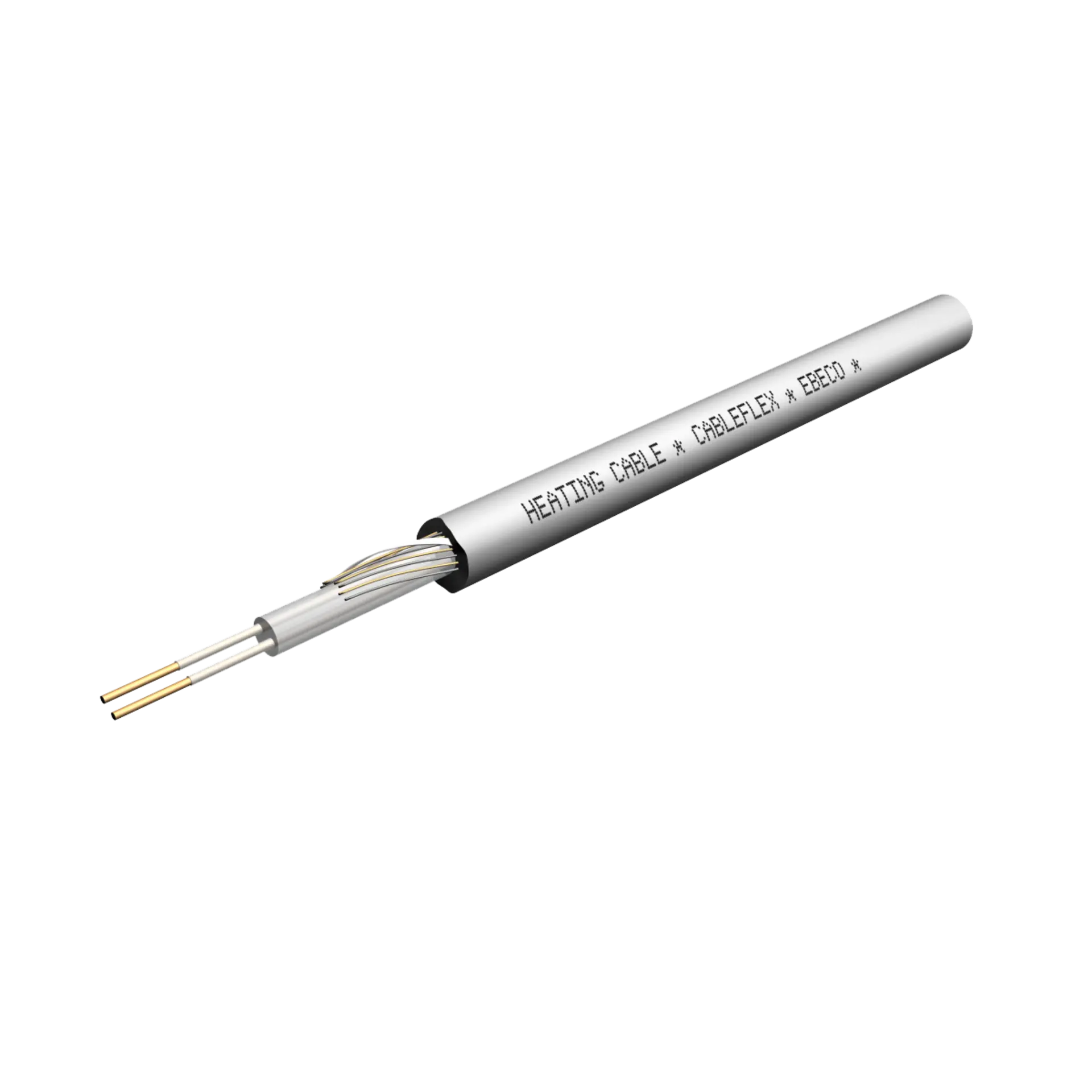

Cable Kit uses the Cableflex 11 heating cable, which should generally be screeded in. Together with Cable Clip 4, the heating cable clip for reinforcement mesh, you save time, money and above all your knees.
Flooring materials
The Cableflex cable can be installed under most commonly used flooring materials such as tiled and natural stone floors, wooden and laminate flooring and linoleum.
Check whether the material is suitable for use in combination with underfloor heating with the floor supplier.
Subflooring when screeding
Cableflex 11 is laid on floor constructions of concrete, plaster or chipboard and must then be screeded with a suitable levelling compound.
On uninsulated concrete floors against the ground, additional insulation is always recommended. It is also recommended that the heating is not switched off completely during the summer to counteract rising moisture.
See manual for further instructions.
Installed output
The room's power output needs are governed by how well insulated it is, its air turnover and the outdoor temperature, but in addition to these parameters, the criteria below must also be taken into account.
Maximum installed power output for different surfaces:
- On concrete subflooring: 160 W/m²
- On flammable subflooring: 120 W/m²
Maximum installed power output for different flooring materials:
- Tile & natural stone floor: 160 W/m²
- Wood & laminate flooring and linoleum: 75 W/m²
See manual for further instructions.
Examples of constructions
In screed:
- Existing floors (chipboard, plasterboard or concrete) with Cable Board insulation board, if any
- Primer
- Heating cable
- Screed/Fix
- Tiles/linoleum
