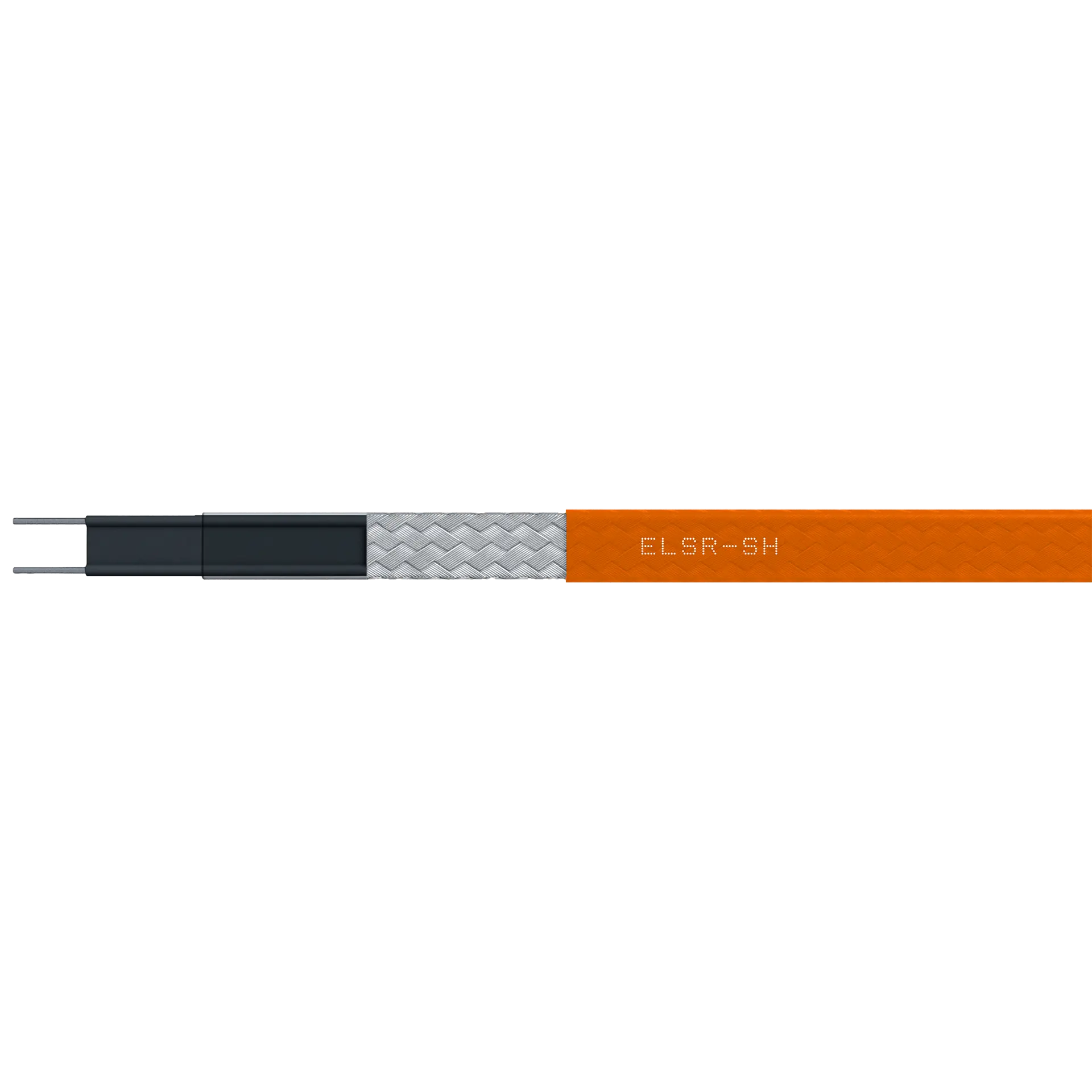

ELSR-SH
Self-regulating heating cable
Användning
- Frost protection and heating products
- Power range 15-90 W/m
- Wide range of uses
-
165 °C -
250 °C -
EX
-
Can be cut and crossed for perfect adaptation
-
High chemical resistance
-
Extra high temperature resistance
The versatile self-regulating heating cable, ELSR-SH, for high power off temperatures up to 250°C has a large number of industrial applications. It is also suitable and approved for use in hazardous areas. The heating cable is also resistant to reactive chemicals, oil and fuel. Thanks to the high chemical resistance, the cable also has a long service life.
ELSR-SH
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Antal ledare | 2 st |
| Böjningsradie, min. | 25 mm |
| Exponeringstemperatur (power off), max. | 250 ºC |
| Exponeringstemperatur (power on), max. | Upp till 165 ºC |
| -BOT | Protective conductor: Braided, Outer casing: Fluoropolymer |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -60 ºC |
| Isoleringsmaterial yttre | PFA |
| Kabeltyp | Self-regulating 2-conductor with screen |
| Klassificering (Ex) | II 2G Ex 60079-30-1 IIC GbII 2D Ex 60079-30-1 IIIC Db |
| Ledararea | 1,23 mm² |
Installation
*¹ Heating circuit lengths on the following conditions
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
- In certain installation situations, the heating circuit length may vary. Please contact our engineers.
