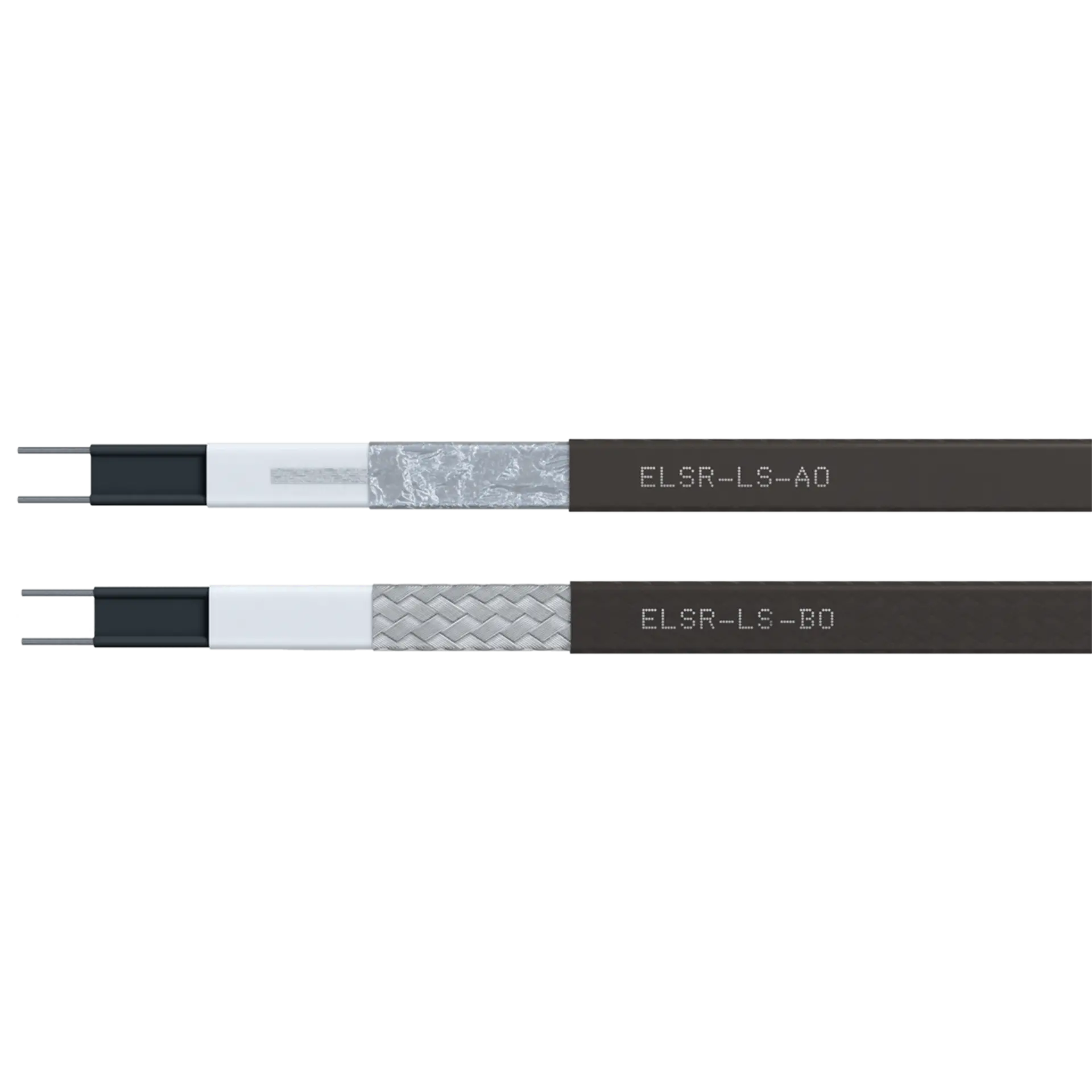

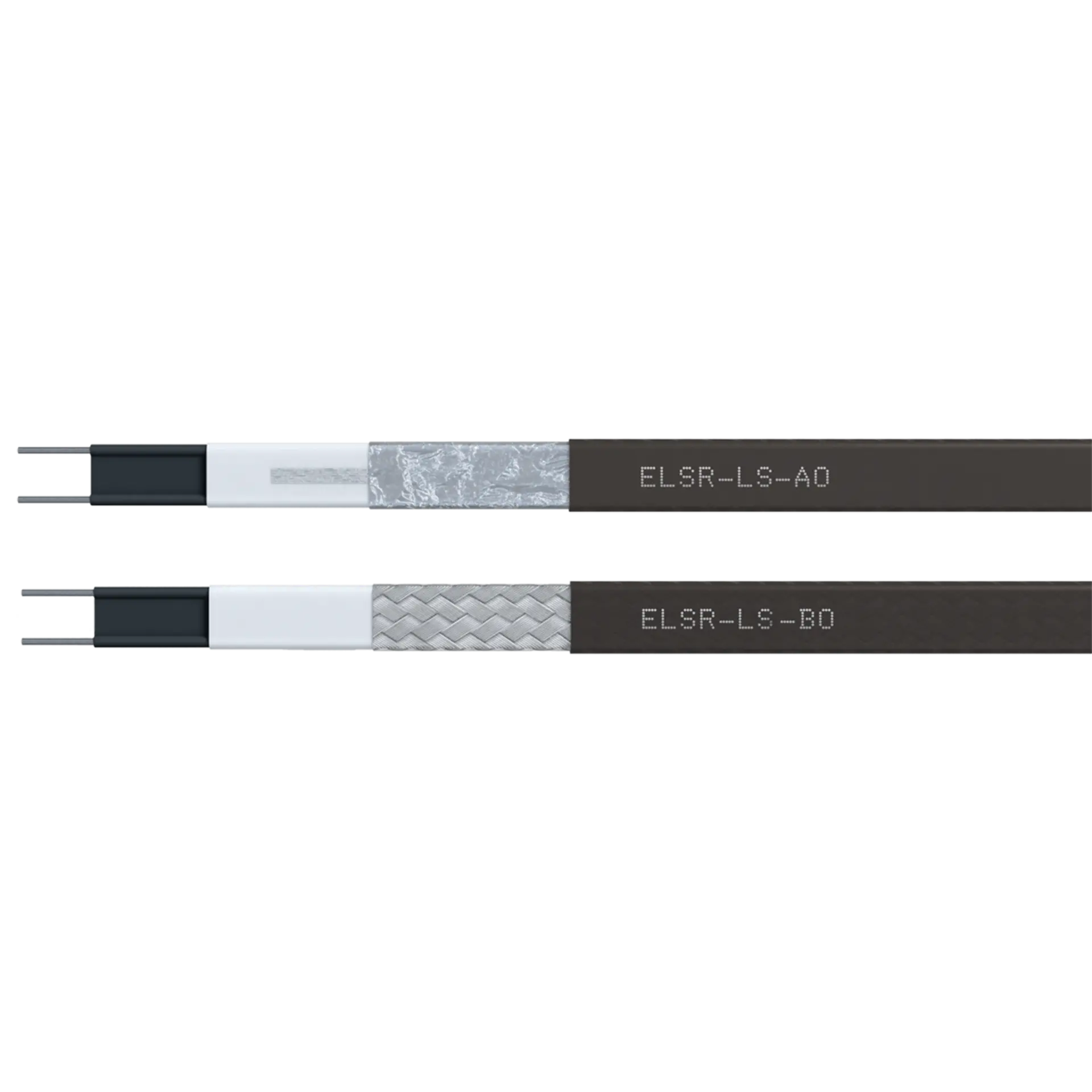

ELSR-LS

Self-regulating heating cable

Usage

  • Power range 10-25 W/m
  • Available in different designs for many uses
  • Frost protection and heating products
  • Power on: 65 °C
    65 °C
  • Power off: 80 °C
    80 °C
  • EX
    EX
  • Can be cut and crossed for perfect adaptation
  • UV-resistant
The self-regulating heating cable ELSR-LS is suitable for light industrial use, for example in sprinkler systems or similar. The cable is suitable for frost protection and temperature maintenance in the low temperature range. It is also approved for use in hazardous areas, so-called EX areas.

ELSR-LS

Article list

Article number Description Dimensions W x H (mm) Exposure temperature (power on), max. (ºC) Output (W/m at 10° C)
B0223102 ELSR-LS-10-2-BO 11 x 5,6 65 10
8961155 ELSR-LS-10-2-AO 10,3 x 5,3 65 10
B0223152 ELSR-LS-15-2-BO 11 x 5,6 65 15
B0223154 ELSR-LS-15-2-AO 10,3 x 5,3 65 15
B0223252 ELSR-LS-25-2-BO 11 x 5,6 65 25
B0223254 ELSR-LS-25-2-AO 10,3 x 5,3 65 25

Specifications

Specification Data
Connection voltage 230 V
Number of conductors 2 pcs
Bending radius, min. 25 mm
Exposure temperature (power off), max. 80 ºC
Exposure temperature (power on), max. Up to 65 ºC
-AO Protective conductor: Aluminium foil, Outer casing: TPE
Contains SVHC substances according to REACH No
Installation temperature, min. -60 ºC
Insulation material outer TPE-O
Cable type Self-regulating 2-conductor with screen
Classification (Ex) EPS II 2G Ex 60079-30-1 IIC Gb EPS II 2D Ex 60079-30-1 IIIC Db
Conductor area 1,23 mm²
