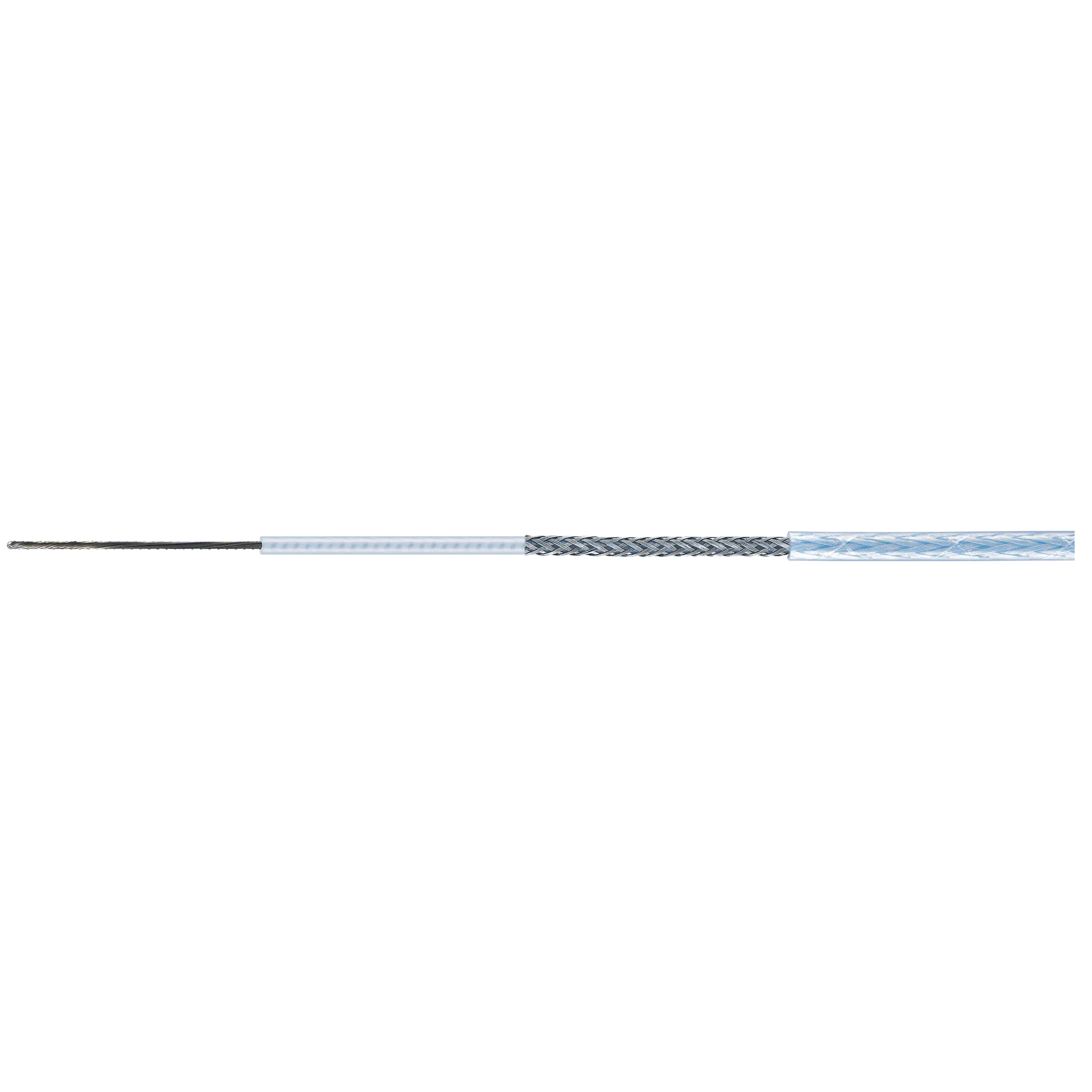

ELKM-AG-E
Series-resistive 1-conductor with screen
Användning
- Frost protection and heating products
- Wide range of uses
-
≤ 210 °C -
260 °C -
EX
The ELKM-AG-E heating cable has a wide range of applications and is used, among other things, for frost protection and to maintain desired temperature. It withstands corrosive environmental conditions and is approved for use in explosive areas.
ELKM-AG-E
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | Max 750 V |
| Antal ledare | 1 st |
| Effekt | Max 30 W/m. Power and exposure temperature vary depending on the application. Feel free to contact our support. |
| Exponeringstemperatur (power off), max. | 260 ºC |
| Exponeringstemperatur (power on), max. | Upp till 210 ºC |
| Installationstemperatur, min. | -60 ºC |
| Isoleringsmaterial inre | fluoropolymer |
| Isoleringsmaterial yttre | Fluoropolymer |
| Kabeltyp | Series-resistive 1-conductor with screen |
| Kapslingsklass | IP68 |
| Skyddsledare | Braided |
