T-18 CT
Self-regulating heating cable
Usage
- For asphalt and felt roofing
- Part of our Smarta Tak solution
-
18-36 W/m -
Running metres -
Self-regulating
-
Energy efficient
-
Can be cut and crossed for perfect adaptation
-
Smart accessories

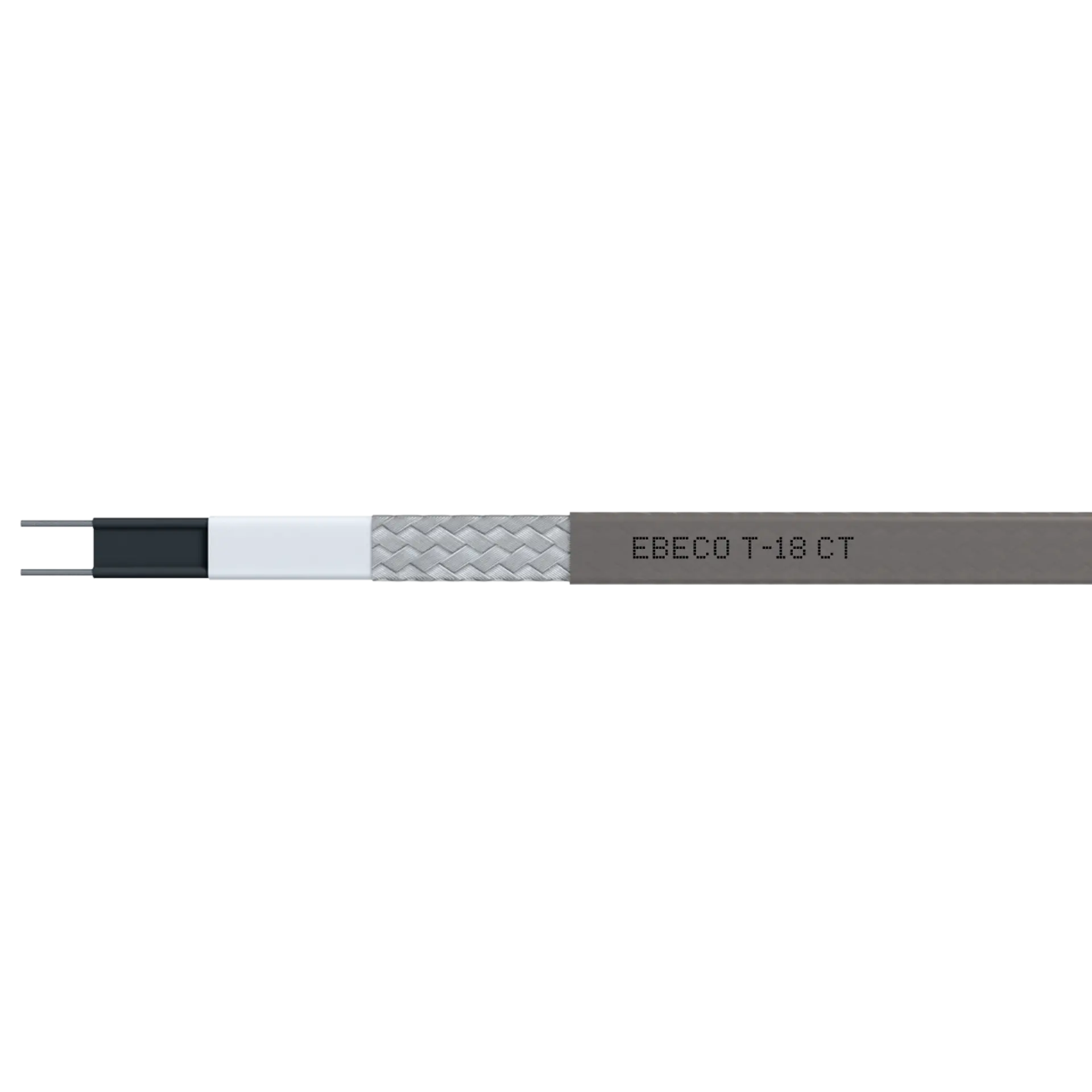

Self-regulating heating cable that detects the ambient temperature and adjusts output accordingly. Part of our Smarta Tak solution. Thanks to an outer casing of flouropolymer, it is well suited for laying on asphalt and felt roofing. Complemented by other products and accessories within our Smarta Tak solution.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Number of conductors | 2 pcs |
| Bending radius, min. | 25 mm |
| Output | 25 W/m at 0°C |
| Exposure temperature (power off), max. | 80 ºC |
| Exposure temperature (power on), max. | Up to 65 ºC |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -60 ºC |
| Insulation material outer | Fluoropolymer |
| Cable type | Self-regulating 2-conductor with screen |
| Conductor area | 1,23 mm² |
| Protective conductor | Braided |
| UV resistance | Yes |
