EB-Therm 800
DIN-mounted in standard design
Användning
- Public environment, suitable for hotels
- Snow melting installations
- Industrial facilities
-
Display -
Energy program -
Buttons
-
Multiple operating modes
-
Contains Hotel Program

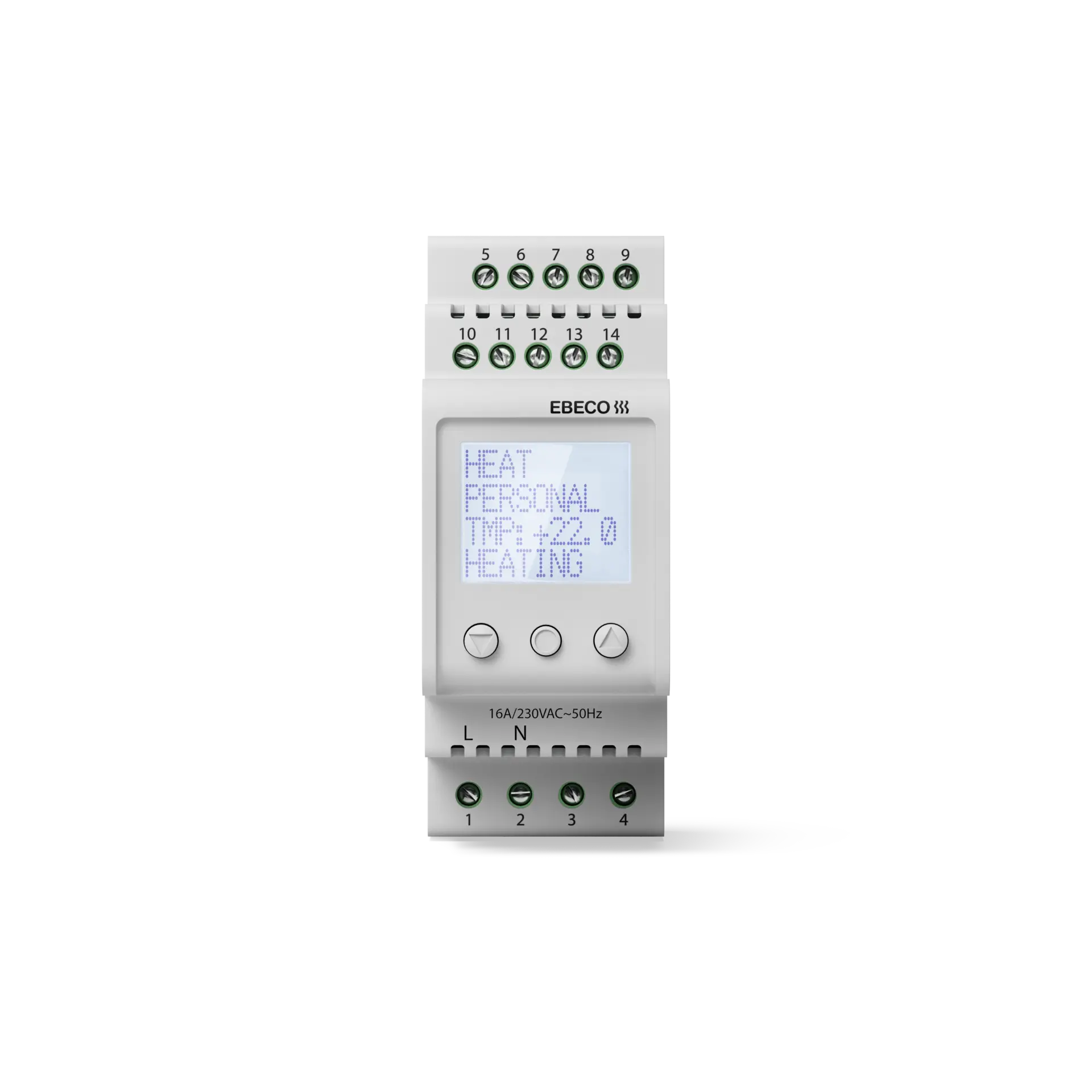

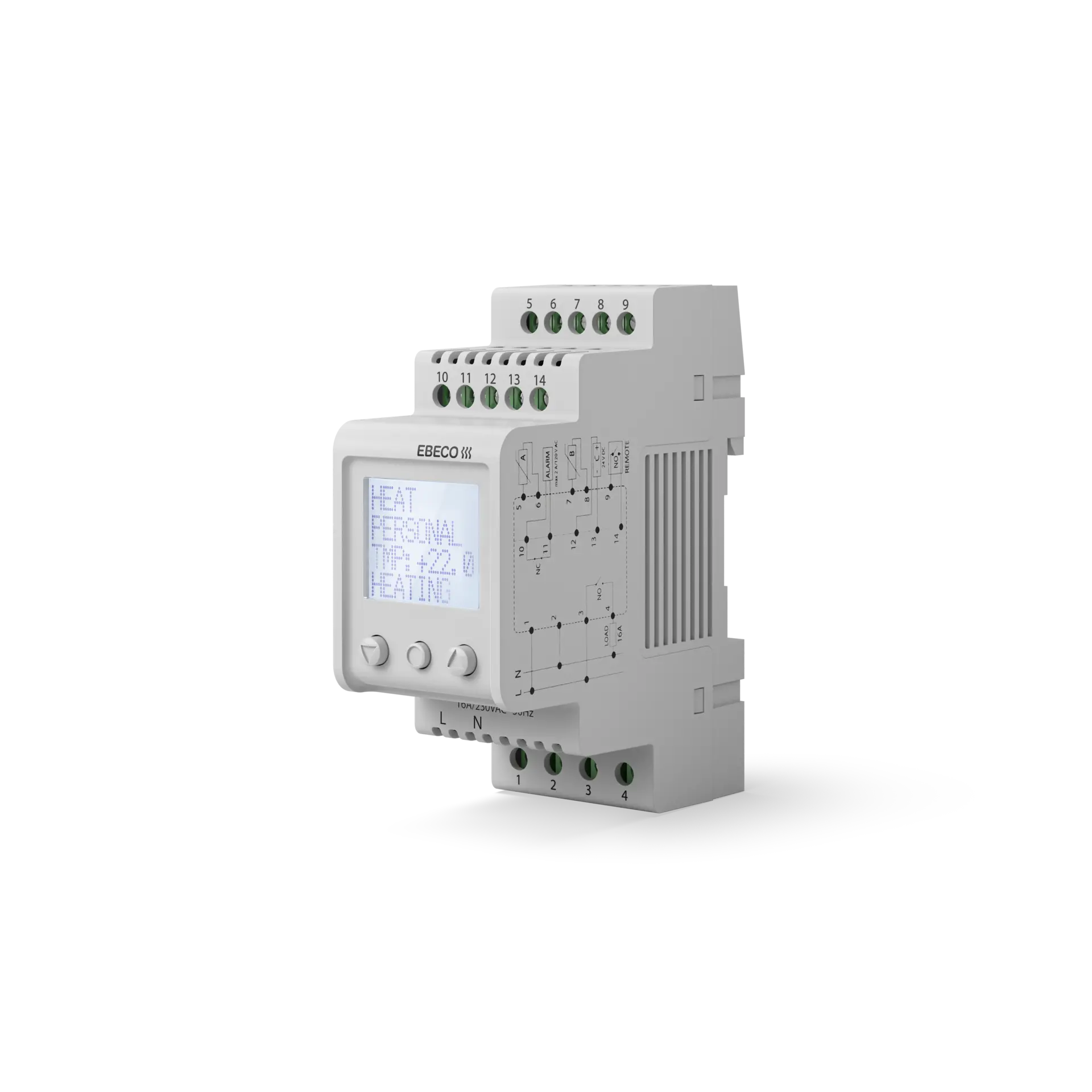

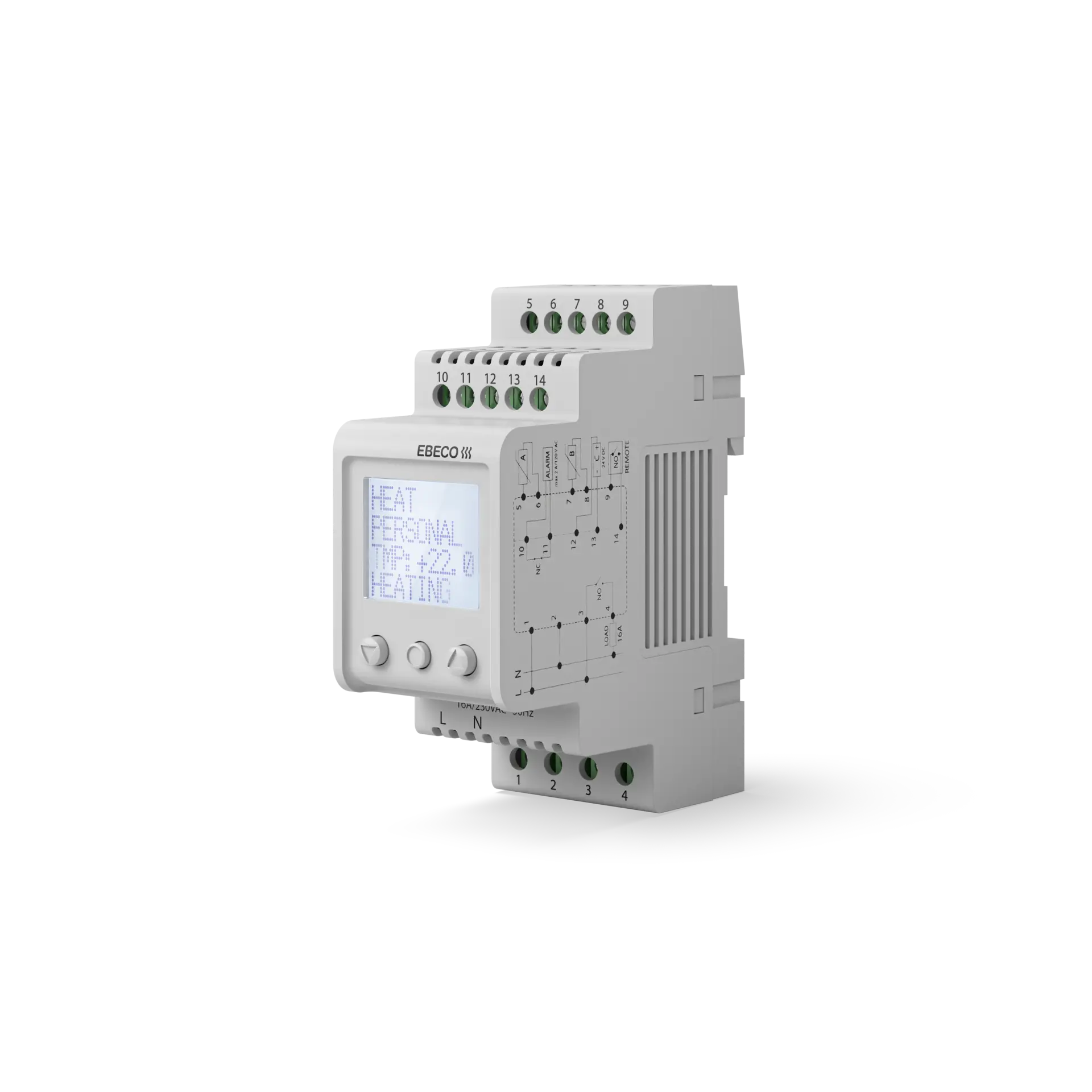

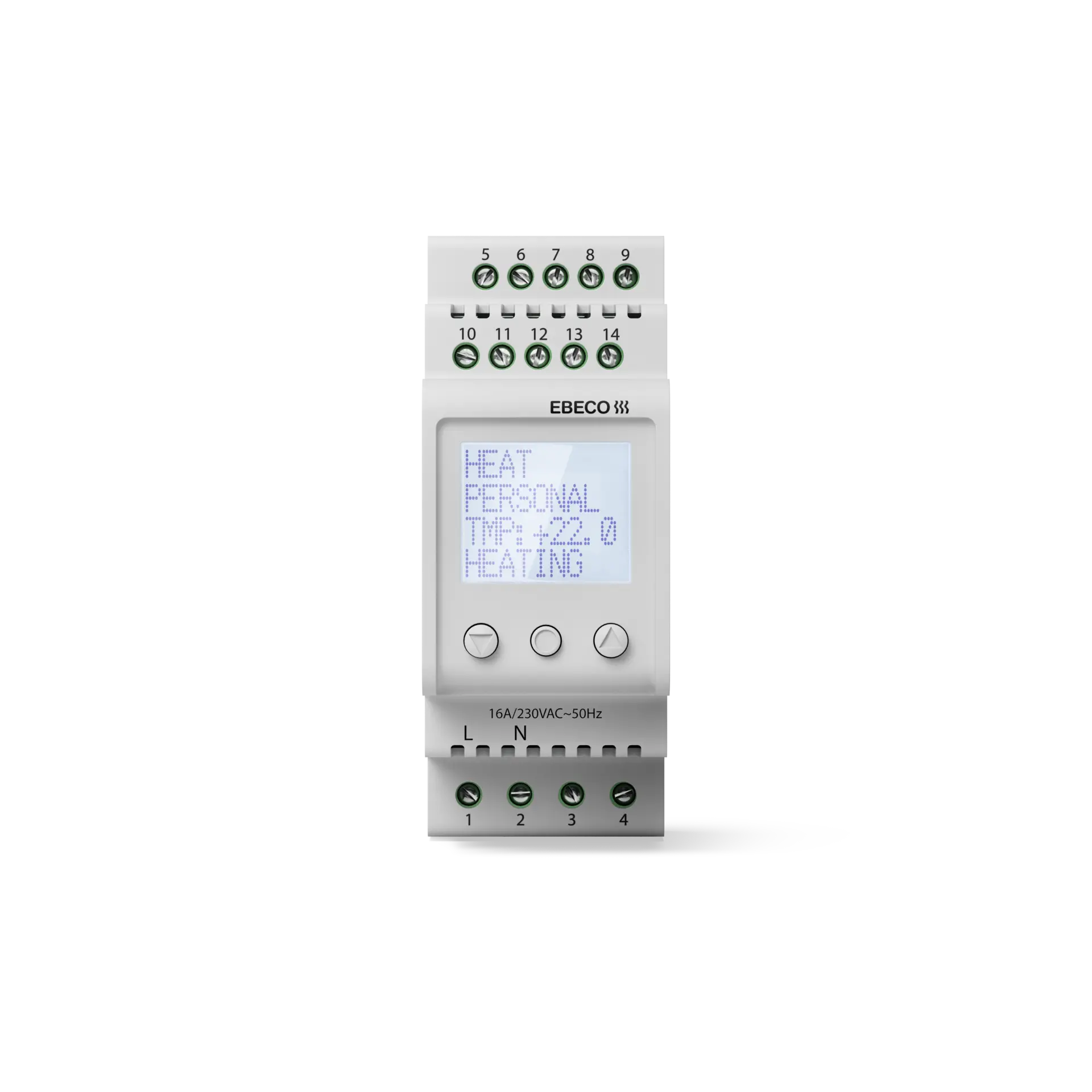

EB-Therm 800 is a DIN-mounted digital thermostat of standard design with four built-in operating modes; Heating, Cooling, Industry & Max/Min. The thermostat is therefore suitable for everything from residential environments, offices and warehouses to temperature control of industrial processes and snow melting systems for both ground and roof. The thermostat also provides the option of connecting a remote control unit. EB-Therm 800 also has a hotel program that can be controlled via an external card reader with delay using the thermostat's integrated time relay function.
EB-Therm 800
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 VAC ±10%, 50 Hz |
| Färg | Grey |
| Appstyrning möjlig | No |
| Belastning | 1 Cos φ |
| Effektförbrukning | < 1,0 W |
| Fjärrstyrning | Potential-free contact closed/open depending on software |
| Förlängning givarkabel, max. | 50 m, 2 * 1,5 mm² |
| Gångreserv | 50 h |
| Högtemperaturområde | 0 ºC - 150 ºC |
| Innehåller SVHC ämnen enligt REACH | No |
| Kapslingsklass | IP20 |
| Reglernoggrannhet | ± 0.3ºC |
| Larmrelä | 2 A/120 VAC NO |
| Lågtemperaturområde | -20 ºC - 75 ºC |
| Montage | Standard DIN track EN 50022-35 |
| Omgivningstemperatur | -20 - 45 ºC |
| Skyddsklass | Class II |
| Temperaturbegränsare | 5 ºC - 45 ºC |
Documents
Warranty
Ebeco AB provides a 5-year product guarantee in the event of material defects.
