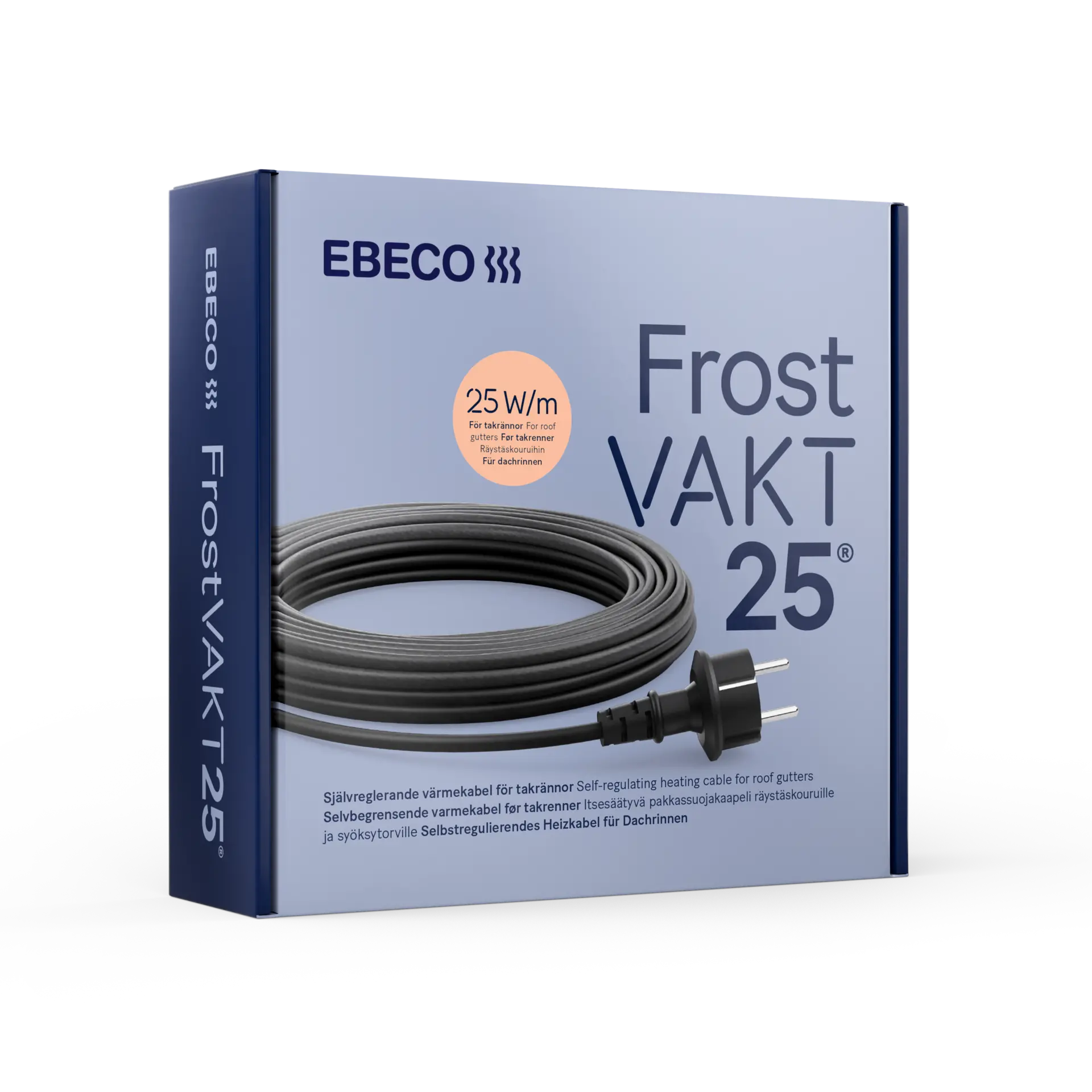

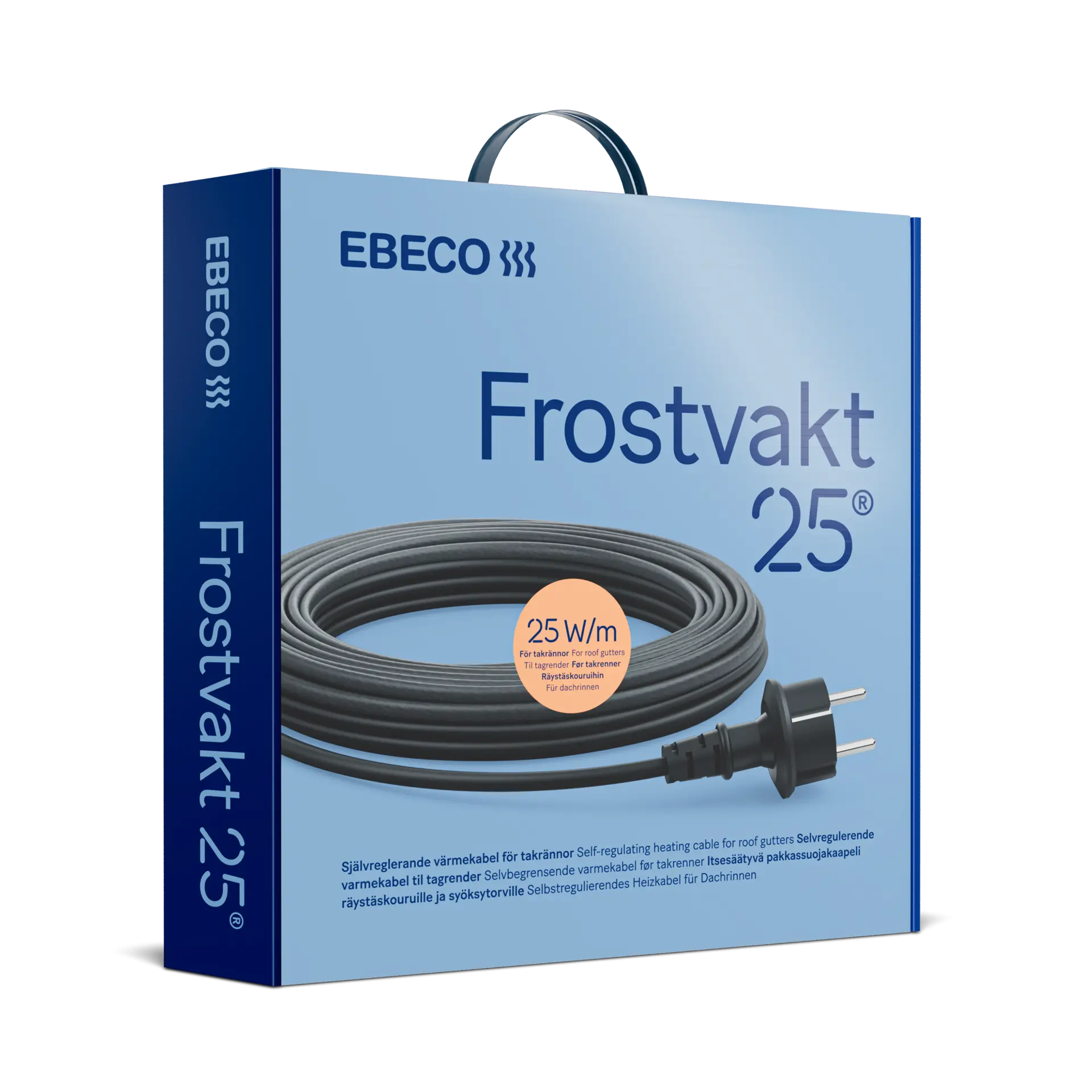

Frostvakt 25
Self-regulating heating cable
Användning
- For metal and plastic gutters and downpipes
- Externally on Ø 75 mm pipes or larger
-
Self-regulating -
25 W/m -
Plug
-
Energy efficient
-
Can be crossed during installation
Frostvakt 25 has a 4 metre long, pre-assembled connection cable with plug and is ideal for use for temporary installations in gutters and downpipes. You can easily secure it to the gutter using Ebeco Smartclip and connect to a 230 V earthed socket, via a residual current device (RCD). Frostvakt 25 can be used on the outside of Ø 75 mm or larger pipes. A Ø 110 mm pipe with 20 mm insulation can withstand temperatures down to -30°C when protected with Frostvakt 25.
Frostvakt 25
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Anslutningskabel | H07RN-F |
| Längd anslutningskabel | 4,0 m |
| Antal ledare | 3 st |
| Anslutningsdon | Plug |
| Böjningsradie, min. | 35 mm |
| Effekt | Approx. 25 W/m at + 10° C (air), Approx. 45 W/m (snow and ice) |
| Exponeringstemperatur (power off), max. | 85 ºC |
| Exponeringstemperatur (power on), max. | Upp till 65 ºC |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -40 ºC |
| Isoleringsmaterial inre | EVA, LDPE |
| Isoleringsmaterial yttre | EVA, LDPE |
| Kabeltyp | Self-regulating 2-conductor with screen |
| Kapslingsklass | Plug: IP44, cable: IP67 |
| Ledararea | 1,16 mm² |
| Mått | 10,9 * 6,0 mm |
| Skyddsledare | Braided |
| UV-beständighet | Yes |
