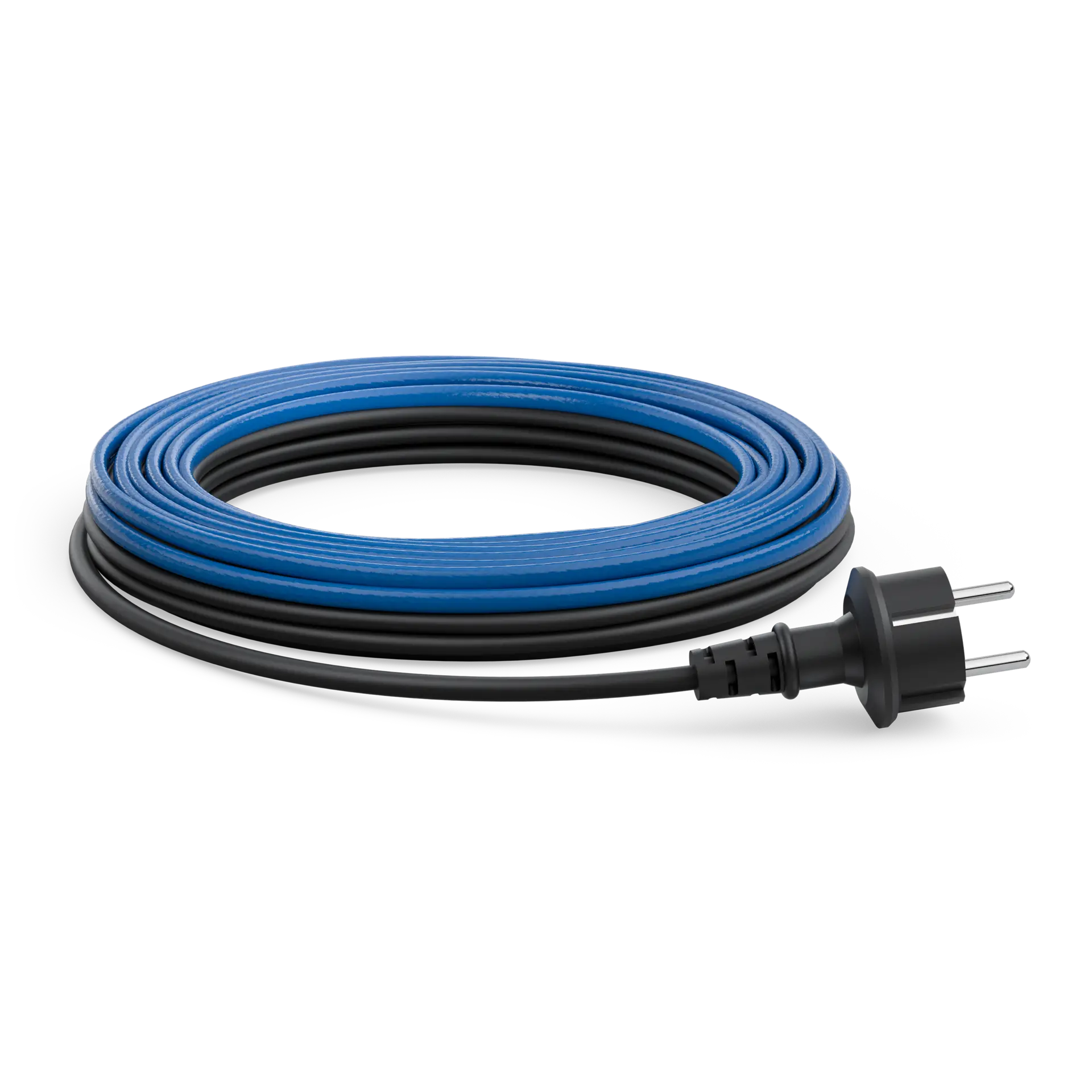

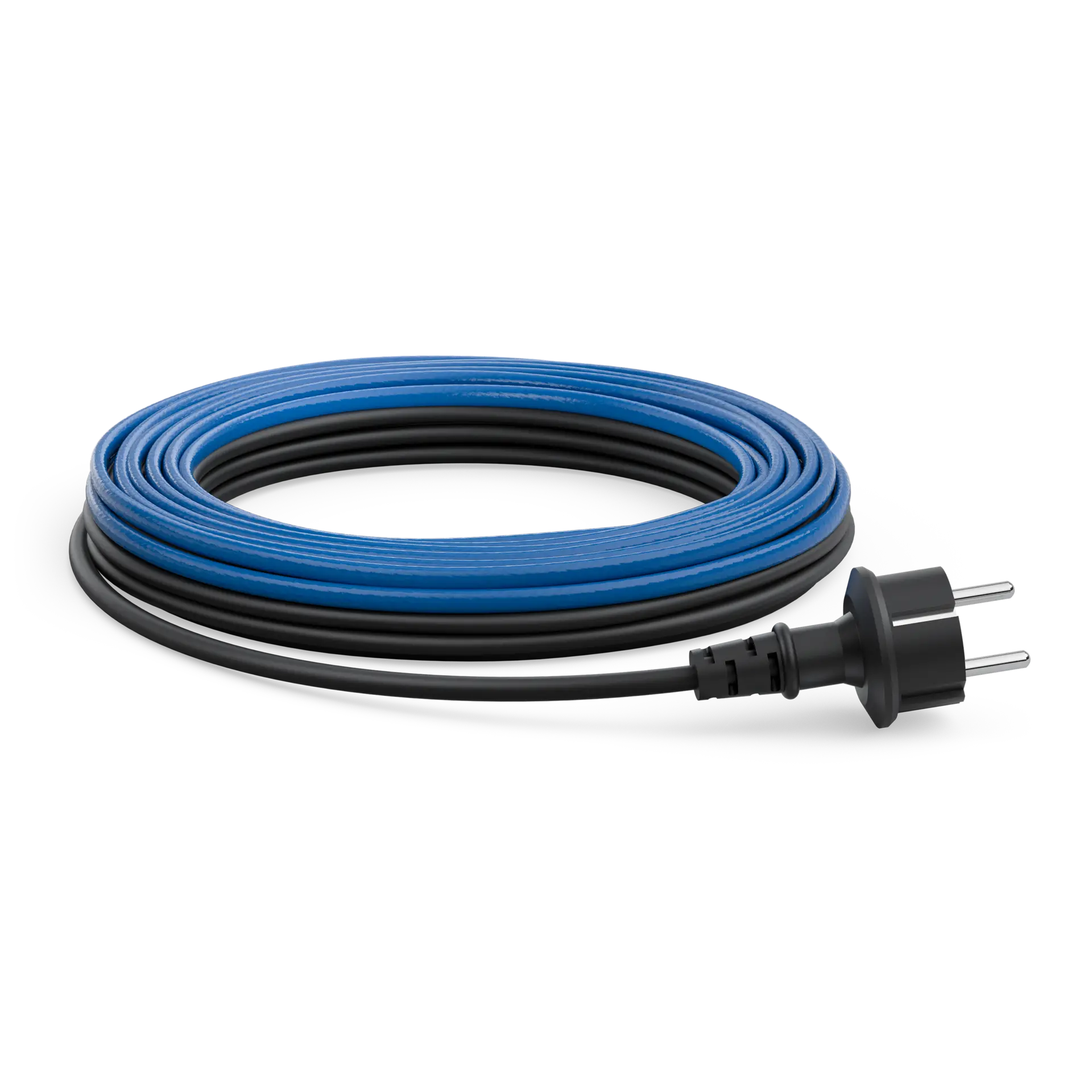

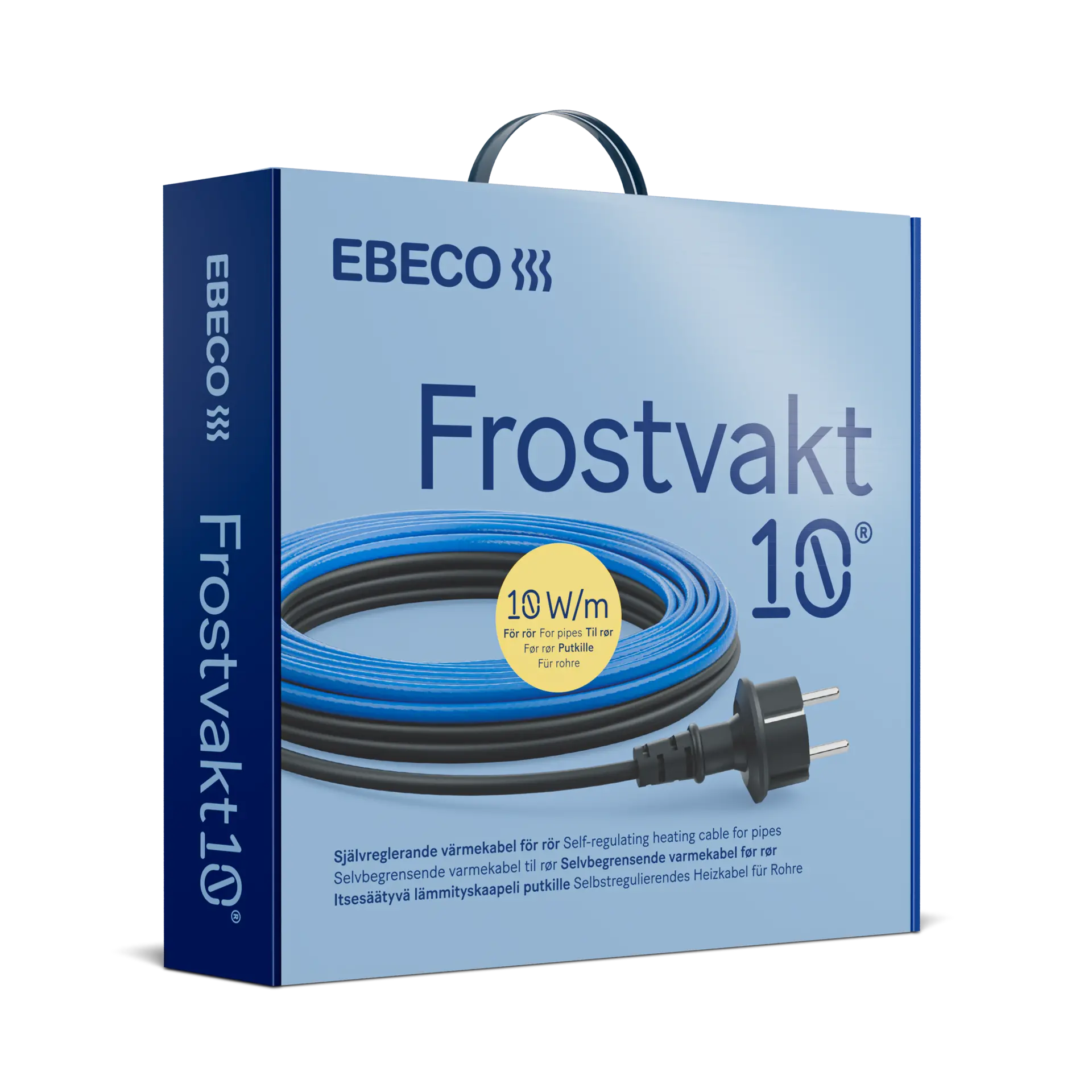

Frostvakt 10
Self-regulating heating cable
Usage
- Drinking water approved

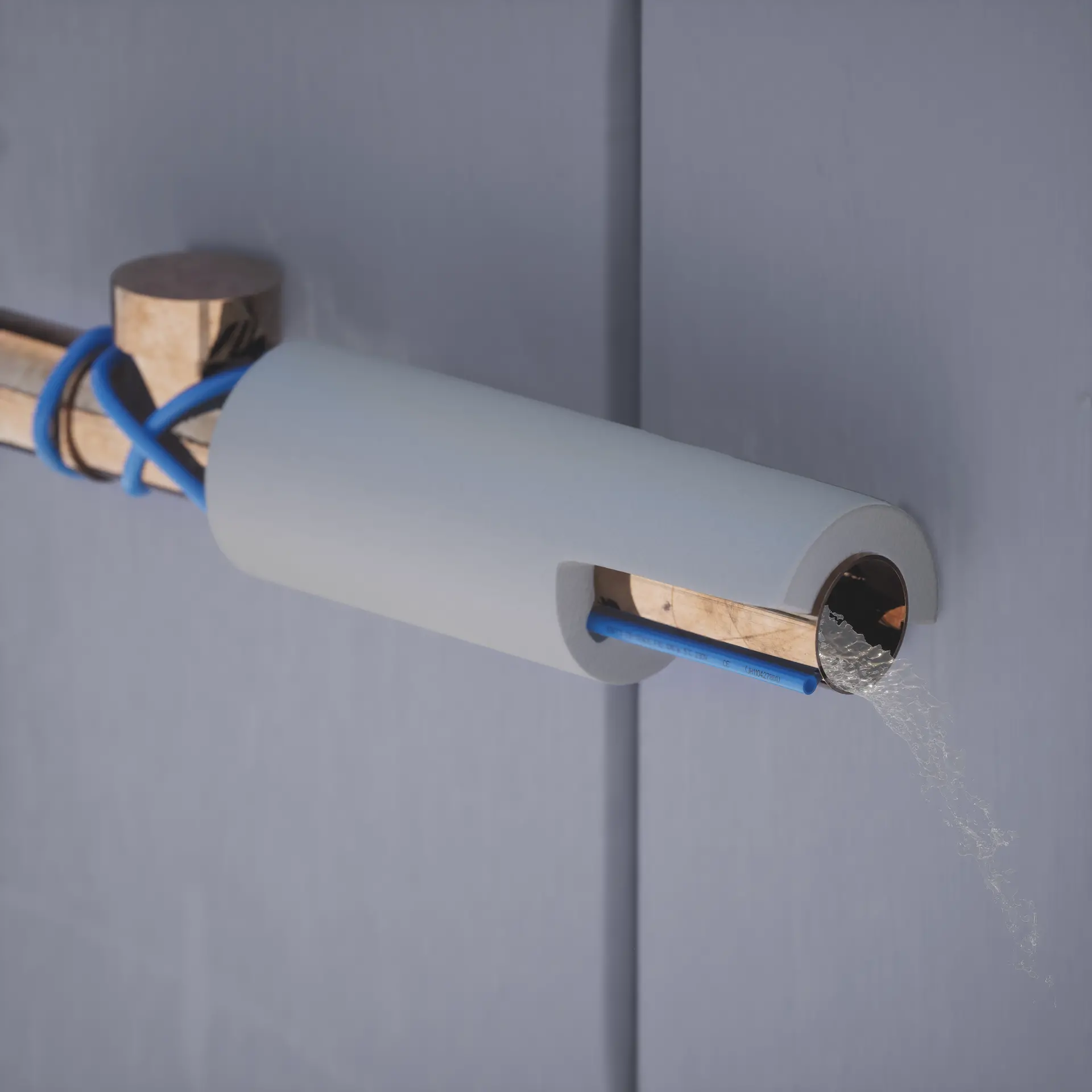

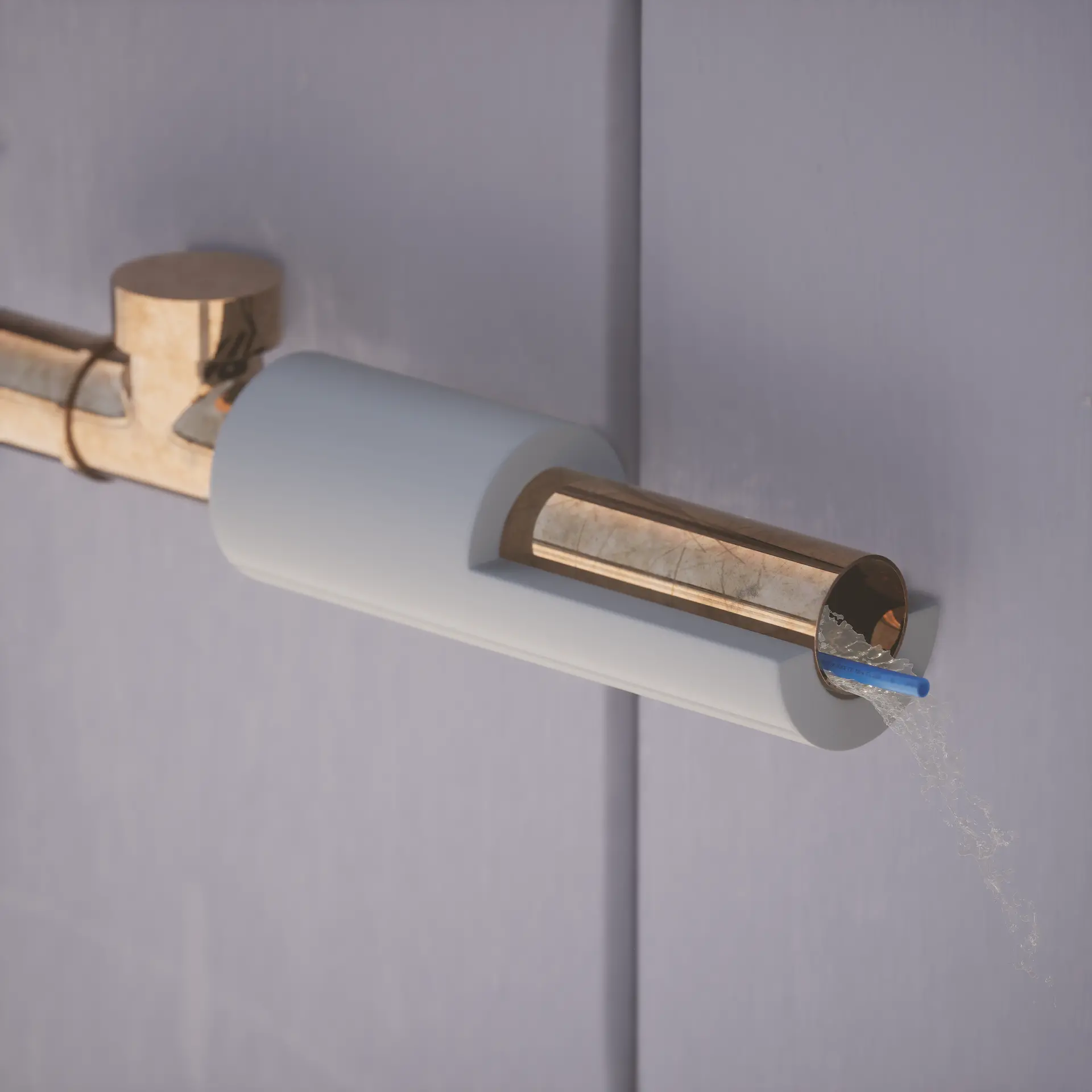

- For internal and external installation
- For water and sewage pipes, drains and wells
-
10-20 W/m -
Plug -
Self-regulating
-
Energy efficient
-

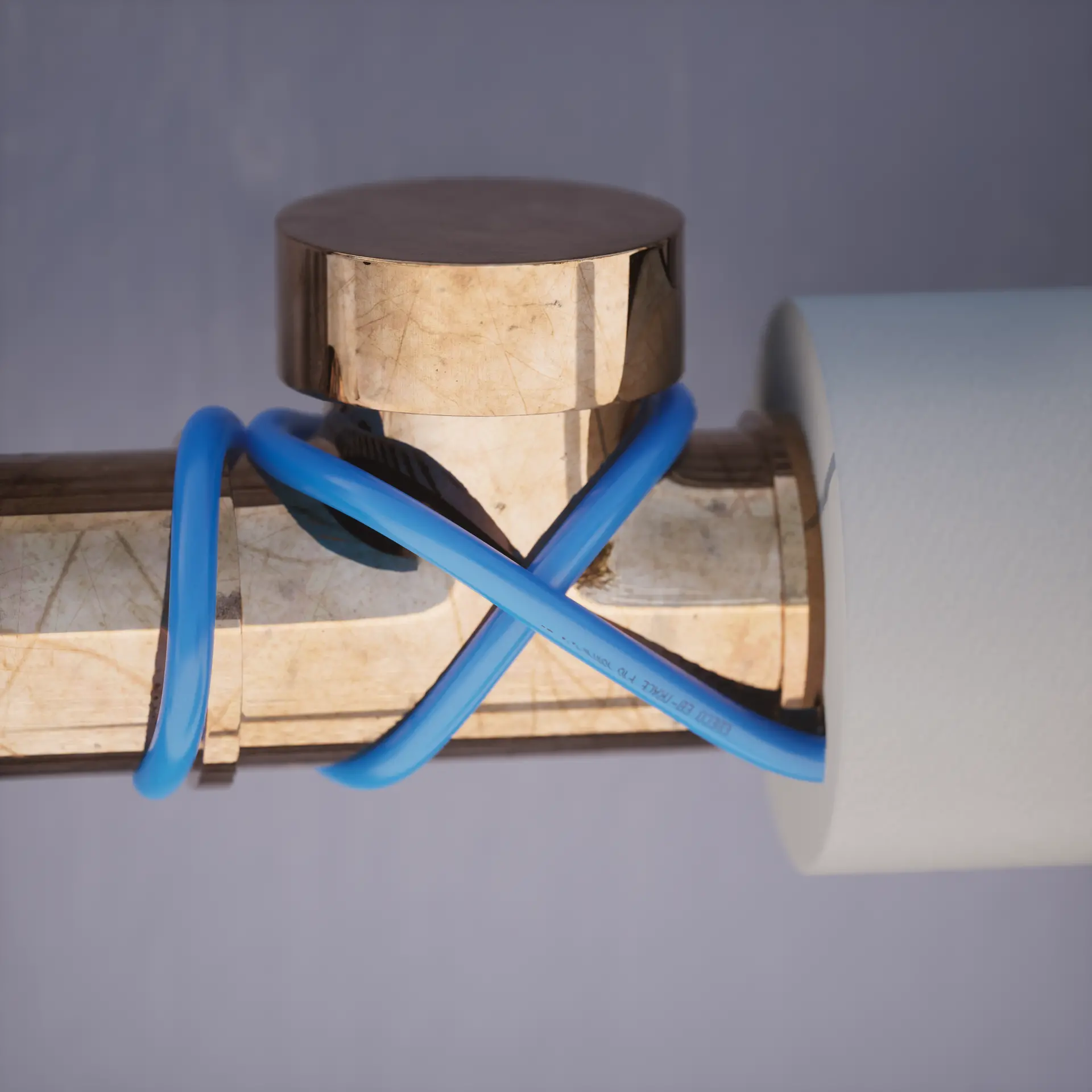

Can be crossed during installation
-
Type approved for drinking water

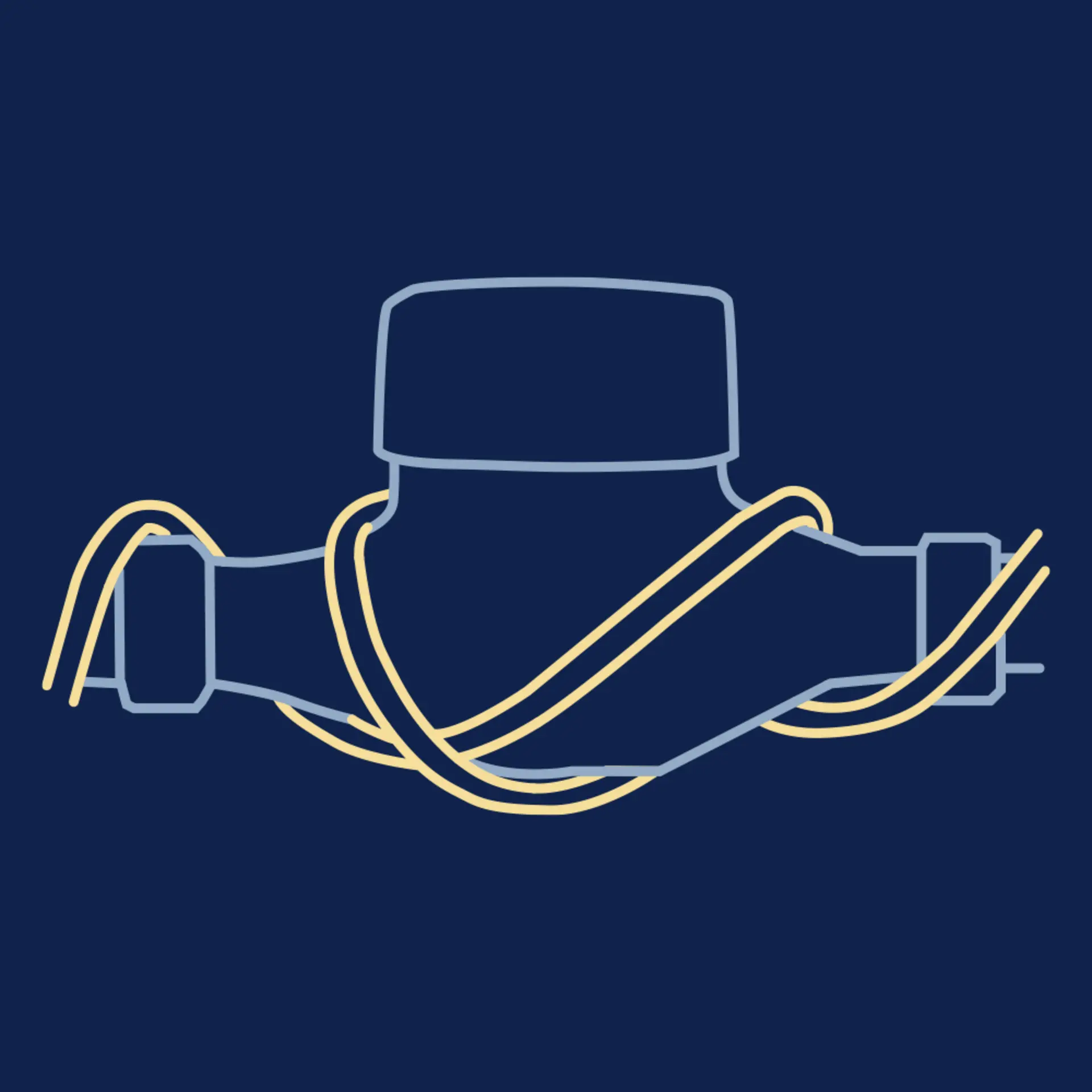

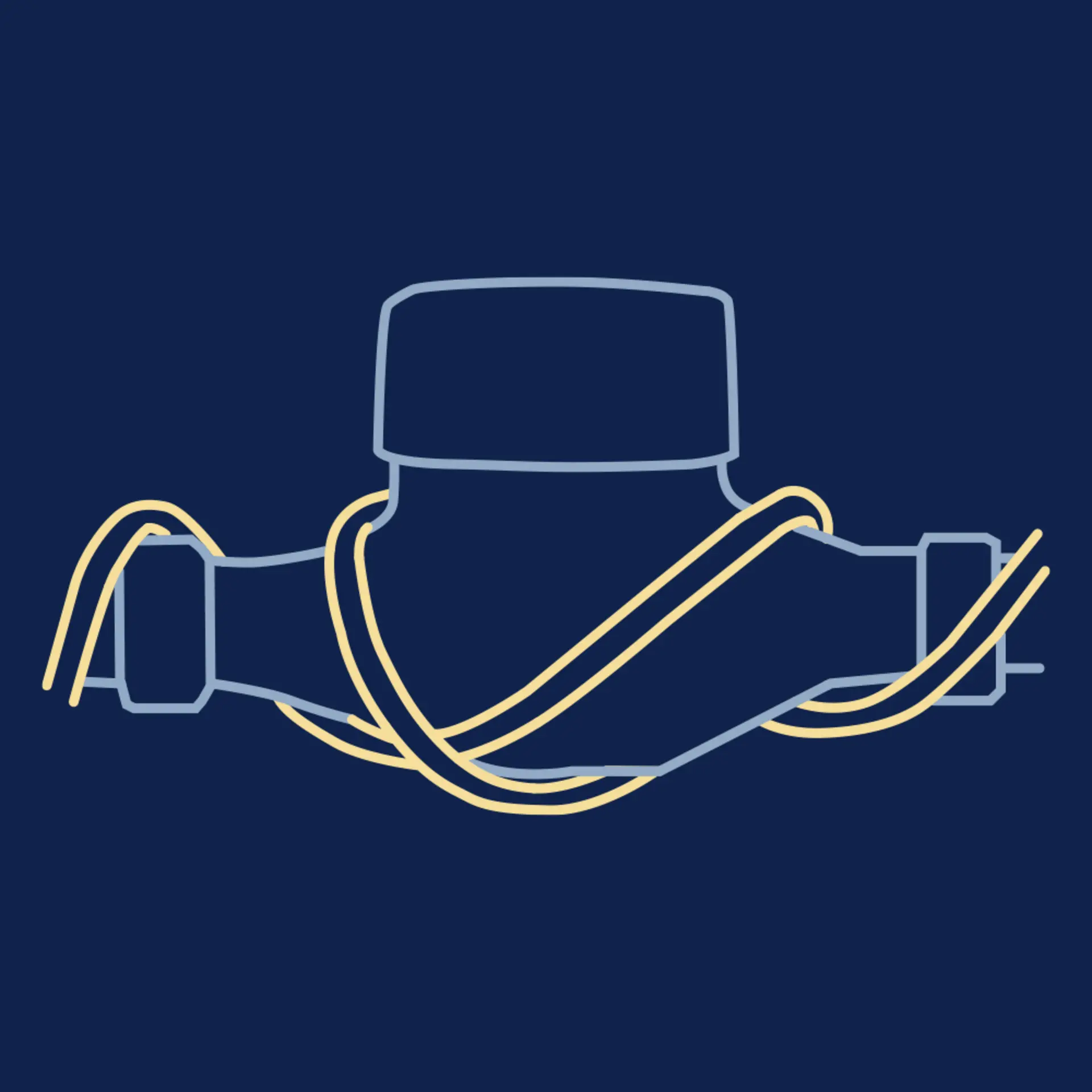

Frostvakt 10 prevents damage and leaks caused by frost-burst pipes and water conduits. The heating cable has a pre-assembled plug that is easily connected to an earthed wall socket via a residual current device (RCD). Common applications include sewage pipes, water pipes and water meters in, for example, summerhouses, garages, greenhouses, caravans or boats. Controlled effectively with Frostvakt Control. The cable is PVC-free and is well suited for drinking water pipes. Type-approved for drinking water according to KIWA (approval 1289).
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Connection cable | H05RN-F |
| Length Connection cable | 2,0 m |
| Number of conductors | 3 pcs |
| Connectors | Plug |
| Bending radius, min. | 35 mm |
| Output | 10 W/m at +10°C when installing on metal pipes, 20 W/m at +10°C when installing in water |
| Exposure temperature (power off), max. | 85 ºC |
| Exposure temperature (power on), max. | Up to 65 ºC |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -40 ºC |
| Insulation material inner | EVA, LDPE |
| Insulation material outer | ECTFE |
| Cable type | Self-regulating 2-conductor with screen |
| Enclosure class | Plug: IP44, cable: IP68 |
| Conductor area | 0,56 mm² |
| Dimensions | 7,7 * 5,1 mm |
| Protective conductor | Braided |
| UV resistance | Yes |
| Max. pressure | 8 bar |

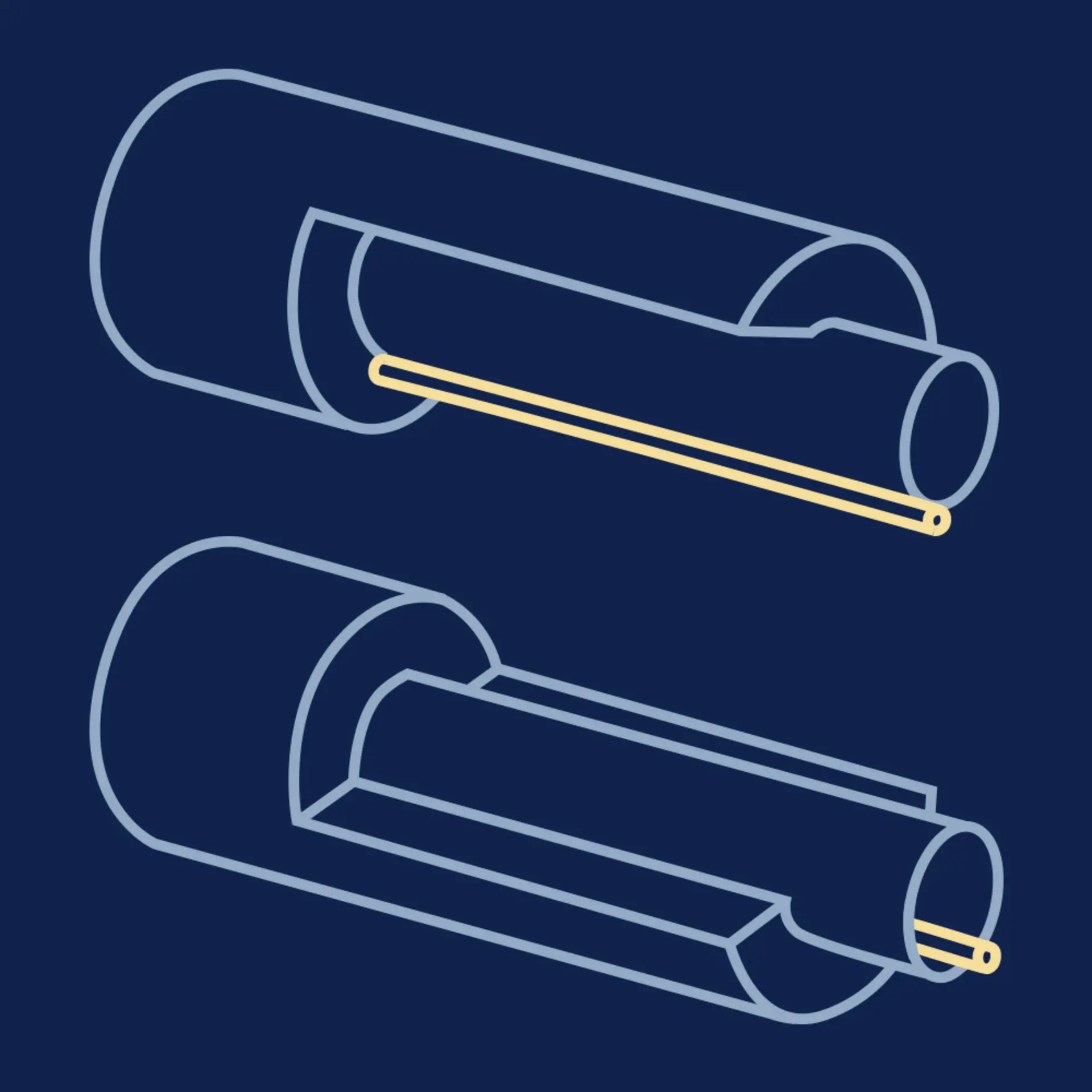

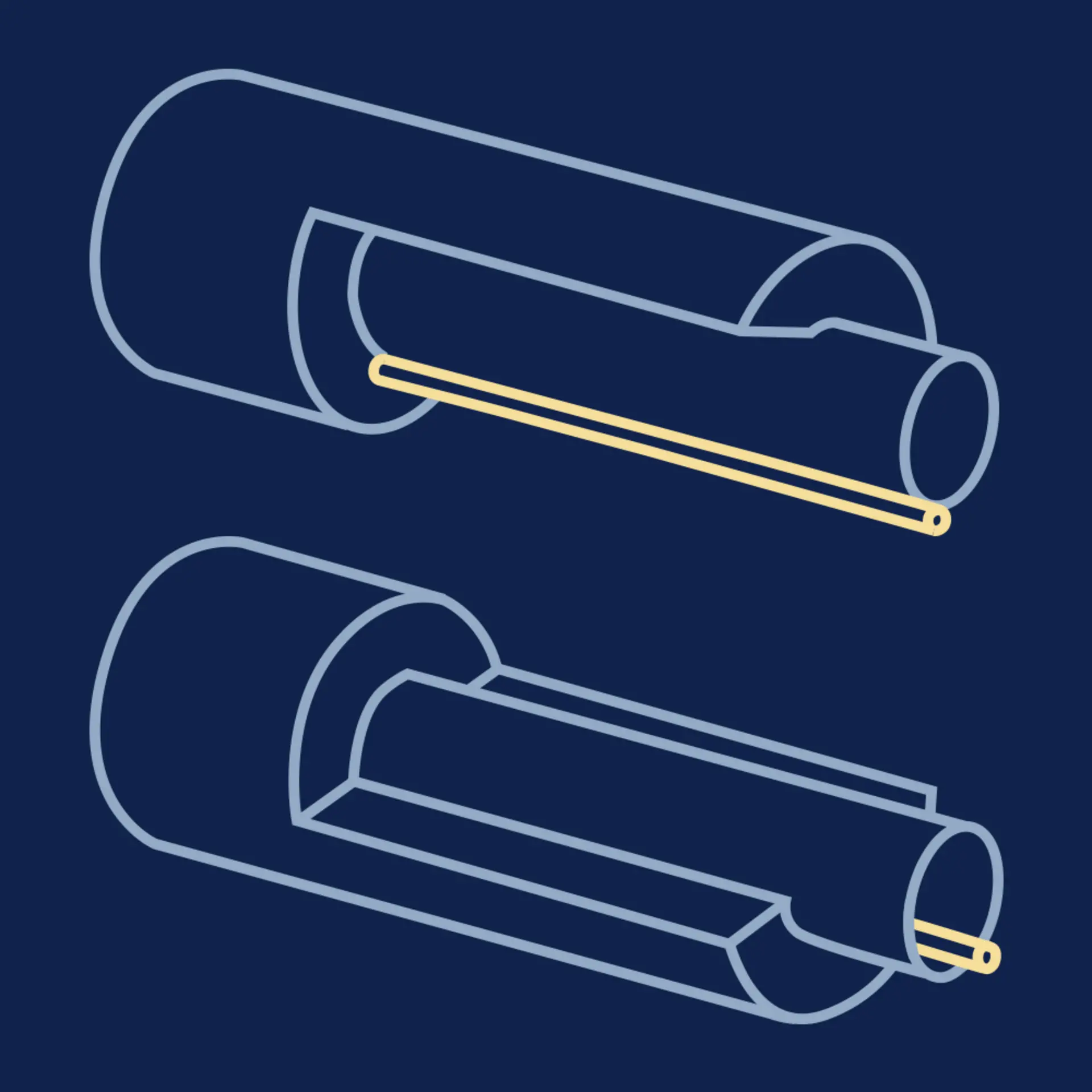

Installation
Self-regulating heating cable
Due to the fact that the heating cable is self-regulating, it cannot overheat. And it can be crossed to fit the pipe perfectly. It is parallel resistive, which means that the self-adjusting heating cable consists of two parallel wires embedded in a semiconductor material that adapts its output according to the ambient temperature. Even though it may be above zero outside and the frost prevention output is not needed, the heating cable will still be turned on. To turn it off completely, you must pull out the plug or use Frostvakt Control, which turns the cable off in temperatures above freezing point. For longer cables and internal use, control with a thermostat is always recommended.
Power curve
- Power output (W/m)
- Ambient temperature (°C)
- Filled water pipe
- On metal pipes according to EN 62395-1
