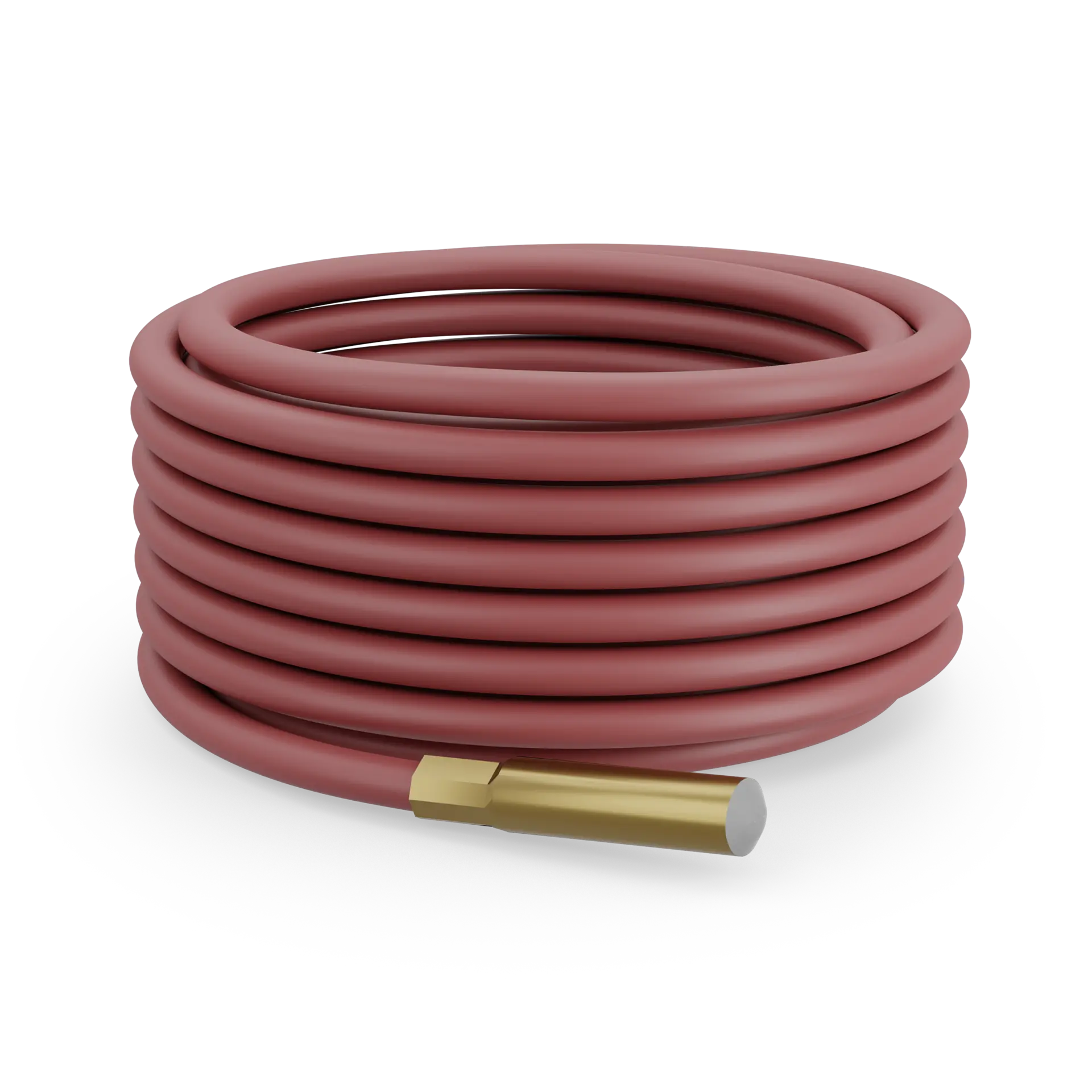

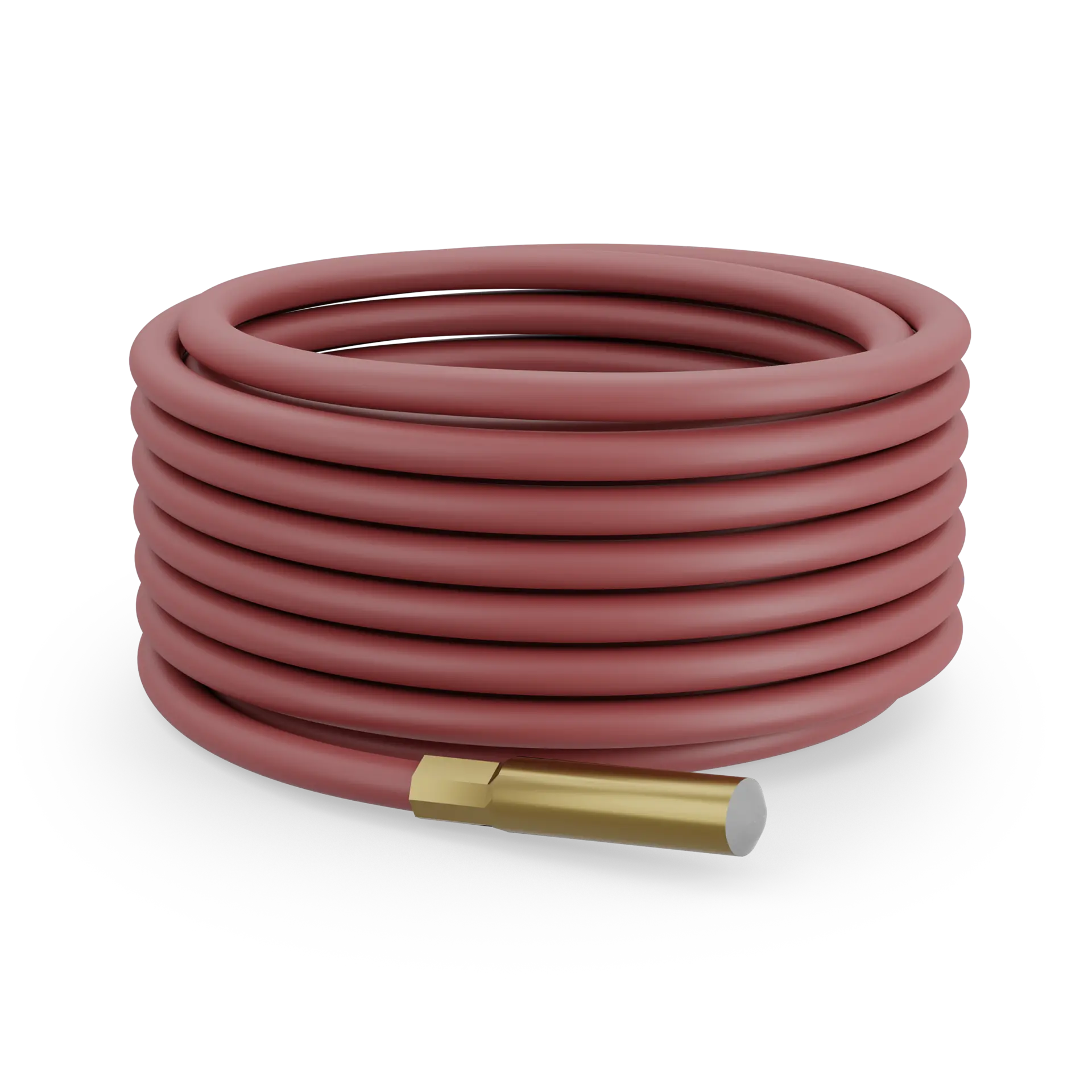

High-temperature sensor cable
EB-Therm 800 is supplemented with this part for temperature regulation above + 75°C.
Specifications
| Specification | Data |
|---|---|
| Number of conductors | 2 pcs |
| Diameter | 6 mm |
| Sensor element | PTC 1KΩ@25 °C |
| Extension sensor cable, max. | 50*1,5 mm2 |
| Contains SVHC substances according to REACH | No |
| Enclosure class | IP67 |
| Material sensor head | Brass |
| Material cable | Silicone |
| Temperature range | -15 °C - 150 °C |
