Multimat
Heating mat for temporary heating
Usage
- For outdoor use

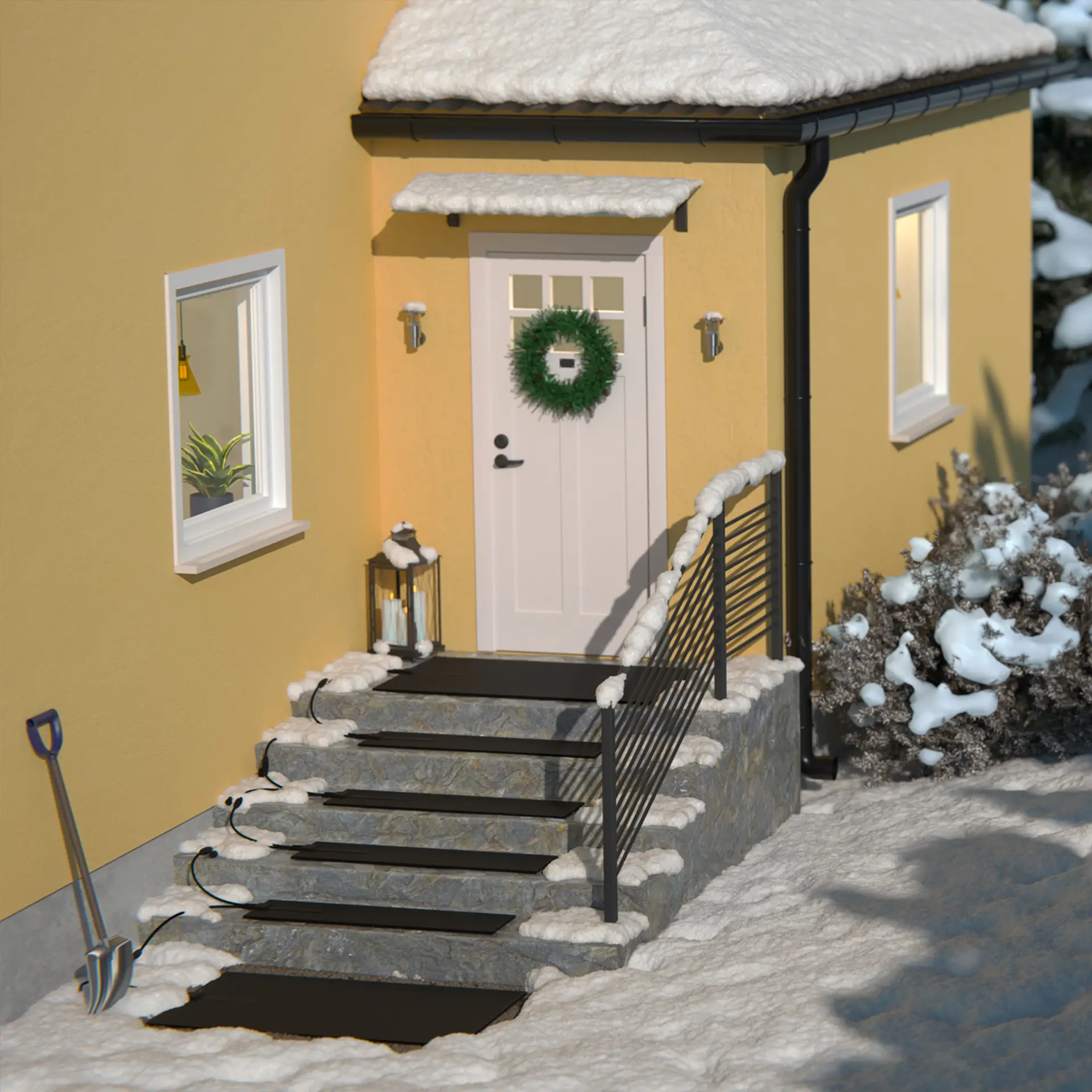

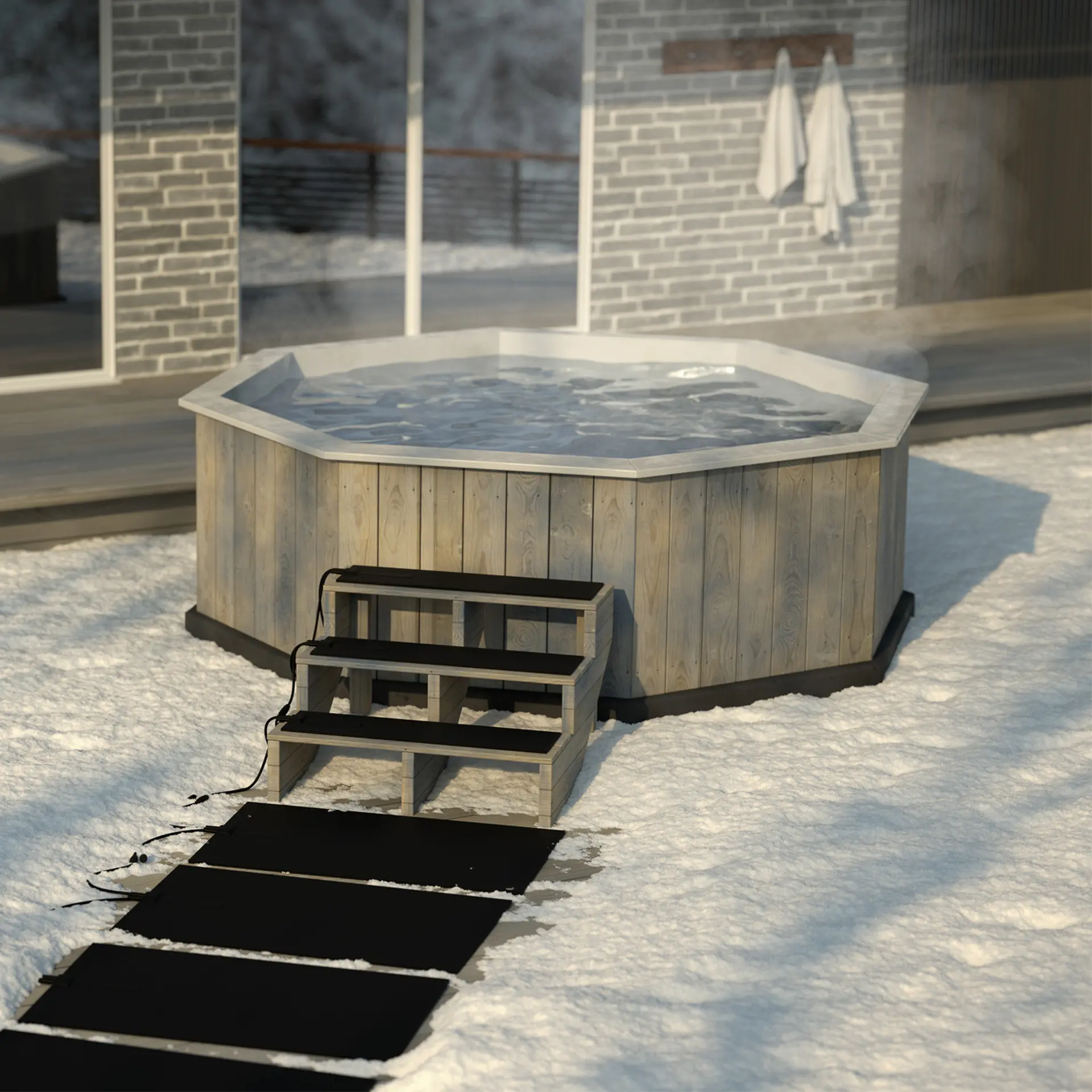

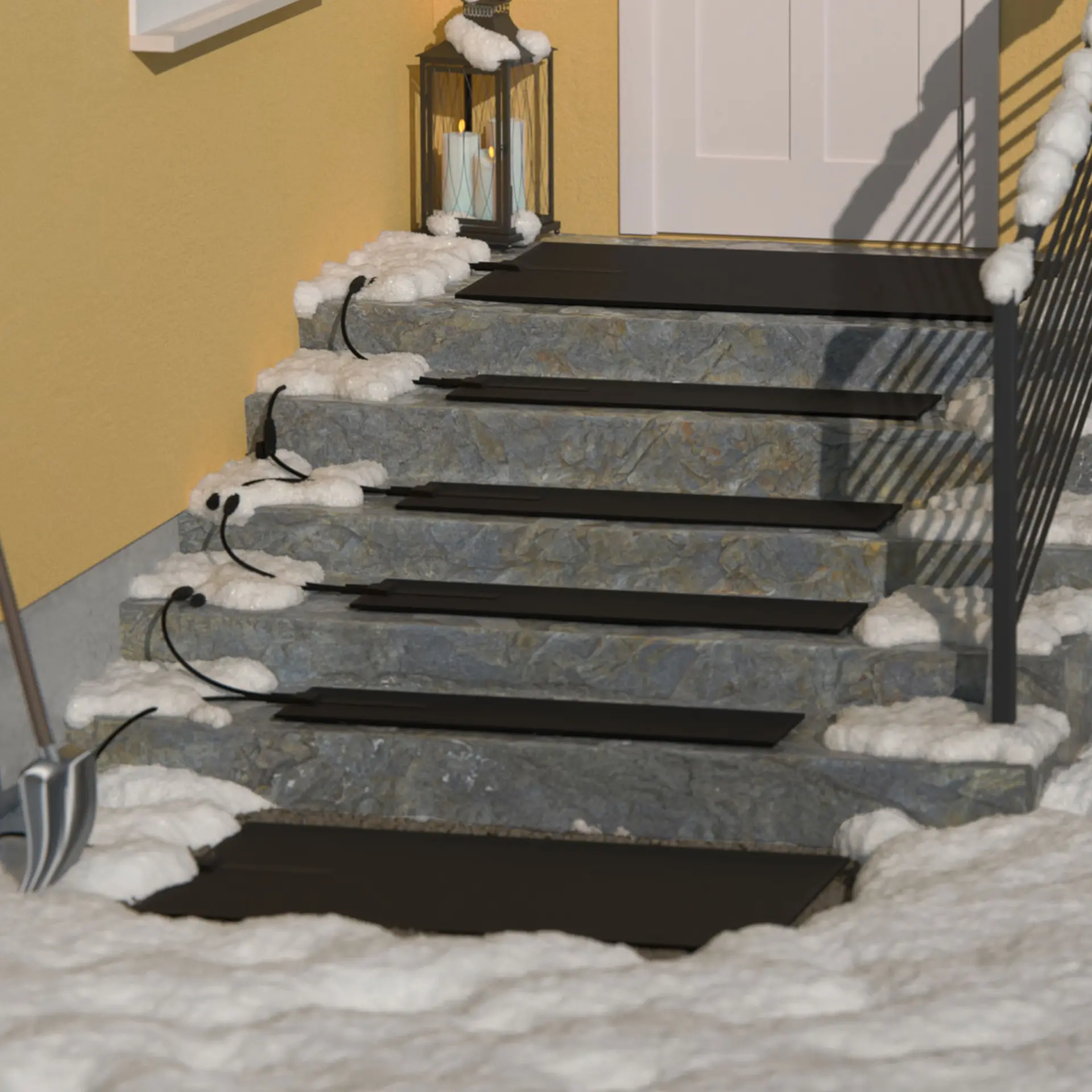

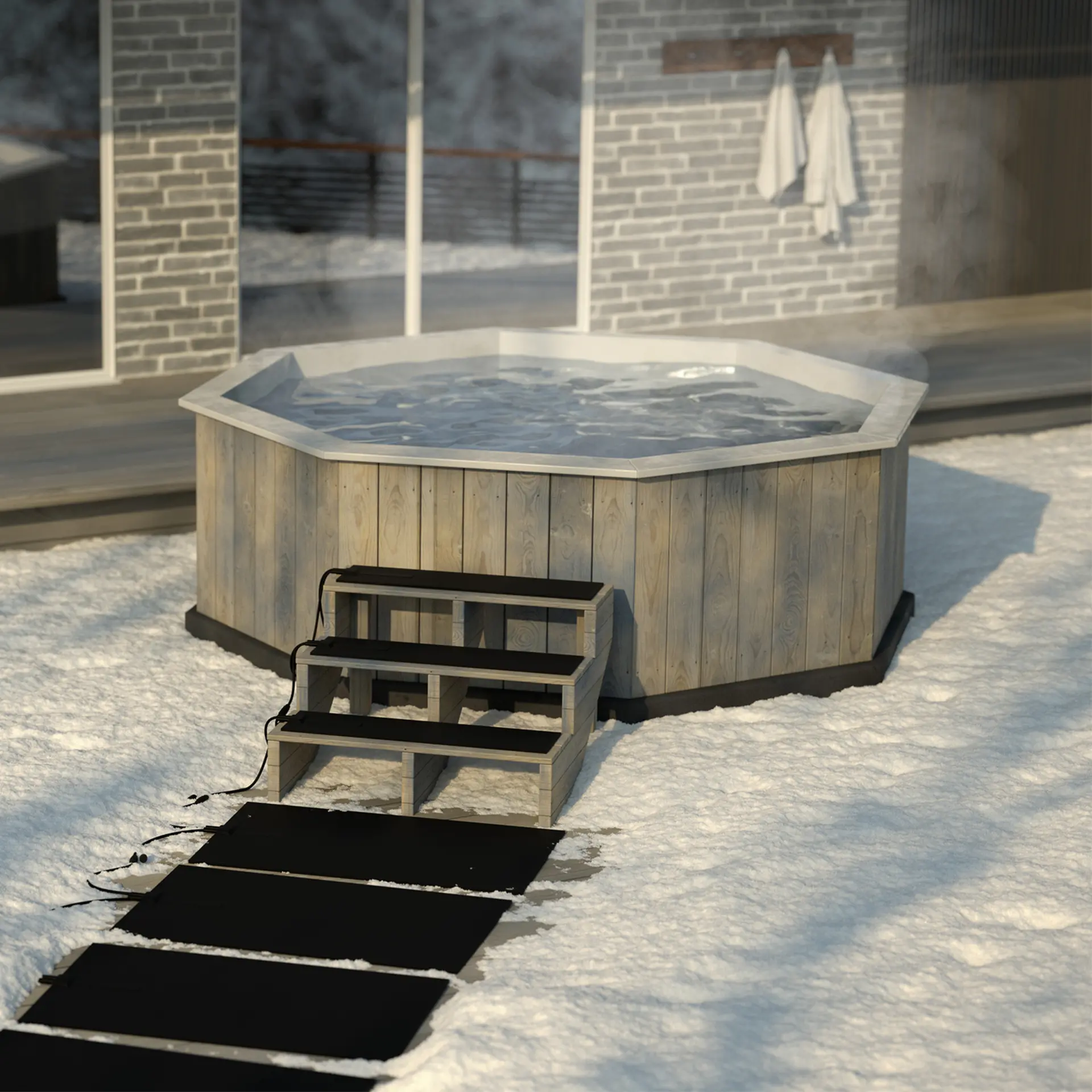

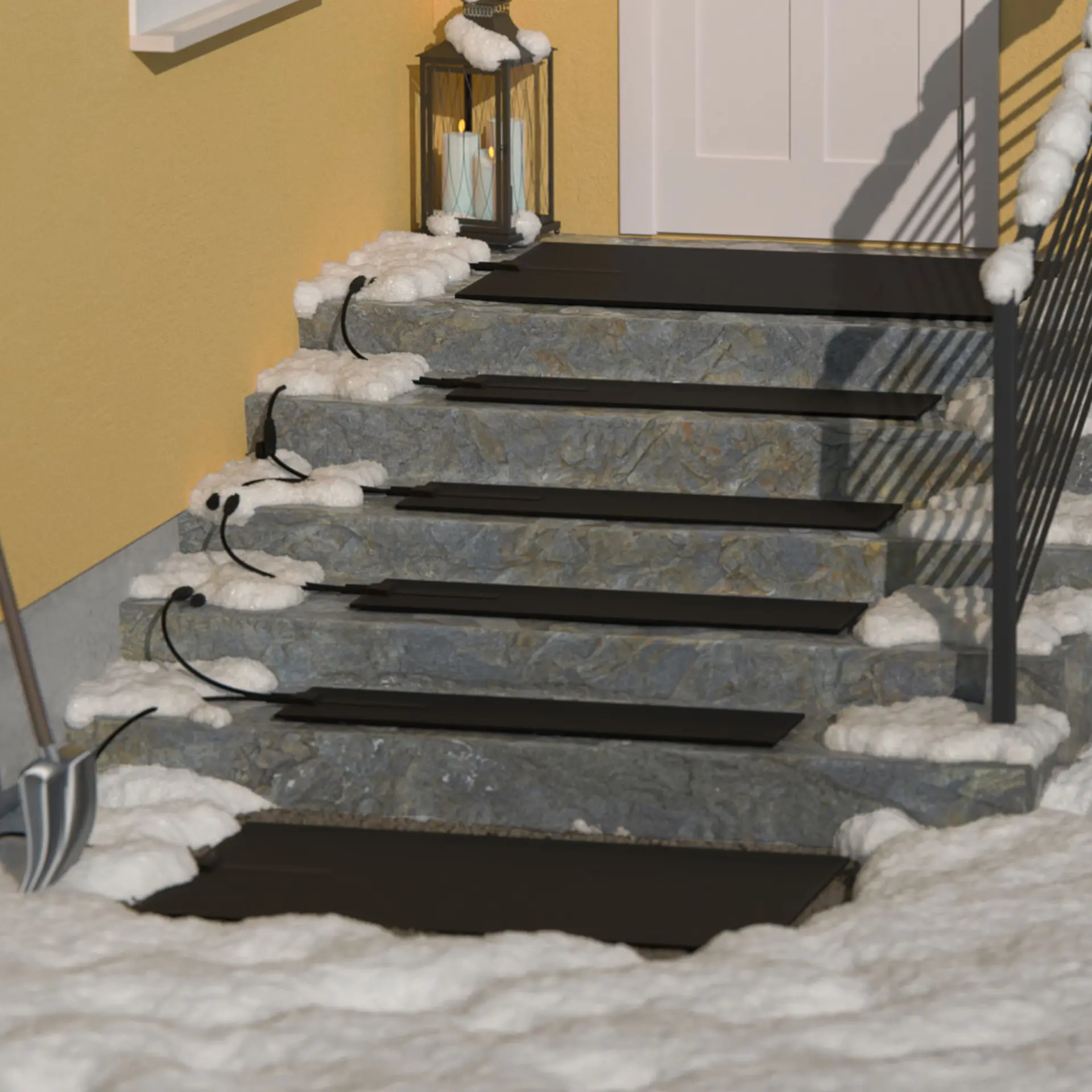

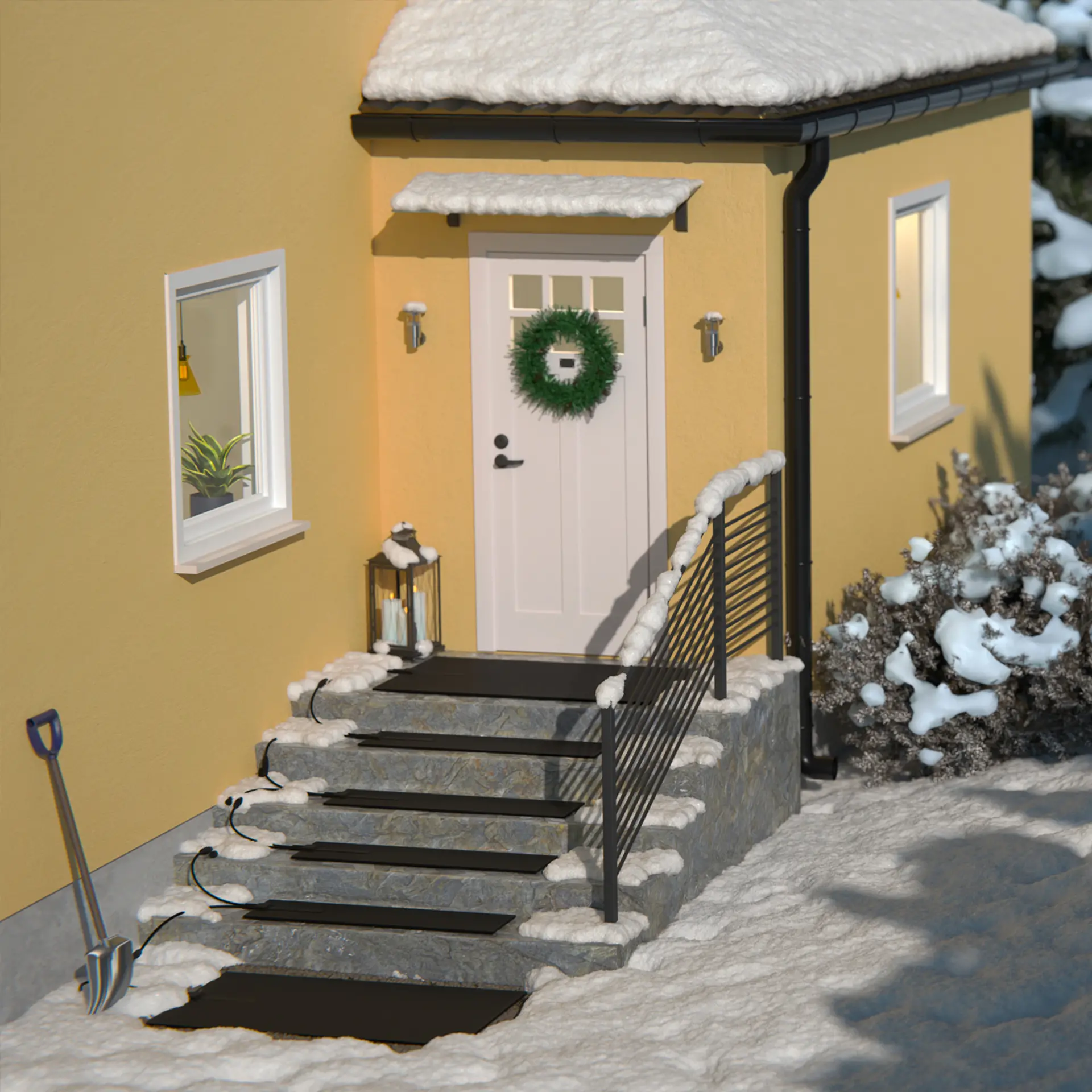

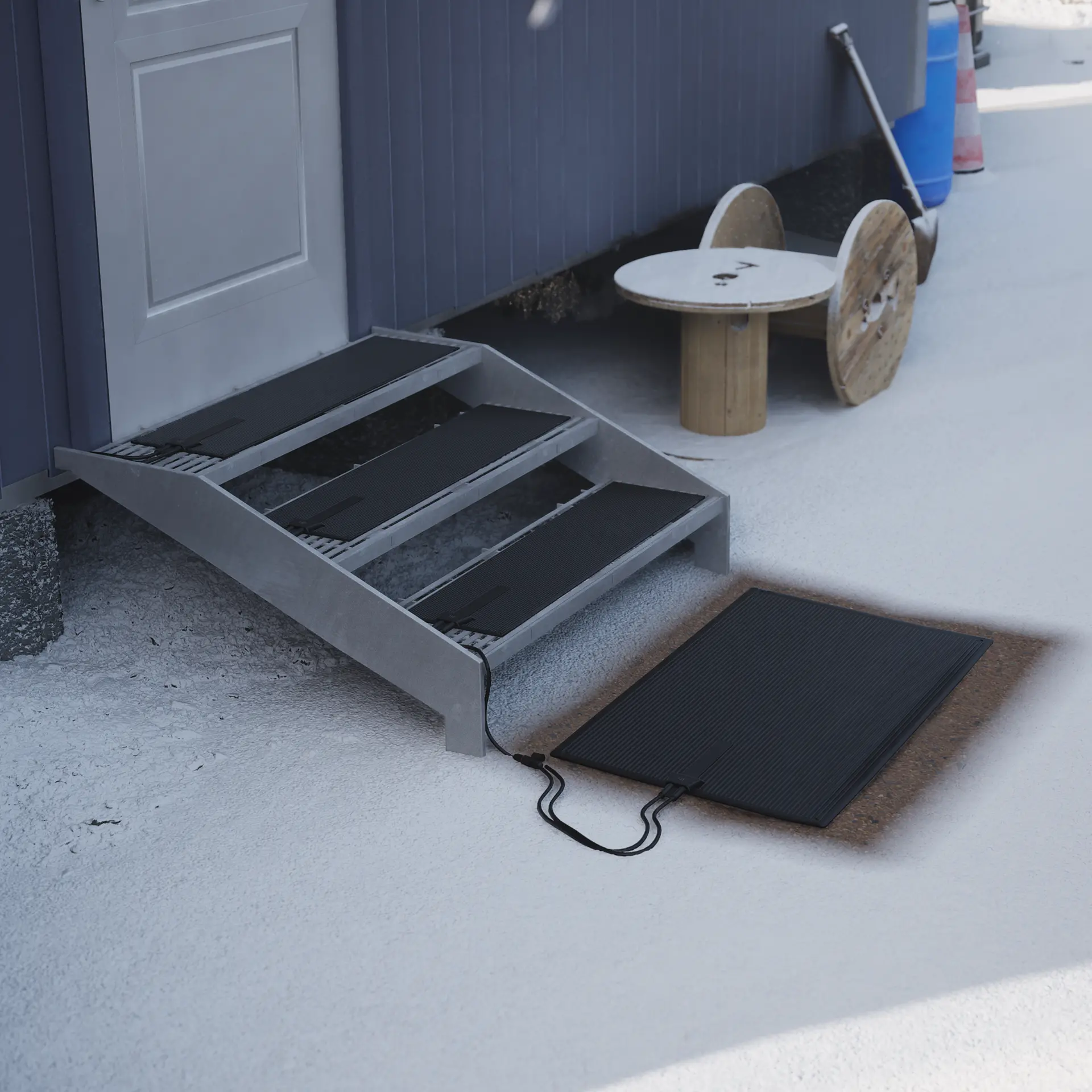

- Heating of e.g. stairs, entrances and work areas
-
Several effects -
Plug -

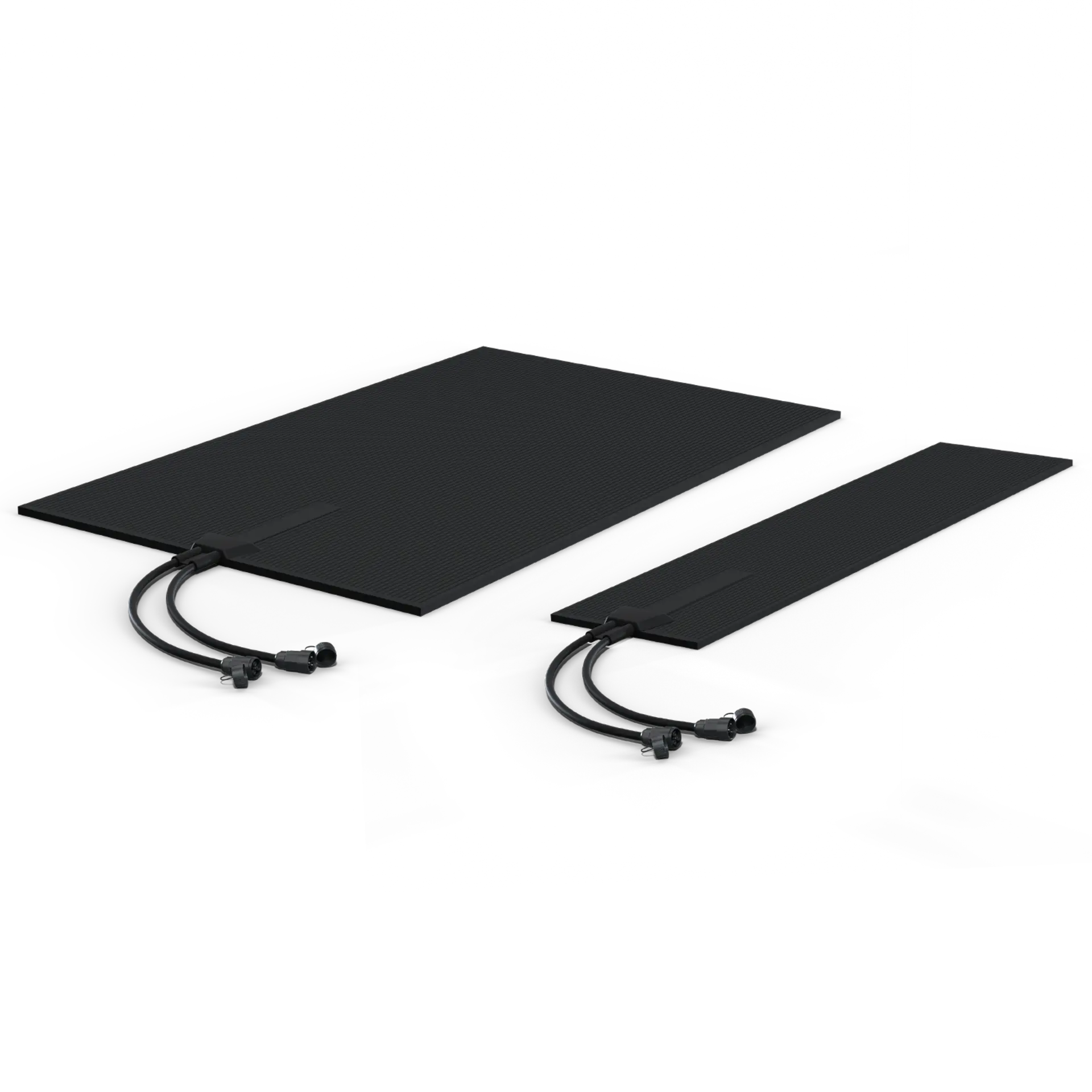

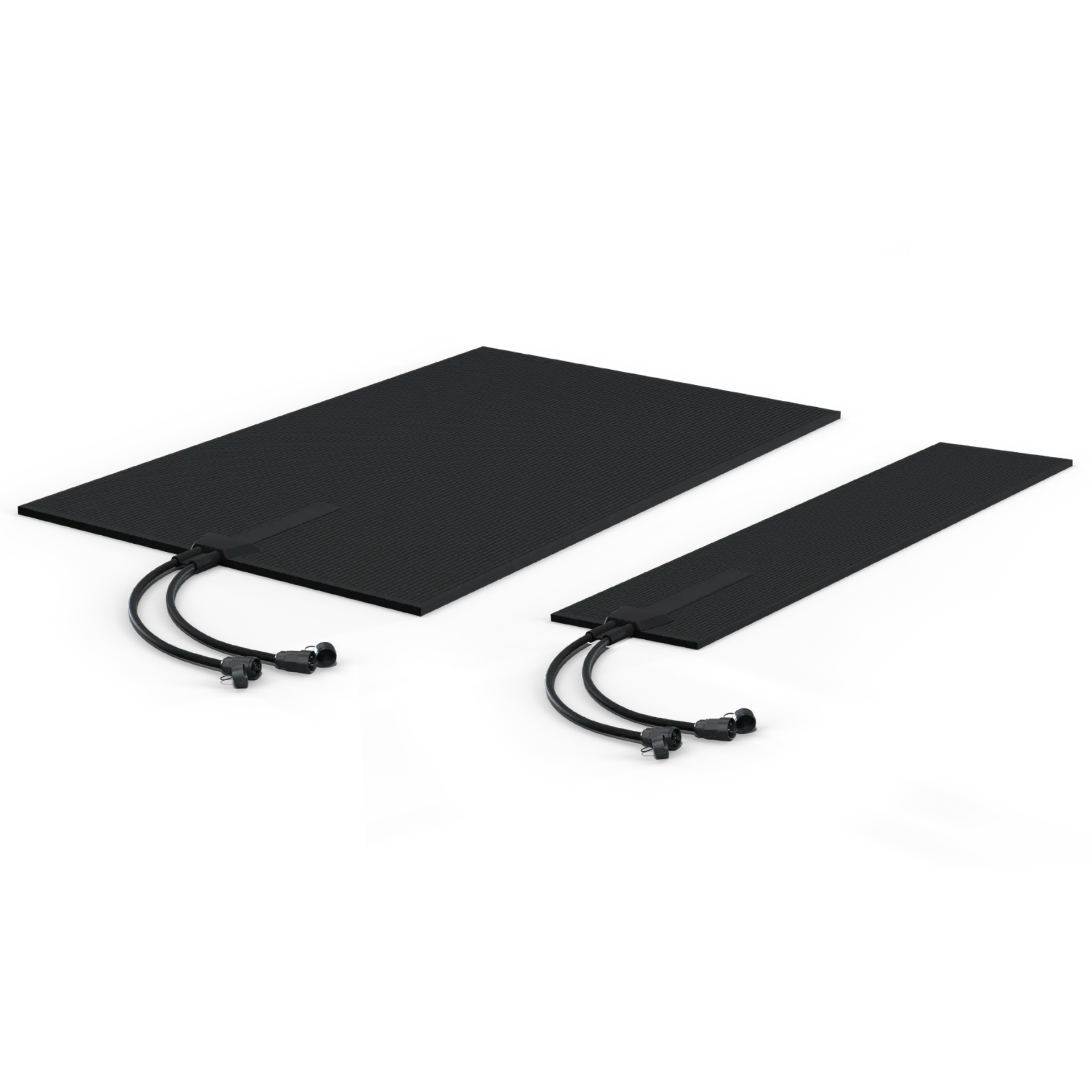

Mat
-
Flexible and adaptable
-

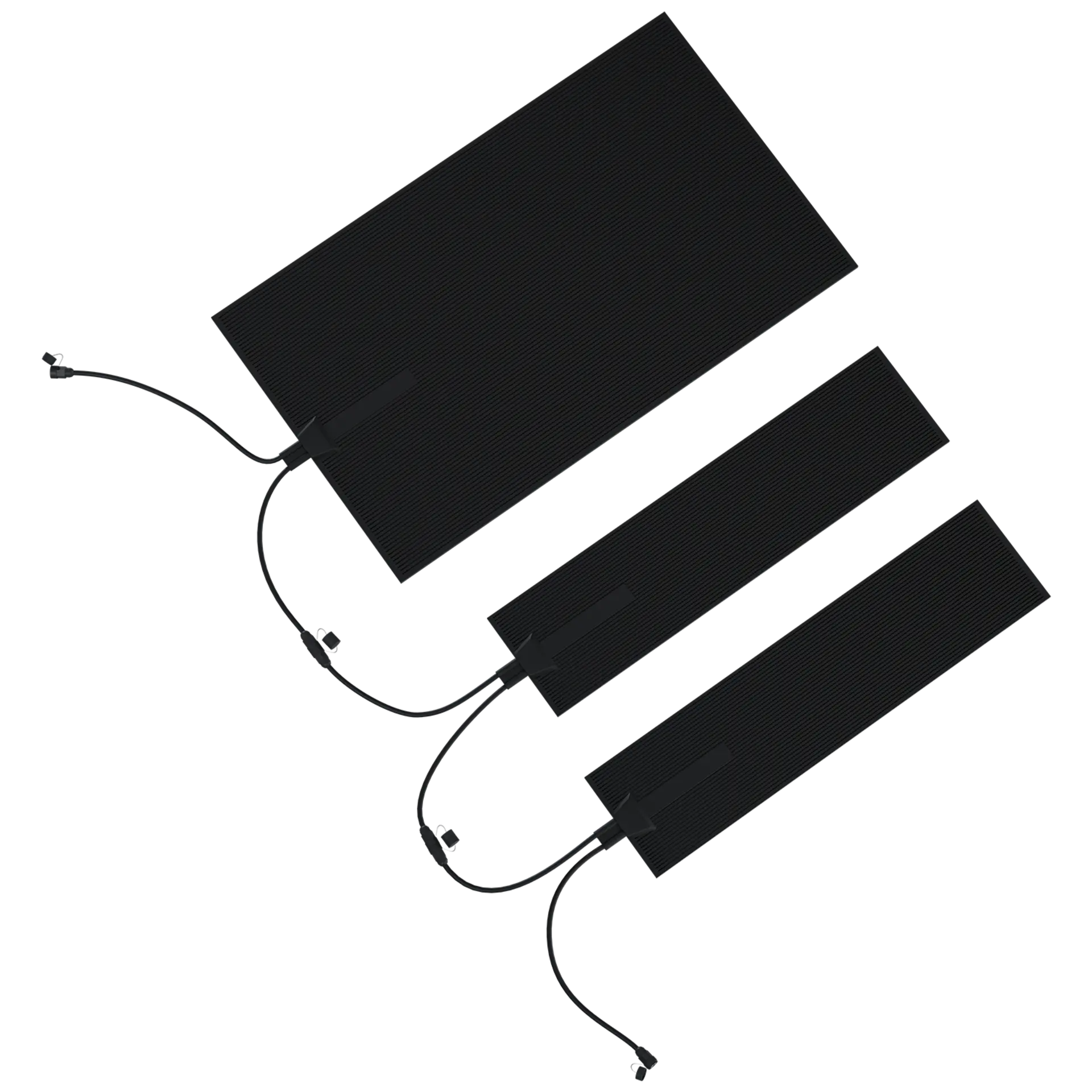

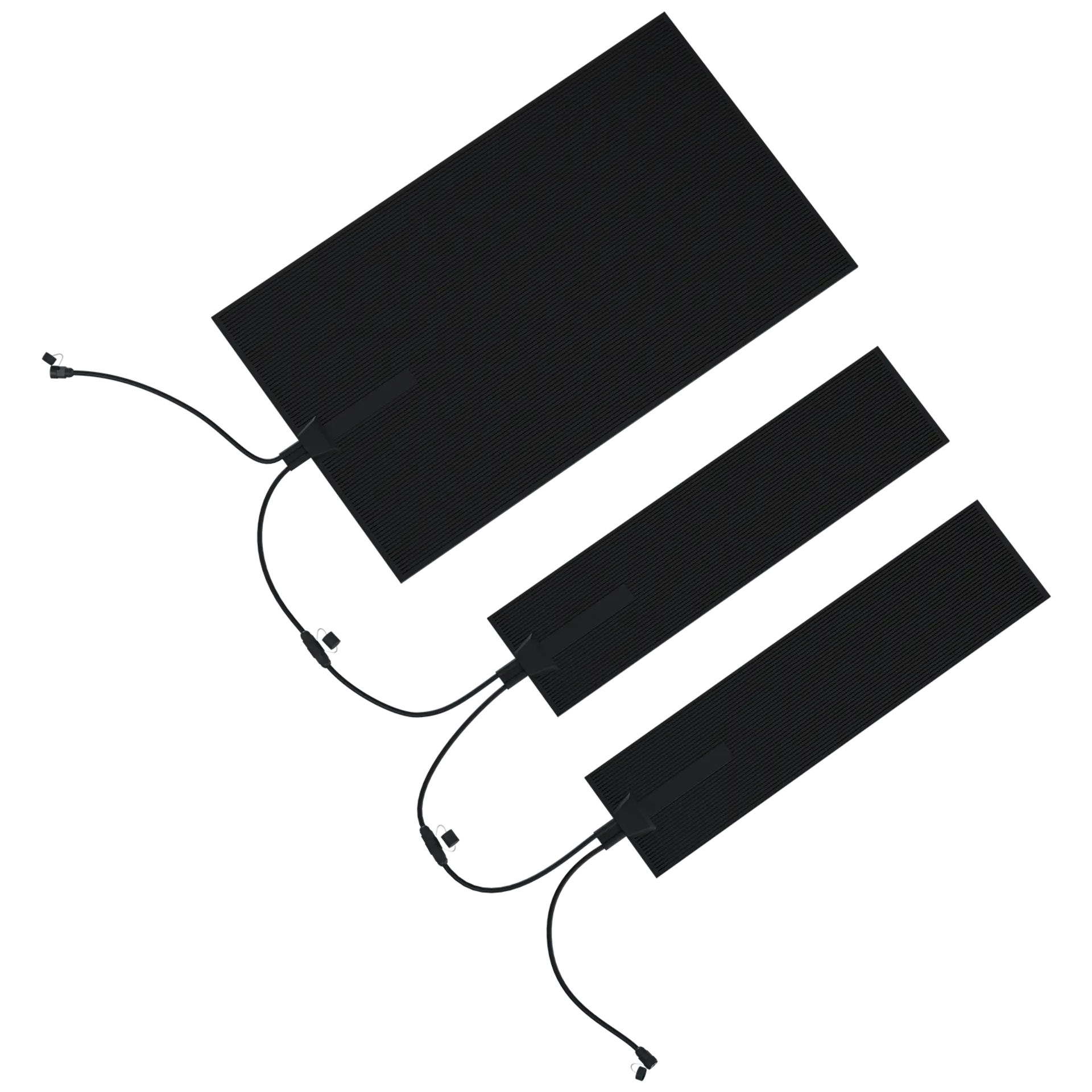

Can be connected in series
-
Robust and durable

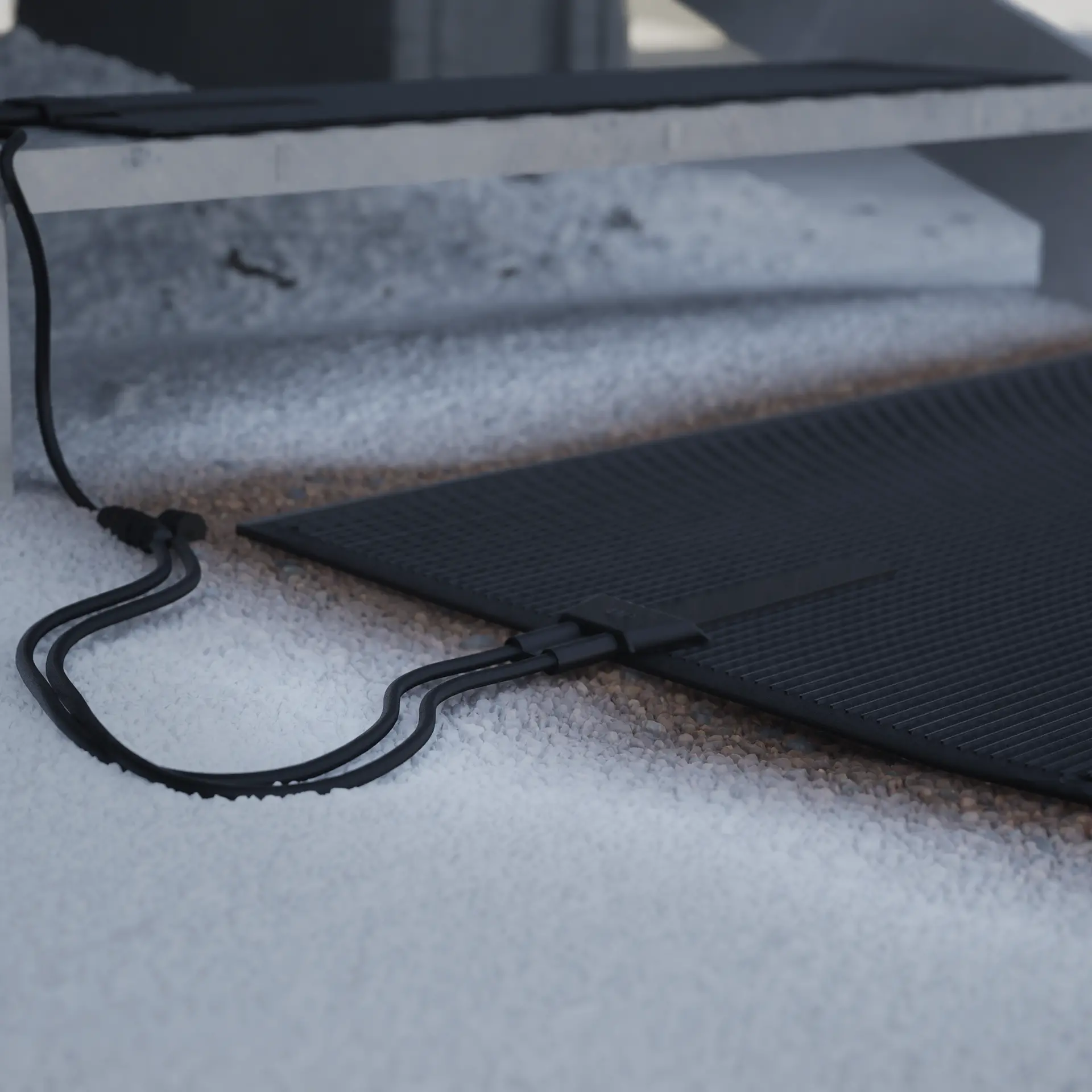

The product is flexible because it is possible to connect several mats with the associated quick connectors. Multimat melts snow and ice effectively and creates safety in areas where there is a risk of slipping. Connection cable is purchased separately and, if necessary, also extension cables.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Length Connection cable | 0,5 m |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -40 ºC |
| Enclosure class | IP67 |
| Mat | Vulcanised rubber |
| Protective conductor | Aluminium foil |
| UV resistance | Yes |
| Max. pressure | 2000 kg/dm² |
Installation
Note! For outdoor use only. Do not cover. The heating mat should be connected to 230 V via RCD 30 mA.
Power curve
- Surface temperature
- Ambient temperature
