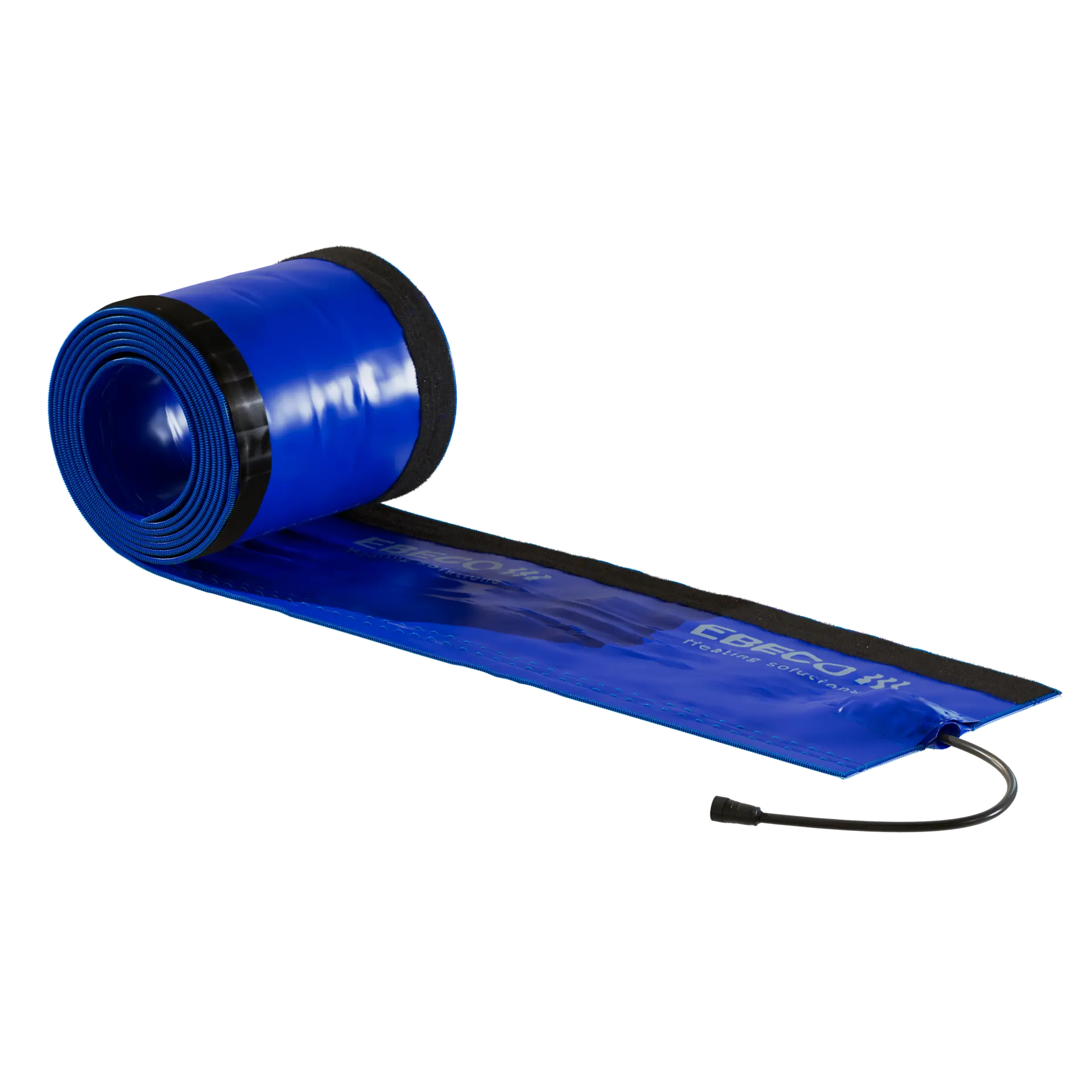

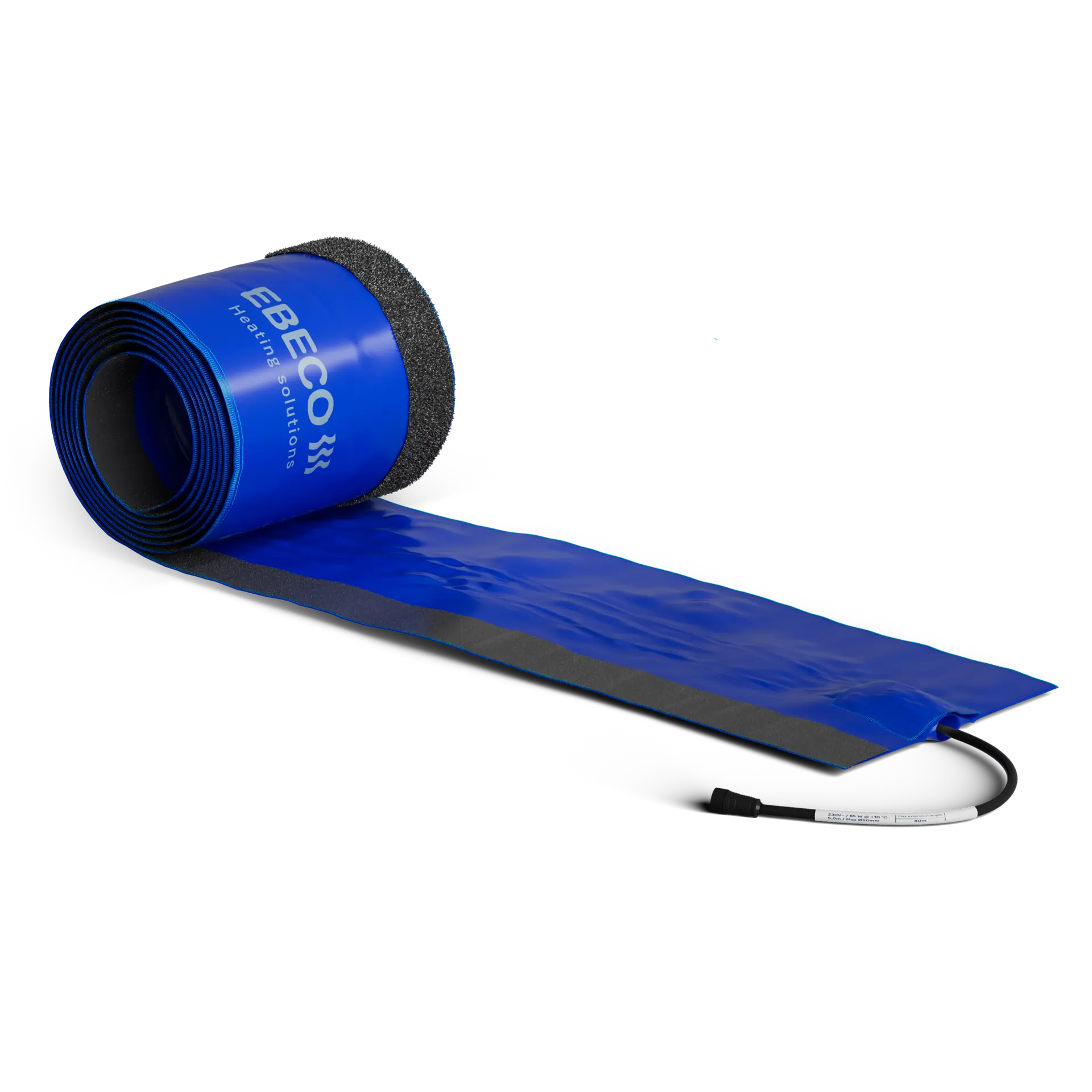

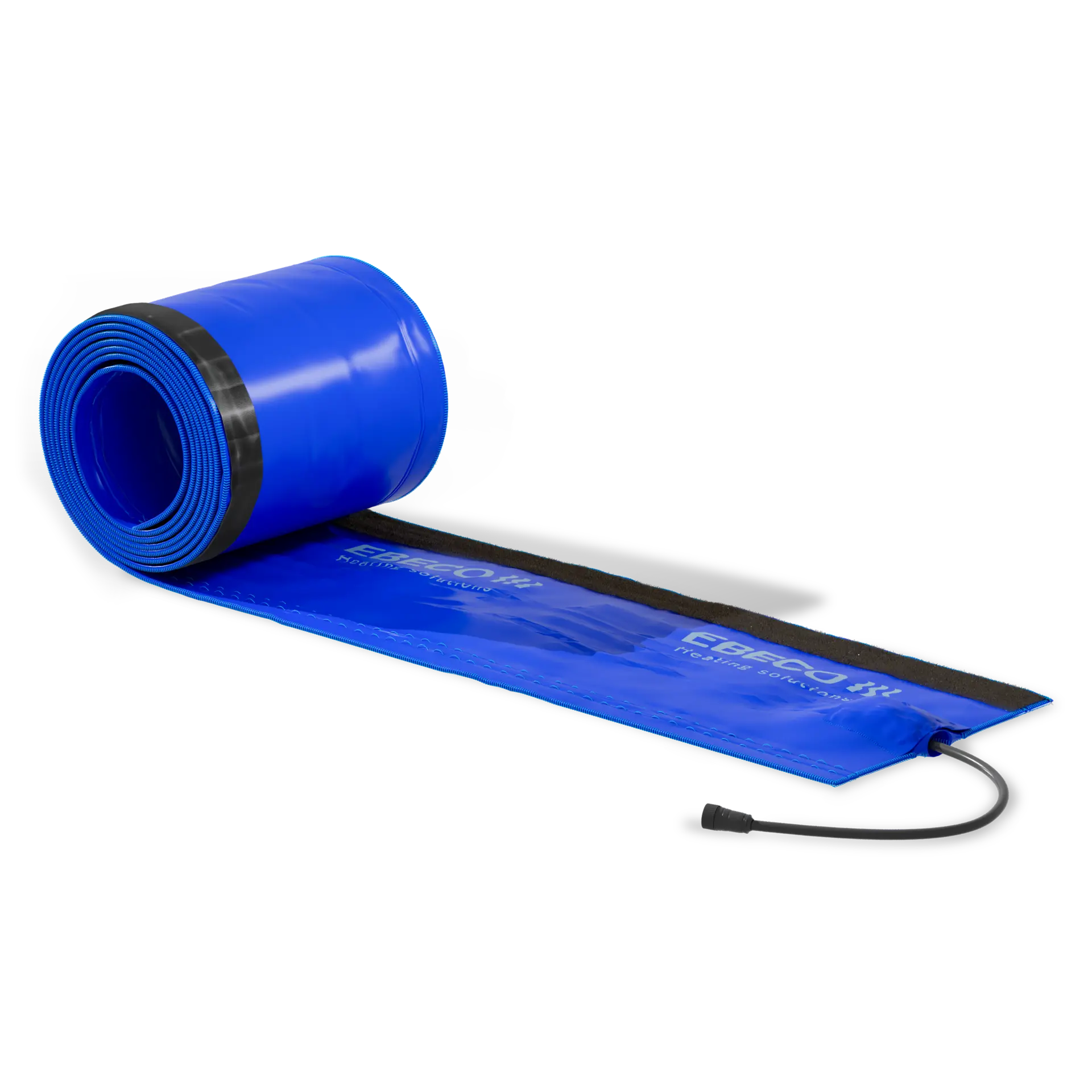

Frostvakt W
Heating mat for temporary heating
Usage
- For outdoor use
- Pipe freeze protection
- Temporary frost protection solutions, Portacabins etc.
-
Plug -
Self-regulating -
Mat
-
Easy to install
-
Flexible and adaptable
-
Can be connected in series
The heating mat is designed for frost protection of water pipes and drainage lines in outdoor environments. Installation is done using Velcro fasteners, providing easy attachment and flexible adjustment. Suitable for pipe diameters up to Ø50 mm. Keeps pipes frost-free down to -20°C. To cover longer pipe sections, several heating mats can easily be connected together up to a maximum of 80 m via integrated quick connectors. The connection cable is purchased separately and is available for both Schuko and CEE, as well as extension cables if needed.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Connection cable | H07RN-F 3G*1,5 |
| Length Connection cable | 0,2 m |
| Number of conductors | 3 pcs |
| Output | 17 W/m |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -20 ºC |
| Insulation material inner | PES, 25 mm |
| Insulation material outer | PE |
| Cable type | Self-regulating 2-conductor with screen |
| Enclosure class | IP67 |
| Protective conductor | Braided |
| Heat resistance, R (m²K/W) | 0,25 |
| UV resistance | Yes |
