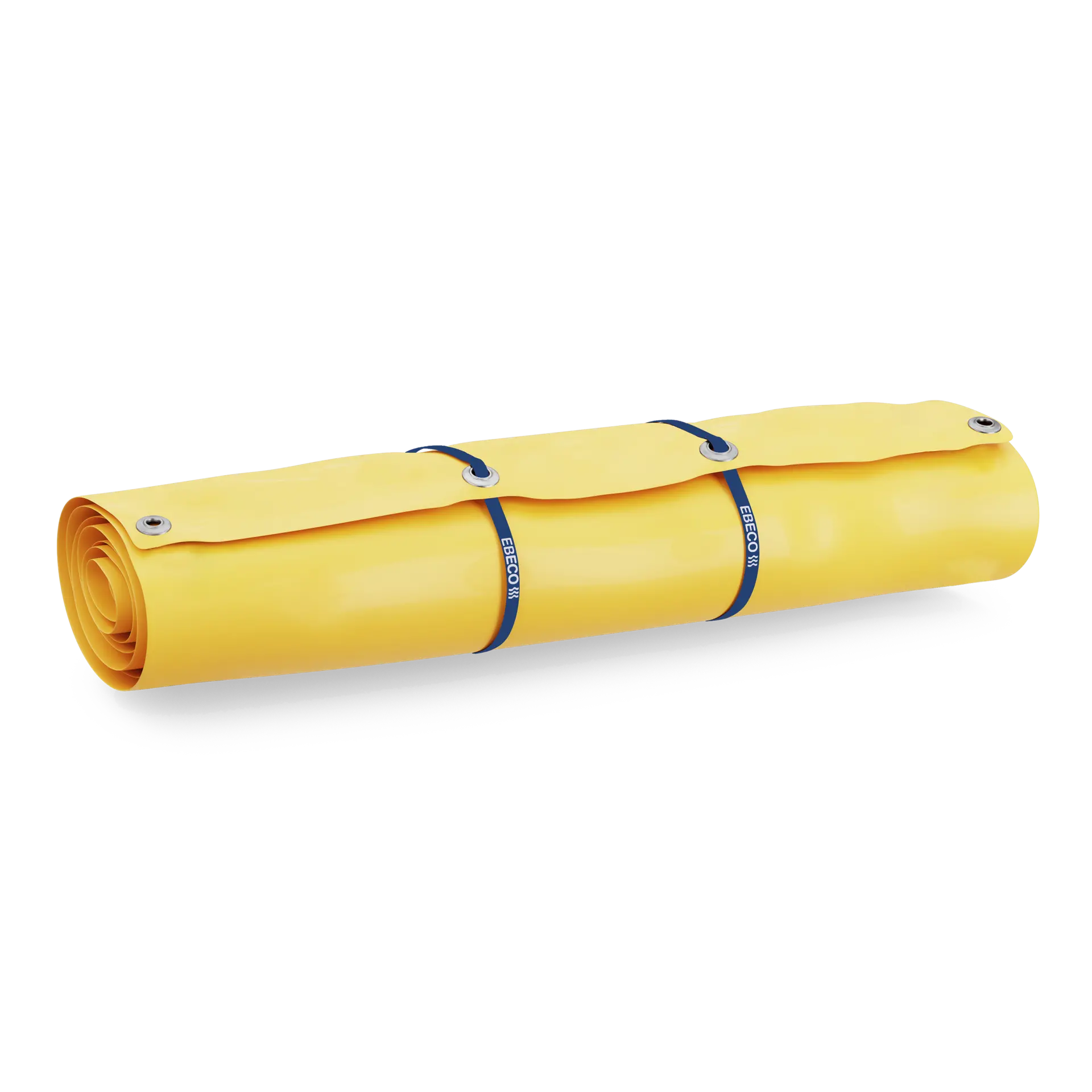

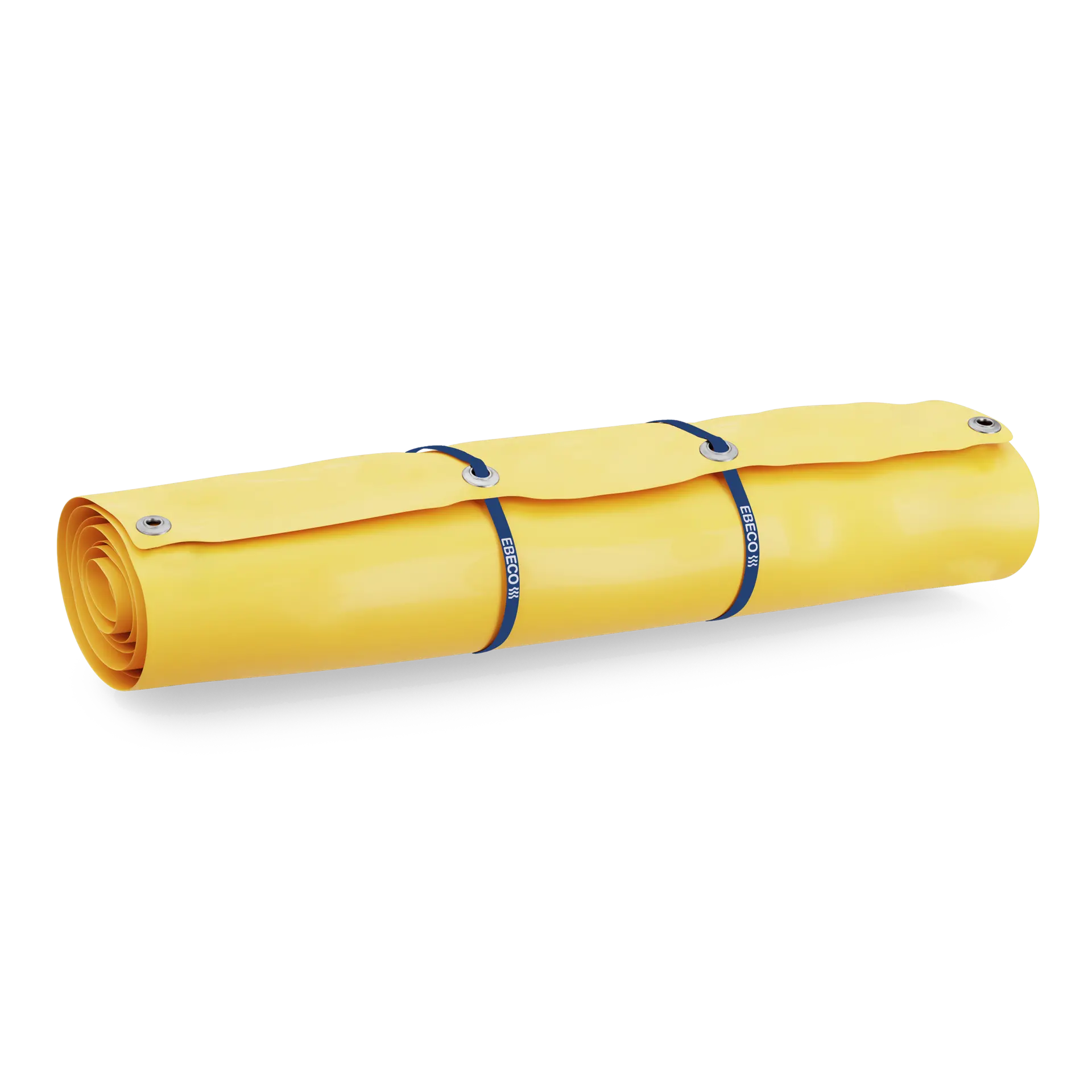

Frost thawing mat
Frost thawing and heat maintenance in a variety of areas
Usage
- For outdoor use
- Thawing of ground, sand, water pipes, waste pipes, feed in silos or silage bales
- Heat maintenance in electrical and telecom cables, machinery and for bricklaying work
-
Plug -
Mat -
300 W/m²
-
Flexible and adaptable
-
Insulating material on one side of the mat provides extra efficiency
-
Developed for demanding requirements and environments
Ebeco's frost thawing mats are used for quick and easy frost thawing and heat maintenance in a variety of areas. They have been developed for the most stringent requirements and demanding environments. Since they are equipped with an earthed plug, they are easy to connect and flexible to move around. The most common applications for thawing mats are for thawing ground, sand, water pipes, waste pipes, feed in silos or silage bales. Heat maintenance in electrical and telecom cables, machinery and for bricklaying work. There is even a specially designed mat for well drilling with a hole in the centre for the feed pipe.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Length Connection cable | 2,5 m |
| Output | 300 W/m² |
| Hole diameter | 195 mm |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -30 ºC |
| Insulation material intermediate | XLPE |
| Insulation material inner | ETFE |
| Insulation material outer | PVC |
| Cable type | Series-resistive 2-conductor with screen |
| Enclosure class | IP67 |
| Mat | PVC mat |
| Protective conductor | Braided |
| UV resistance | Yes |
