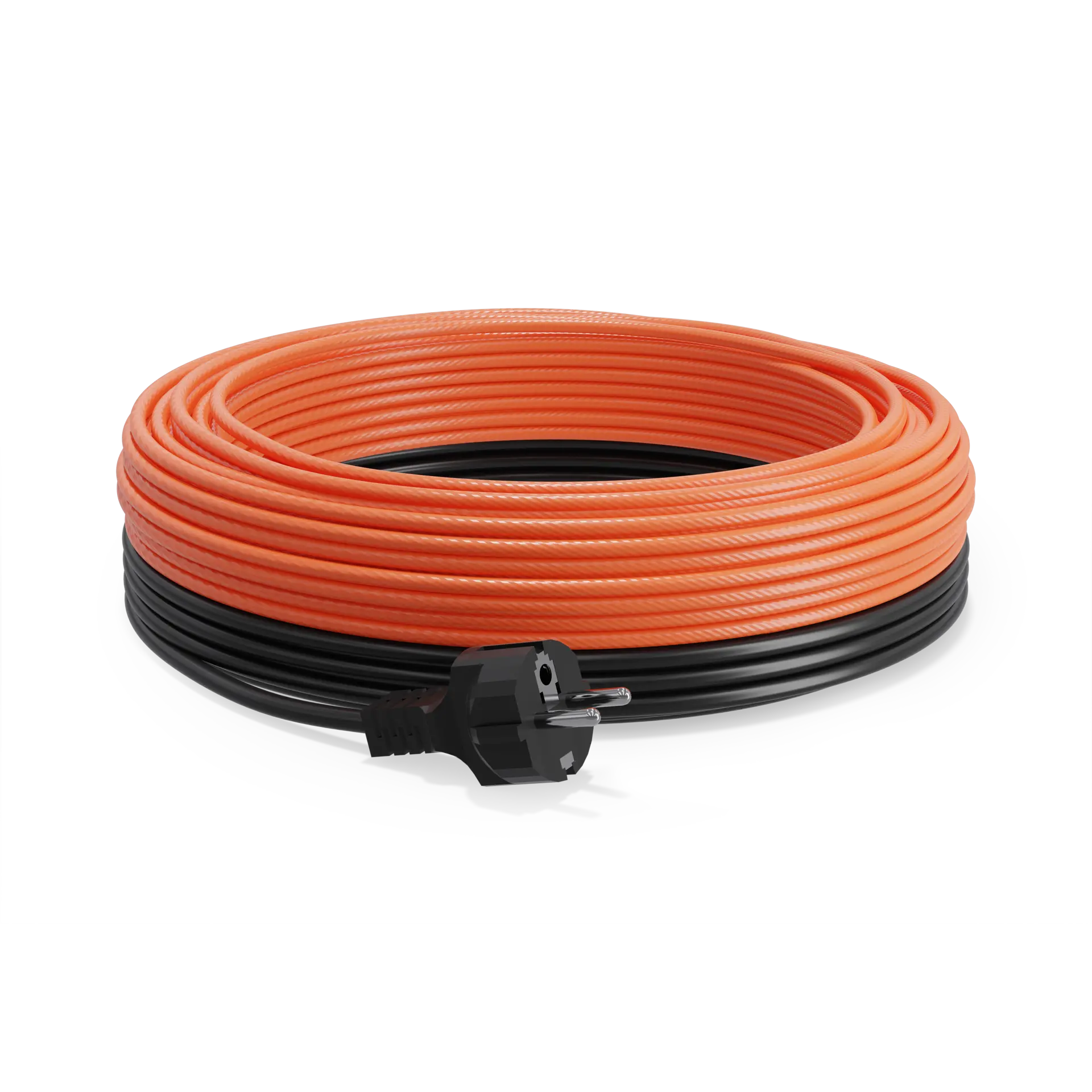

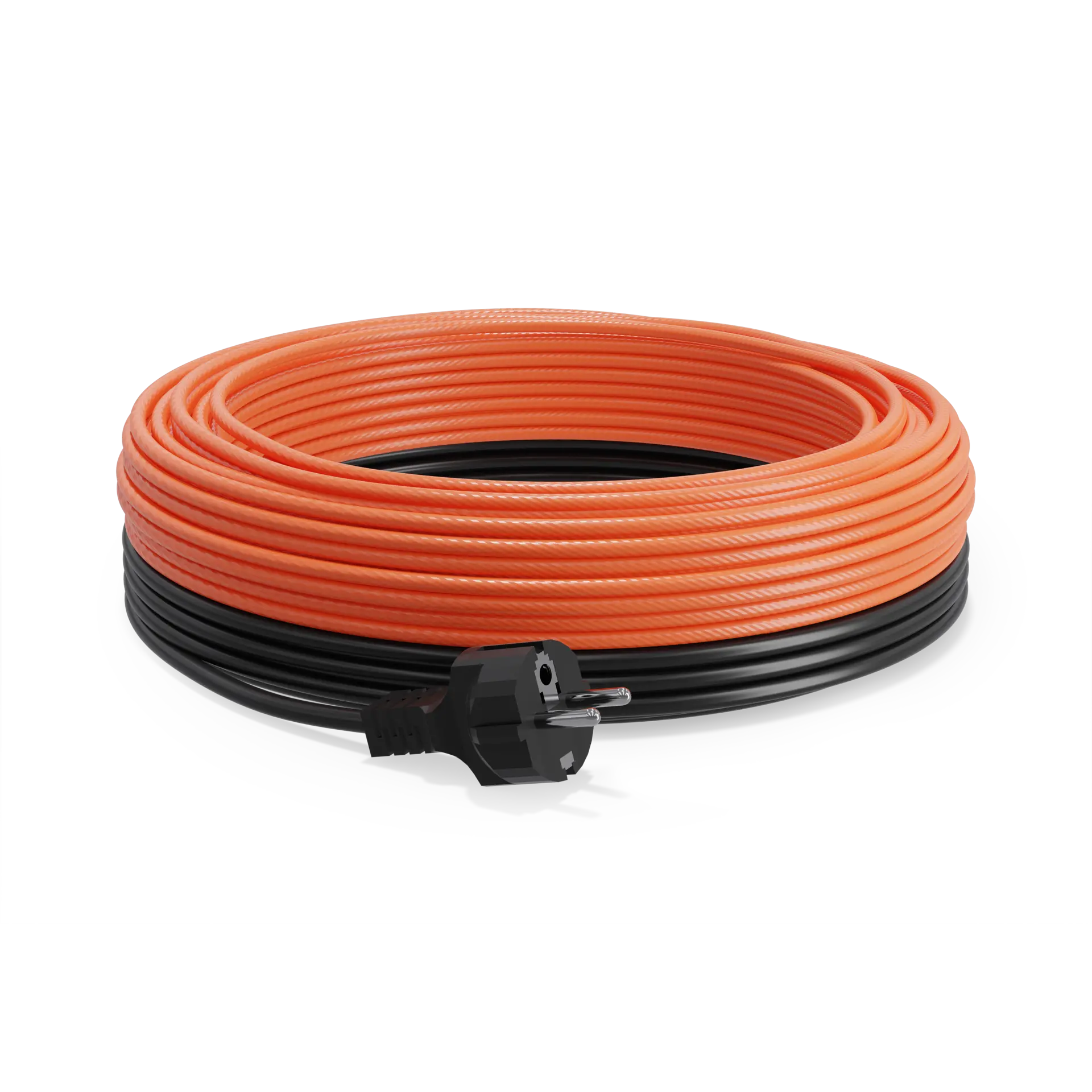

Concrete curing cable
Series-resistive 2-conductor with screen
Användning
- To start curing concrete in cold temperatures
- To accelerate the drying of the concrete
- Heating during the construction process
-
Plug -
Cable -
40 W/m
-
Easy to install
-
Ensures and speeds up the construction process
BHS is a heating cable specially designed for curing and drying concrete, as well as heating. The system speeds up concrete curing and enables formwork to be dismantled sooner. The heating cable, which is fixed to the reinforcement, can be reconnected at a later stage for effective drying or heating. The heating cable is equipped with a connection cable. The heating cable is of the 2-conductor type, which makes it simple and quick to lay.
Concrete curing cable
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Anslutningskabel | H05RN-F |
| Längd anslutningskabel | 2,0 m |
| Antal ledare | 3 st |
| Böjningsradie, min. | 50 mm |
| Diameter | 4 mm |
| Effekt | 40 W/m |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -10 ºC |
| Isoleringsmaterial mellan | XLPE |
| Isoleringsmaterial inre | XLPE |
| Isoleringsmaterial yttre | XLPE |
| Kabeltyp | Series-resistive 2-conductor with screen |
| Kapslingsklass | IP44, IP67 |
| Mekanisk klassificering | M2 |
| Skyddsledare | Aluminium foil |
| UV-beständighet | No |
Warranty
The general terms of delivery are listed below.
Installation
Approximate outputs for BHS at specified outdoor temperature
* In combination with a 10 mm concrete covering mat, the power output can be significantly reduced, up to 50% (50 W/m², c/c 76 cm).
