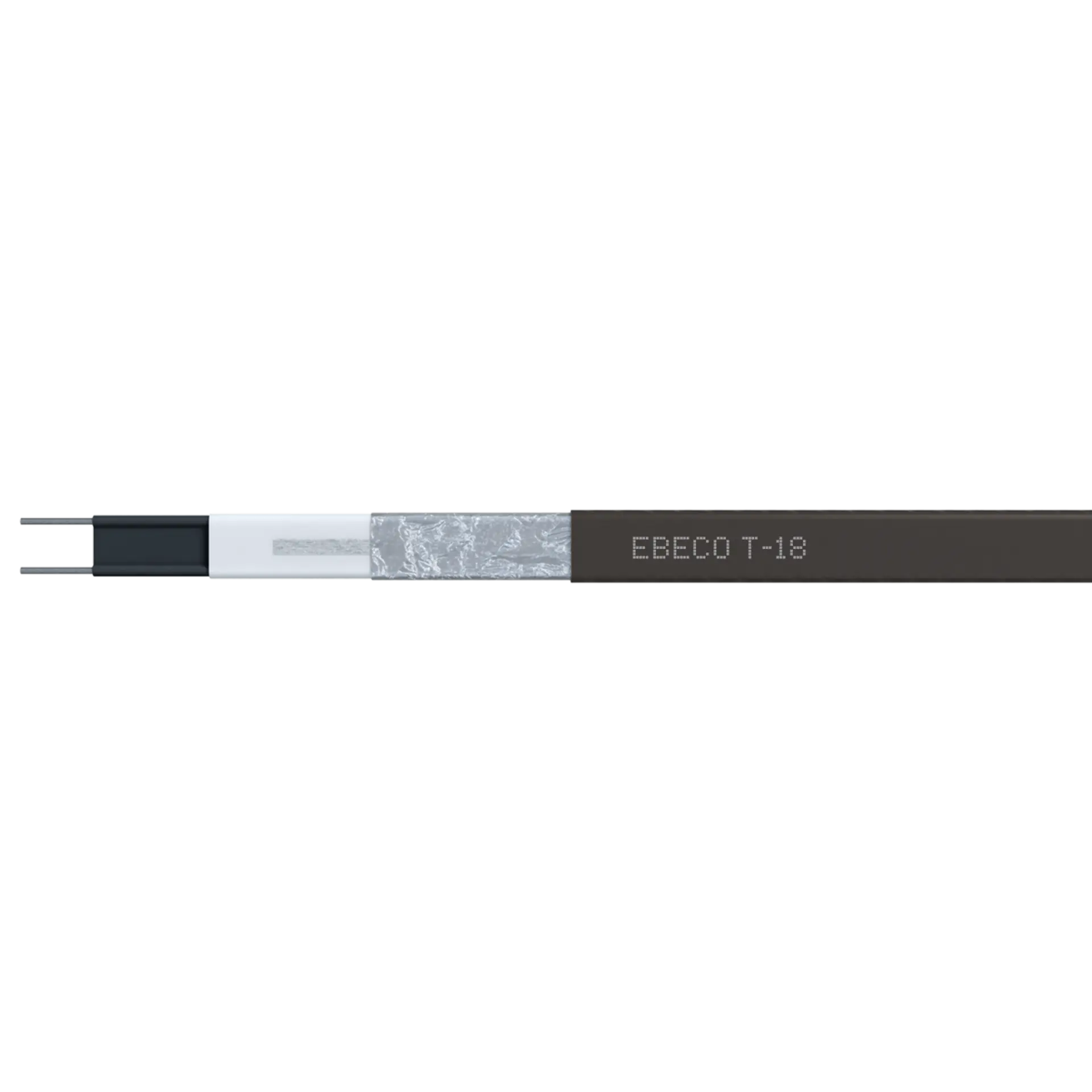

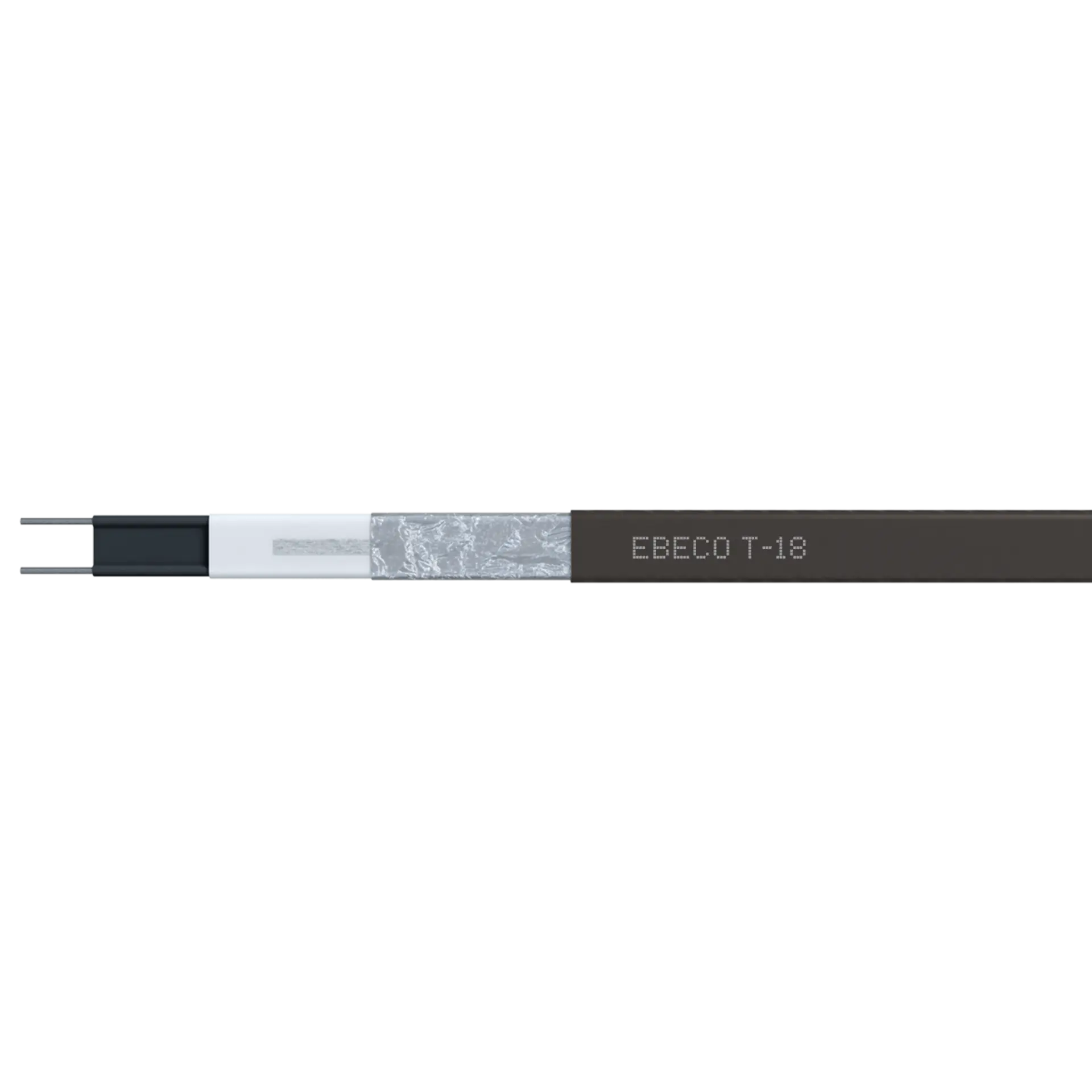

T-18
Self-regulating heating cable
Usage
- For metal and plastic gutters and downpipes
- Part of our Smarta Tak solution
-
18-36 W/m -
Running metres -
Self-regulating
-
Energy efficient
-
Can be cut and crossed for perfect adaptation
-
Smart accessories
Self-regulating heating cable that detects the ambient temperature and adjusts output accordingly. Part of our Smarta Tak solution. With its thermoplastic outer casing, it is well suited for laying in gutters and downpipes made of metal and plastic. Complemented by other products and accessories within our Smarta Tak solution.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Number of conductors | 2 pcs |
| Bending radius, min. | 25 mm |
| Output | 18 W/m at 0°C |
| Exposure temperature (power off), max. | 80 ºC |
| Exposure temperature (power on), max. | Up to 65 ºC |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -50 ºC |
| Insulation material outer | TPE-O |
| Cable type | Self-regulating 2-conductor with screen |
| Conductor area | 1,23 mm² |
| Protective conductor | Aluminium foil |
| UV resistance | Yes |
Supplementary products
-
Connection/termination kit F-10/T-18/T-18 CT against cold cable
Connection/termination kit F-10/T-18/T-18 CT against cold cable
