Snowmelt
Series-resistive 2-conductor with screen on elastic mesh
Usage
- Laid in a sand bed or embedded in concrete
- Snow melting installations
-
Elastic mesh -
200-300 W/m²
-
Elastic and adaptable
-
Robust and durable
-
Quick and easy placement

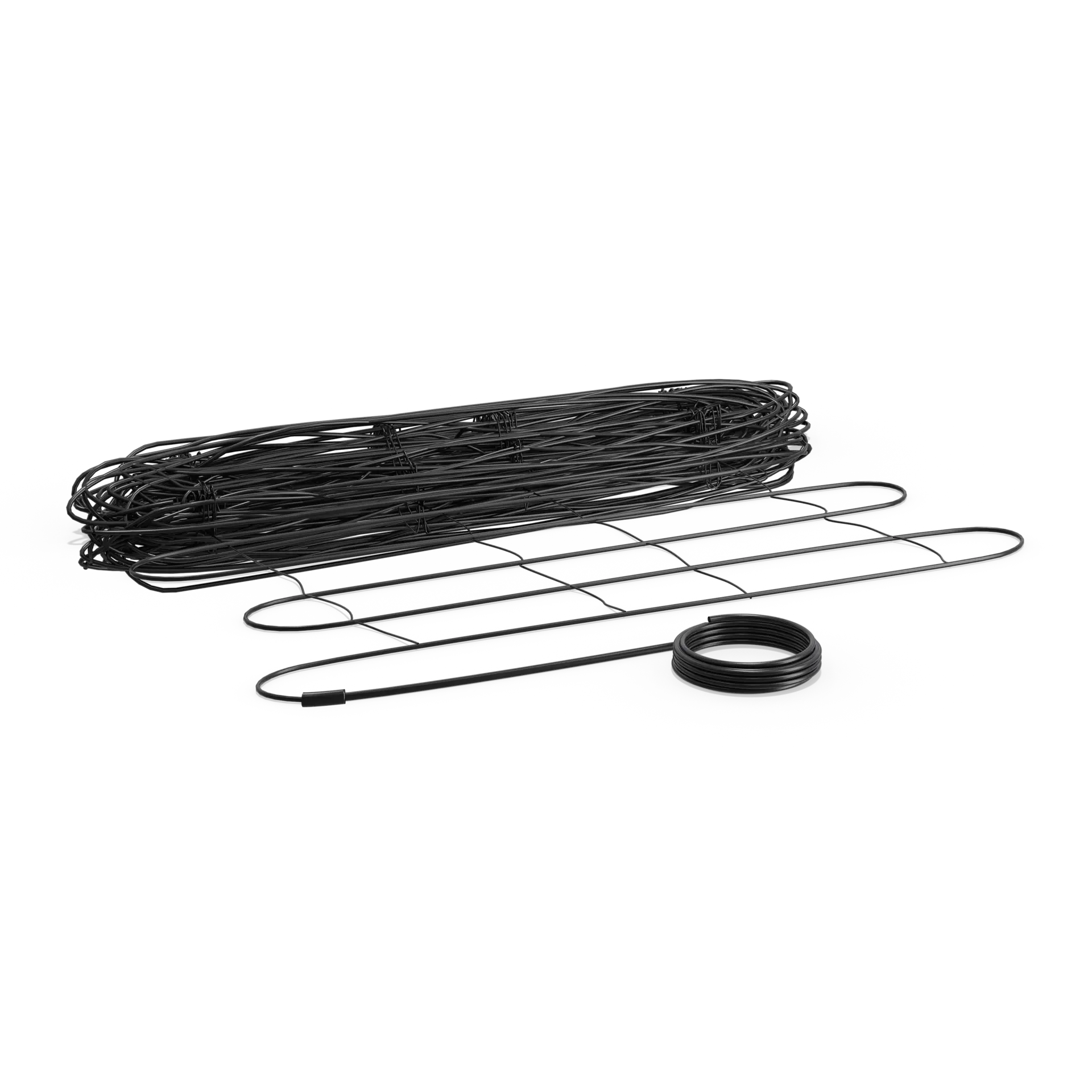

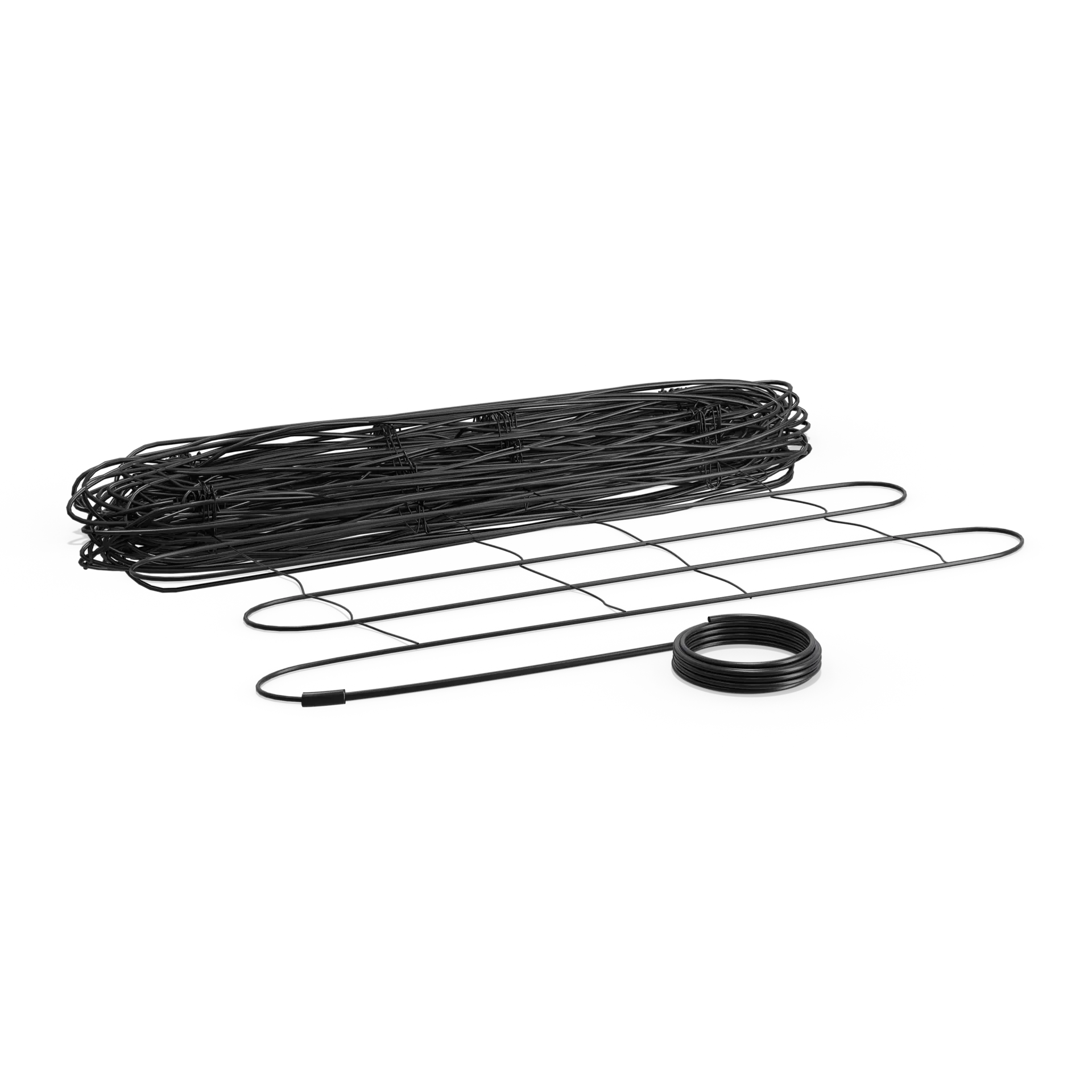

Snowmelt is an elastic heating cable mat consisting of a heating cable secured to rubber bands. By stretching the mat out, the c/c distance is increased and thus the effect is reduced. This unique design reduces the installation time by about 75% compared to conventional mounting on straps. The heating cable has a built-in dual conductor cable, which means there is only one end to connect. The heating cable mat is placed in a sand bed under asphalt or paving. It can also be embedded in concrete. The mat should be laid at least 30 mm deep.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Connection cable | RV-K |
| Length Connection cable | 5,0 m |
| Number of conductors | 3 pcs |
| Output range | 200 - 300 W/m² |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -5 ºC |
| Insulation material intermediate | XLPE |
| Insulation material inner | ETFE |
| Insulation material outer | PVC |
| Cable type | Series-resistive 2-conductor with screen |
| Enclosure class | IP67 |
| Mat | Rubber band |
| Protective conductor | Braided |
| UV resistance | Yes |
Warranty
10 year product guarantee in case of material defects.
