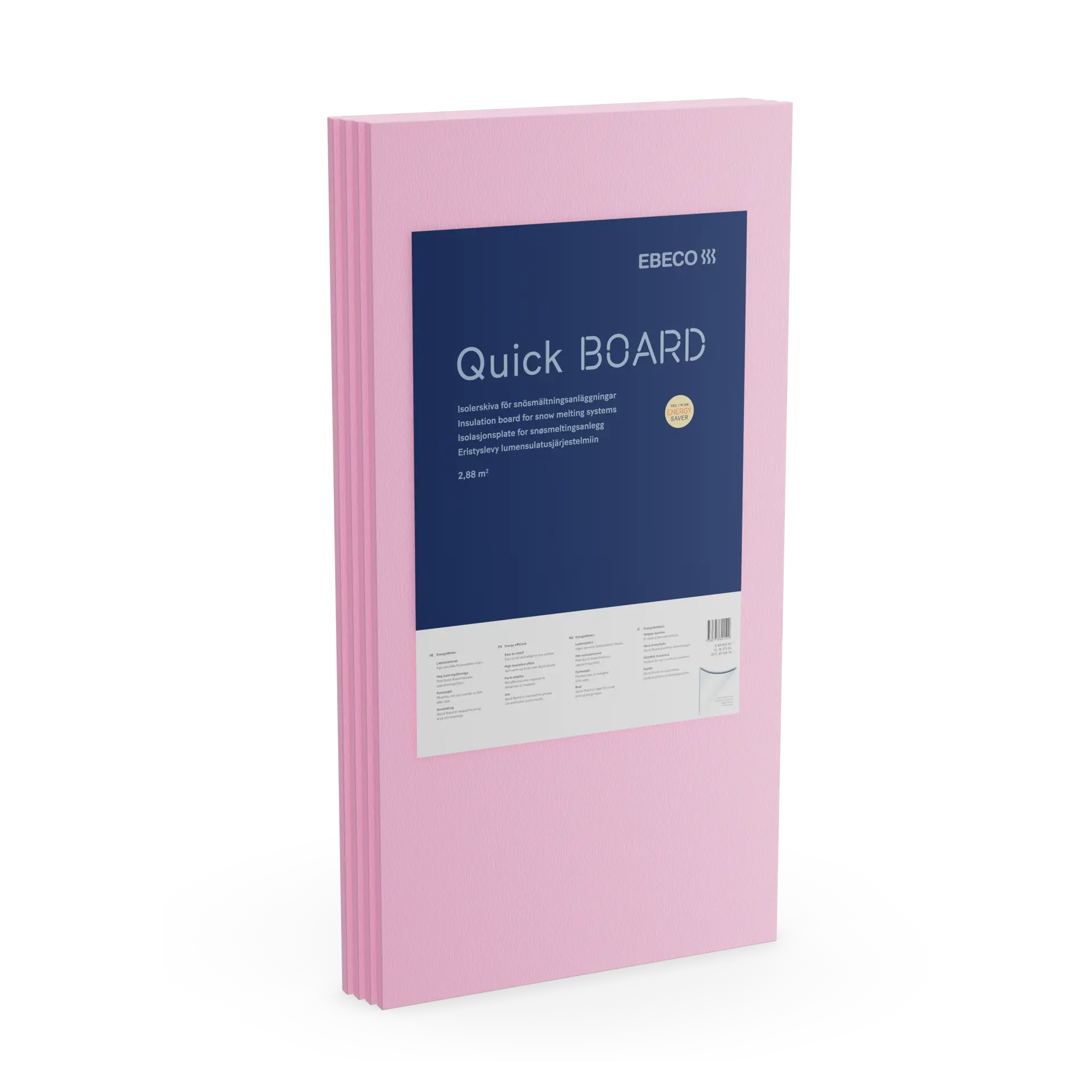

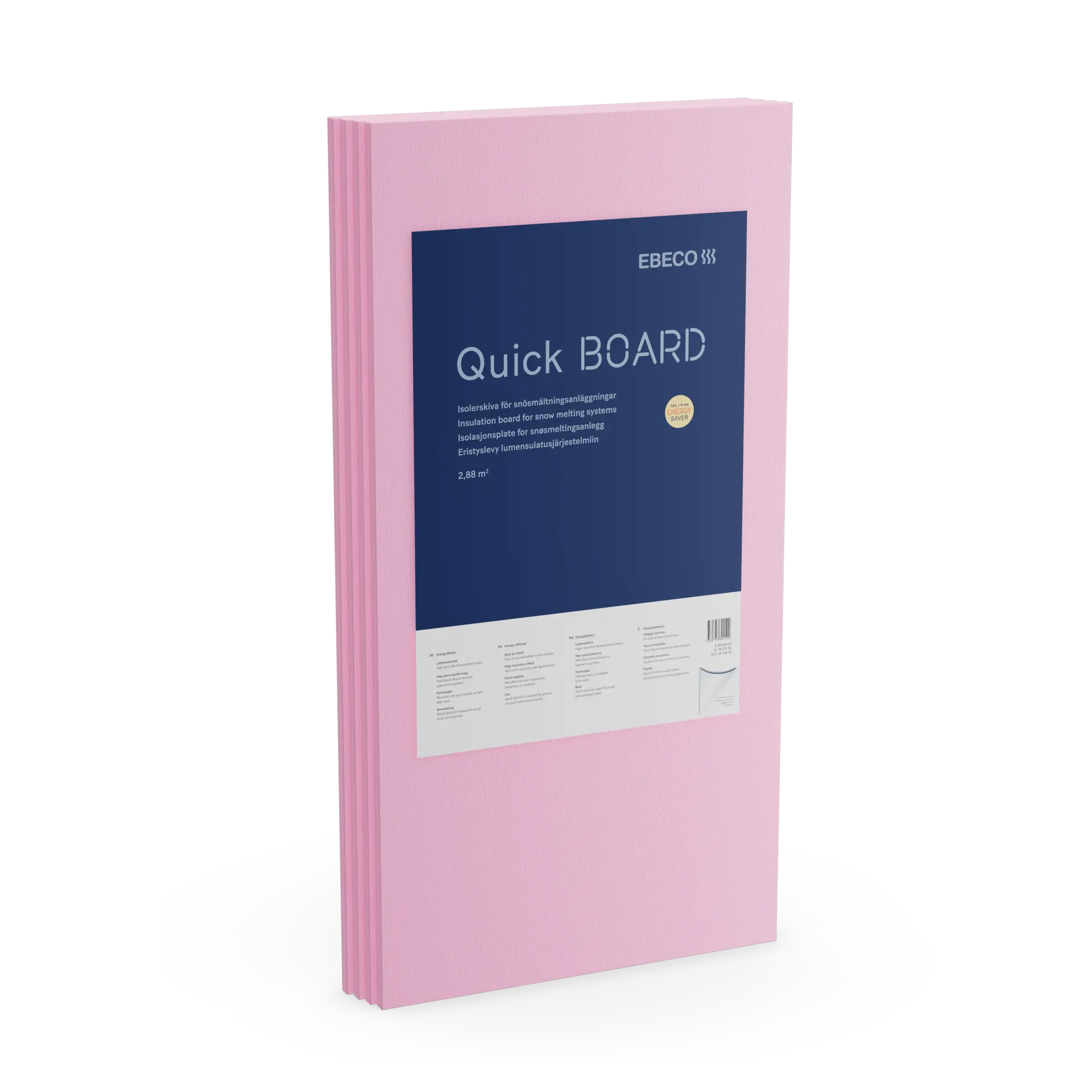

Quick Board
Insulation board
Användning
- For normal traffic loads
- Suitable for snow melting, ground
-
(R) 0,88 m²K/W -
(λ) 0.034 W/mK -
30 mm
-
Energy saving by up to 50 %
-
Energy-efficient installation
-
Compression resistant
Quick Board’s special structure reflects heat upwards in an extremely effective way. Compared with a reference installation without insulation, the warming-up time is up to 50% shorter. Because you do not need to have the snow-melting system on for so long, you save energy and reduce your electricity bills.
Specifications
| Specification | Data |
|---|---|
| Självantändningstemperatur | > +380 ºC |
| Innehåller SVHC ämnen enligt REACH | No |
| Kontinuerlig temperatur, max. | 75 ºC |
| Tryckhållfasthet (EN 13164) | 300 kPa |
| Löslighet | High resistance to acids and bases. Soluble in organic solvent |
| Material | Extruded polystyrene |
| Smältpunkt | 100 ºC |
| Värmeledningsförmåga, λ | 0.034 W/mK |
Documents
Warranty
12 year product guarantee in case of material defects. The thermostat in the kit has a 5-year product guarantee. The guarantee period for the underfloor heating is extended to 25 years if the installation is carried out by an authorised electrician and documented in Ebeco's Garantera service.
