Snowmat
Series-resistive 2-conductor with screen on mesh
Användning
- For snow melting, ground
- Laid in a sand bed or embedded in concrete
-
Mesh -
300 W/m²
-
Classified M2
-
Robust and durable
-
Quick and easy placement

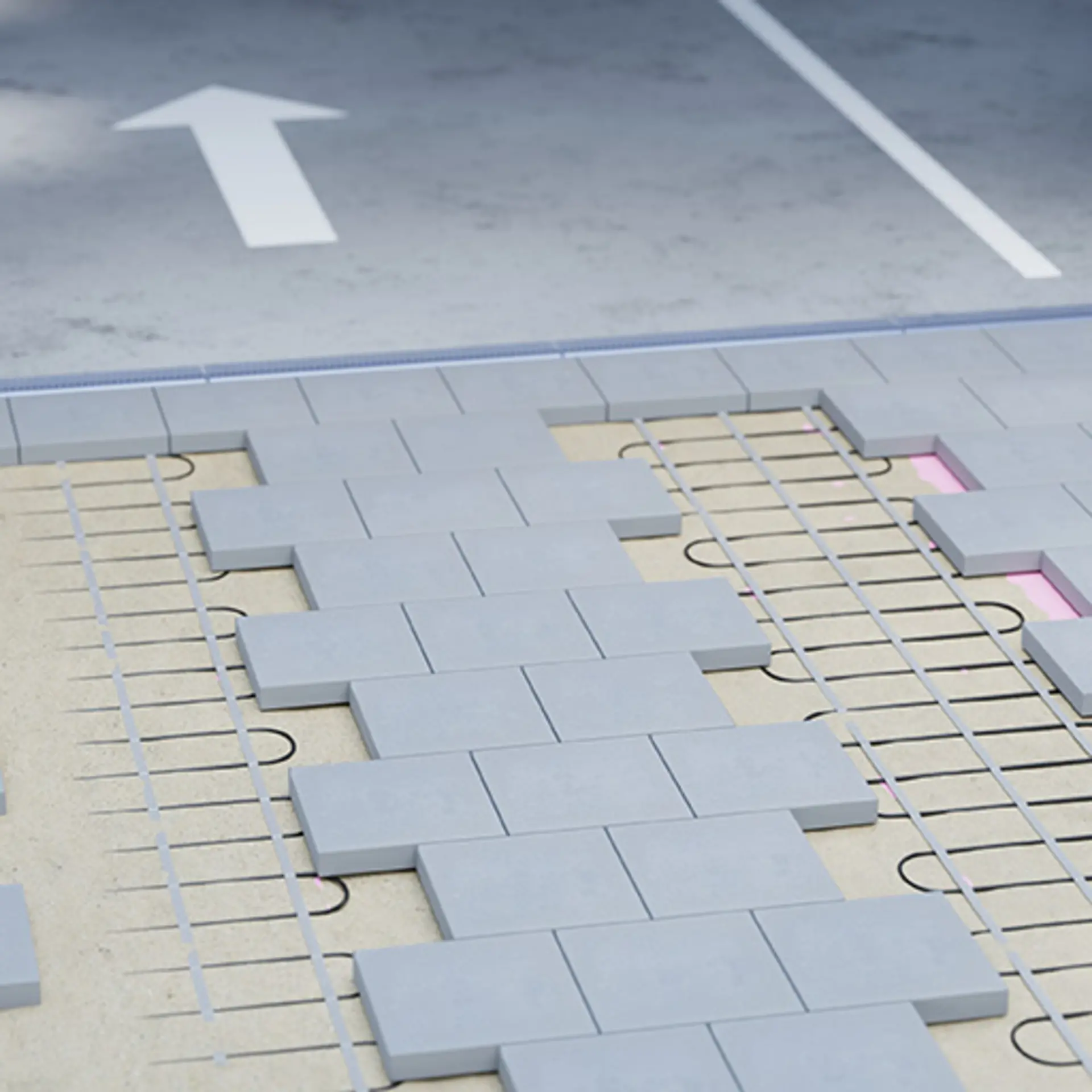

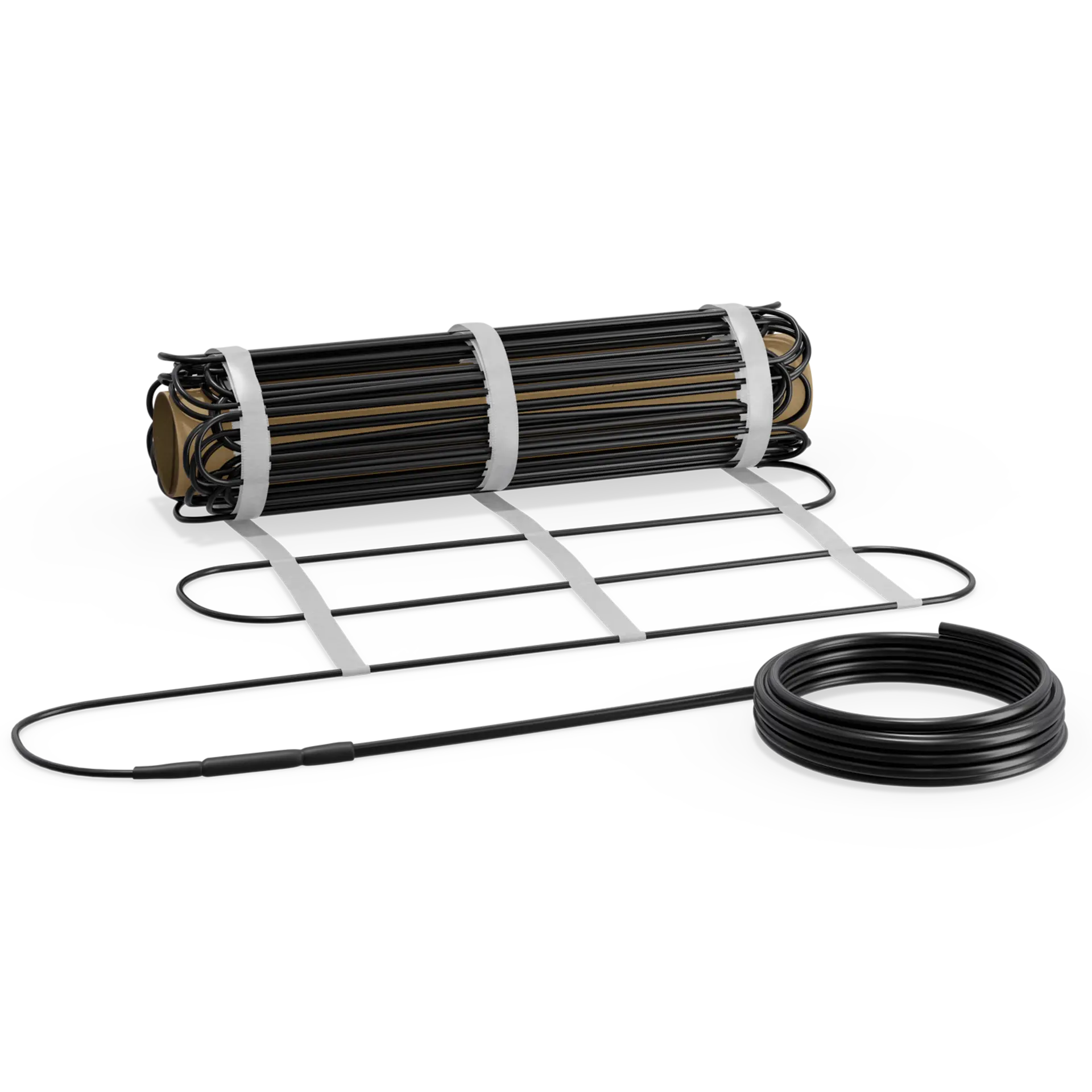

Snowmat is intended for melting snow on the ground. The heating cable is pre-assembled with tape in fixed lengths and widths that are quickly and easily unrolled. It is intended to be laid in a sand bed under asphalt or paving stones. Snowmat can also be used for casting in concrete or for filling on concrete.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Anslutningskabel | RV-K |
| Längd anslutningskabel | 5,0 m |
| Antal ledare | 3 st |
| Effekt | 300 W/m² |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -5 ºC |
| Isoleringsmaterial mellan | XLPE |
| Isoleringsmaterial inre | ETFE |
| Isoleringsmaterial yttre | PVC |
| Kabeltyp | Series-resistive 2-conductor with screen |
| Kapslingsklass | IP67 |
| Matta | Glasfiberförstärkt tejp |
| Mekanisk klassificering | M2 |
| Skyddsledare | Braided |
| UV-beständighet | Yes |
Warranty
10 year product guarantee in case of material defects.
