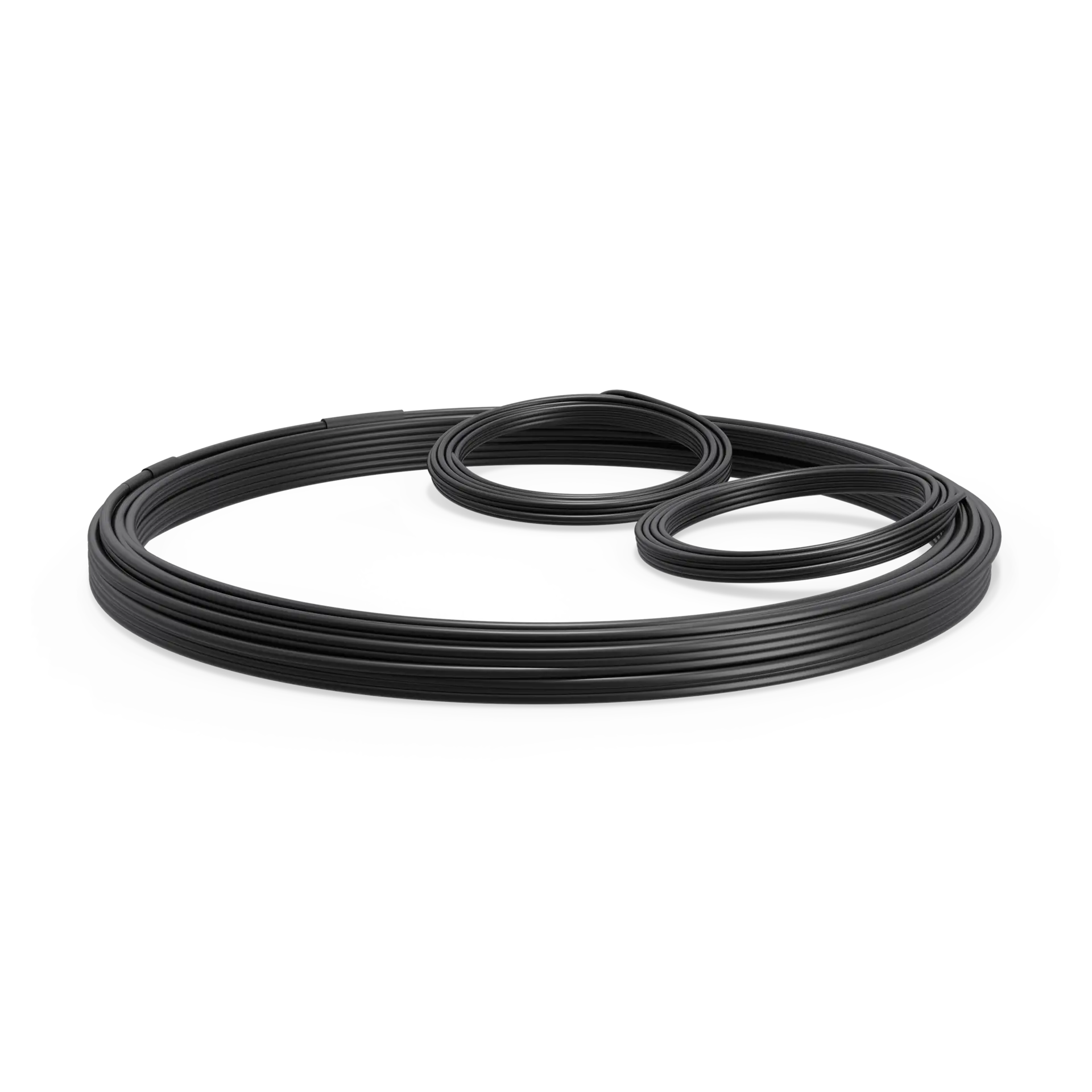

MI-60
Series-resistive 1-conductor with screen
Usage
- Laid in a sand bed or embedded in concrete
- Can be installed directly in asphalt
- Snow melting installations
-
240-380 W/m² -
Cable
-
Extremely high temperature resistance
-
Robust and durable
The MI-60 heating cable minimises the risk of slipping and thus increases both accessibility and safety. Can be laid directly in asphalt and in concrete or sand that is covered with a surface coating. It can also be laid in an aggregate-free layer over a concrete slab or fixed to reinforcement for embedding. Normal installation is about 50-70 mm below the final surface. The high output makes this cable especially suitable for demanding public environments. With EB-Therm 800, it also becomes an economical installation.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 400 V |
| Length Connection cable | 3,0 m |
| Number of conductors | 1 pcs |
| Bending radius, min. | 30 mm |
| Output | 60 W/m |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -5 ºC |
| Insulation material intermediate | Copper (Cu) |
| Insulation material inner | Magnesium oxide (MgO) |
| Insulation material outer | HDPE |
| Cable type | Series-resistive 1-conductor with screen |
| Enclosure class | IP54 |
| Mechanical classification | M2 |
| Protective conductor | Braided |
Warranty
10 year product guarantee in case of material defects.
