Clear Mirror

Parallel-resistive heating foil

Usage

  • For mirrors in wet rooms
  • Folie
    Foil
  • 200 W/m²
    200 W/m²
  • Flera effekter
    Several effects
  • Mist-free mirror
  • Available in different sizes

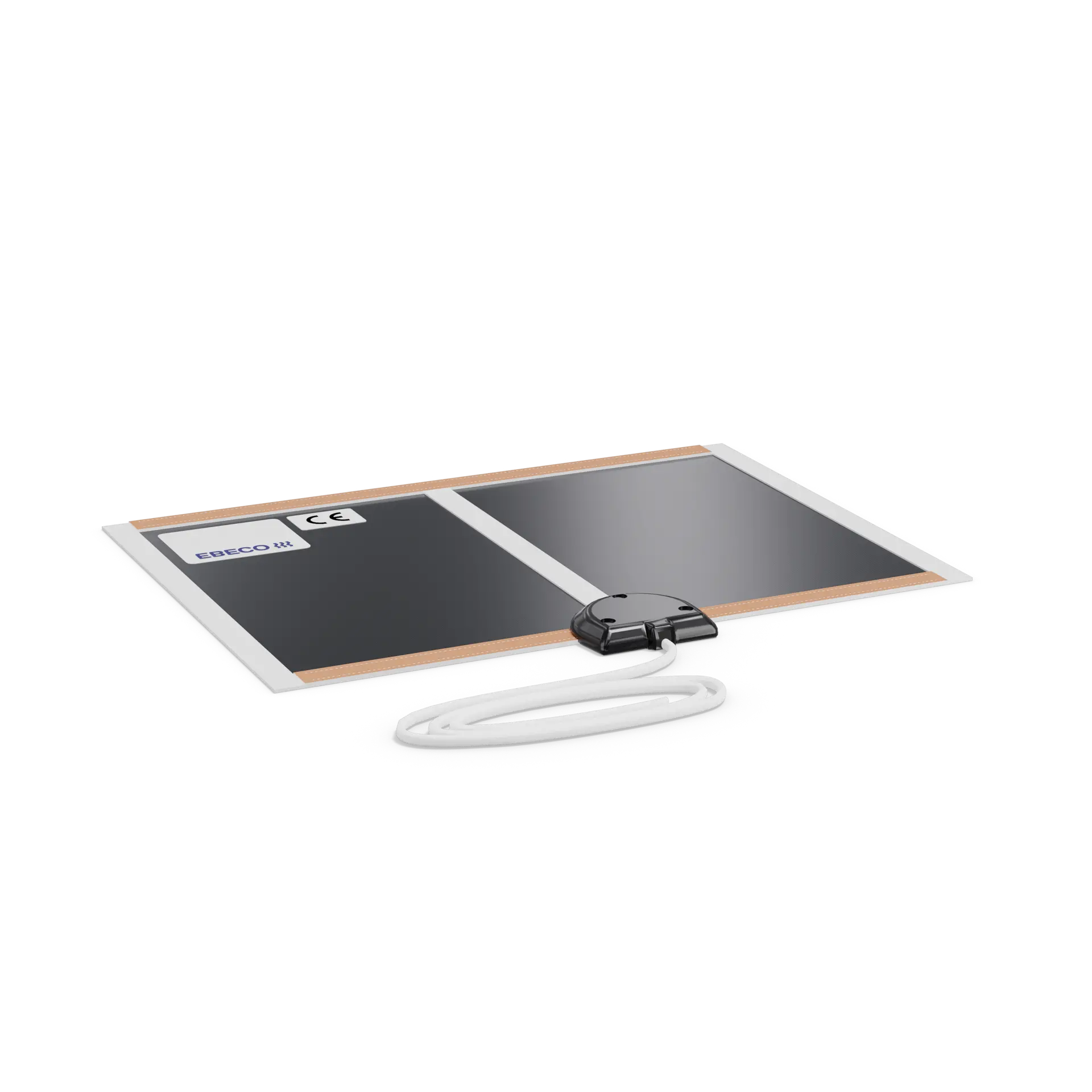

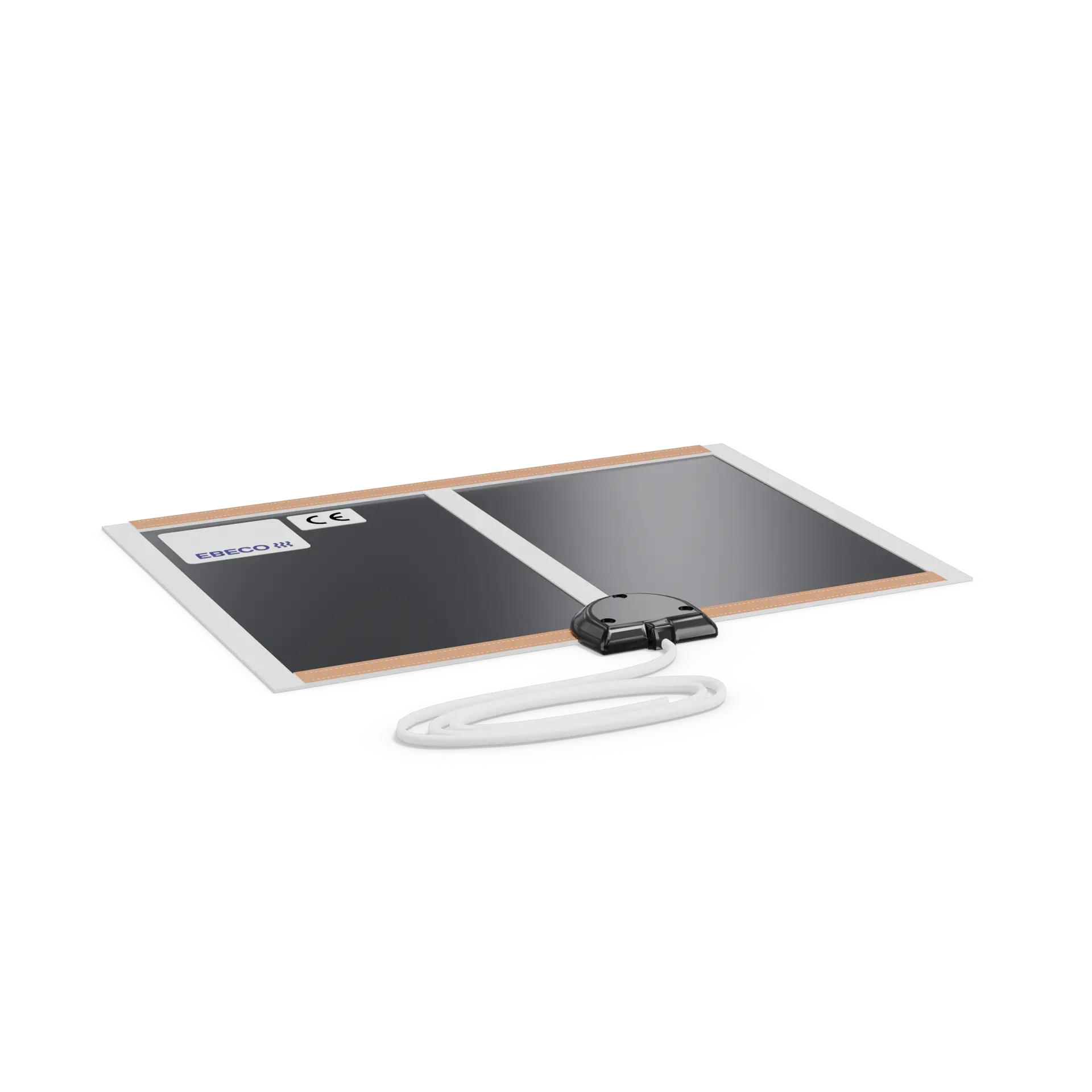

Clear Mirror is a self-adhesive foil that is mounted on the back of the bathroom mirror for a mist-free mirror.

Clear Mirror

Article list

Article number Width (m) Length (m) Area (m²) Output (W) Resistance (Ω nominal)
8960631 0,25 0,27 0,07 12,5 4232
8960633 0,27 0,57 0,15 28 1889
8960635 0,52 0,52 0,27 50 1058
8960637 0,52 1 0,52 100 529

Specifications

Specification Data
Connection voltage 230 V
Length Connection cable 2,0 m
Output 200 W/m²
Contains SVHC substances according to REACH No
Installation temperature, min. 5 ºC
Insulation material outer PET
Enclosure class IP44
Max Ambient temperature 80 °C
