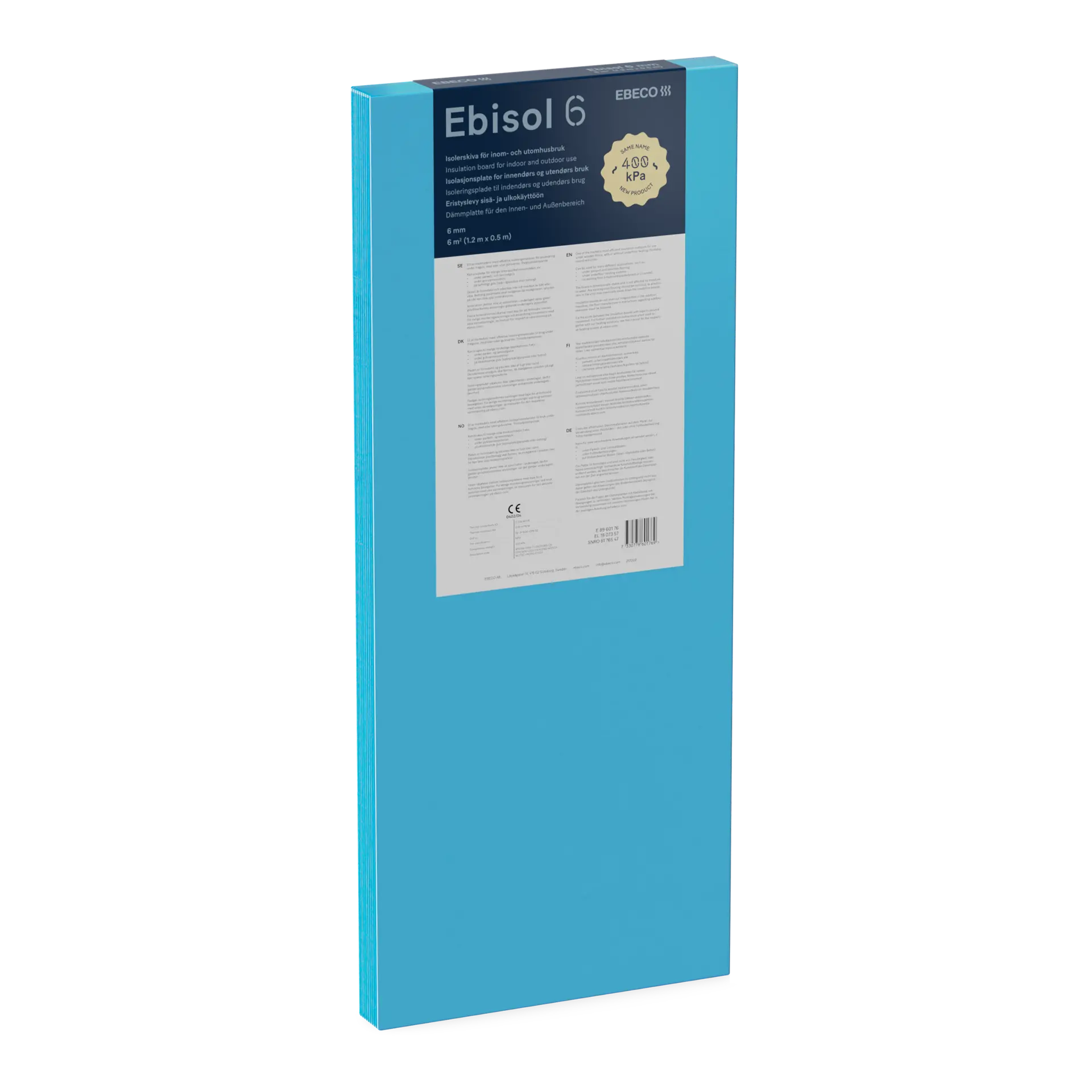

Ebisol 6
Base/Insulation board
Usage
- For underfloor heating under wood, laminate, and vinyl floors
- For dry areas
- Suitable for both timber/gypsum board and concrete substrates
-
(λ) 0.034 W/mK -
6 mm
-
Replaces traditional floor foam
-
High compressive strength
-
Step sound attenuation
Ebisol is a high-performance underlay board for floating floor constructions and can be used with or without underfloor heating. The material's high compressive strength provides good load distribution and long-term stability, while maintaining comfort and impact sound insulation. The board also helps protect underfloor heating systems and floor coverings against mechanical impact from below. Ebisol can be used under parquet, laminate and vinyl floors and laid on, for example, chipboard/gypsum board or concrete floors.
Specifications
| Specification | Data |
|---|---|
| Autoignition temperature | > +380 ºC |
| Contains SVHC substances according to REACH | No |
| Continuous temperature, max. | 75 ºC |
| Compressive strength (EN 13164) | 400 kPa |
| Impact sound attenuation (EN 16354) | ≤ 20 dB |
| Water absorption, submerged | ≤ 0,7 Vol% |
| Relative water vapor resistance | µ factor 150 |
| Solubility | High resistance to acids and bases. Soluble in organic solvent |
| Material | Extruded polystyrene |
| Melting point | 100 ºC |
| Thermal conductivity, λ | 0.034 W/mK |
