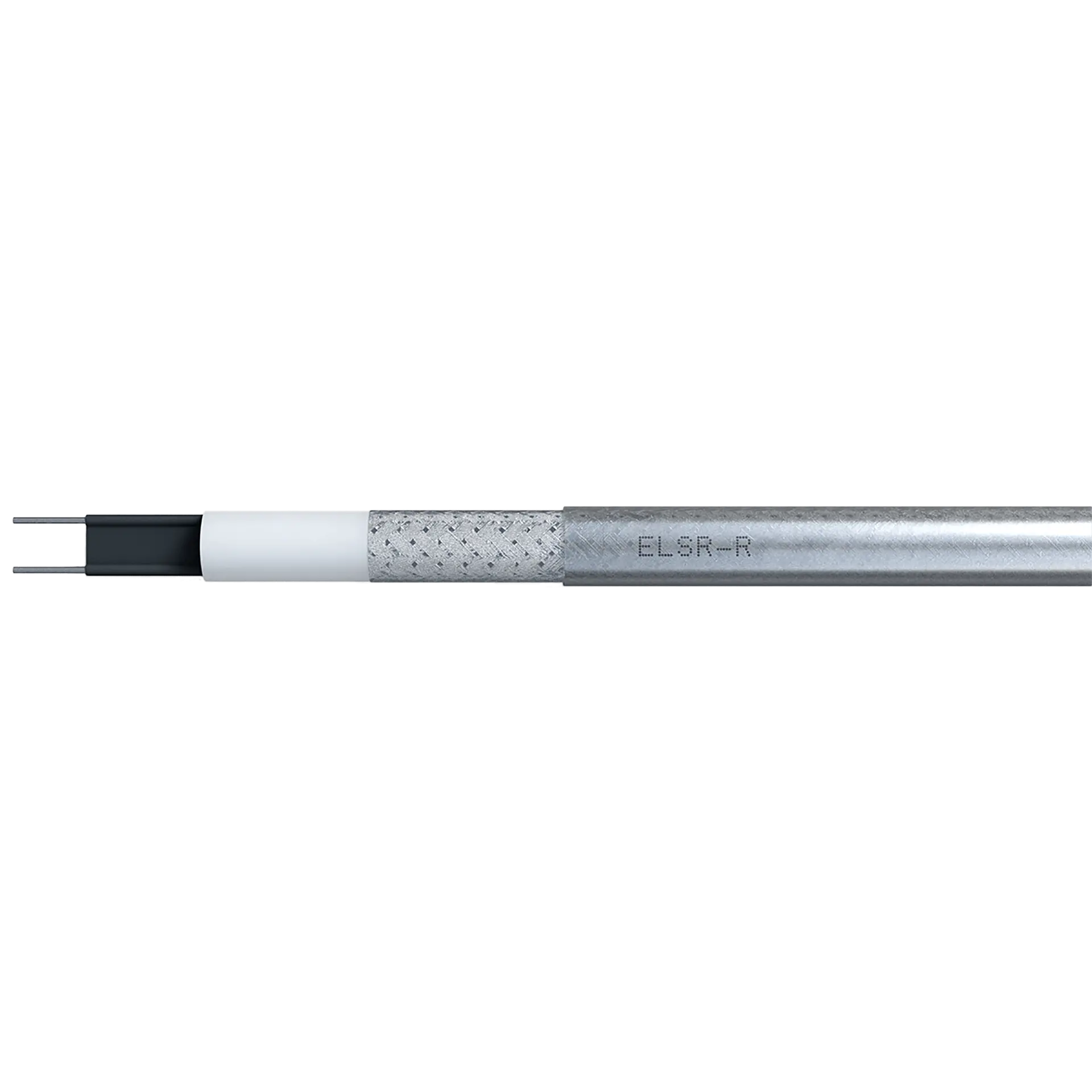

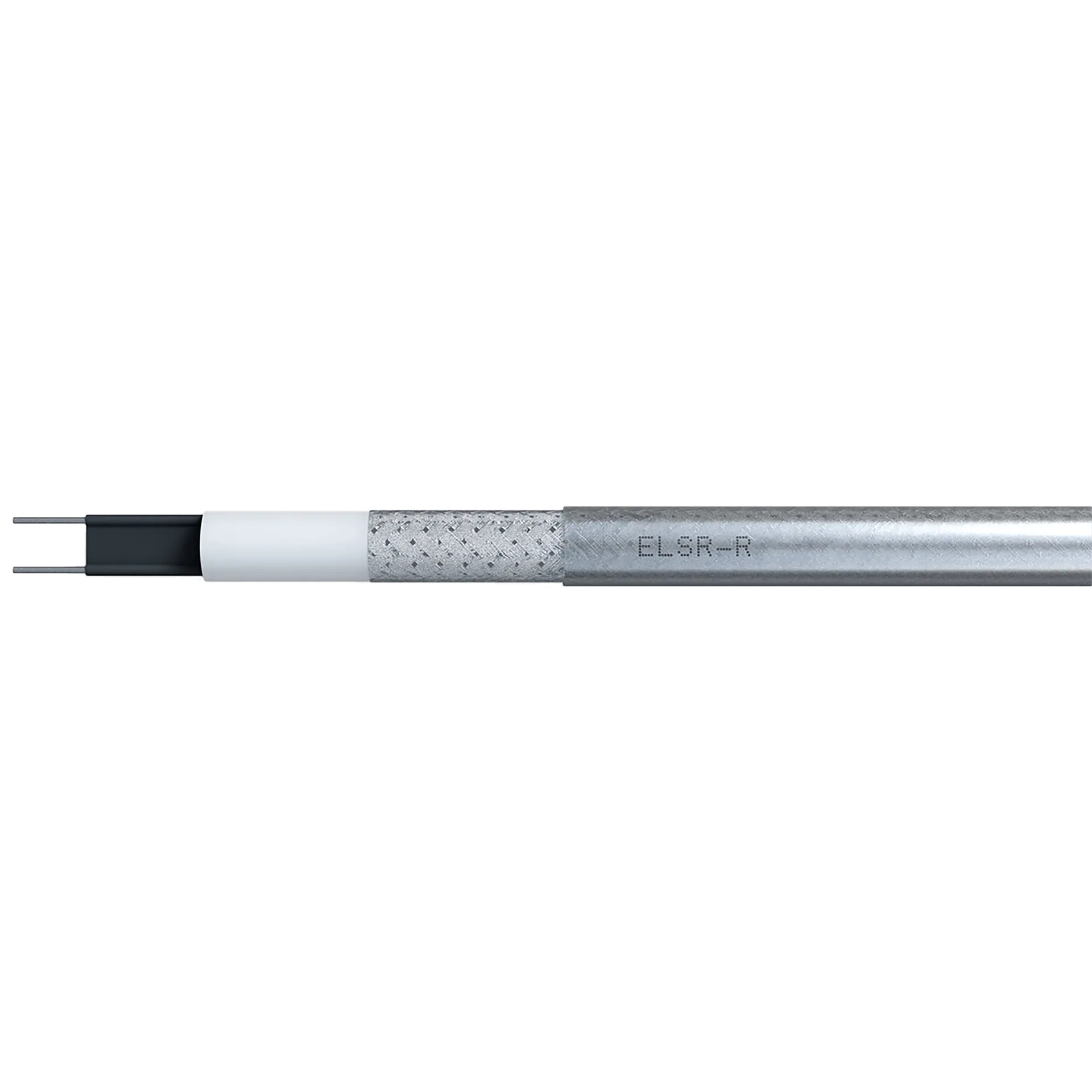

ELSR-R
Self-regulating heating cable
Användning
- Suitable where the round design simplifies installation
- Frost protection for doors and door frames in freezer rooms
- Power range 19, 27 W/m
-
65 °C -
65 °C
-
Round cable design
-
UV-resistant
The R in the name of our self-regulating heating cable ELSR-R is an abbreviation of "round". This heating cable is specially developed to protect doors and door frames in freezer rooms against frost and for other areas of use where a round heating cable is required. It is often used as frost protection for cooling water pipes at breweries and other beverage manufacturers. Maximum exposure temperature is +65°C.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Antal ledare | 2 st |
| Böjningsradie, min. | 30 mm |
| Exponeringstemperatur (power off), max. | 65 ºC |
| Exponeringstemperatur (power on), max. | Upp till 65 ºC |
| -BOT | Protective conductor: Braided, Outer casing: Fluoropolymer |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -30 ºC |
| Isoleringsmaterial yttre | PFA |
| Kabeltyp | Self-regulating 2-conductor with screen |
| Ledararea | 0,56 mm² |
Installation
*¹ Heating circuit lengths on the following conditions
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
- In certain installation situations, the heating circuit length may vary. Please contact our engineers.
