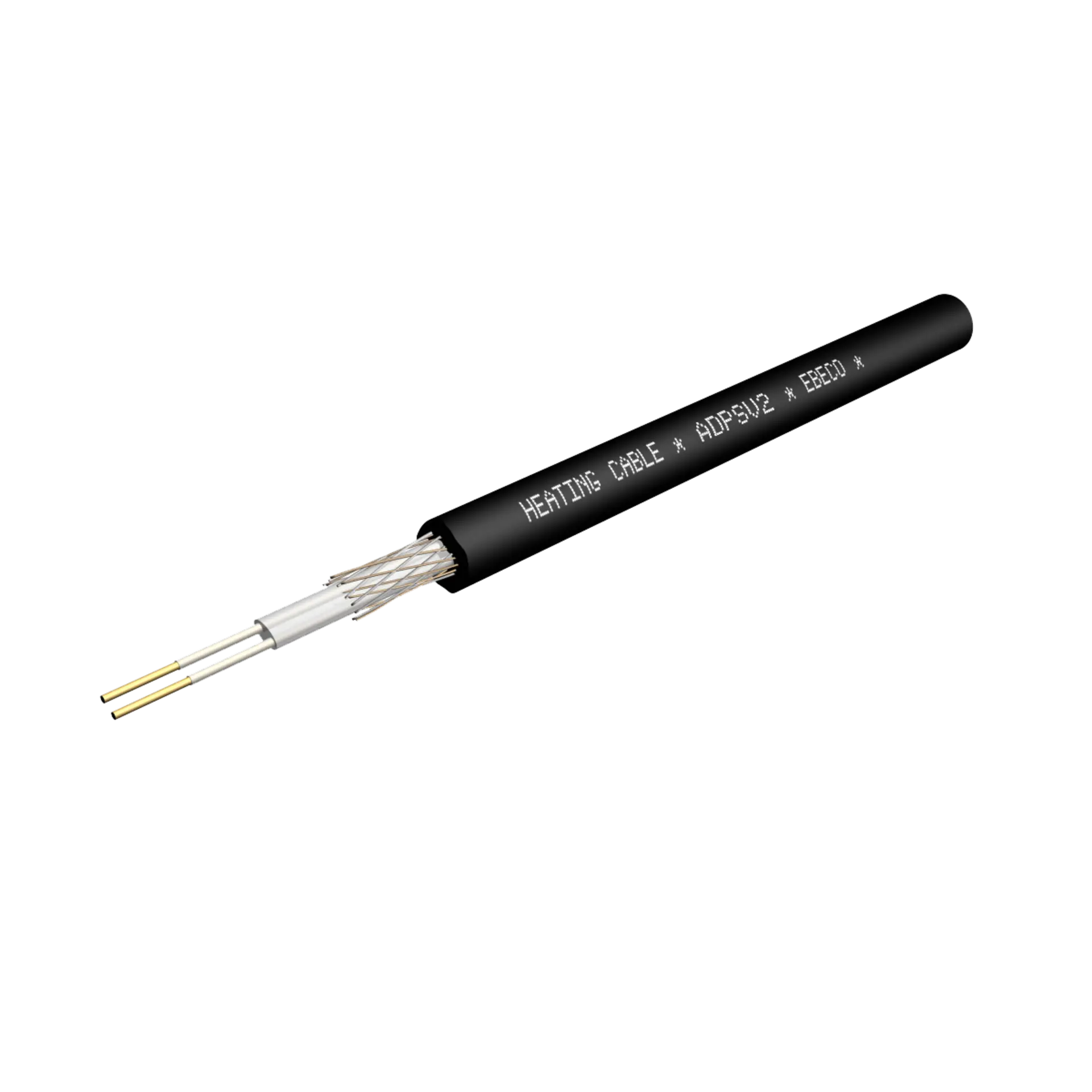

ADPSV2
Series-resistive 2-conductor with screen
Användning
- Wide range of uses
- For both indoor and outdoor placement
- Specifically suitable for long lengths
-
105 °C -
1-33 W/m -
Cable
-
Ordered customized for specific needs
-
Classified M2
-
UV-resistant
Heating cable suitable for both indoor and outdoor installation, thus having a wide range of applications. Ordered customized for specific needs regarding voltage, power, and lengths. Heating cable and connection cable are delivered pre-assembled as a complete unit.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 12-400 V |
| Anslutningskabel | RV-K |
| Böjningsradie, min. | 35 mm |
| Diameter | 6 mm |
| Effekt | Max 33 W/m - Power and exposure temperature vary depending on the application. Feel free to contact our support. |
| Exponeringstemperatur (power off), max. | 105 ºC |
| Exponeringstemperatur (power on), max. | Upp till 105 ºC |
| Installationstemperatur, min. | -5 ºC |
| Isoleringsmaterial mellan | HDPE |
| Isoleringsmaterial inre | ETFE |
| Isoleringsmaterial yttre | PVC |
| Kabeltyp | Series-resistive 2-conductor with screen |
| Kapslingsklass | IP67 |
| Mekanisk klassificering | M2 |
| Skyddsledare | Braided |
| UV-beständighet | Yes |
