F-10
Typgodkännande

F-10

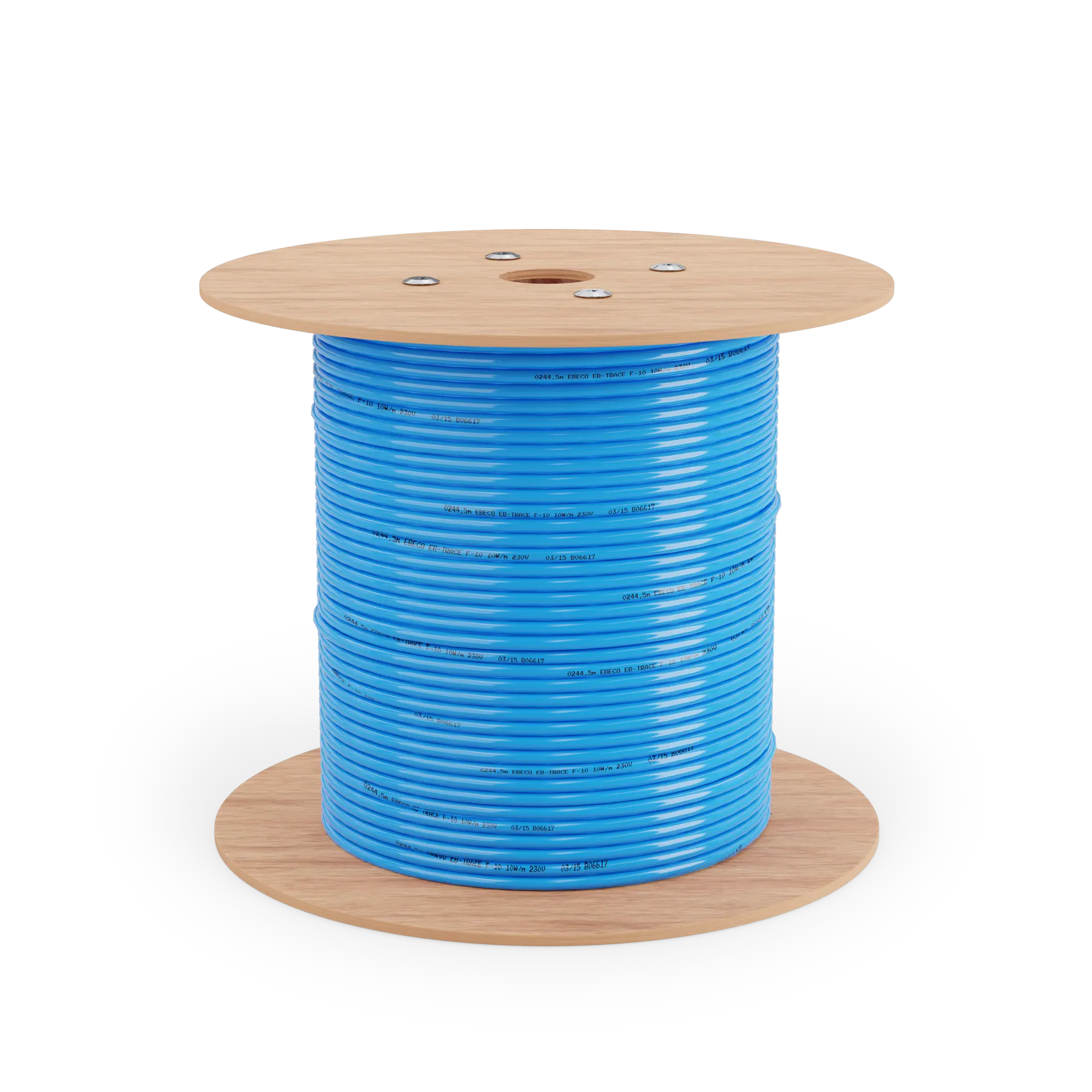

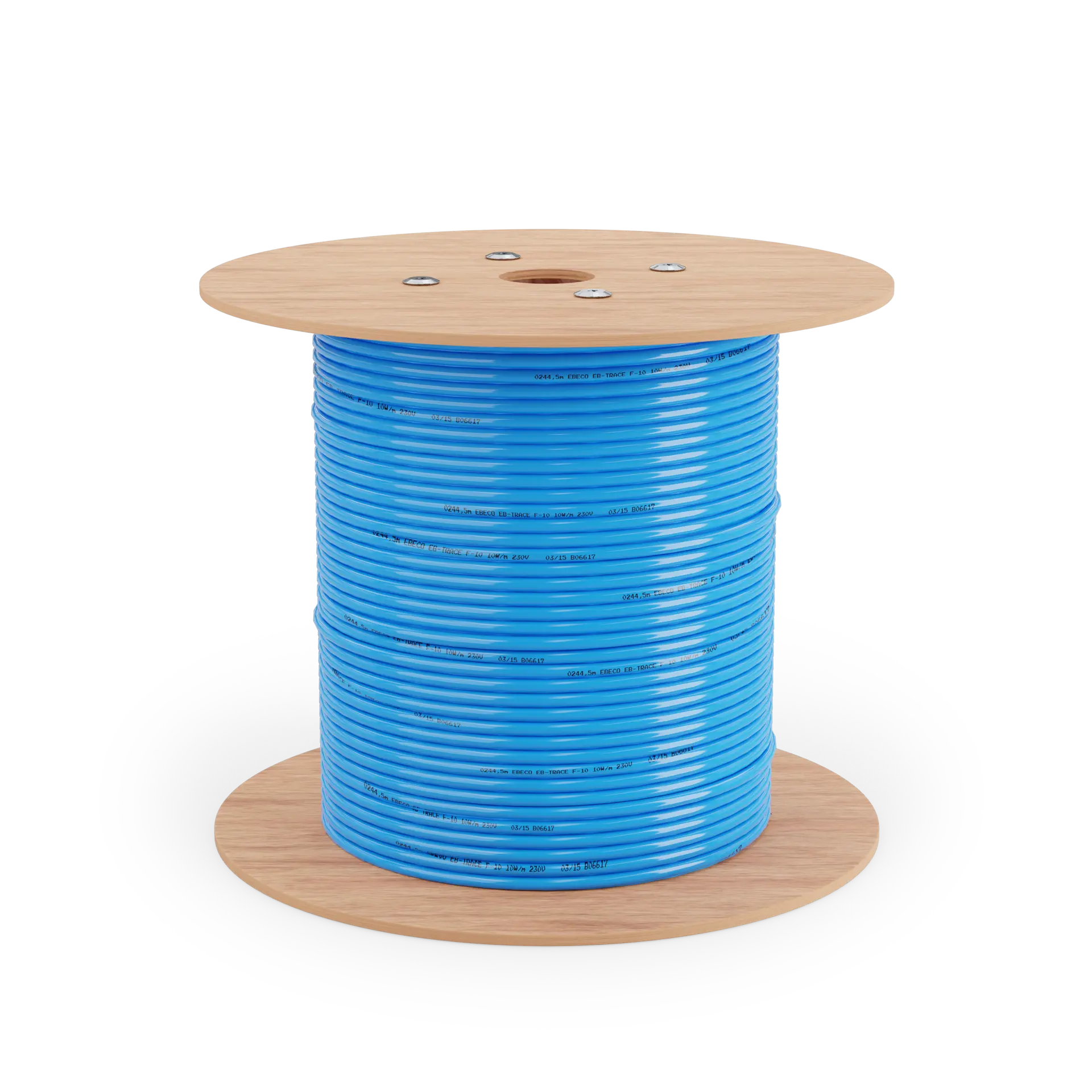

Self-regulating heating cable

Användning

  • Drinking water approved
  • For internal and external installation
  • For water and sewage pipes, drains and wells
  • W/m
    10-20 W/m
  • Löpmeter
    Running metres
  • Självreglerande
    Self-regulating
  • Energy efficient
  • Can be cut and crossed for perfect adaptation
  • Meets the requirements for drinking water
F-10 is a self-adjusting heating cable that detects the ambient temperature and adjusts output accordingly. Used for external and internal frost protection of pipes. The cable can be cut and crossed for perfect adaptation to the pipe. Meets the requirements for drinking water according to KTW and NSF/ANSI Standard 61.

F-10

Specifications

Specification Data
Anslutningsspänning 230 V
Antal ledare 2 st
Böjningsradie, min. 35 mm
Effekt 10 W/m at +10°C when installing on metal pipes, 20 W/m at +10°C when installing in water
Exponeringstemperatur (power off), max. 85 ºC
Exponeringstemperatur (power on), max. Upp till 65 ºC
Innehåller SVHC ämnen enligt REACH No
Installationstemperatur, min. -40 ºC
Isoleringsmaterial inre EVA, LDPE
Isoleringsmaterial yttre ECTFE
Kabeltyp Self-regulating 2-conductor with screen
Kapslingsklass IP68
Ledararea 0,56 mm²
Skyddsledare Braided
UV-beständighet Yes
Max. tryck 8 bar

Documents

Warranty

10 års garanti

















10 year product guarantee in case of material defects.

Our warranty terms

Installation

Because F-10 cable is self-regulating, it can be easily cut and crossed for perfect alignment with the pipe without the risk of overheating. It is advantageous to control the heating cable with our EB-Therm 800 thermostat for a more energy-efficient system. No cold cable is needed. A residual current device (RCD) must be used with all heating cable designs.

Power curve

F-10 effektkurva
  1. Power output (W/m)
  2. Ambient temperature (°C)
  3. Filled water pipe
  4. On metal pipes according to EN 62395-1
