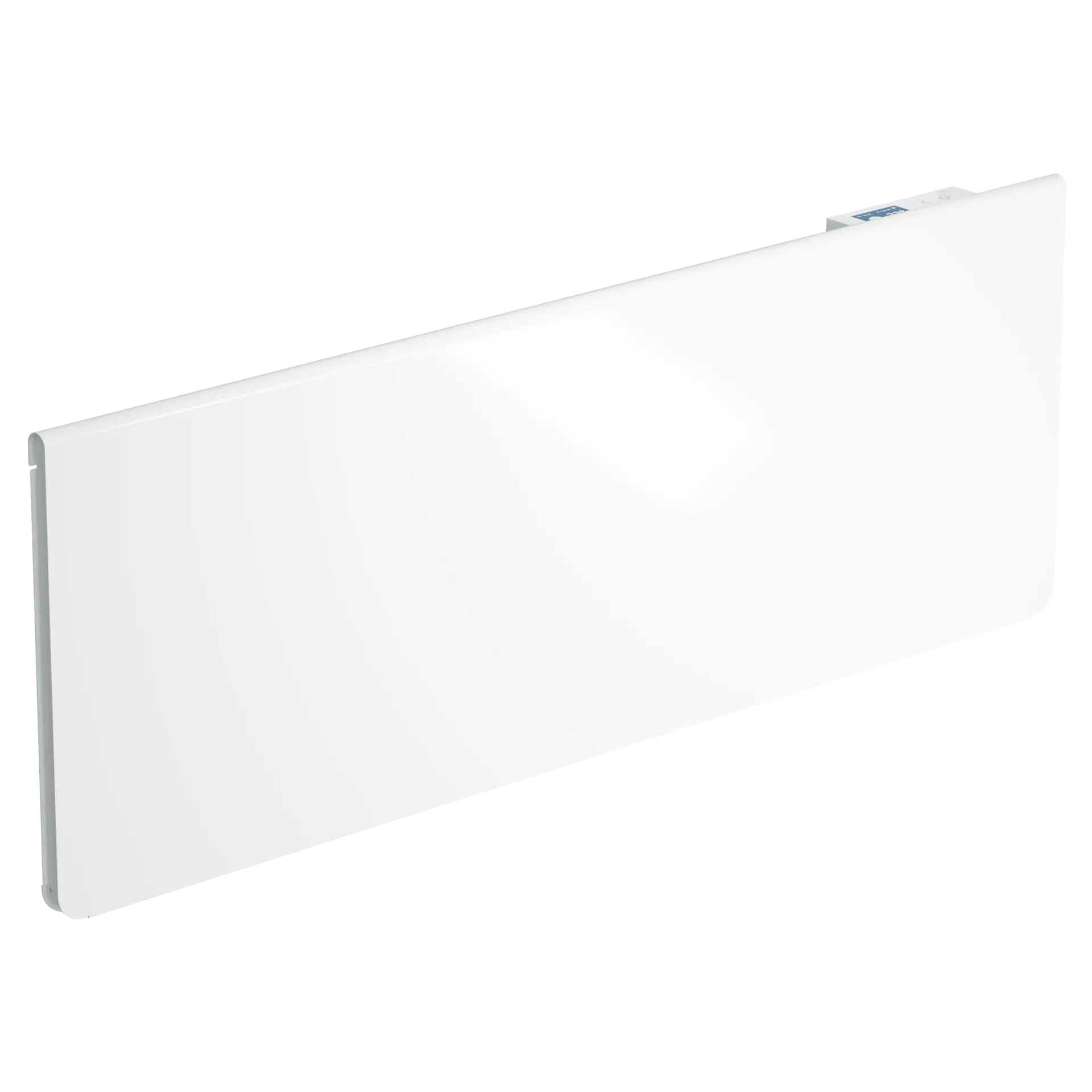

Wallflex 600 Wifi List, 400 V

Electric convector with included Wifi

Usage

Rated for both wet and dry areas (IP24)
Delivered with junction box and WAGO connectors
Removable wall mount with smart cable management

Several effects
Colour display

App control
Double-insulated product
Selectable temperature limitation and energy-saving program

Electric convector with integrated Wi-Fi and color display. The integrated thermostat allows for multiple individually adjustable energy-saving programs, has simple and clear navigation, and displays energy consumption and history. With the option for button lock and child-safe temperature limitation (max 60°). Can be controlled remotely with the Ebeco Connect app and through integrations such as Google Home, Tibber, and our open API.

Installation

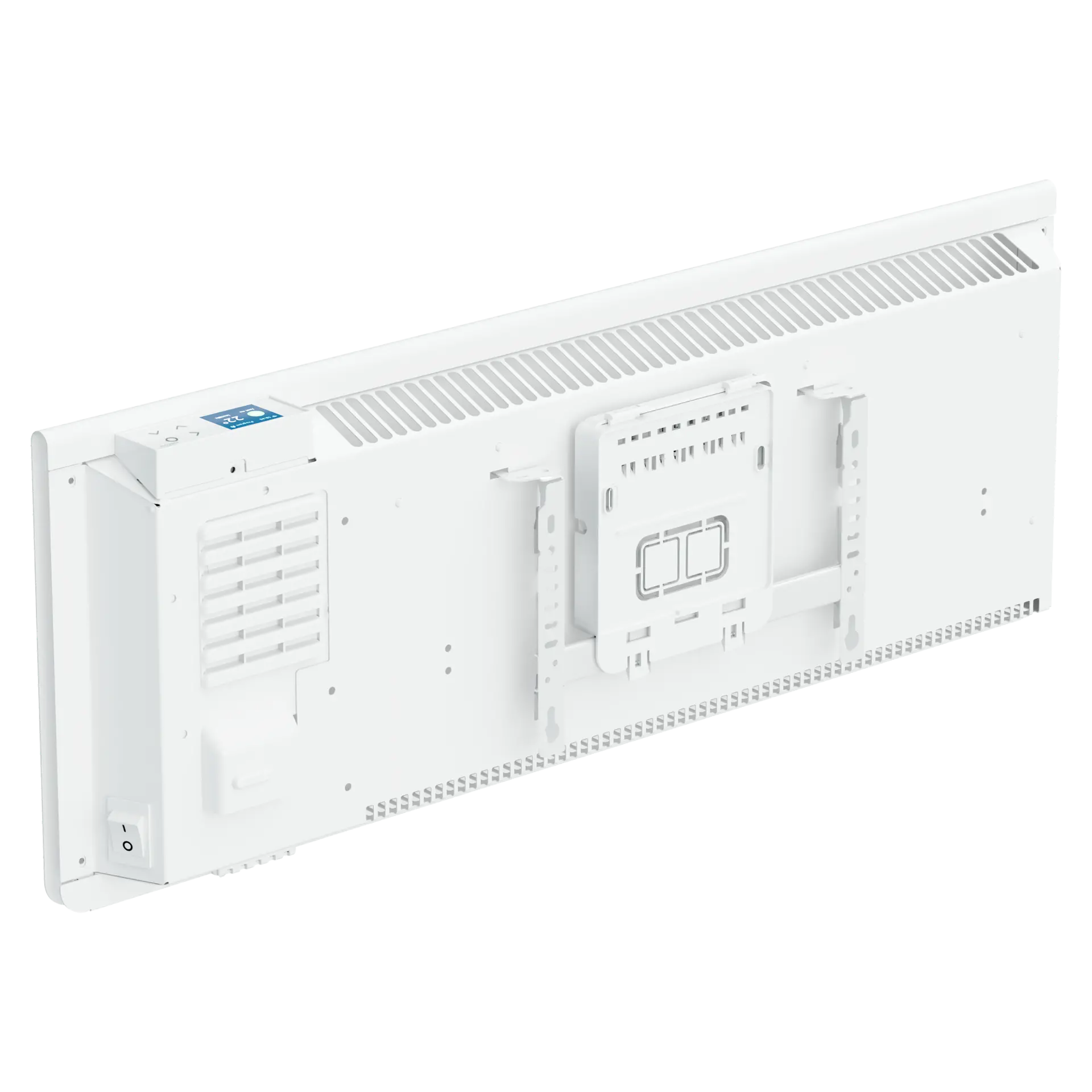

Mounting the wall bracket

Use the wall bracket as a template to mark the mounting points, and centre it using the centre marking. The reference hole gives a distance of 10 cm from the floor. Fit the lower screws, position the bracket, then mark or fit the upper screws.

Mounting the junction box

Place the junction box behind the electric panel heater, in a suitable position, and secure it with appropriate screws.

Connect the connection cable

Connect the pre-installed connection cable to the quick connectors and fold the cable into an S-shape for strain relief. Then refit the cover.

Secure the cable

Use the integrated cable holder in the wall bracket to secure the installation and facilitate future handling.

Hang up the electric panel heater

Place the electric panel heater against the bracket. Align the electric panel heater with the four hooks and pull it downwards.

Lock the electric panel heater in place

Slide the two metal plates into the two holes and tighten the screws to lock the wall bracket.

Please note that these simplified instructions are intended as a guide for you as an installer and should not be regarded as an instruction manual. Read the manual when installing this product.

Wallflex 600 Wifi List, 400 V

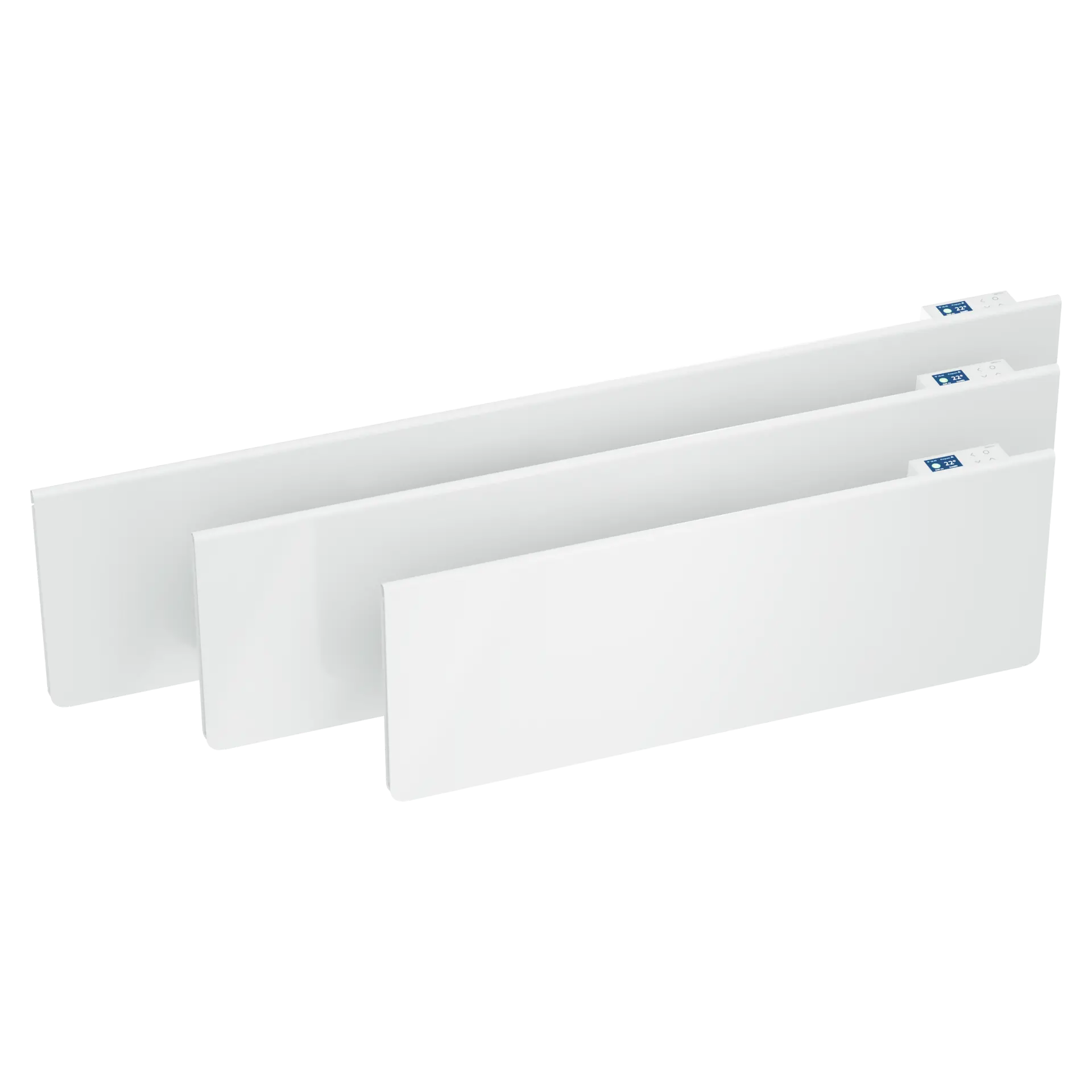

Article list

Article number	Dimensions W x H x D (mm)	Output (W)	Rec. size (≤m²)	Connection cable (mm²)
8540055	855 x 250 x 81	600	9	1
8540056	1035 x 250 x 81	800	11	1
8540057	1215 x 250 x 81	1000	13	1
8540058	1350 x 250 x 81	1200	15	1

Specifications

Specification	Data
Connection voltage	400 VAC ±10 % ~50–60 Hz
Length Connection cable	1,2 m
Colour	White (RAL 9003)
App control possible	Yes
Output	400 - 2000 W
Power consumption	< 1,0 W
Power reserve	Date and time via Wifi
Contains SVHC substances according to REACH	No
Enclosure class	IP24
Control accuracy	± 0.3 °C
Air temperature range	5 ºC - 35 ºC
Material	Metallic, plastic
Protection class	Class II – Double insulation
