Wallflex 500

Electric convector with energy-efficient control

Usage

  • Rated for both dry and wet areas
  • Stylish design
  • Flera effekter
    Several effects
  • Stickkontakt
    Plug
  • Färgdisplay
    Colour display

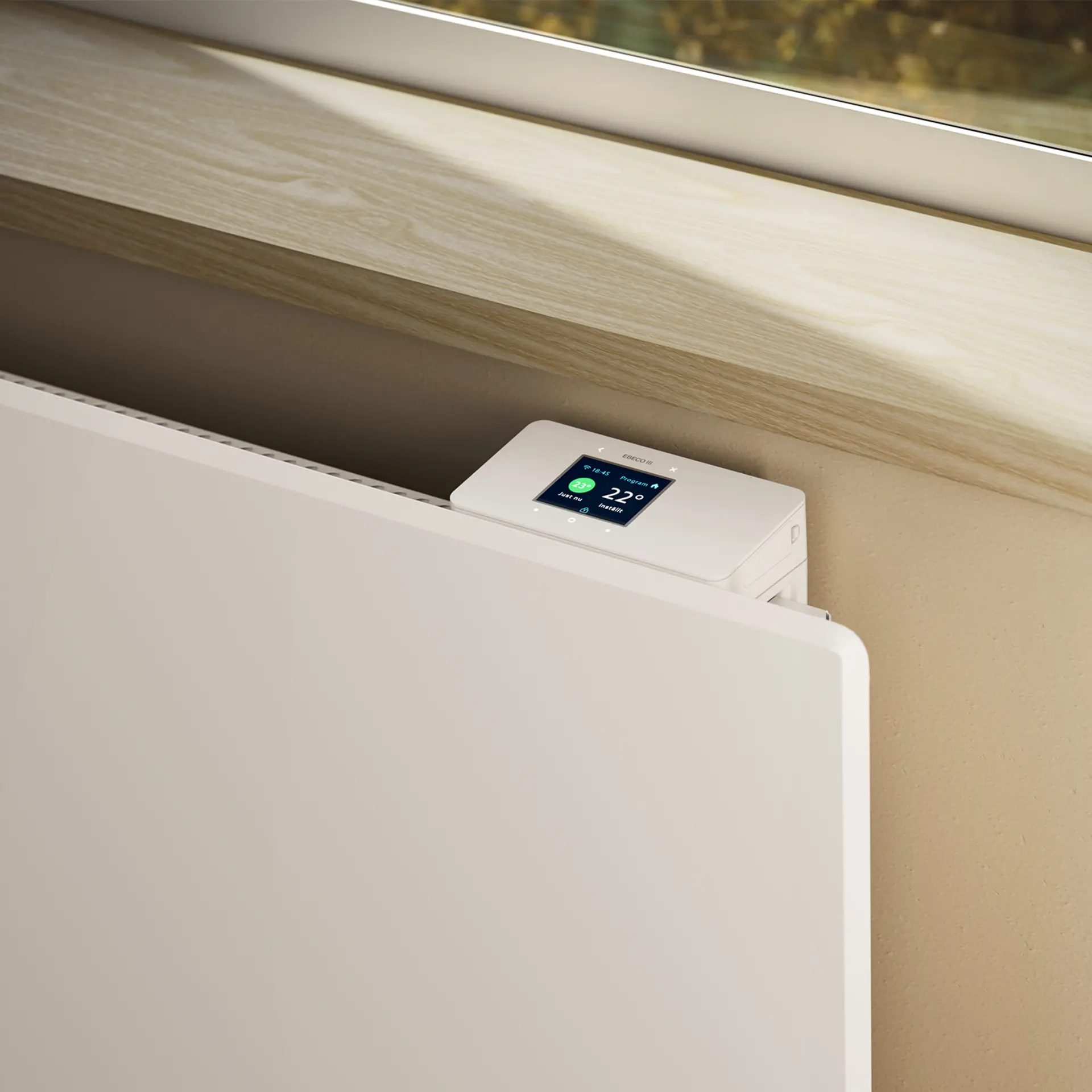

  • Thermostat with energy saving program
  • Clear and easy to navigate
  • WiFi READY: The thermostat can be connected to WiFi

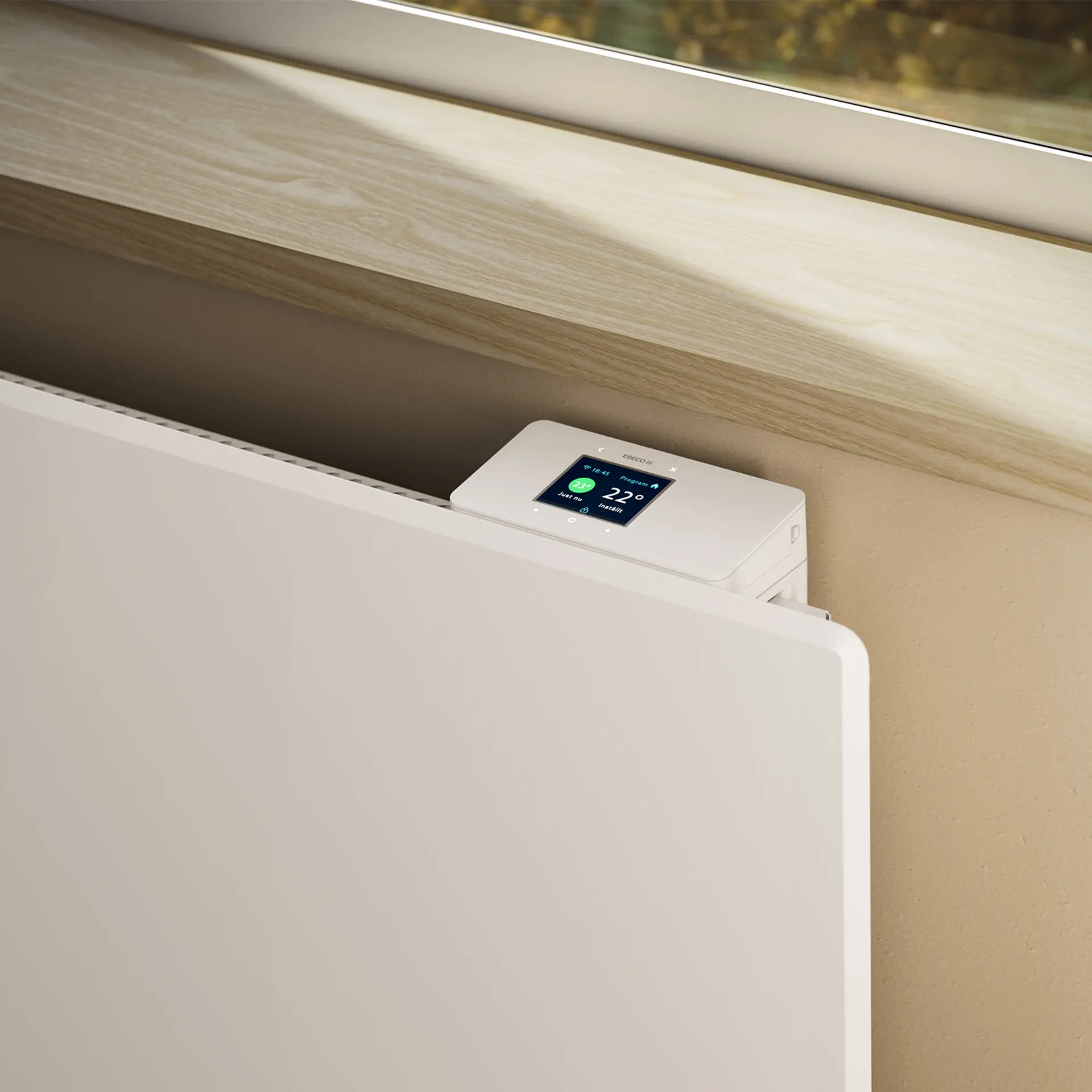

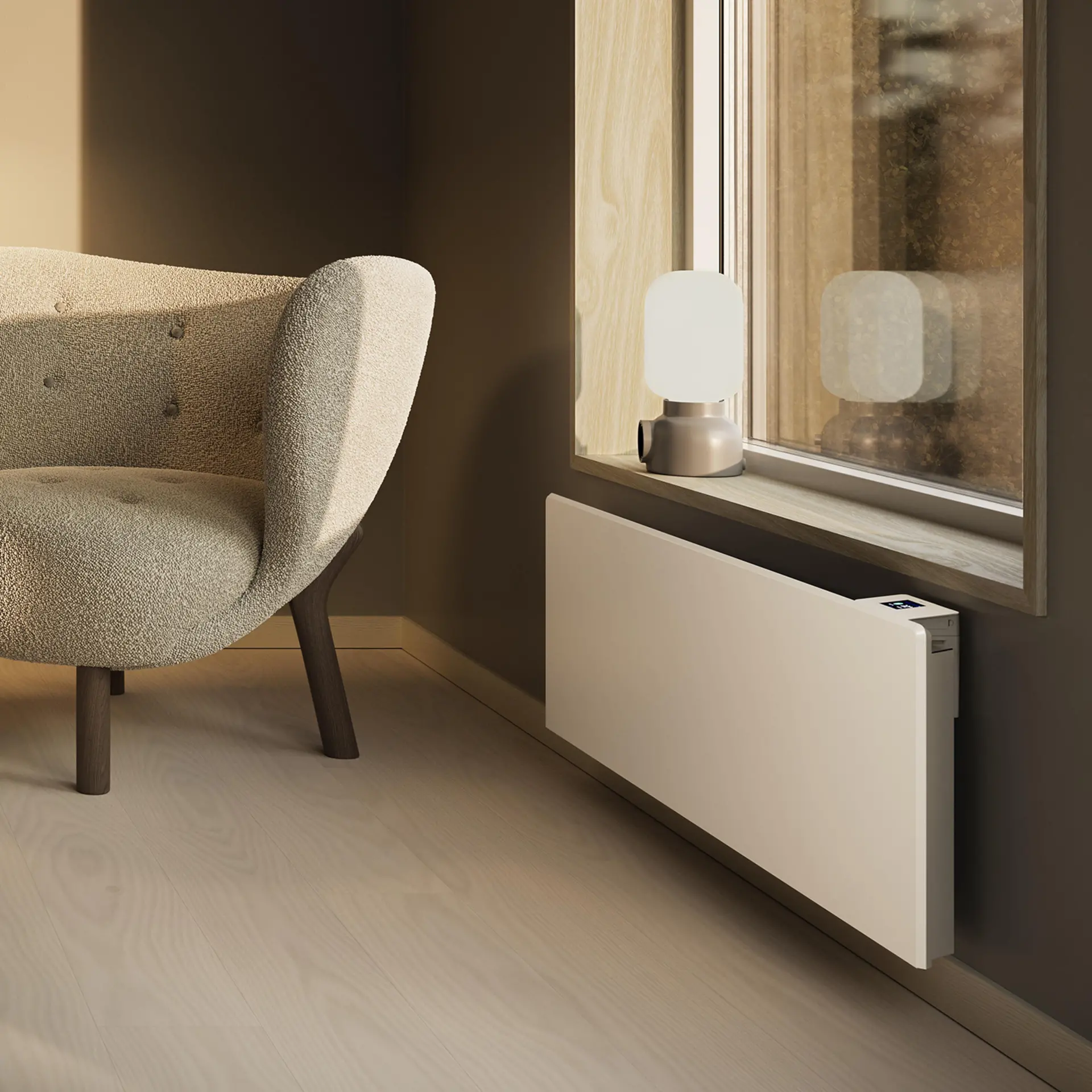

Electric convector with energy-efficient control with several individually adjustable energy saving programs and colour display with simple and clear navigation. The convector is "WiFi READY", or prepared for WiFi. With the accessory, EB-Connect WiFi, the convector can be controlled via the Ebeco Connect app, Google Home, Tibber or the open API. Also shows energy consumption and history in a clear way.

Wallflex 500

Article list

Article number Dimensions W x H x D (mm) Output (W) Rec. size (≤m²)

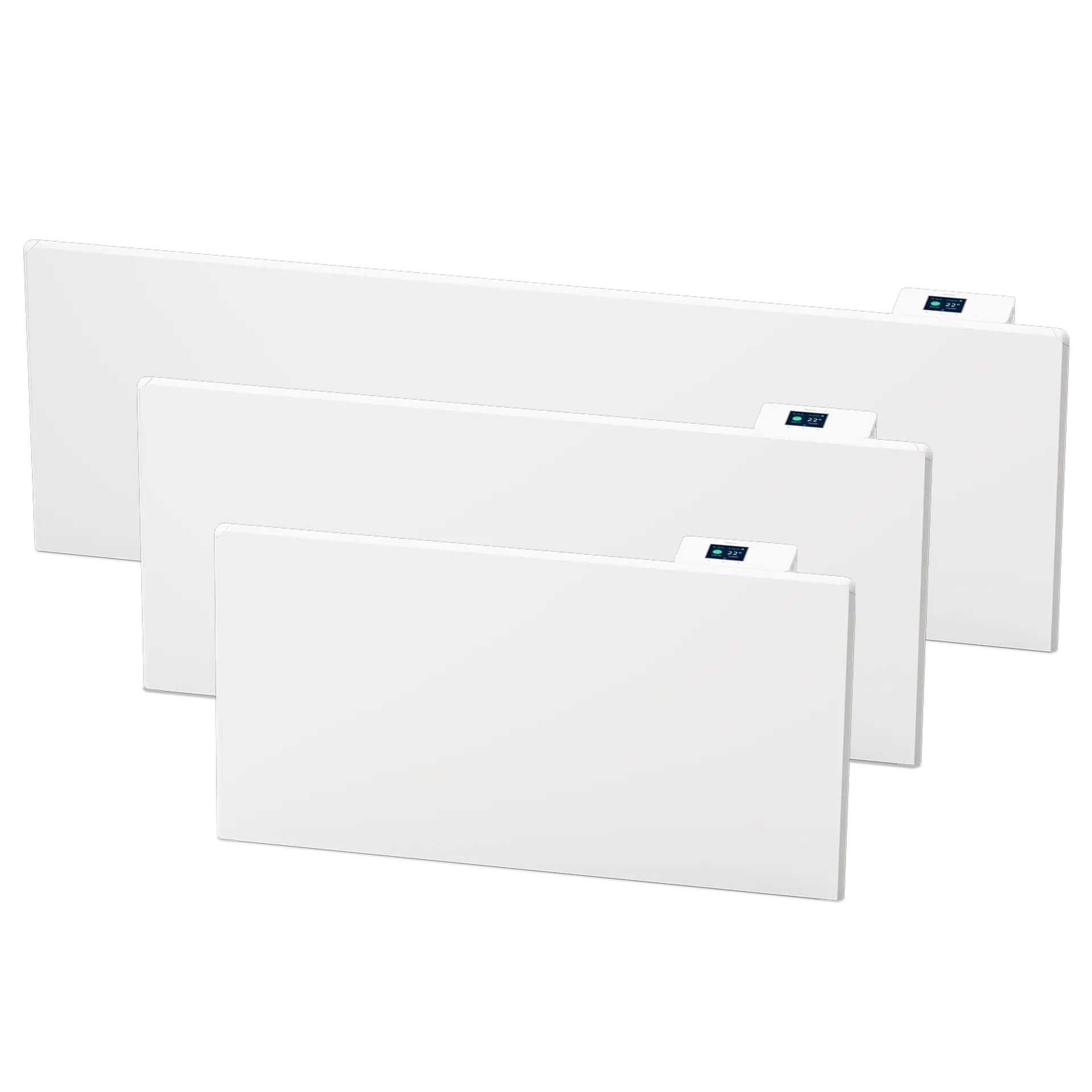

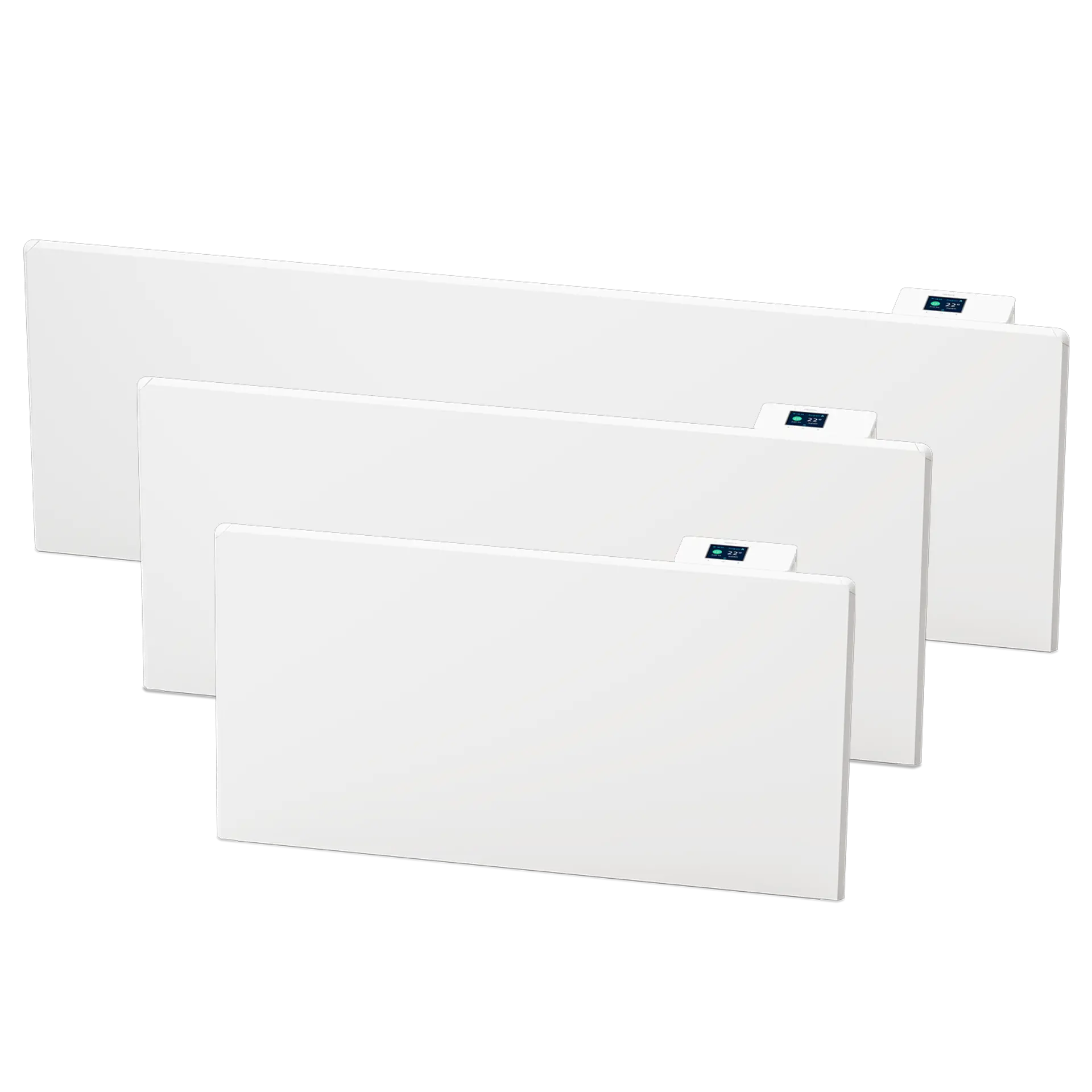

8501201 645 x 350 x 80 600 9
8501203 805 x 350 x 80 1000 13
8501205 1070 x 350 x 80 1400 18

Specifications

Specification Data
Connection voltage 230 VAC ±10 % ~50–60 Hz
Length Connection cable 1,5 m
Connectors Plug
Colour White (RAL 9003)
App control possible Yes
Output 600 - 1400 W
Power consumption < 1,0 W
Contains SVHC substances according to REACH No
Enclosure class IP24
Control accuracy ± 0.3 °C
Air temperature range 5 ºC - 35 ºC
Material Metallic, plastic
Protection class Class I

Warranty

















Ebeco AB provides a 5-year product guarantee in the event of material defects.
