Multiflex 20

Series-resistive 2-conductor with screen

Usage

  • Wide range of uses
  • Ready-made lengths
  • For both indoor and outdoor placement
  • Power on: 105 °C
    105 °C
  • 20 W/m
    20 W/m
  • Kabel
    Cable
  • Classified M2
  • Robust and durable
  • UV-resistant

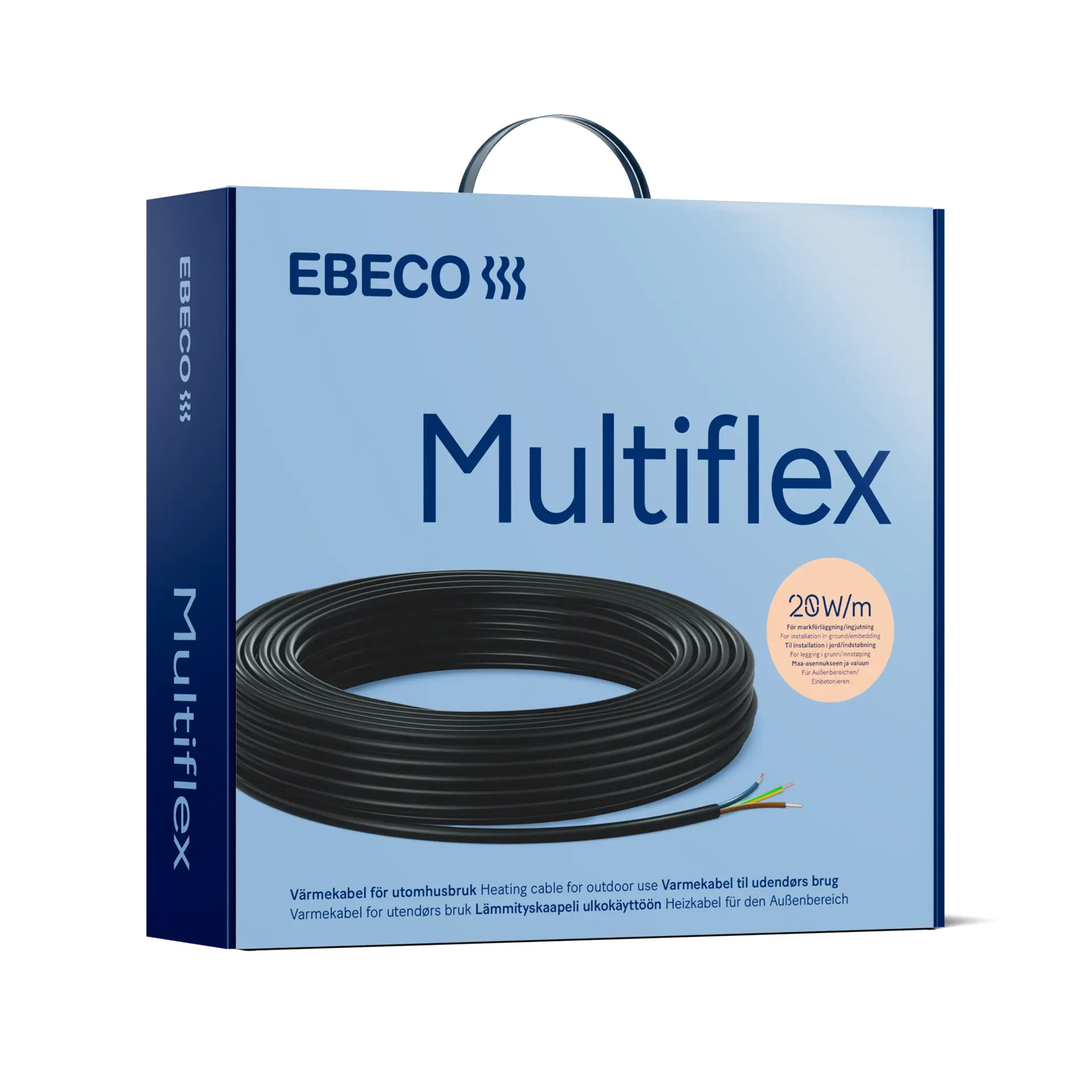

Multiflex 20 is a series resistive heating cable with a UV-resistant PVC outer sheath suitable for outdoor use.

Multiflex 20

Article list

Article number Diameter (mm) Length (m) Output (W) Output (W/m) Resistance (Ω nominal) Connection cable (mm²)
8960699 7 6,5 135 20 390 1,5
8960700 7 10 200 20 260 1,5
8960704 7 17 350 20 153 1,5
8960706 7 23 440 20 119,6 1,5
8960709 7 32 635 20 83,2 1,5
8960710 7 36 720 20 72 1,5
8960712 7 44 870 20 61,6 1,5
8960714 7 53 1090 20 47,7 1,5
8960716 7 64 1290 20 41 1,5
8960718 7 79 1590 20 33,2 1,5
8960720 7 93 1840 20 27,9 1,5
8960721 7 120 2200 20 24 1,5
8960723 7 139 2800 20 18,9 2,5
8960724 7 154 3070 20 17,2 2,5

Specifications

Specification Data
Connection voltage 230 V
Connection cable RV-K
Length Connection cable 2,5 m
Number of conductors 3 pcs
Bending radius, min. 35 mm
Diameter 7 mm
Tensile strength 300 N
Compressive strength 1500 N
Output 20 W/m
Contains SVHC substances according to REACH No
Installation temperature, min. -5 ºC
Insulation material intermediate HDPE
Insulation material inner ETFE
Insulation material outer PVC
Cable type Series-resistive 2-conductor with screen
Enclosure class IP67
Max Ambient temperature 105 °C
Mechanical classification M2
Protective conductor Braided
UV resistance Yes

Warranty

















10 year product guarantee in case of material defects.
