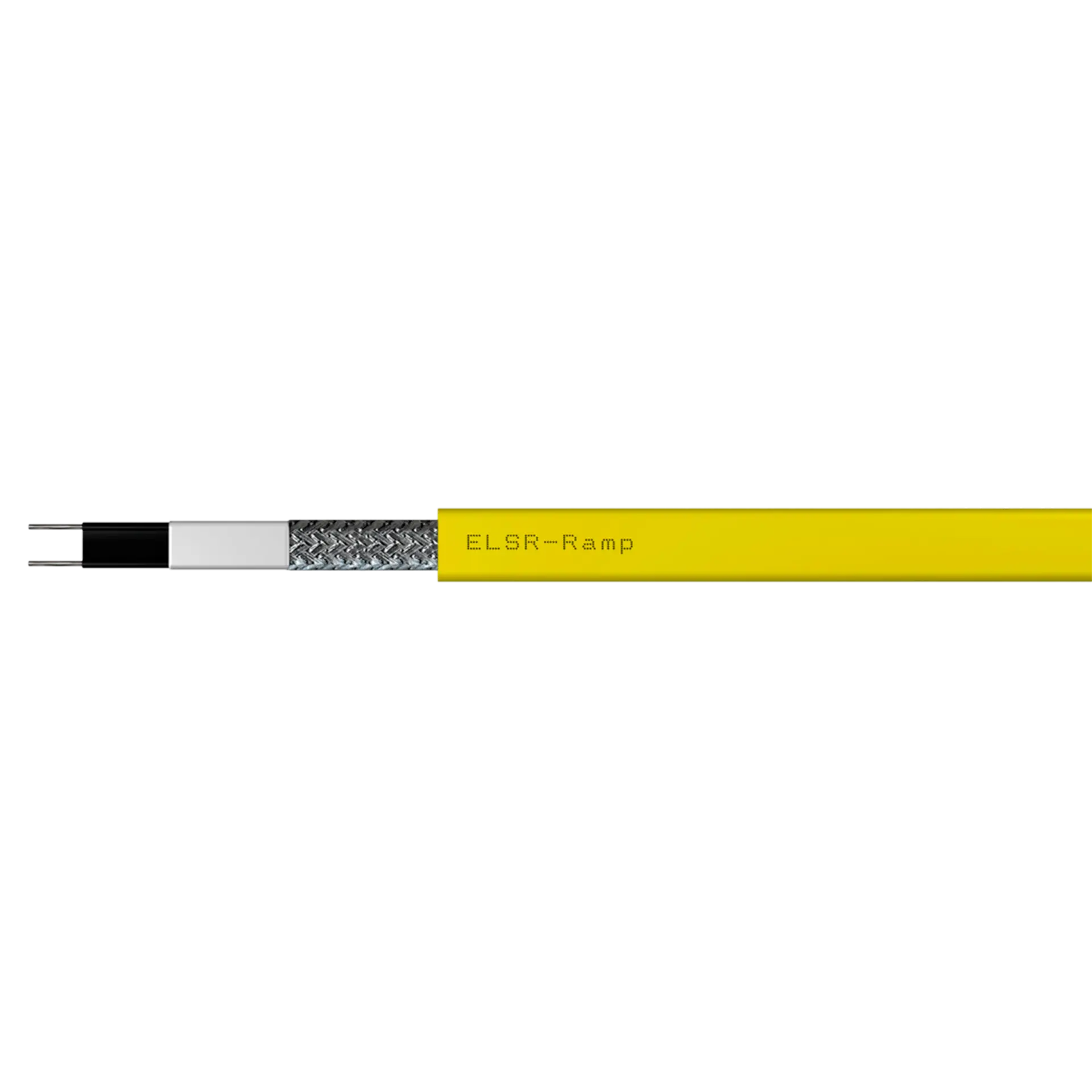

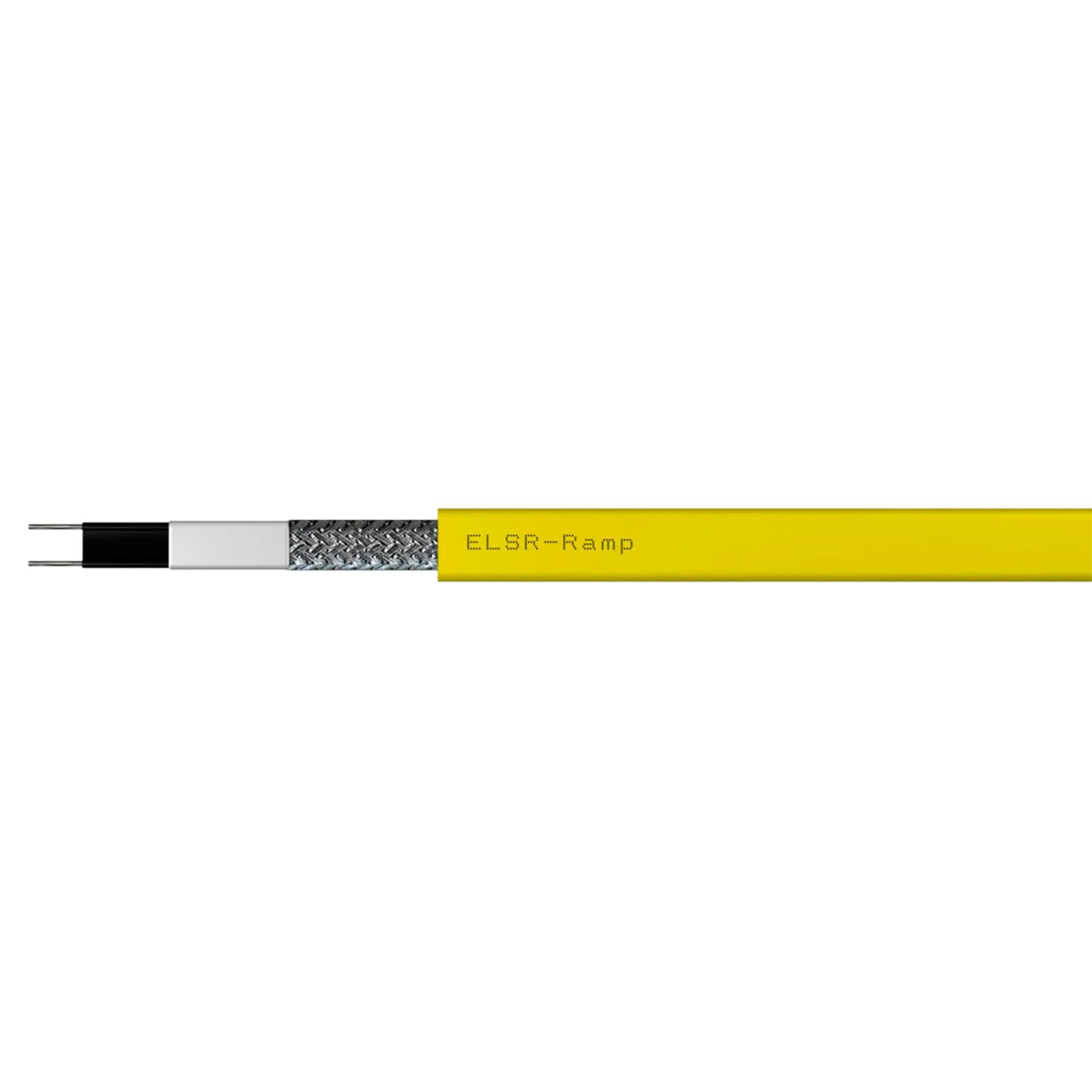

ELSR-Ramp
Self-regulating heating cable
Användning
- For snow melting, ground
- Laid in a sand bed or embedded in concrete
-
100 ºC -
80 °C -
Cable
-
High power per meter
-
Can be cut during installation for good fit
-
Can be crossed during installation
The self-regulating heating cable ELSR-Ramp is intended for embedding in concrete for outdoor snow melting, such as in parking garages, ramps, and stairs.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Antal ledare | 2 st |
| Böjningsradie, min. | 50 mm |
| Effekt | 50 W/m at 10 ºC, 110 W/m at 5 ºC (embedded in concrete) |
| Exponeringstemperatur (power off), max. | 100 ºC |
| Exponeringstemperatur (power on), max. | Upp till 80 ºC |
| -BO | Protective conductor: Braided, Outer casing: TPE |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -20 ºC |
| Isoleringsmaterial yttre | TPE |
| Kabeltyp | Self-regulating 2-conductor with screen |
| Ledararea | 2,77 mm² |
Warranty
The general terms of delivery are listed below.
Installation
*¹ Heating circuit lengths on the following conditions
- 230 V nominal voltage
- Delayed action circuit breakers (C-characteristic) with 80 % max. load
- Maximum 10 % line voltage drop on heating cable bus wire
- Power connection to one heater end
- In certain installation situations, the heating circuit length may vary. Please contact our engineers.
