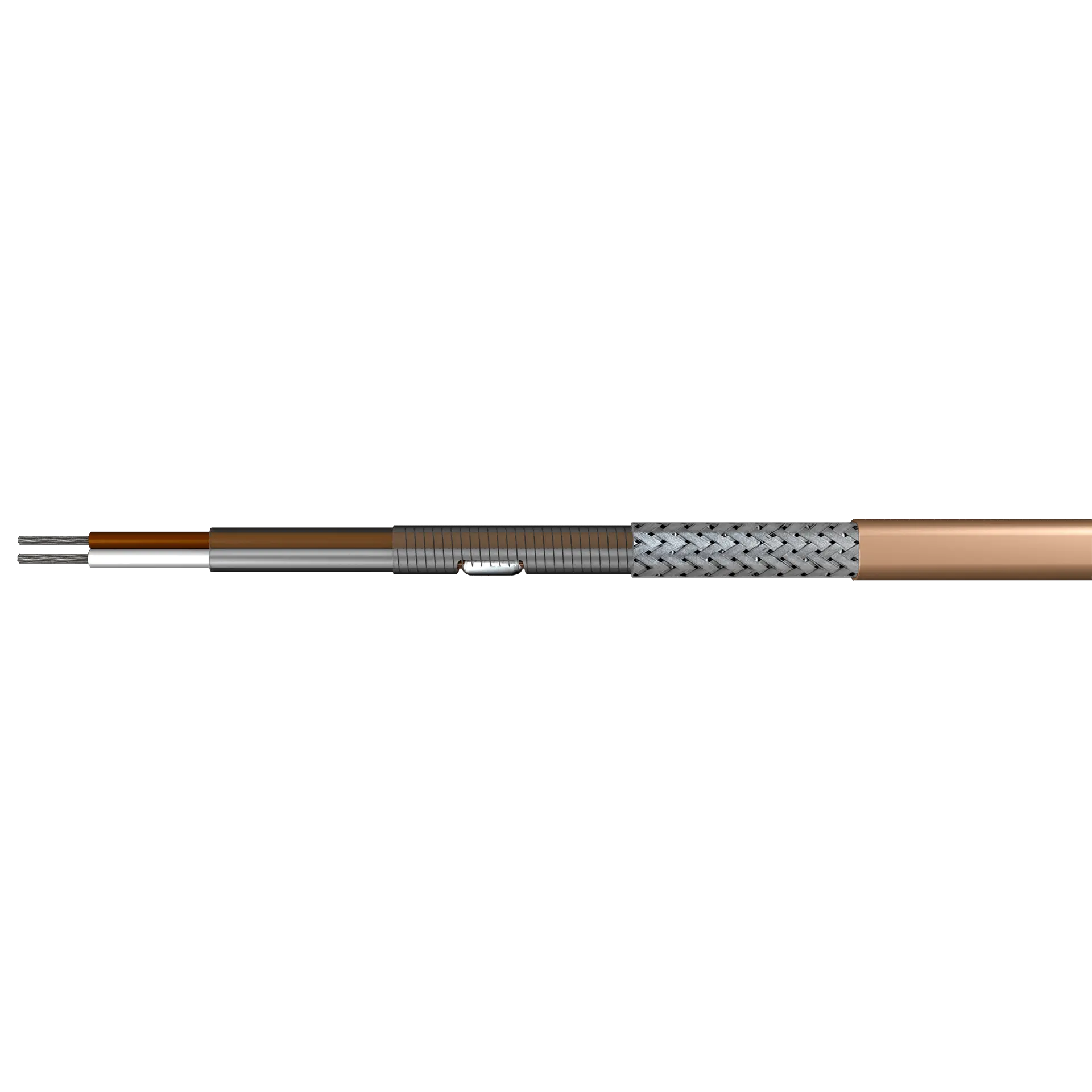

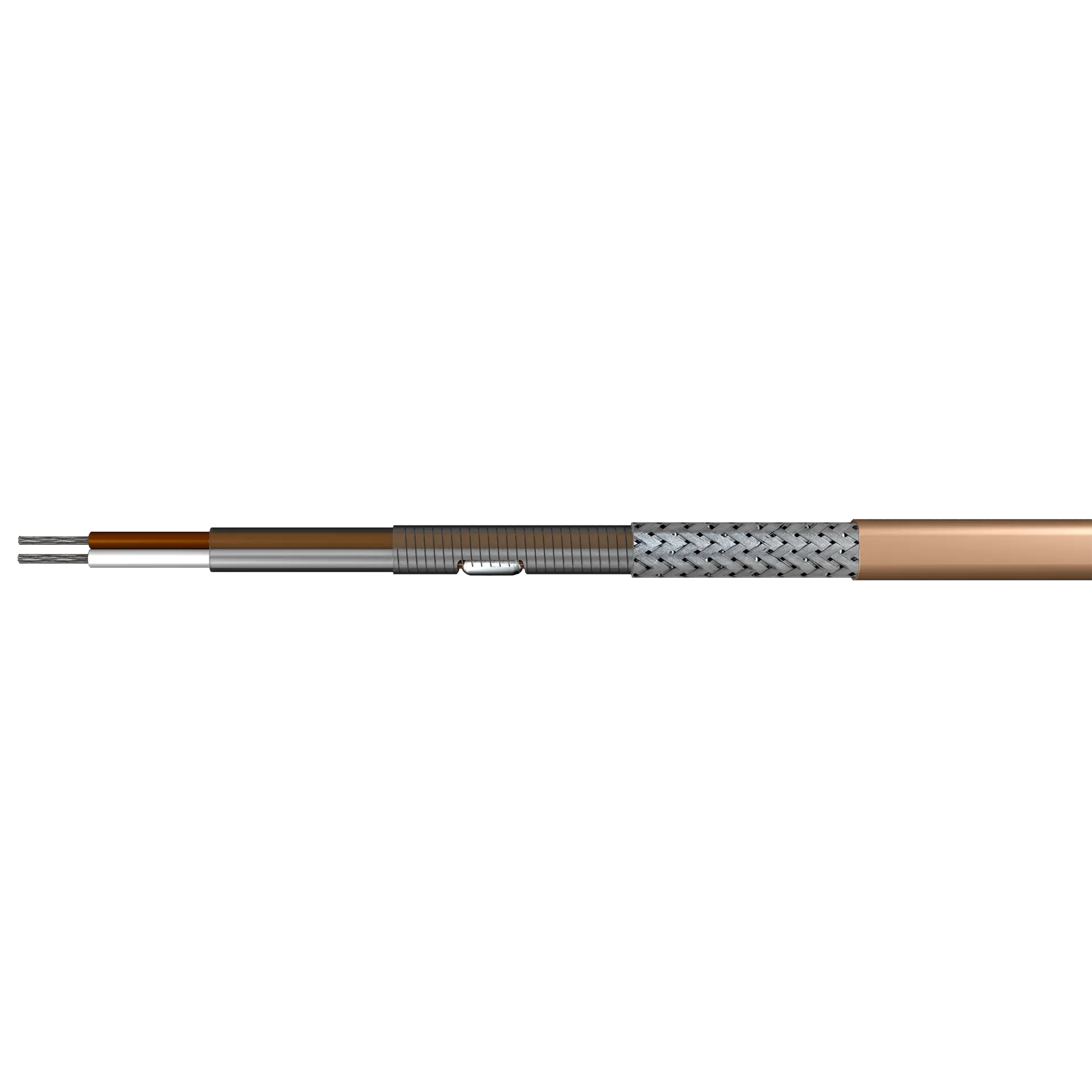

ELP/PFA
Parallel-resistive 2-conductor with screen
Användning
- Frost protection and heating products
- Power range 15-60 W/m
- Constant effect
-
160-205 °C -
260 °C -
EX
-
Can be cut during installation for good fit
-
UV-resistant
This parallel-resistive heating cable is flexible to use as it can easily be cut to the desired length from the reel and thus ensure a constant output power. No connection cable is required and the input can be made from one end. Assembly is quick and easy, which significantly reduces costs. The output can be up to 60 W/m as these ELP parallel heating cables are routed along pipes, they are particularly suitable for pipelines with high output requirements, e.g. in industrial process technology. The particularly temperature-resistant outer jacket made of PFA and the high chemical resistance of PFA ensure a long service life.
Specifications
| Specification | Data |
|---|---|
| Anslutningsspänning | 230 V |
| Antal ledare | 2 st |
| Böjningsradie, min. | 25 mm |
| Exponeringstemperatur (power off), max. | 260 ºC |
| Exponeringstemperatur (power on), max. | Upp till 205 ºC |
| -BOT | Protective conductor: Braided, Outer casing: Fluoropolymer |
| Innehåller SVHC ämnen enligt REACH | No |
| Installationstemperatur, min. | -45 ºC |
| Isoleringsmaterial mellan | Fluoropolymer |
| Isoleringsmaterial inre | Fluoropolymer |
| Isoleringsmaterial yttre | PFA |
| Kabeltyp | Parallel-resistive 2-conductor with screen |
| Kontaktavstånd | 1 m |
| Ledararea | 1,50 mm² |
Installation
Heating circuit lengths ELP/PFA on the following conditions:
- 16 A circuit breaker, 80 % utilisation, start up temp. +10°C
- Max. 10% voltage drop
- Power connection to one (1) heater end
- Greater lengths are possible with higher rated circuit breakers, please contact us
- Cables shall neither intersect nor contact
- Provide protection by means of circuit breaker RCD 30 mA
- Please observe the standards: IEC 62395-2, EN 60519-10, EN 62395-2
