Wallflex 600 Wifi, 400 V

Electric convector with included Wifi

Usage

  • Rated for both wet and dry areas (IP24)
  • Delivered with junction box and WAGO connectors

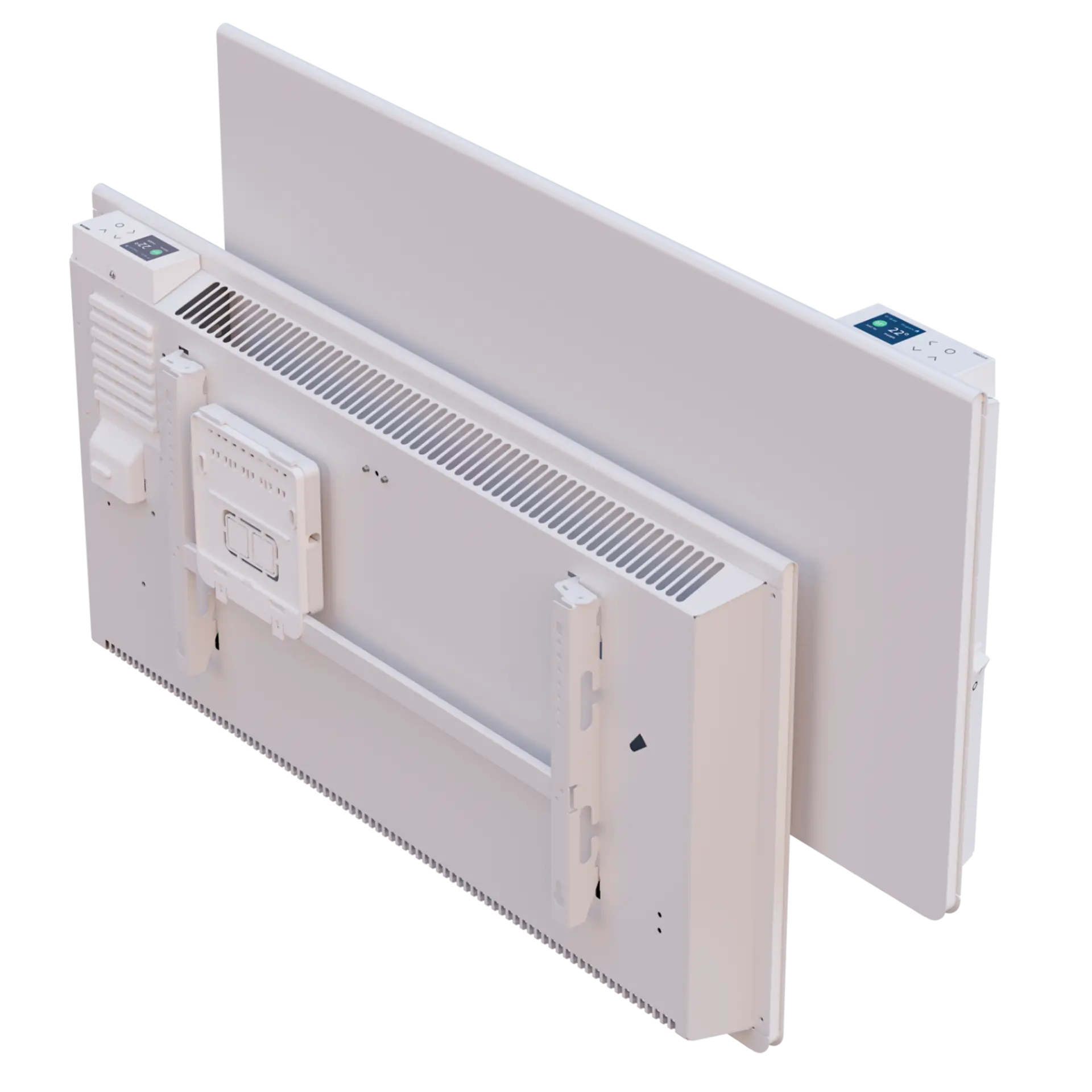

  • Removable wall mount with smart cable management
  • Flera effekter
    Several effects
  • Färgdisplay
    Colour display
  • App control
  • Double-insulated product
  • Selectable temperature limitation and energy-saving program

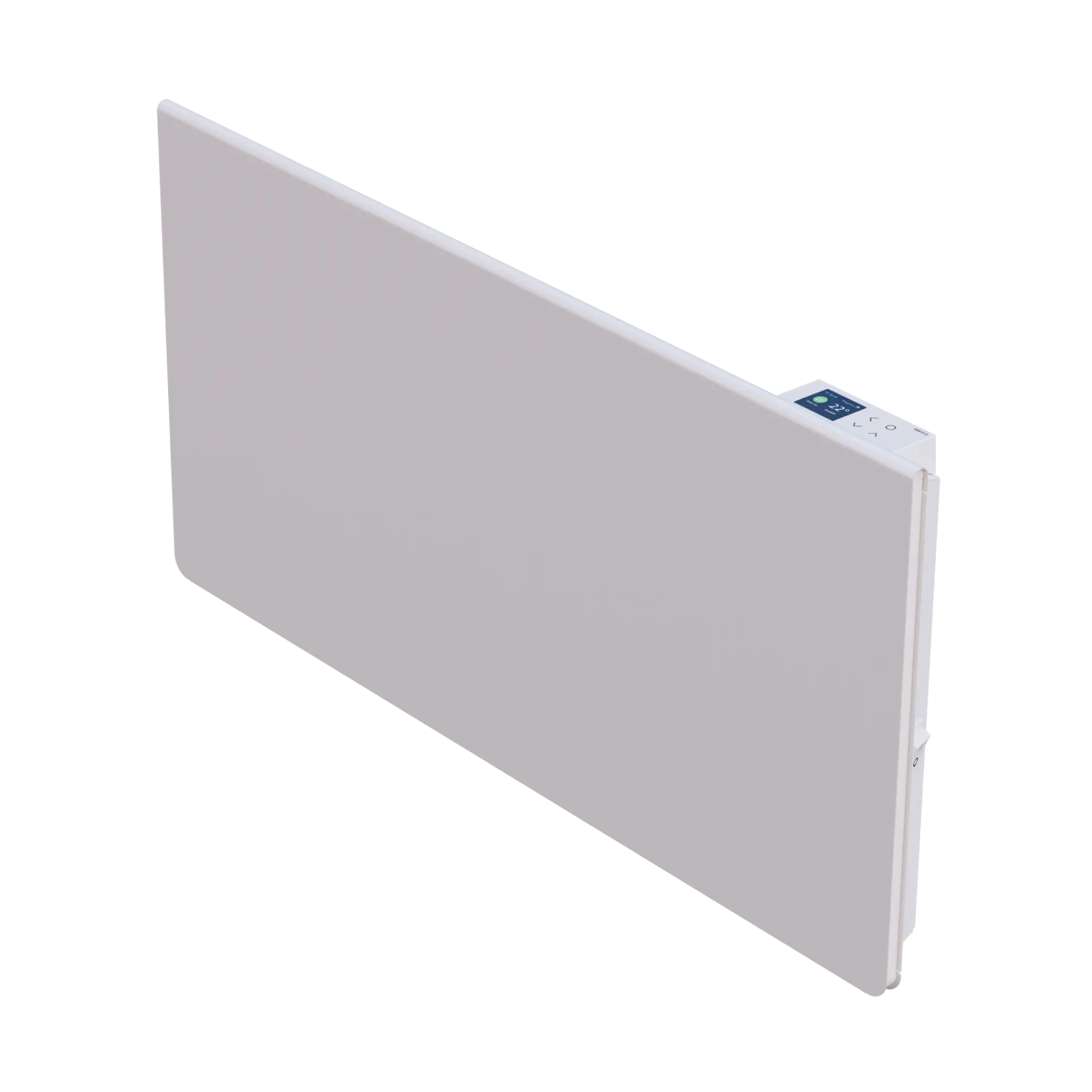

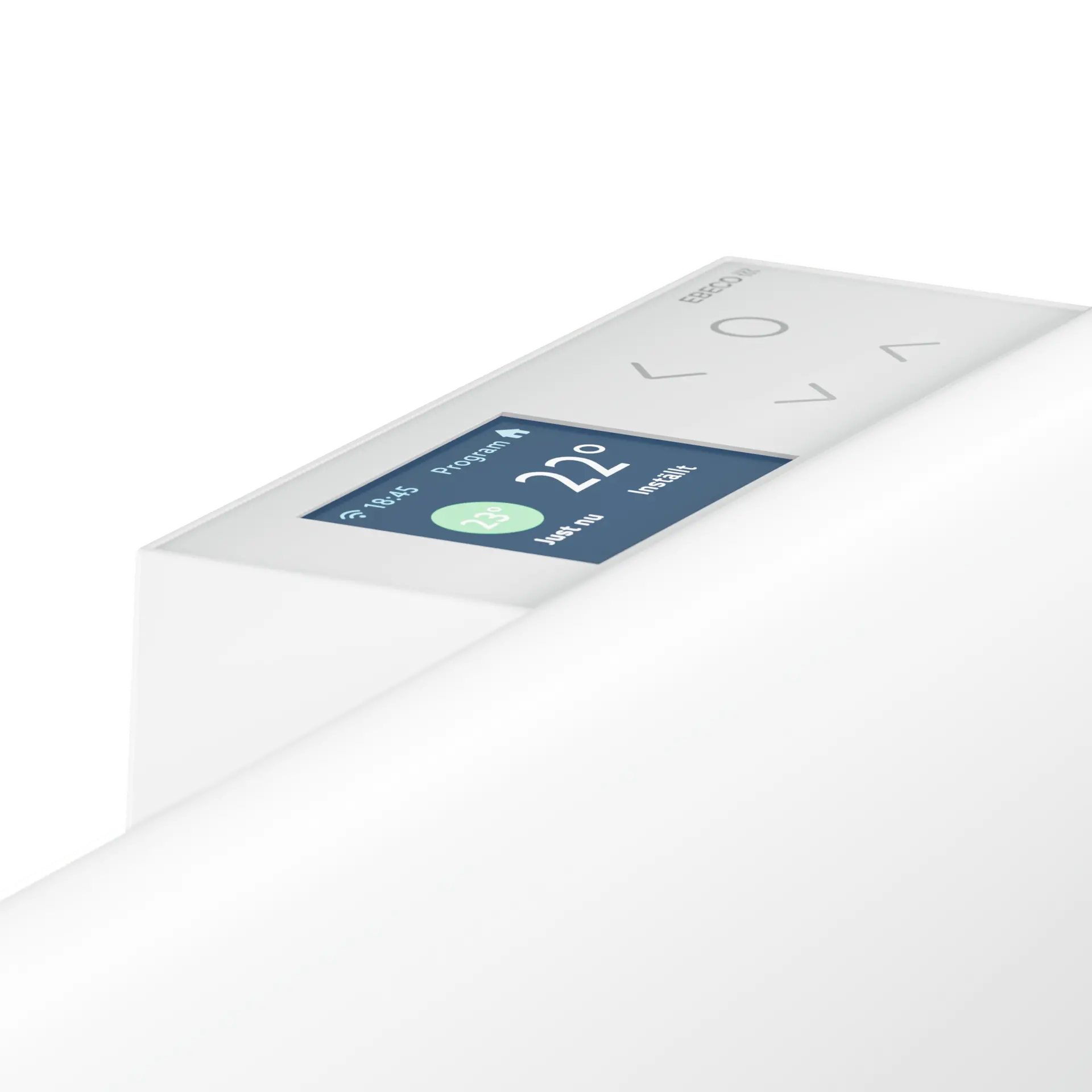

Electric heat panel with integrated Wifi and a color display. The built-in thermostat offers multiple individually adjustable energy-saving programs, has simple and intuitive navigation, and displays energy consumption and history. It also includes the option for a keypad lock and a child-safe temperature limit (max 60°C). Can be controlled remotely with the Ebeco Connect app and through integrations such as Google Home, Tibber, and our open API.

Installation

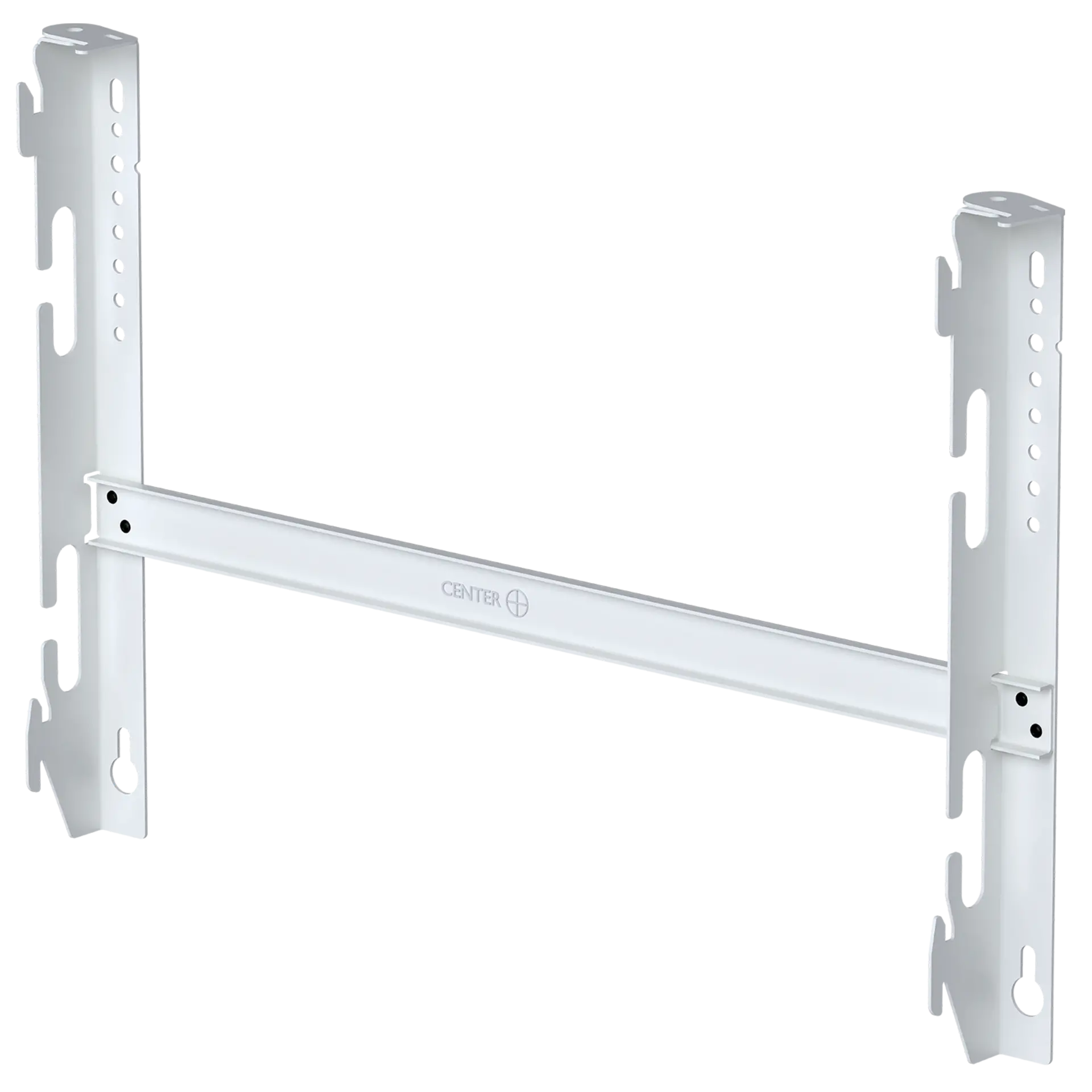

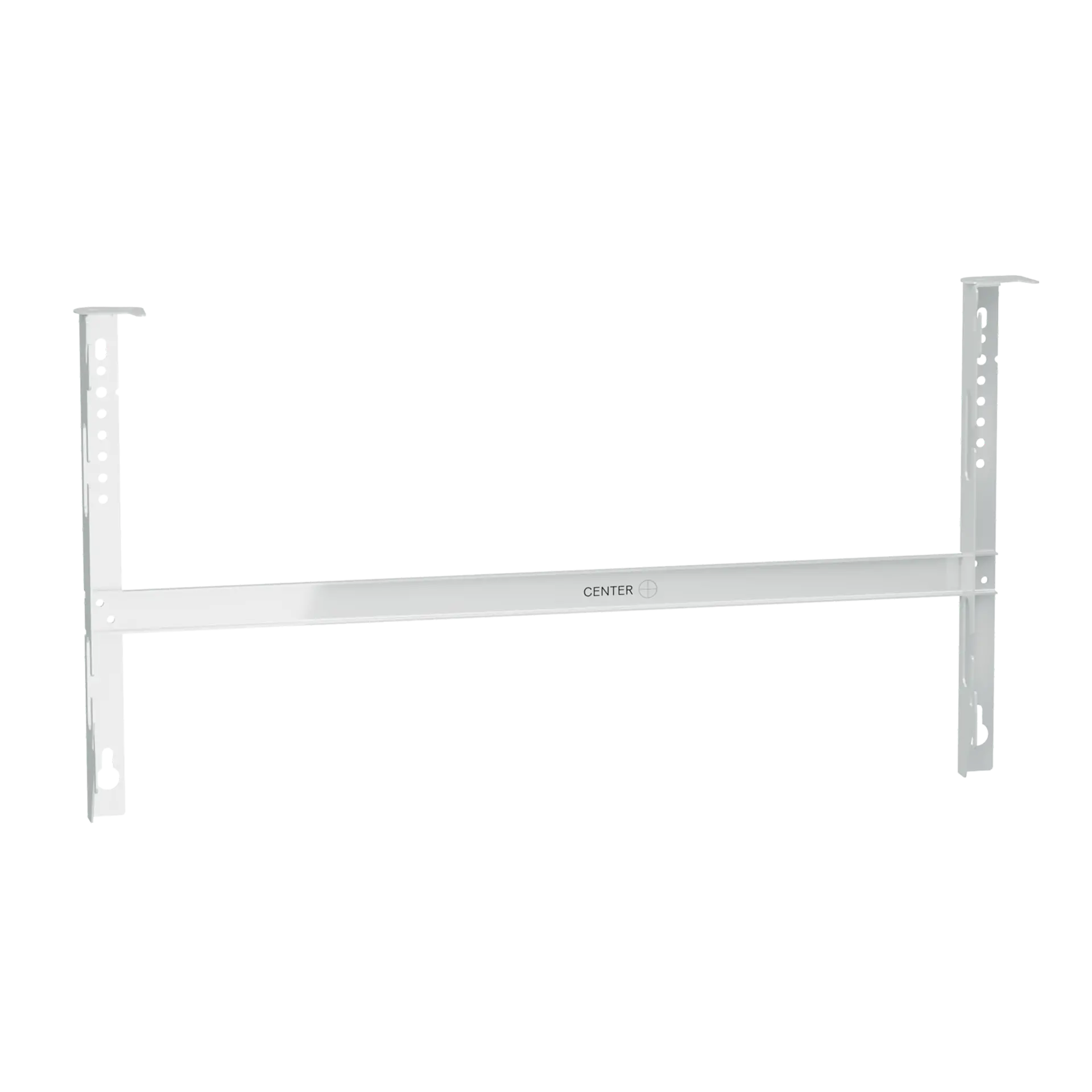

Mounting the wall bracket

Use the wall bracket as a template to mark the mounting points, and centre it using the centre marking. The reference hole gives a distance of 10 cm from the floor. Fit the lower screws, position the bracket, then mark or fit the upper screws.

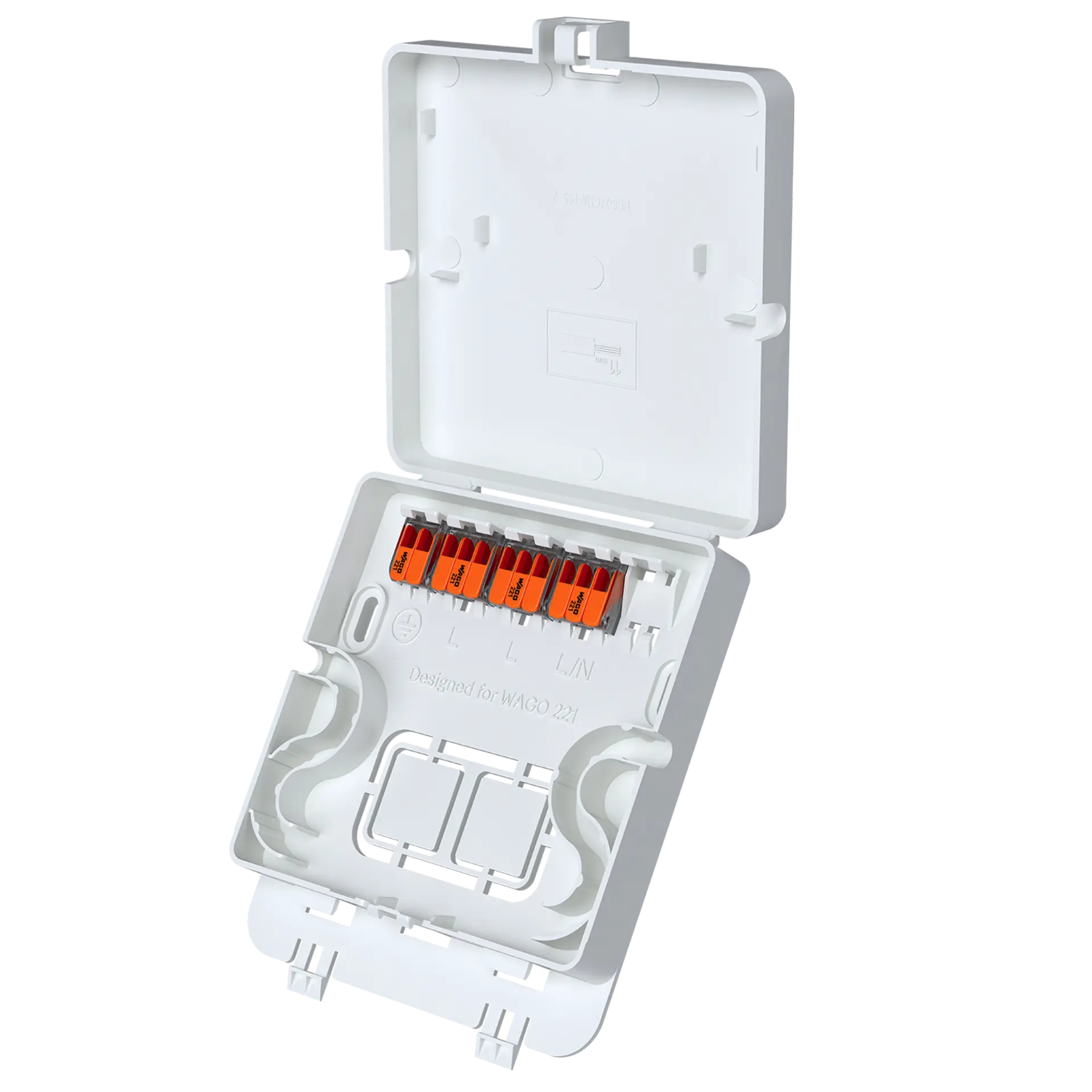

Mounting the junction box

Place the junction box behind the electric panel heater, in a suitable position, and secure it with appropriate screws.

Connect the connection cable

Connect the pre-installed connection cable to the quick connectors and fold the cable into an S-shape for strain relief. Then refit the cover.

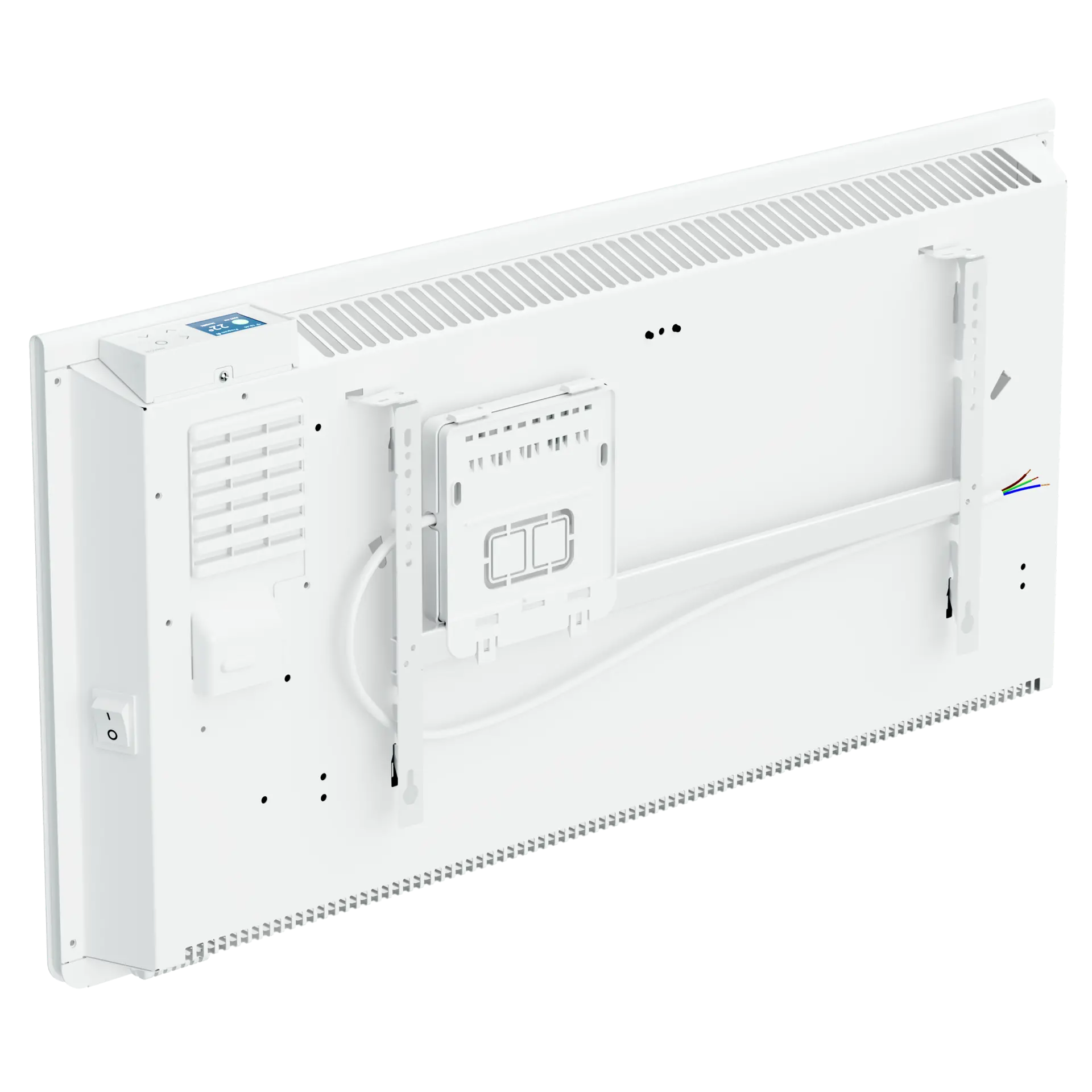

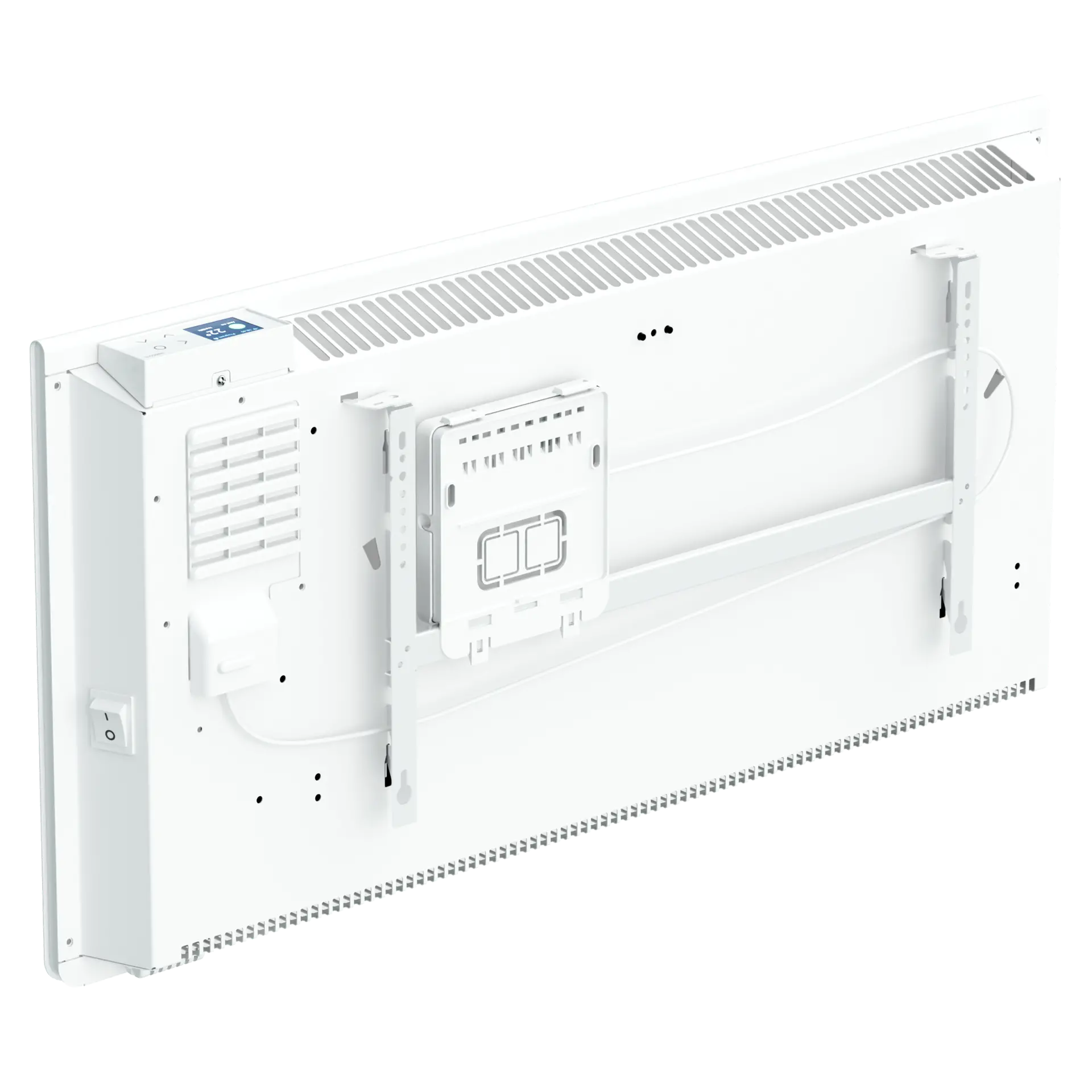

Secure the cable

Use the integrated cable holder in the wall bracket to secure the installation and facilitate future handling.

Hang up the electric panel heater

Place the electric panel heater against the bracket. Align the electric panel heater with the four hooks and pull it downwards.

Lock the electric panel heater in place

Slide the two metal plates into the two holes and tighten the screws to lock the wall bracket.

Please note that these simplified instructions are intended as a guide for you as an installer and should not be regarded as an instruction manual. Read the manual when installing this product.

Wallflex 600 Wifi, 400 V

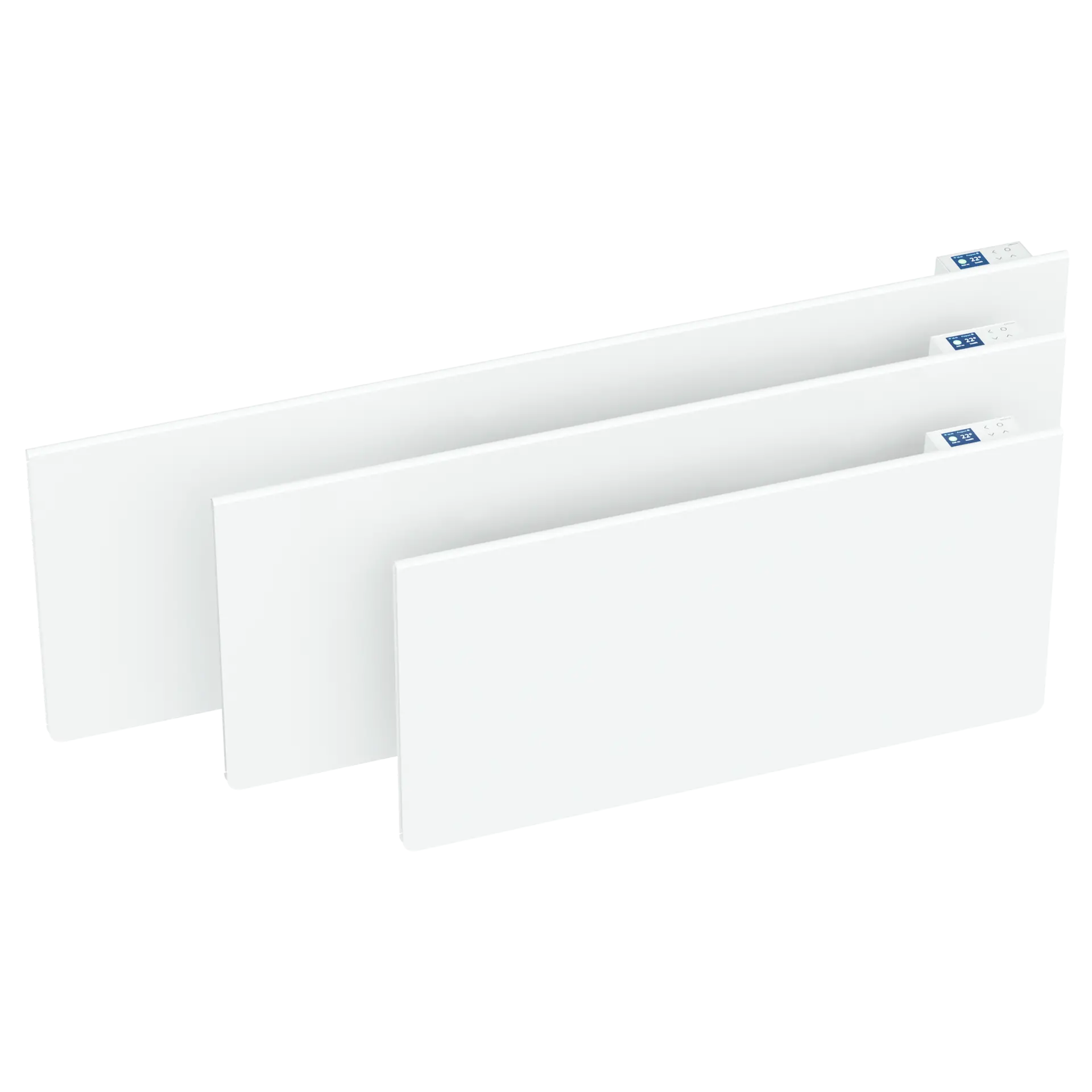

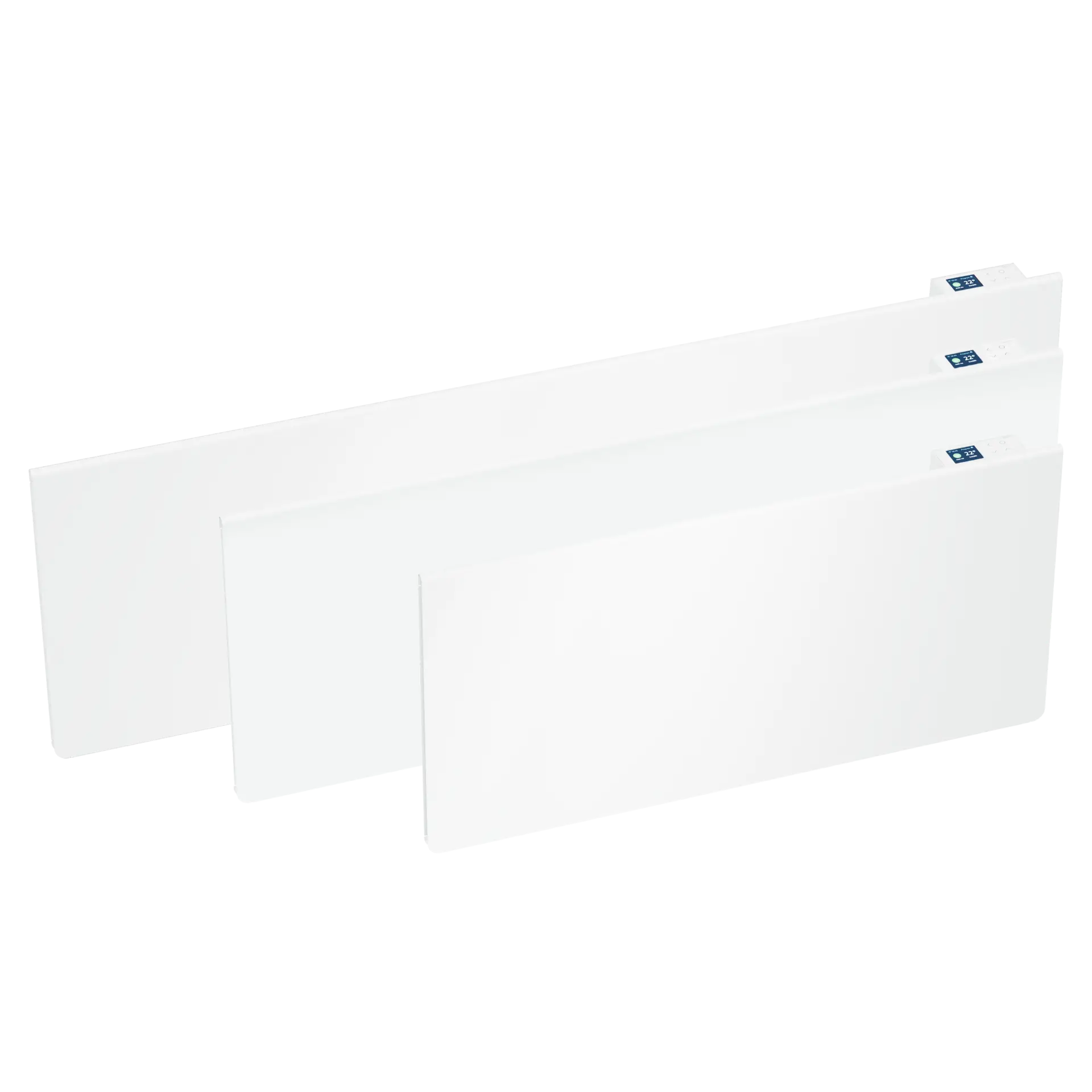

Article list

Article number Dimensions W x H x D (mm) Output (W) Rec. size (≤m²) Connection cable (mm²)
8540071 465 x 368 x 81 400 6 1
8540072 525 x 368 x 81 600 9 1
8540073 645 x 368 x 81 800 11 1
8540074 735 x 368 x 81 1000 13 1
8540075 945 x 368 x 81 1500 19 1
8540076 1155 x 368 x 81 2000 25 1

Specifications

Specification Data
Connection voltage 400 VAC ±10 % ~50–60 Hz
Length Connection cable 1,2 m
Connectors Plug
Colour White (RAL 9003)
App control possible Yes
Output 400 - 2000 W
Power consumption < 1,0 W
Power reserve Date and time via Wi-Fi
Contains SVHC substances according to REACH No
Enclosure class IP24
Control accuracy ± 0.3 °C
Air temperature range 5 ºC - 35 ºC
Material Metallic, plastic
Protection class Class II – Double insulation

Warranty

















Ebeco AB provides a 5-year product guarantee in the event of material defects.
