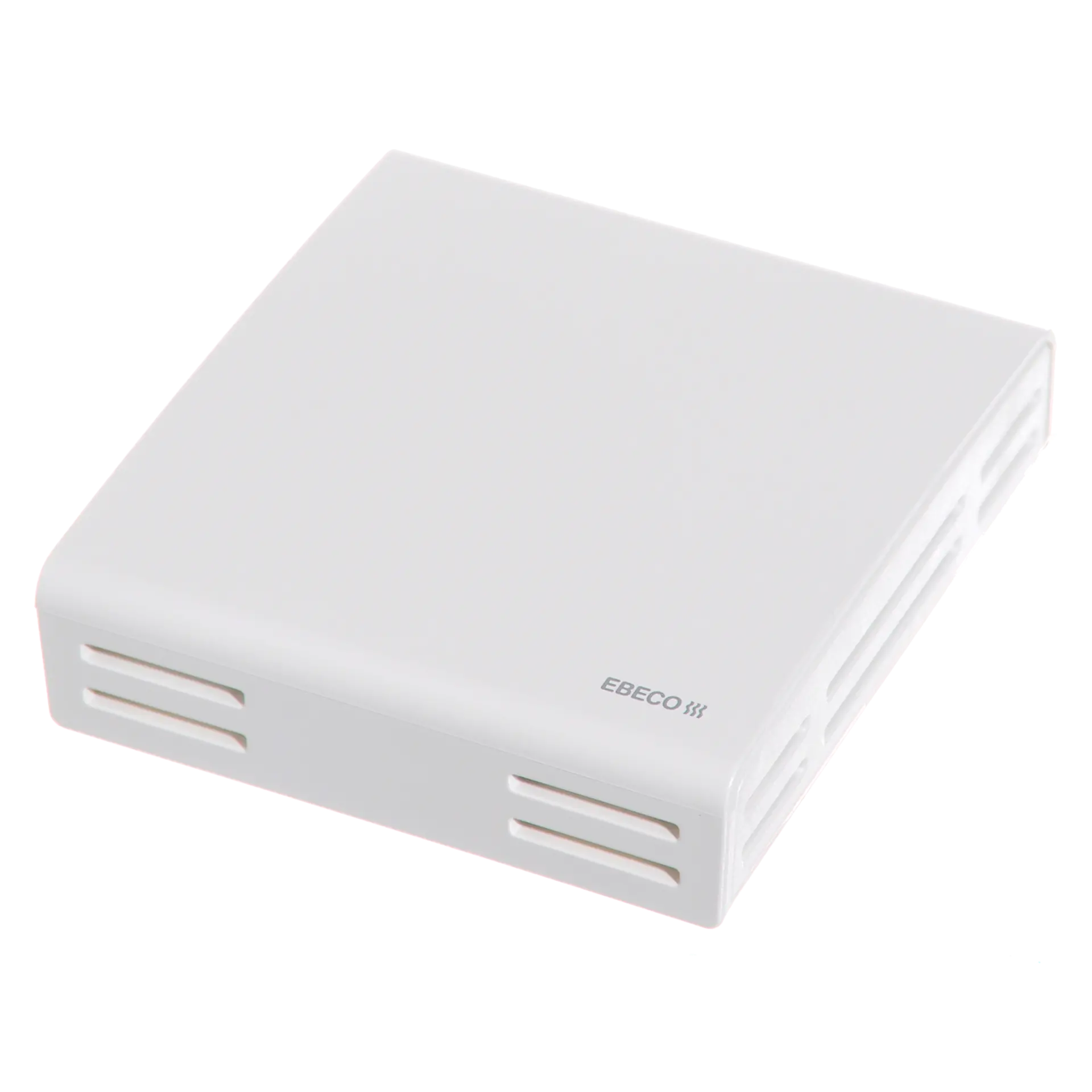

Enclosed sensor
Usage
- For Ebeco's thermostats
Supplement with this part if EB-Therm 800 is being used as the room thermostat or in Max/Min mode for roof installations.
Enclosed sensor
Specifications
| Specification | Data |
|---|---|
| Number of conductors | 2 pcs |
| Sensor element | NTC 10KΩ@25 °C |
| Extension sensor cable, max. | 50*1,5 mm2 |
| Contains SVHC substances according to REACH | No |
| Enclosure class | IP21/IP55 |
| Material sensor head | PC |
| Material cable | Cable not available |
| Temperature range | -20 °C - 75 °C |
Documents
Warranty
Ebeco AB provides a 5-year product guarantee in the event of material defects.
