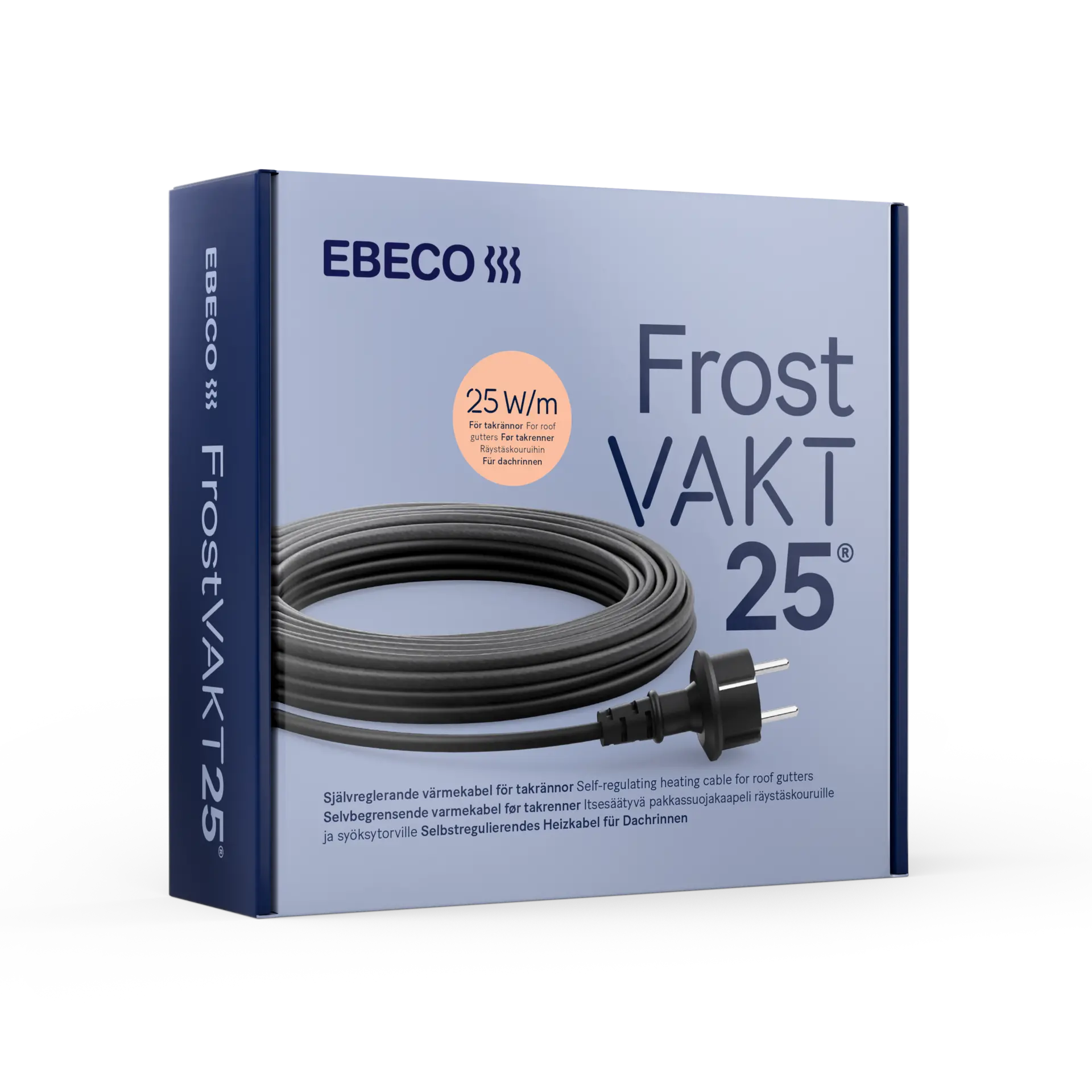

Frostvakt 25
Self-regulating heating cable
Usage
- For metal and plastic gutters and downpipes
- On the outside of insulated water pipes Ø 75 mm or larger
-
Plug -
Self-regulating -
25 W/m
-
Energy efficient
-
Can be crossed during installation
Frostvakt 25 has a 4 metre pre-assembled connection cable with plug and is ideal for installations in gutters and downpipes. It is easily secured in the gutter using the Ebeco Smartclip and connected to a grounded 230 V wall socket via a residual current device (RCD). Frostvakt 25 can be used on the outside of insulated water pipes Ø 75 mm or larger. A pipe with a diameter of Ø 100 mm and 20 mm insulation can withstand temperatures down to -30 °C when protected by Frostvakt 25.
Specifications
| Specification | Data |
|---|---|
| Connection voltage | 230 V |
| Connection cable | H07RN-F |
| Length Connection cable | 4,0 m |
| Number of conductors | 3 pcs |
| Connectors | Plug |
| Bending radius, min. | 35 mm |
| Output | Approx. 25 W/m at + 10° C (air), Approx. 45 W/m (snow and ice) |
| Exposure temperature (power off), max. | 85 ºC |
| Exposure temperature (power on), max. | Up to 65 ºC |
| Contains SVHC substances according to REACH | No |
| Installation temperature, min. | -40 ºC |
| Insulation material inner | EVA, LDPE |
| Insulation material outer | EVA, LDPE |
| Cable type | Self-regulating 2-conductor with screen |
| Enclosure class | Plug: IP44, cable: IP67 |
| Conductor area | 1,16 mm² |
| Dimensions | 10,9 * 6,0 mm |
| Protective conductor | Braided |
| UV resistance | Yes |
